Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
OK
Contact Us

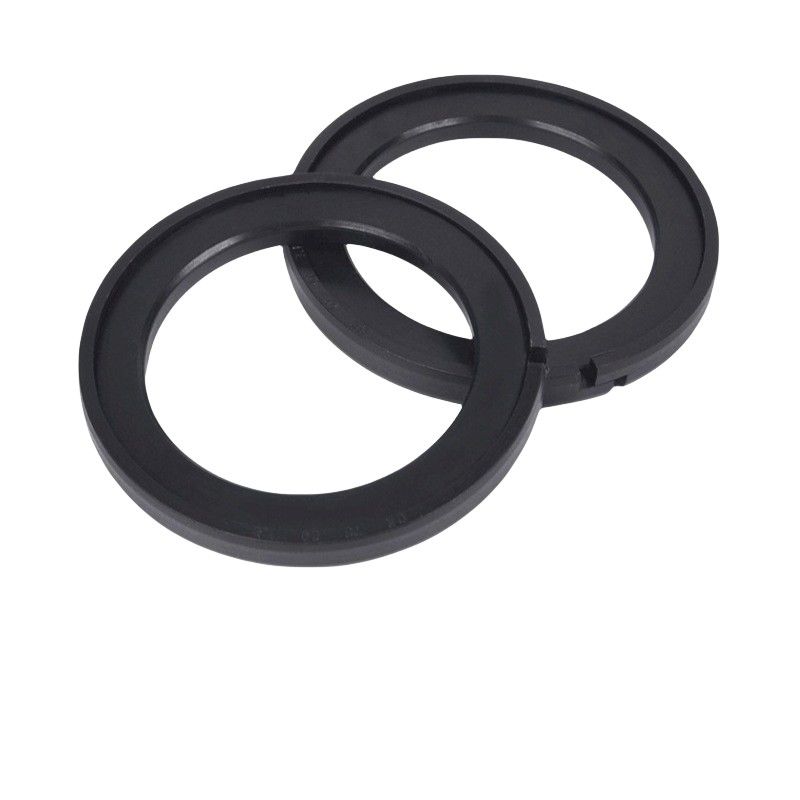

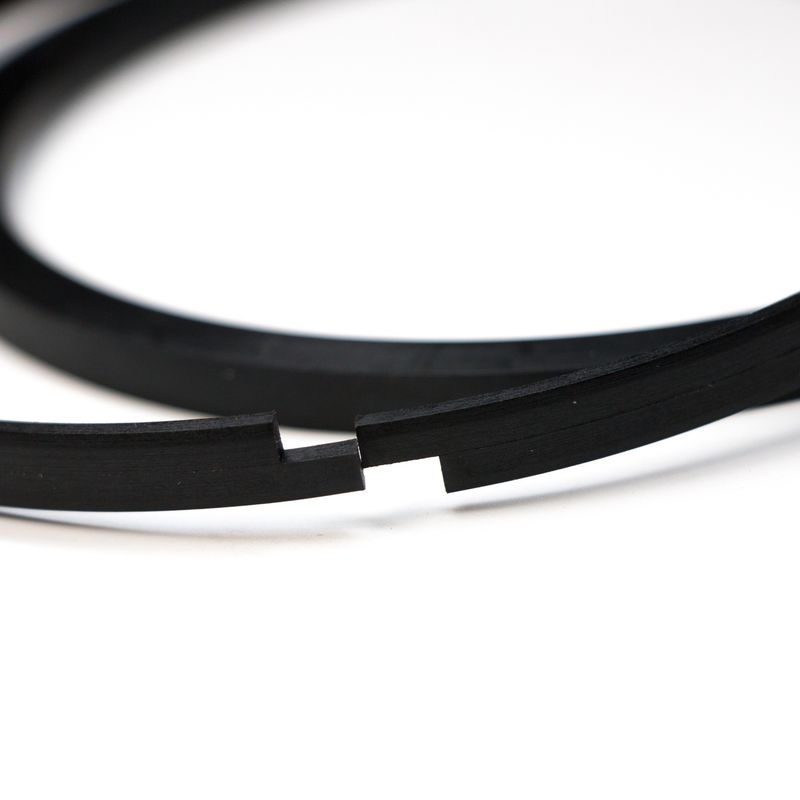

OK type sealing rings are mainly used for piston sealing in heavy-duty hydraulic cylinders. These seals are suitable for working pressures up to 800bar, and in some cases higher. The sealing ring consists of two components, one is an open sealing ring with high hardness made of special material, and the other is a rubber rectangular ring that provides elasticity. Since the hydraulic cylinder sealing ring has an open structure, no auxiliary tools are required for installation. OK The sealing space is small and the groove is simple. It can resist impact loads, has no viscosity, and has excellent friction and sassafras resistance. Even after holding pressure for a long time, the friction in starting and running is very small.
Temperature range: -30~+110℃
Working speed: 1m/s
Working pressure: 80Mpe
Medium: petroleum-based hydraulic fluid, flame-retardant hydraulic fluid, environmentally friendly and safe hydraulic fluid (bio-oil), water and others, depending on the sealing ring material;
Sealing ring: high grade POM;
0-ring: nitrile rubber NBR;

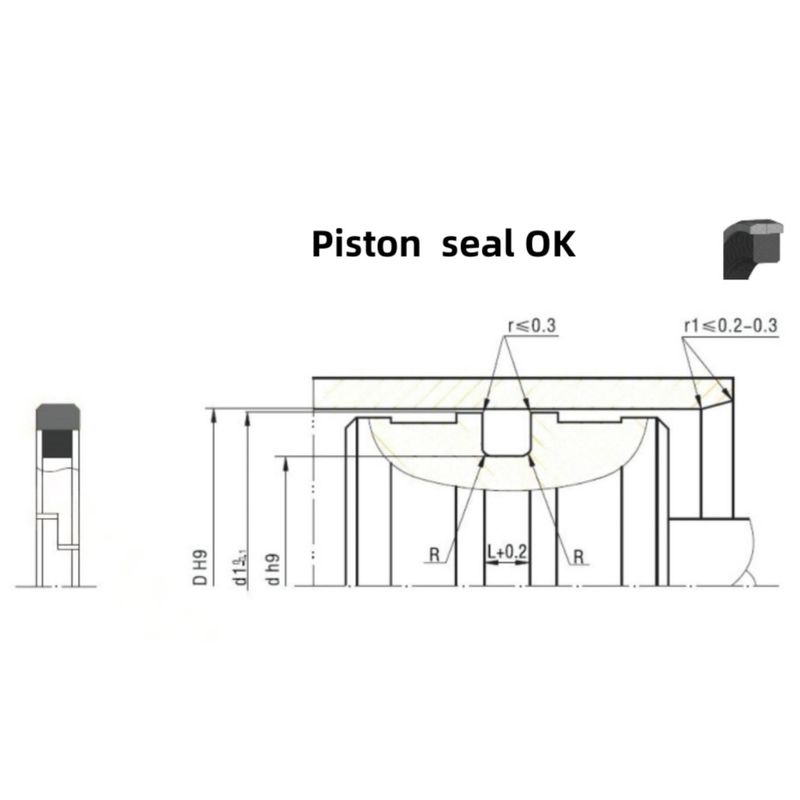

Bore size=63mm:OK063A or 0K 63*47.5*6.3
