Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
FOP
Contact Us

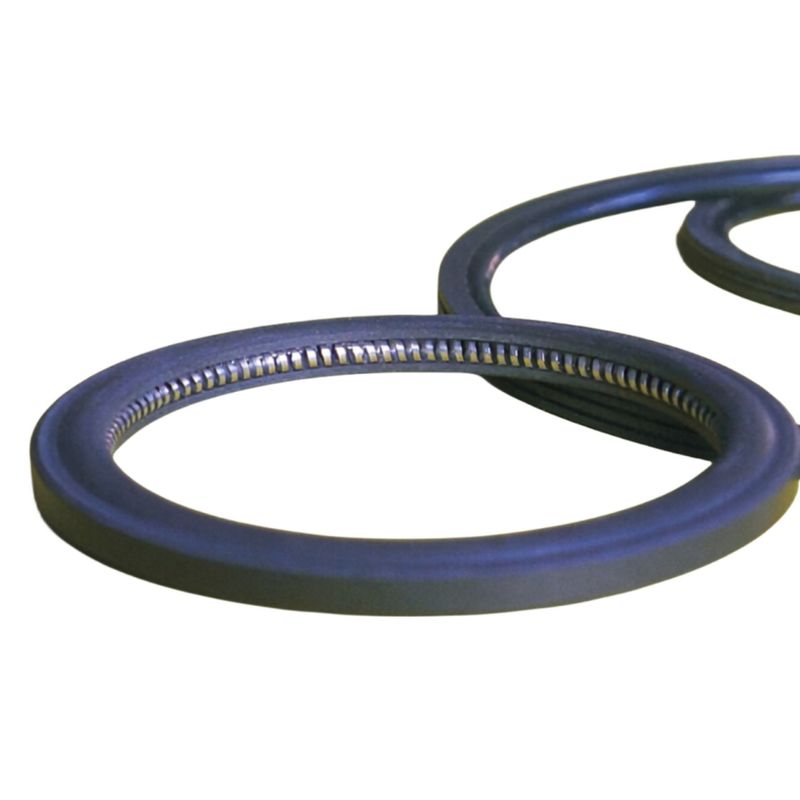

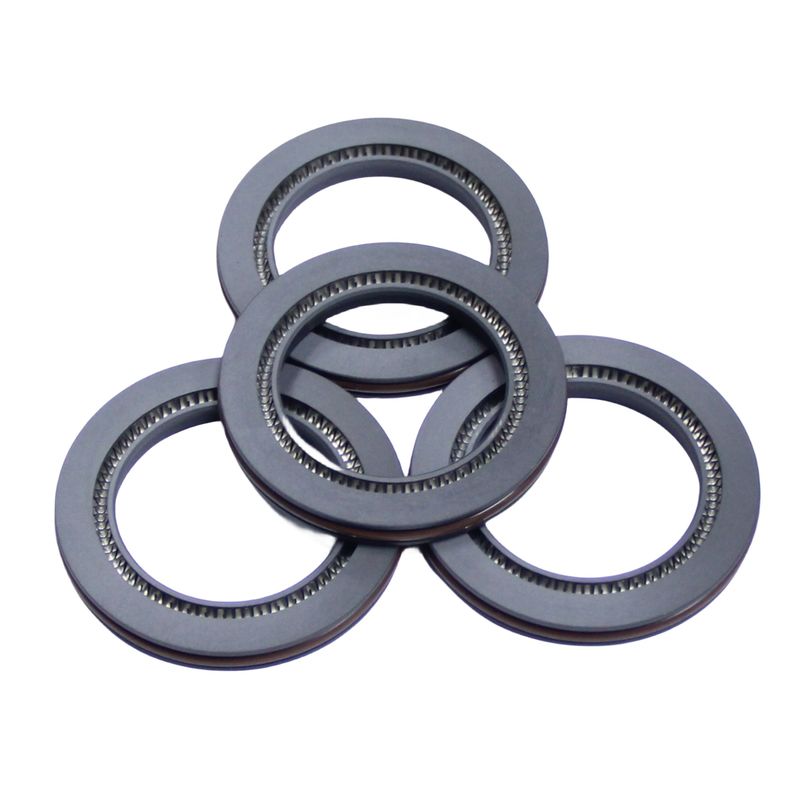

FOP is a one-way sealing ring composed of a stainless steel V-type (0-type) spring anda filled PTFE U-ring. It is used in slow, medium-speed reciprocating or slow-speed rotating motion situations, including hydraulic cylinders and air cylinders. It has a variety of different shapes and structures and a wide sealing pressure range. From vacuum to zero pressure and ultra-high pressure, reliable sealing requirements can be guaranteed. For low viscosity media and hot melt adhesive media, the sealing effect is bettergood. For the pharmaceutical and food processing industries, where disinfection and harsh chemical cleaning agents are required, the cavity at the spring can be filled with silicone to prevent contaminants from entering.
Features:
1. Can be used for reciprocating and rotating motion;
2. Can adapt to most fluids and chemicals;
3. Small friction coefficient and no crawling;
4. Strong anti-corrosion ability and good dimensional stability;
5. Will not contaminate food and pharmaceutical liquids, and can withstand rapid temperature changes;
Working conditions:
Temperature range: -200~+260℃
Working speed: reciprocating motion ≤15m/s, rotating motion ≤2.5m/s.
Working pressure: static vacuum ~120Mpa, dynamic vacuum ~45Mpa.
Media: All liquids, chemicals and gases.
Standard materials:
U-shaped outer ring: filled with polytetrafluoroethylene PTFE
V-shaped spring: stainless steel 304/316
Type 0 spring: stainless steel 304/316
