Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
AQ
Contact Us

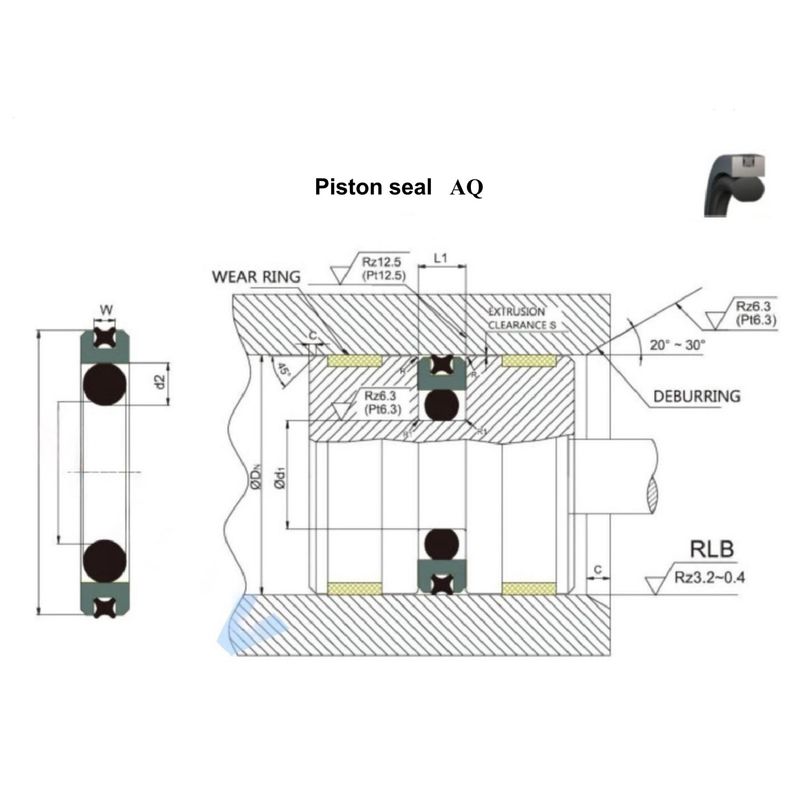

AQ is suitable for working conditions with fast speed, high pressure and pressure maintenance. Recommended for double-acting pistons such as piston accumulators, support cylinders and positioning cylinders. It has the dual safety of low friction and high elasticity, good dynamic and static sealing performance, allows a large extrusion gap, and has a pressure maintaining function with small leakage in the cylinder. The groove is simple, the installation space is small, the sliding performance is good, and there is no crawling phenomenon.
Working conditions:
Temperature range: -60~+280℃
Working speed: 2m/s
Working pressure: 40Mpa
Medium: general hydraulic oil, retardant oil, water and others.
Standard materials:
Seal ring: filled with polytetrafluoroethylene PTFE
0-ring: nitrile rubber NBR or fluorine rubber FKM
X-ring: nitrile rubber NBR or fluorine rubber FKM
