Place of Origin:
CHINA
Brand Name:
KELONG
Certification:
ISO9001 / IRIS
Model Number:
KLHPS-13
Contact Us
1,product description

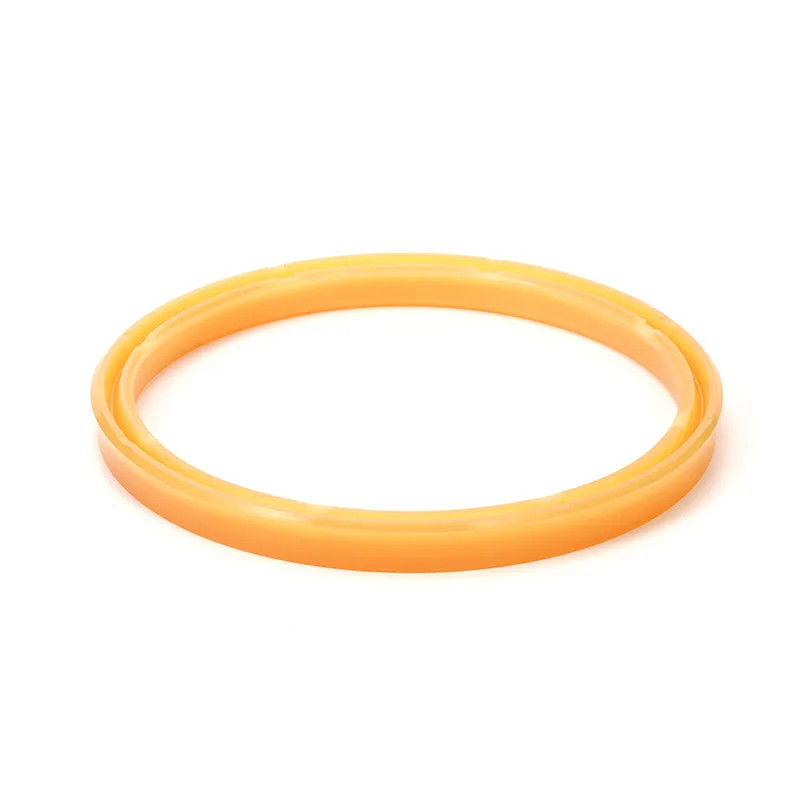

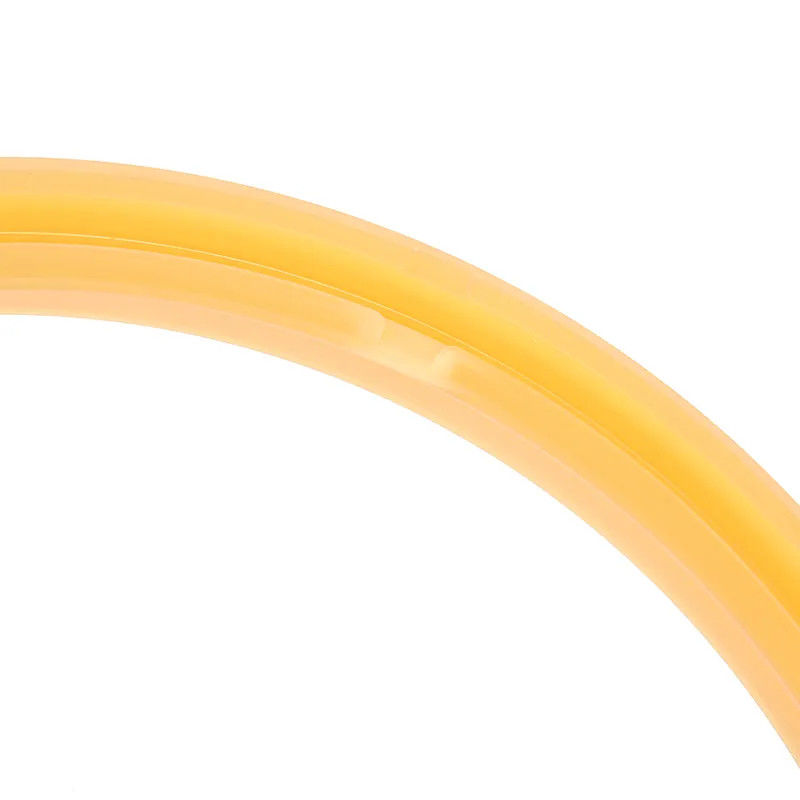

View larger image Add to Compare Share High Quality Hydraulic Oil Seals 140*150*6 Universal Piston-seal Durable Polyur
Description of design
KLHPS-13 is a high-performance single-acting U-rod or piston all-purpose seal that provides the driest seal in light - and medium-load applications. The seals are injection molded with KELONG high performance U5203 material,easy to install and excellent low temperature resistance.When used in conjunction with a full-coverage retainer, the seal may be considered for heavy-duty applications. Unique design seal lip Angle provides optimal sealing performance.
2,Product Parameters
Work Pressure:<35MapOperating Temperature:-20°~100Medium: Oilemulsion/waterMaterial: Polyurethane
3,Material analysis
| Material Types and General Properties | |||||
| <Table 1>Material types and general properties | |||||
| Item Type |
Temp.R ange("C) | Property | |||
| High Temp.R | Low Temp.R | ||||
| ACM | 150 | -10 | It is used in diaphragm,hose for automotive application.Good resistance to heat,ozone and oil.Generally attacked by water,alcohol,glycol and aromatic hydrocarbons.The molecular structure contains ethyl acrylate(EA),butyl acrylate (BA),and ethyl acrylate(MEA).High BA content get better low temperature resistance,and high MEA content get more oil resistance. |
||
| NR | 70 | -40 | Excellent compression set,high tensile strength,resilience,abrasion,tear resistance,good friction characteristics,excellent bonding capabilities to metal substrate,and good vibration dampening characteristics |
||
| VMQ | 225 | 55 | The most widely temperature ranges for application.Good weather and ozone resistance,but poor mechanical property and chemical resistance. |
||
| PTFE | 250 | -150 | Due to the low friction coefficient,it is used in oil seal lip.However,it is poor elastic property |
||
| TPU | 100 | -40 | Polyurethane is one of the groups of elastic thermoplastic materials.PU has been used in seal technology for many years because of their physica characteristics.It is an organic material of high molecular weight whose chemical composition is characterized by a large number of urethane groups.In addition it is characterized by extremely good mechanical properties such as high tensile strength,abrasive resistance,tear strength,and extrusion strength.However t is not resistant to polar solvents,chlorinated hydrocarbons,aromatics,brake fluids,acids,and alkalis |
||
| FKM | Excellent chemical resistance except ester and ketone | ||||
| 200 | -25 | Dipolymer | Copolymer of vinylidiene fluoride and hexafluoro propylene,and fluorine content is 66%. |
||
| -20 | Tripolymer | Copolymer of vinylidiene fluonide,hexafluoro propylene and tetrafluro ethylene.Fluorine content is 68%.Tripolymer has better fluid resistance than dipolymer |
|||
| XNBR | 100 | -40 | Modification of traditional NBR with the insertion of carboxyl groups It has better tensile strength,modulus,abrasion than NBR |
||
4,product features
- high wear resistance, low pressure deformation and excellent anti-extrusion performance - tear resistance especially in bending and tensile - easy installation
5,Application scenarios
