Place of Origin:
CHINA
Brand Name:
KELONG
Model Number:
Rubber V-seal VE Rotary Shaft Seal Ring
Contact Us
Type E V-rings has a straight back that serves as an unpressurized axial rod seal with a very small mounting length and is fixed to the shaft. The flexible lip seals an opposing face at a right angle to the axis preventing dirt, dust and splashes from entering the construction. The V-Ring V-E is designed for heavy use and is applied in situations where larger axial tolerances are required. This profile is delivered for axles from Ø450 to Ø2010 mm.

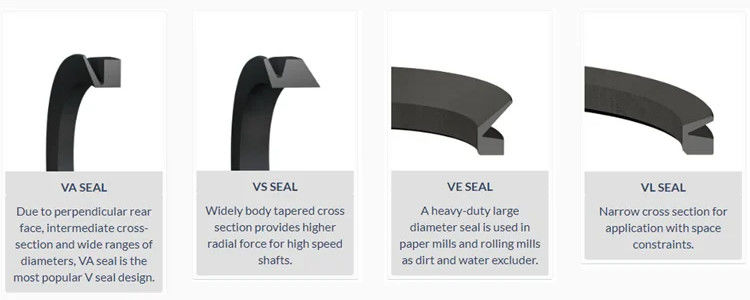

The V-Ring V-E are heavy-duty, large-diameter V-ring seals that also allow for the largest axial displacements. They are commonly used as side seals and in rolling mills to exclude dirt and water. The V-Ring V-E styles can be stretched up to 2 1/2 times their original diameter as well.

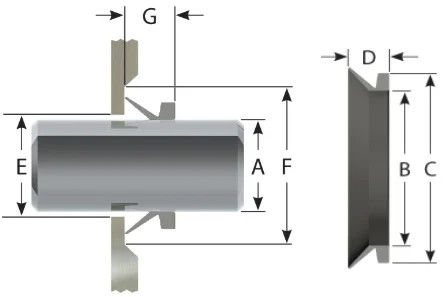

| A | B | A | B | A | B | |||||
| Part Number | Shaft Diameter | Seal I.D. | Part Number | Shaft Diameter | Seal I.D. | Part Number | Shaft Diameter | Seal I.D. | ||
| VE 450 | 450.00-455.00 | 439.00 | VE 670 | 670.00-680.00 | 650.00 | VE 1040 | 1025.00-1045.00 | 990.00 | ||
| VE 455 | 455.00- 460.00 | 444.00 | VE 680 | 680.00- 690.00 | 660.00 | VE 1060 | 1045.00- 1065.00 | 1008.00 | ||
| VE 460 | 460.00- 465.00 | 448.00 | VE 690 | 690.00- 700.00 | 670.00 | VE 1080 | 1065.00- 1085.00 | 1027.00 | ||
| VE 465 | 465.00- 470.00 | 453.00 | VE 700 | 700.00- 710.00 | 680.00 | VE 1100 | 1085.00-1105.00 | 1045.00 | ||
| VE 470 | 470.00-475.00 | 458.00 | VE 710 | 710.00-720.00 | 689.00 | VE 1120 | 1105.00-1125.00 | 1065.00 | ||
| VE 475 | 475.00-480.00 | 463.00 | VE 720 | 720.00-730.00 | 699.00 | VE 1140 | 1125.00-1145.00 | 1084.00 | ||
| VE 480 | 480.00- 485.00 | 468.00 | VE 730 | 730.00- 740.00 | 709.00 | VE 1160 | 1145.00- 1165.00 | 1103.00 | ||
| VE 485 | 485.00- 490.00 | 473.00 | VE 740 | 740.00- 750.00 | 718.00 | VE 1180 | 1165.00-1185.00 | 1121.00 | ||
| VE 490 | 490.00- 495.00 | 478.00 | VE 750 | 750.00-758.00 | 728.00 | VE 1200 | 1185.00- 1205.00 | 1139.00 | ||
| VE 495 | 495.00- 500.00 | 483.00 | VE 760 | 758.00-766.00 | 735.00 | VE 1220 | 1205.00-1225.00 | 1157.00 | ||
| VE 500 | 500.00- 505.00 | 488.00 | VE 770 | 766.00-774.00 | 743.00 | VE 1240 | 1225.00- 1245.00 | 1176.00 | ||
| VE 505 | 505.00- 510.00 | 493.00 | VE 780 | 774.00- 783.00 | 751.00 | VE 1260 | 1245.00- 1270.00 | 1195.00 | ||
| VE 510 | 510.00- 515.00 | 497.00 | VE 790 | 783.00- 792.00 | 759.00 | VE 1280 | 1270.00-1295.00 | 1218.00 | ||
| VE 515 | 515.00- 520.00 | 502.00 | VE 800 | 792.00- 801.00 | 768.00 | VE 1300 | 1296.00- 1315.00 | 1240.00 | ||
| VE 520 | 520.00- 525.00 | 507.00 | VE 810 | 801.00-810.00 | 777.00 | VE 1325 | 1315.00-1340.00 | 1259.00 | ||
| VE 525 | 525.00- 530.00 | 512.00 | VE 820 | 810.00-821.00 | 786.00 | VE 1350 | 1340.00- 1365.00 | 1281.00 | ||
| VE 530 | 530.00- 535.00 | 517.00 | VE 830 | 821.00- 831.00 | 796.00 | VE 1375 | 1365.00- 1390.00 | 1305.00 | ||
| VE 535 | 535.00- 540.00 | 521.00 | VE 840 | 831.00- 841.00 | 805.00 | VE 1400 | 1390.00- 1415.00 | 1328.00 | ||
| VE 540 | 540.00- 545.00 | 526.00 | VE 850 | 841.00-851.00 | 814.00 | VE 1425 | 1415.00-1440.00 | 1350.00 | ||
| VE 545 | 545.00- 550.00 | 531.00 | VE 860 | 851.00-861.00 | 824.00 | VE 1450 | 1440.00-1465.00 | 1374.00 | ||
| VE 550 | 550.00- 555.00 | 536.00 | VE 870 | 861.00-871.00 | 833.00 | VE 1475 | 1465.00-1490.00 | 1397.00 | ||
| VE 555 | 555.00- 560.00 | 541.00 | VE 880 | 871.00- 882.00 | 843.00 | VE 1500 | 1490.00- 1515.00 | 1419.00 | ||
| VE 560 | 560.00- 565.00 | 546.00 | VE 890 | 882.00- 892.00 | 853.00 | VE 1525 | 1515.00- 1540.00 | 1443.00 | ||
| VE 565 | 565.00- 570.00 | 550.00 | VE 900 | 892.00-912.00 | 871.00 | VE 1550 | 1540.00-1570.00 | 1467.00 | ||
| VE 570 | 570.00-575.00 | 555.00 | VE 920 | 912.00-922.00 | 880.00 | VE 1575 | 1570.00-1600.00 | 1495.00 | ||
| VE 575 | 575.00- 580.00 | 560.00 | VE 930 | 922.00- 933.00 | 890.00 | VE 1600 | 1600.00-1640.00 | 1524.00 | ||
| VE 580 | 580.00- 585.00 | 565.00 | VE 940 | 933.00- 944.00 | 900.00 | VE 1650 | 1640.00- 1680.00 | 1559.00 | ||
| VE 585 | 585.00- 590.00 | 570.00 | VE 950 | 944.00- 955.00 | 911.00 | VE 1700 | 1680.00-1720.00 | 1596.00 | ||
| VE 590 | 590.00-600.00 | 575.00 | VE 960 | 955.00-966.00 | 921.00 | VE 1750 | 1720.00-1765.00 | 1632.00 | ||
| VE 600 | 600.00-610.00 | 582.00 | VE 970 | 966.00- 977.00 | 932.00 | VE 1800 | 1765.00-1810.00 | 1671.00 | ||
| VE 610 | 610.00-620.00 | 592.00 | VE 980 | 977.00- 988.00 | 942.00 | VE 1850 | 1810.00-1855.00 | 1714.00 | ||
| VE 620 | 620.00-630.00 | 602.00 | VE 990 | 988.00- 999.00 | 953.00 | VE 1900 | 1855.00- 1905.00 | 1753.00 | ||
| VE 630 | 630.00-640.00 | 612.00 | VE 1000 | 999.00- 1010.00 | 963.00 | VE 1950 | 1905.00- 1955.00 | 1794.00 | ||
| VE 640 | 640.00-650.00 | 621.00 | VE 1020 | 1010.00- 1025.00 | 973.00 | VE 2000 | 1955.00- 2010.00 | 1844.00 | ||
| VE 650 | 650.00-660.00 | 631.00 | ||||||||
