Rubber V-seal VS Rotary Shaft Seal Ring
Contact Us

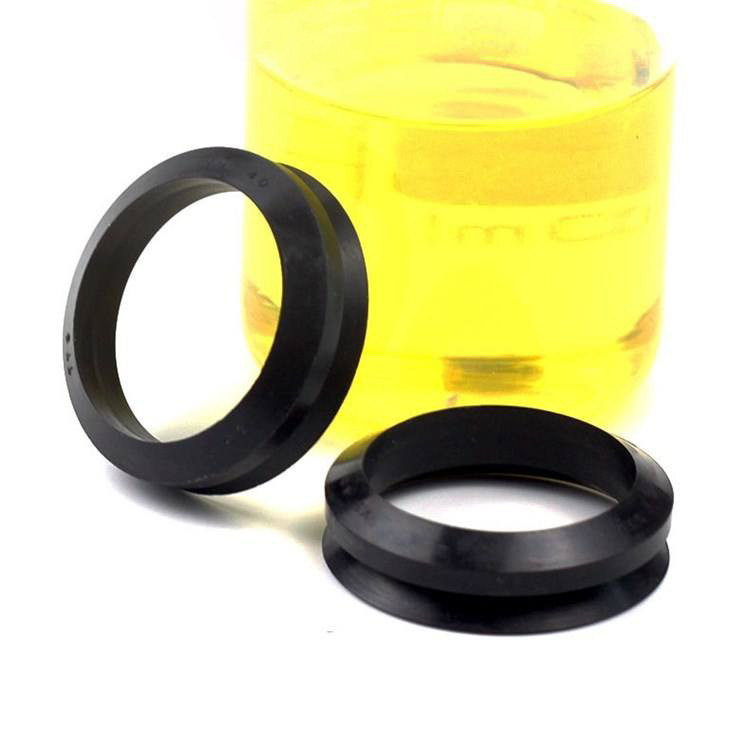

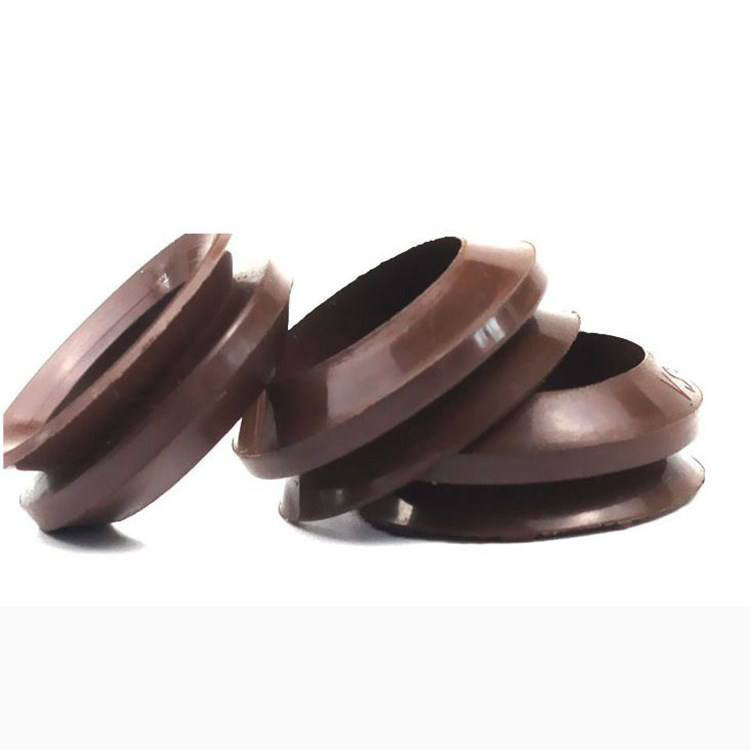

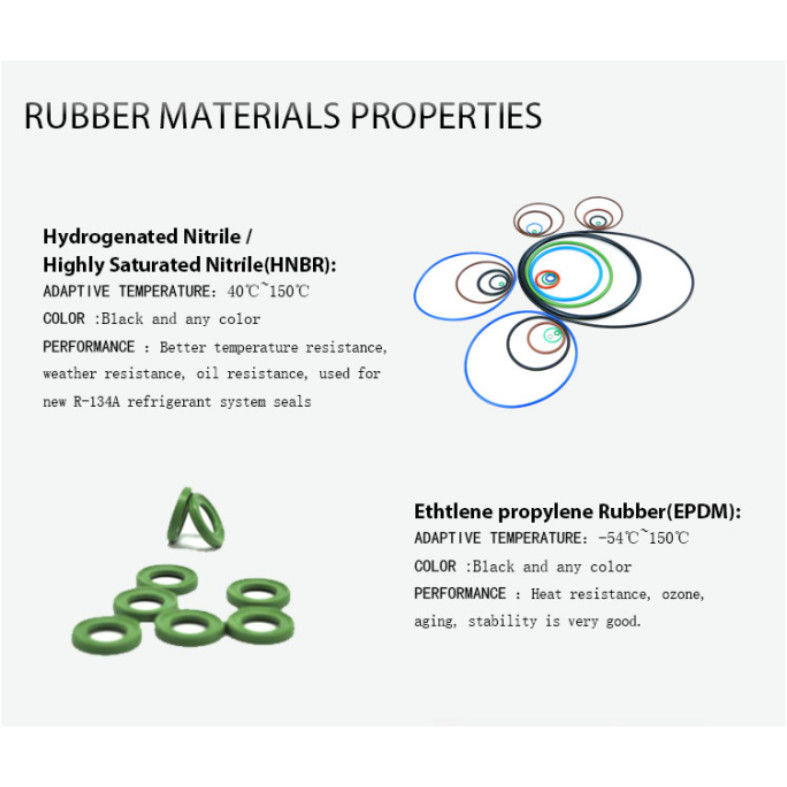

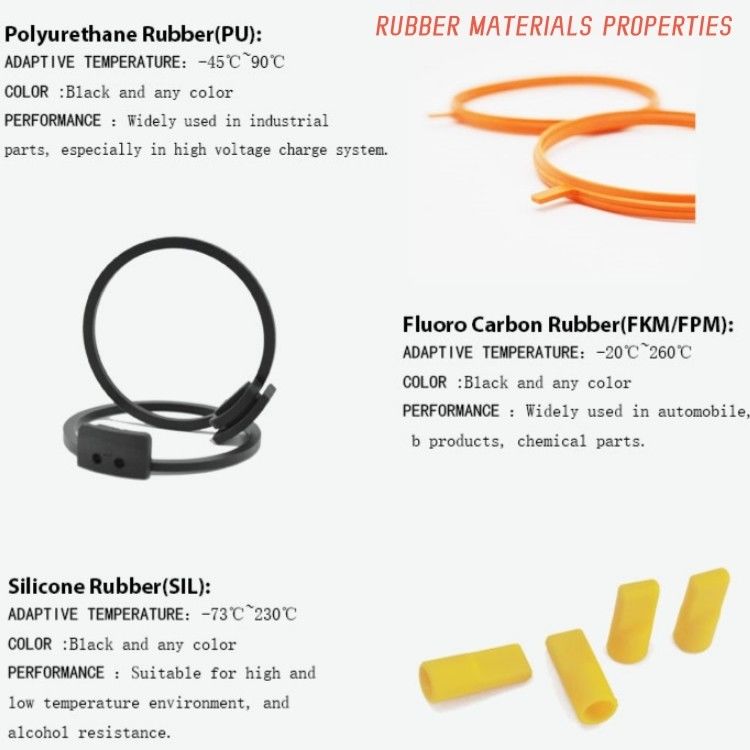

Hydraulic Cylinder FKM Rubber V-Ring Water Seal NBR Rubber V-Seal VS Rotary Shaft Seal Ring

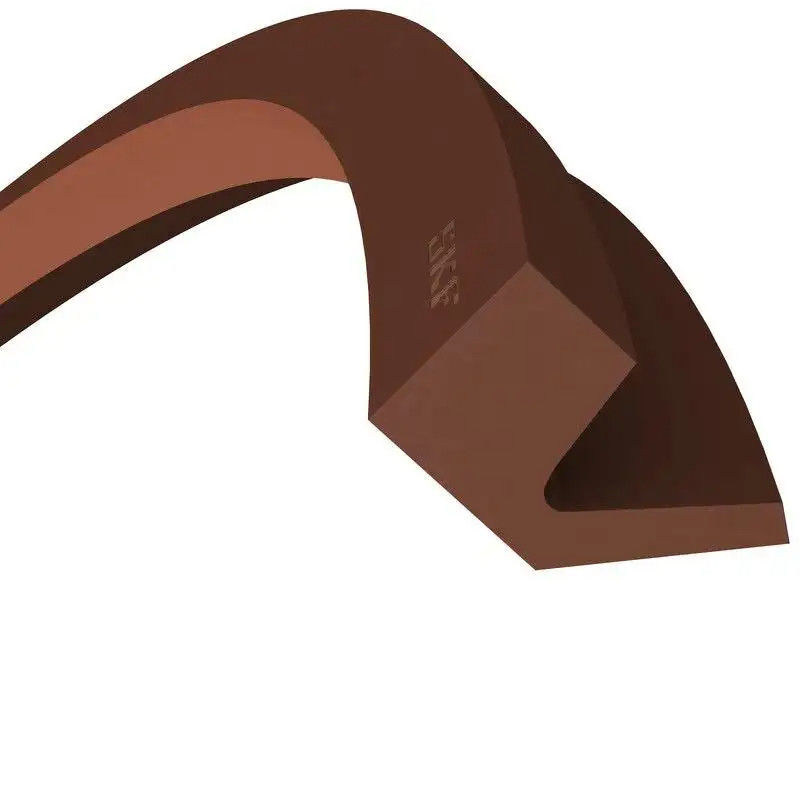

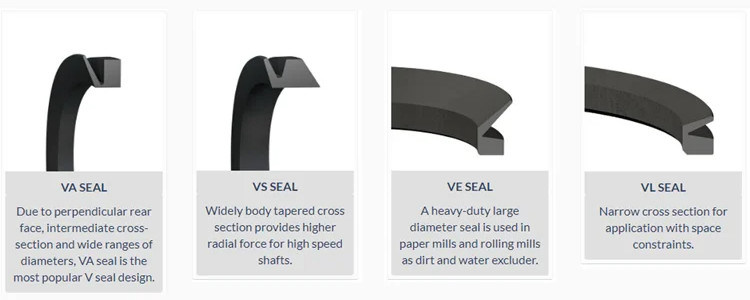

Type S V-rings with bevel back serves as a pressure-less, axial rod seal which is clamped on a shaft. The flexible sealing lip seals a counterface at a right angle to the shaft, preventing dirt, dust and splash to enter the construction. Available in sizes from .180″ (4.5mm) shaft to 8.270″ (210mm). Commonly used in agricultural and automotive applications.

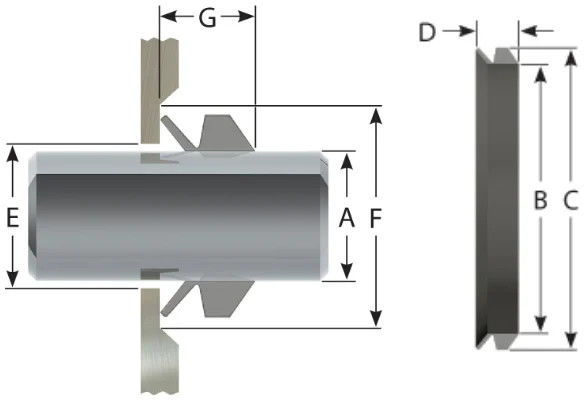

| Seal Dimensions | Housing Dimensions | ||||||
| A | B | C | D | E | F | G | |
| Part Number | Shaft Diameter | I.D. | O.D | Height | I.D. | O.D | Width |
| VS 005 | 4.50-5.50 | 4.00 | 8.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 006 | 5.50 ·6.50 | 5.00 | 9.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 007 | 6.50-8.00 | 6.00 | 10.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 008 | 8.00-9.50 | 7.00 | 11.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 010 | 9.50-11.50 | 9.00 | 15.00 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 012 | 11.50-13.50 | 10.50 | 16.50 | 7.70 | A+ 2.00 | A+9.00 | 6.70±0.60 |
| VS 014 | 13.50-15.50 | 12.50 | 18.50 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 016 | 15.50-17.50 | 14.00 | 20.00 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 018 | 17.50-19.00 | 16.00 | 22.00 | 7.70 | A+2.00 | A+9.00 | 6.70± 0.60 |
| VS 020 | 19.00-21.00 | 18.00 | 26.00 | 10.50 | A+2.00 | A+ 12.00 | 9.00±0.80 |
| VS 022 | 21.00-24.00 | 20.00 | 28.00 | 10.50 | A+2.00 | A+ 12.00 | 9.00±0.80 |
| VS 025 | 24.00-27.00 | 22.00 | 30.00 | 10.50 | A+2.00 | A+12.00 | 9.00±0.80 |
| VS 028 | 27.00-29.00 | 25.00 | 33.00 | 10.50 | A+3.00 | A+12.00 | 9.00±0.80 |
| VS 030 | 29.00-31.00 | 27.00 | 35.00 | 10.50 | A+ 3.00 | A+ 12.00 | 9.00± 0.80 |
| VS 032 | 31.00-33.00 | 29.00 | 37.00 | 10.50 | A+3.00 | A+ 12.00 | 9.00±0.80 |
| VS 035 | 33.00-36.00 | 31.00 | 39.00 | 10.50 | A+ 3.00 | A+ 12.00 | 9.00±0.80 |
| VS 038 | 36.00-38.00 | 34.00 | 42.00 | 10.50 | A + 3.00 | A+ 12.00 | 9.00±0.80 |
| VS 040 | 38.00-43.00 | 36.00 | 46.00 | 13.00 | A+ 3.00 | A+15.00 | 11.00±1.00 |
| VS 045 | 43.00-48.00 | 40.00 | 50.00 | 13.00 | A+3.00 | A+15.00 | 11.00±1.00 |
| VS 050 | 48.00-53.00 | 45.00 | 55.00 | 13.00 | A+3.00 | A+ 15.00 | 11.00±1.00 |
| V5055 | 53.00-58.00 | 49.00 | 59.00 | 13.00 | A+3.00 | A+15.00 | 11.00±1.00 |
| VS 060 | 58.00-63.00 | 54.00 | 64.00 | 13.00 | A+ 3.00 | A+ 15.00 | 11.00±1.00 |
| VS 065 | 63.00-68.00 | 58.00 | 68.00 | 13.00 | A+ 3.00 | A+15.00 | 11.00±1.00 |
| VS 070 | 68.00-73.00 | 63.00 | 75.00 | 15.50 | A+4.00 | A+ 18.00 | 13.50±1.20 |
| VS 075 | 73.00-78.00 | 67.00 | 79.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 080 | 78.00-83.00 | 72.00 | 84.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 085 | 83.00-88.00 | 76.00 | 88.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 090 | 88.00-93.00 | 81.00 | 93.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 095 | 93.00-98.00 | 85.00 | 97.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 100 | 98.00-105.00 | 90.00 | 102.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 110 | 105.00 ·115.00 | 99.00 | 113.00 | 18.00 | A+4.00 | A+21.00 | 15.50±1.50 |
| VS 120 | 115.00-125.00 | 108.00 | 122.00 | 18.00 | A+4.00 | A+21.00 | 15.50±1.50 |
| VS 130 | 125.00-135.00 | 117.00 | 131.00 | 18.00 | A+4.00 | A+ 21.00 | 15.50±1.50 |
| VS 140 | 135.00-145.00 | 126.00 | 140.00 | 18.00 | A+4.00 | A+ 21.00 | 15.50±1.50 |
| VS 150 | 145.00-155.00 | 135.00 | 149.00 | 18.00 | A+4.00 | A+ 21.00 | 15.50±1.50 |
| VS 160 | 155.00 ·165.00 | 144.00 | 160.00 | 20.50 | A+5.00 | A+24.00 | 18.00±1.80 |
| VS 170 | 165.00-175.00 | 153.00 | 169.00 | 20.50 | A+5.00 | A+ 24.00 | 18.00±1.80 |
| VS 180 | 175.00-185.00 | 162.00 | 178.00 | 20.50 | A+5.00 | A+24.00 | 18.00±1.80 |
| VS 190 | 185.00-195.00 | 171.00 | 187.00 | 20.50 | A+5.00 | A+24.00 | 18.00±1.80 |
| VS 199 | 195.00-210.00 | 180.00 | 196.00 | 20.50 | A+ 5.00 | A+24.00 | 18.00±1.80 |
