Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
SAE 100 R13
Contact Us
SAE 100 R13 1/4 Inch 3/4inch Suction Steel Wire Braided Hydraulic Hose Pipe With Oil Resistant Tube

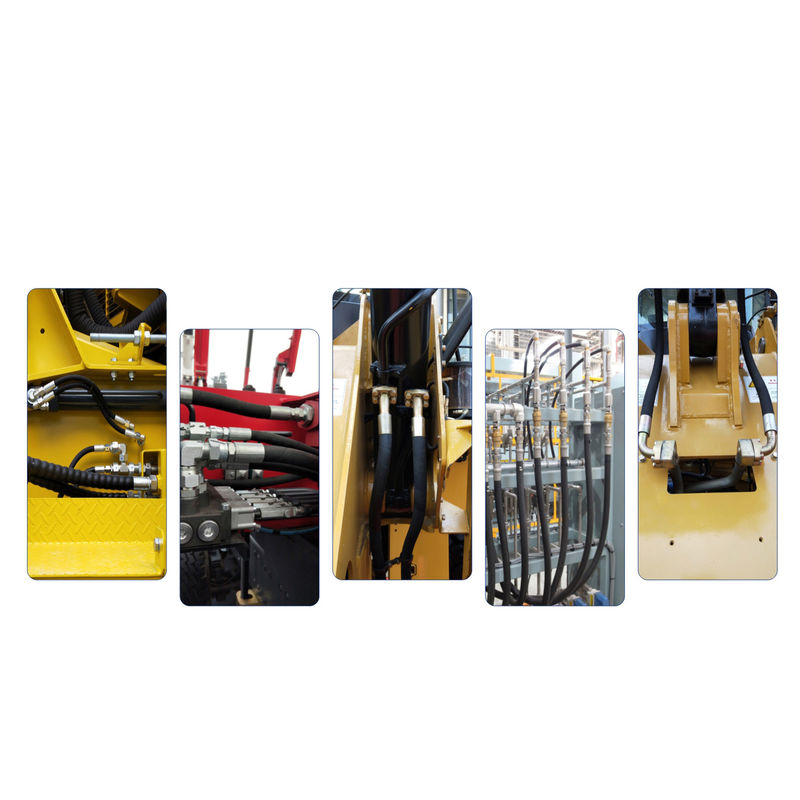

Application:
This hose is suitable for delivering petroleum-based hydraulic oils and it is also mainly used in high pressure working
conditions.
Features:
1, Excellent performance in conveying petroleum-based hydraulic oils by made from black oil resistant synthetic rubber
2, The reinforcement is made from multiple layers of high tensile and high strength thick spiraled steel wire in alternating
direction, making the hose have extremely high working pressure.
3, Good resistance to abrasion, corrosion, cut, weather, ozone, aging and sunlight.
4, Having longer service life.
Material:
Tube: high quality black oil resistant synthetic rubber.

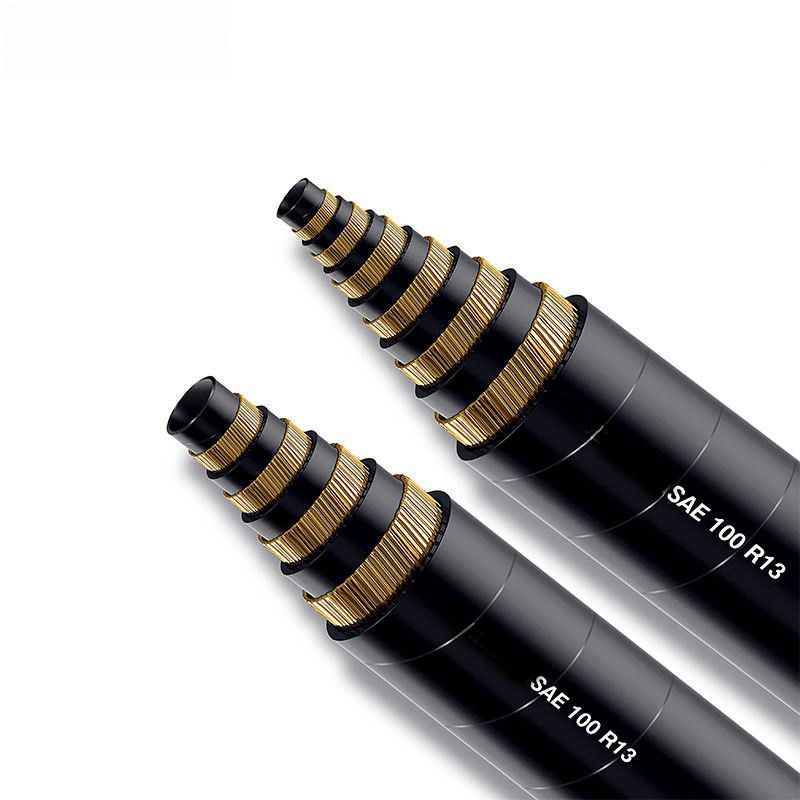

Reinforcement: multiple layers of high tensile and high strength thick spiraled steel wire in alternating direction.
Cover: high quality black abrasion, corrosion and weather resistant synthetic rubber
Working temperature range: -40°C to +121°C.
Working pressure: 35 MPa.
Proof pressure: 70 MPa.
Min burst pressure: 140 MPa
|

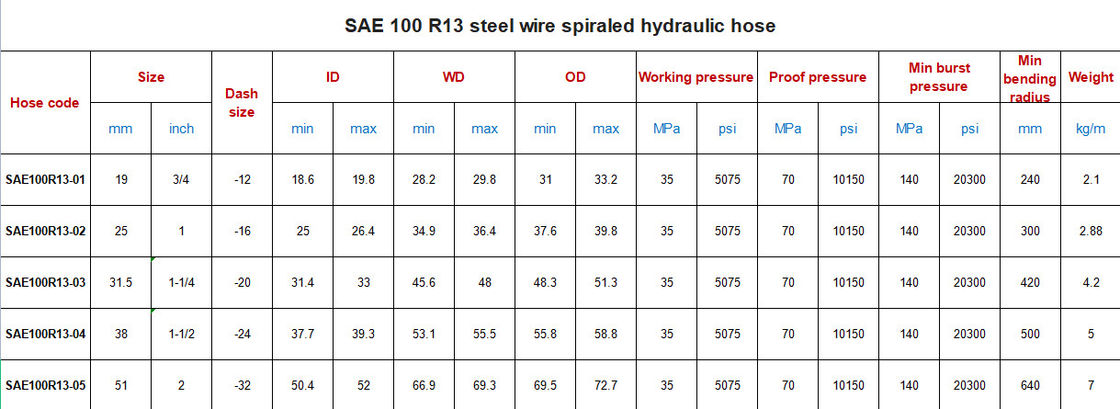

SAE 100 R13 steel wire spiraled hydraulic hose |
|||||||||||||||||
|
Hose code |
Size |
Dash |
ID |
WD |
OD |
Working pressure |
Proof pressure |
Min burst |
Min |
Weight |
|||||||
|
mm |
inch |
min |
max |
min |
max |
min |
max |
MPa |
psi |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
||
|
SAE100R13-01 |
19 |
3/4 |
-12 |
18.6 |
19.8 |
28.2 |
29.8 |
31 |
33.2 |
35 |
5075 |
70 |
10150 |
140 |
20300 |
240 |
2.1 |
|
SAE100R13-02 |
25 |
1 |
-16 |
25 |
26.4 |
34.9 |
36.4 |
37.6 |
39.8 |
35 |
5075 |
70 |
10150 |
140 |
20300 |
300 |
2.88 |
|
SAE100R13-03 |
31.5 |
1-1/4 |
-20 |
31.4 |
33 |
45.6 |
48 |
48.3 |
51.3 |
35 |
5075 |
70 |
10150 |
140 |
20300 |
420 |
4.2 |
|
SAE100R13-04 |
38 |
1-1/2 |
-24 |
37.7 |
39.3 |
53.1 |
55.5 |
55.8 |
58.8 |
35 |
5075 |
70 |
10150 |
140 |
20300 |
500 |
5 |
|
SAE100R13-05 |
51 |
2 |
-32 |
50.4 |
52 |
66.9 |
69.3 |
69.5 |
72.7 |
35 |
5075 |
70 |
10150 |
140 |
20300 |
640 |
7 |
