Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
SAE 100 R15 1/4
Contact Us

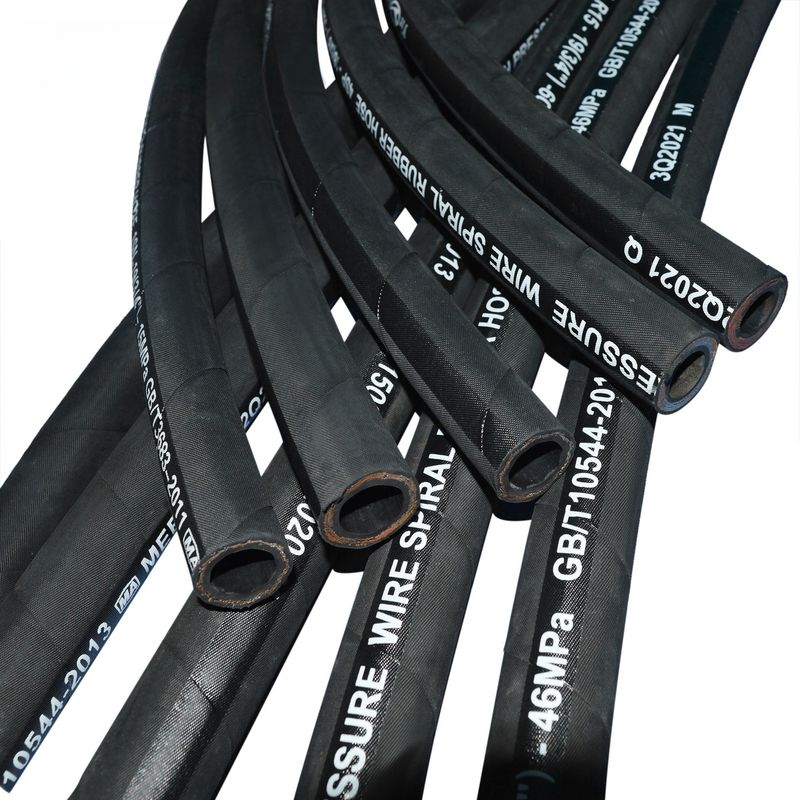

SAE 100 R15 1/4 Inch Suction Steel Wire Braided Hydraulic Hose Pipe With Oil Resistant Tube

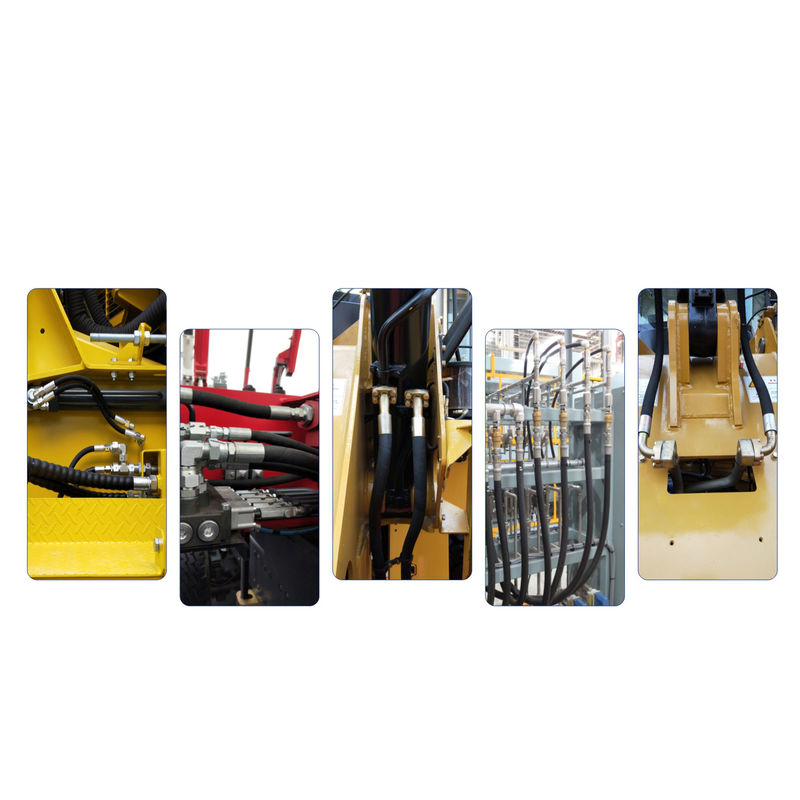

Application:
This hose is very popular in high pressure working conditions and it is suitable for petroleum-based hydraulic oils.
Features:
1,The tube is made from black oil resistant synthetic rubber, making the hose widely used in delivering petroleum-based hydraulic oils.

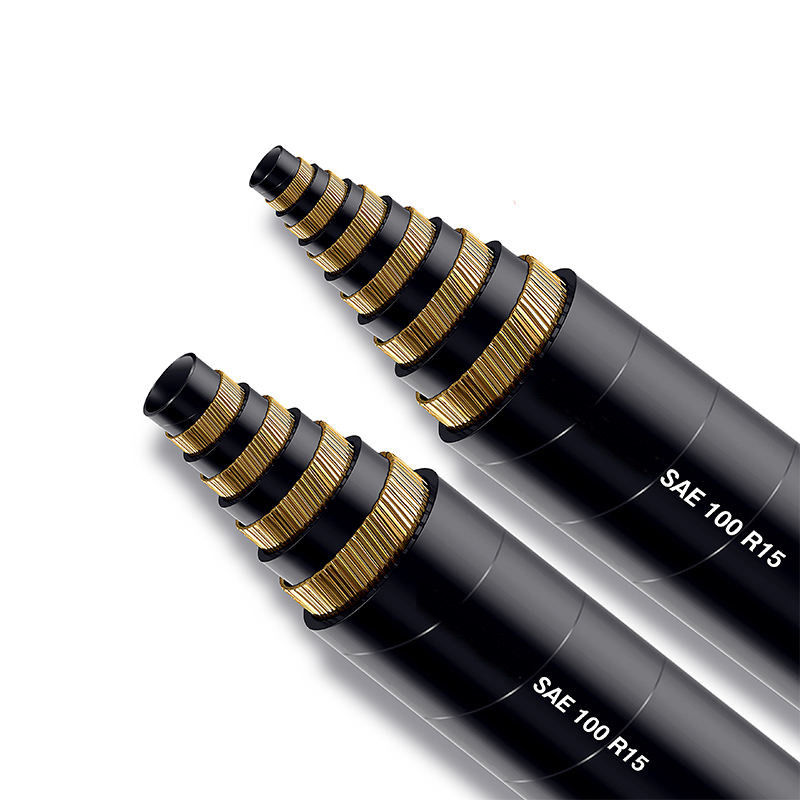

2,The reinforcement is made from multiple layers of high tensile and high strength thick spiraled steel wire in alternating direction, making the hose have very high working pressure.
3,The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging and cut.
Material:
Tube: high quality black oil resistant synthetic rubber.
Reinforcement: multiple layers of high tensile and high strength thick spiraled steel wire in alternating direction.
Cover: high quality abrasion, corrosion and weather resistant synthetic rubber.
Working temperature range: -40°C to +121°C
Working pressure: 42 MPa.
Proof pressure: 84 MPa.
Min burst pressure: 168 MPa.
|

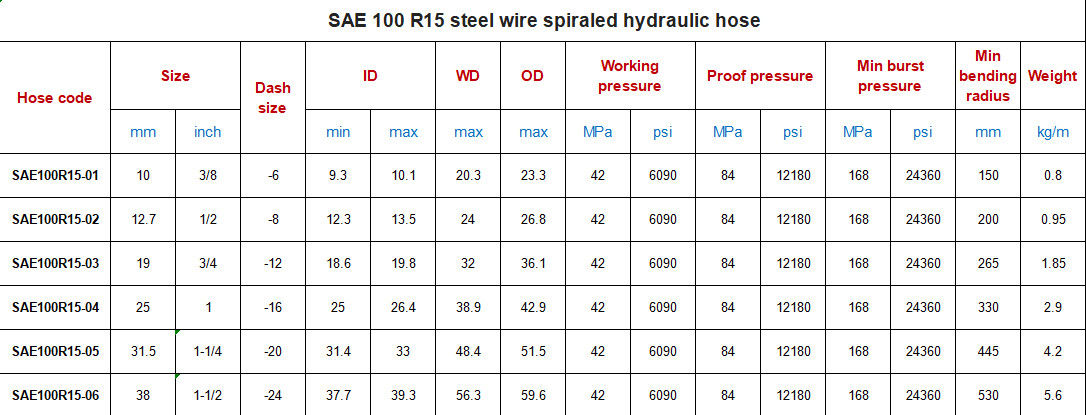

SAE 100 R15 steel wire spiraled hydraulic hose |
|||||||||||||||
|
Hose code |
Size |
Dash |
ID |
WD |
OD |
Worki ng |
Proof pressure |
Mi n burst |
Min |
Weight |
|||||
|
mm |
inch |
min |
max |
max |
max |
MPa |
psi |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
||
|
SAE100R15-01 |
10 |
3/8 |
6 |
9.3 |
10.1 |
20.3 |
23.3 |
42 |
6090 |
84 |
12180 |
168 |
24360 |
150 |
0.8 |
|
SAE100R15-02 |
12.7 |
1/2 |
-8 |
12.3 |
13.5 |
24 |
26.8 |
42 |
6090 |
84 |
12180 |
168 |
24360 |
200 |
0.95 |
|
SAE100R15-03 |
19 |
3/4 |
-12 |
18.6 |
19.8 |
32 |
36.1 |
42 |
6090 |
84 |
12180 |
168 |
24360 |
265 |
1.85 |
|
SAE100R15-04 |
25 |
1 |
-16 |
25 |
26.4 |
38.9 |
42.9 |
42 |
6090 |
84 |
12180 |
168 |
24360 |
330 |
2.9 |
|
SAE100R15-05 |
31.5 |
1-1/4 |
-20 |
31.4 |
33 |
48.4 |
51.5 |
42 |
6090 |
84 |
12180 |
168 |
24360 |
445 |
4.2 |
|
SAE100R15-06 |
38 |
1-1/2 |
-24 |
37.7 |
39.3 |
56.3 |
59.6 |
42 |
6090 |
84 |
12180 |
168 |
24360 |
530 |
5.6 |
