Place of Origin:
CHINA
Brand Name:
KELONG
Certification:
ISO9001 / IRIS
Model Number:
KL106
Contact Us

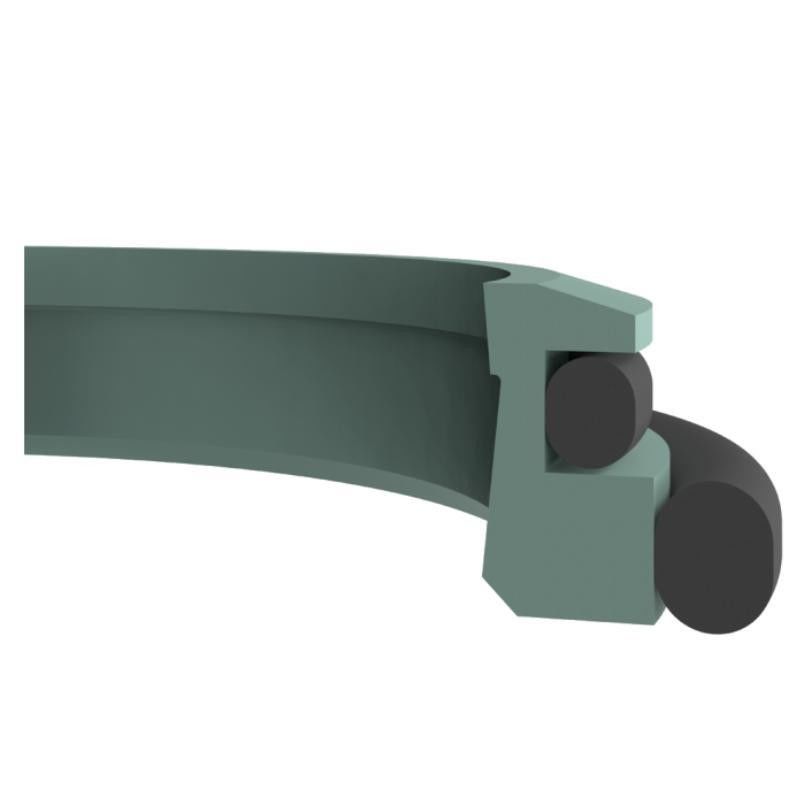

KL106 wipers prevent that foreign particles from outer environment penetrate into the cylinder in the hydraulic applications, and reduce the oil film thickness. In highly contaminated systems, all effects (water, mud, dust, etc.) coming from the external environment are avoided with the special cap design. All effects in systems with high pollution from outer environment (water, mud, dust, etc.) can be prevented thanks to the special head design. KL106, used in heavy duty applications with large sealing gaps, has superior protection feature.

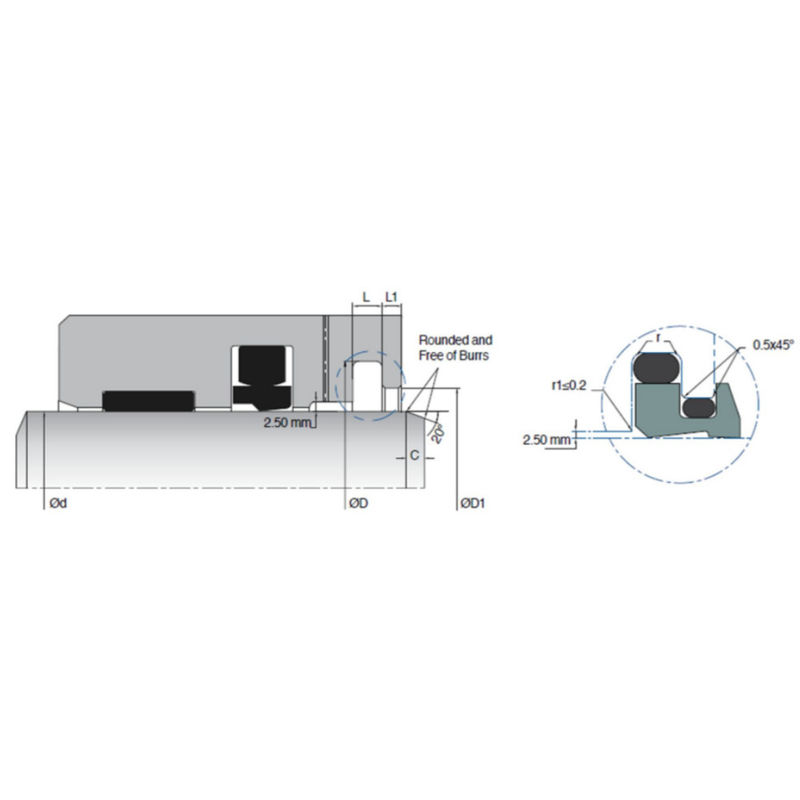

| d (f8) | D (H9) | D1 (H9) | L (+0.2/-0) | L1 (+0.2/-0) | r | MATERIAL | |
| KL106-100 | 100 | 122.2 | 110.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-110 | 110 | 132.2 | 120.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-120 | 120 | 142.2 | 130.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-130 | 130 | 152.2 | 140.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-140 | 140 | 162.2 | 150.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-150 | 150 | 172.2 | 160.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-160 | 160 | 182.2 | 170.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-170 | 170 | 192.2 | 180.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-180 | 180 | 202.2 | 190.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-190 | 190 | 212.2 | 200.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-200 | 200 | 222.2 | 210.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-220 | 220 | 242.2 | 230.7 | 6.3 | 4.2 | 1.2 | PTFE |
| KL106-380 | 380 | 413 | 395.1 | 8.1 | 6.3 | 1.2 | PTFE |
