KL103 PTFE Wiper Seal Types Low Friction For Pneumatic Cylinders

KL103 PTFE Wiper Seal Types Low Friction For Pneumatic Cylinders

KL103 PTFE Wiper Seal

PTFE Wiper Seal Types

Pneumatic Wiper Seal Low Friction

Place of Origin:

CHINA

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL103

Contact Us

Request A Quote
KL103 PTFE Wiper Seal Types Low Friction For Pneumatic Cylinders
KL103 PTFE Wiper Seal Types Low Friction For Pneumatic Cylinders KL103 PTFE Wiper Seal Types Low Friction For Pneumatic Cylinders KL103 PTFE Wiper Seal Types Low Friction For Pneumatic Cylinders KL103 PTFE Wiper Seal Types Low Friction For Pneumatic Cylinders KL103 PTFE Wiper Seal Types Low Friction For Pneumatic Cylinders
Product Details
Name:
PTFE Wiper Seal Types
Material:
PTFE / NBR
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
5.0
Area Of Application:
Pneumatic Cylinders
Color:
Red / Blue / Black / Customer Color
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description

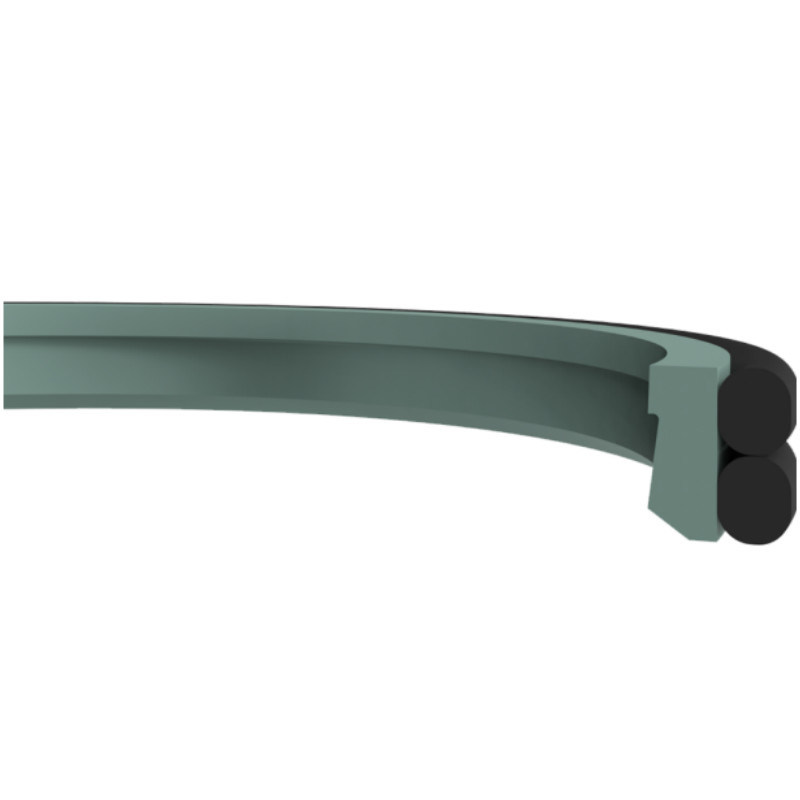

 KL103 PTFE wipers consists of a PTFE wiper ring and two o-rings. Wiper ring design has two lips on the contact surface and provides superior wiping performance. K705 can offer wider temperature intervals and media compatibility with special versions produced from different elastomer and PTFE compounds.

Advantages

• High speed and frequency

• Wide temperature range

• Superior wiping performance with double lip design

• Low coefficient of friction

Area of Application

• Injection Moulding Machines

• Industrial machines

• Mobile machinery

• control and regulatory equipment

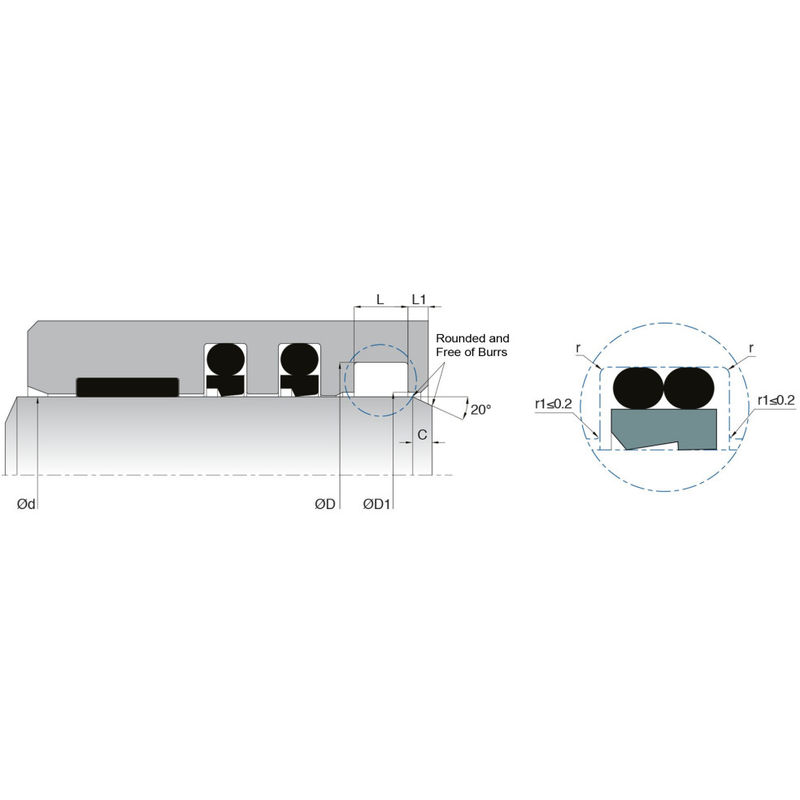

KL103 PTFE Wiper Seal Types Low Friction For Pneumatic Cylinders 0
  d (f8) D (H9) D1 (+0.2/-0) L (+0.2/-0) L1 r C MATERIAL
KL103-025 25 32.6 26 4.2 4 0.4 3 PTFE
KL103-028 28 35.6 29 4.2 4 0.4 3 PTFE
KL103-030 30 37.6 31 4.2 4 0.4 3 PTFE
KL103-032 32 39.6 33 4.2 4 0.4 3 PTFE
KL103-035 35 42.6 36 4.2 4 0.4 3 PTFE
KL103-036 36 43.6 37 4.2 4 0.4 3 PTFE
KL103-040 40 48.8 41.5 6.3 4 1.2 3 PTFE
KL103-045 45 53.8 46.5 6.3 4 1.2 3 PTFE
KL103-050 50 58.8 51.5 6.3 4 1.2 3 PTFE
KL103-055 55 63.8 56.5 6.3 4 1.2 4 PTFE
KL103-056 56 64.8 57.5 6.3 4 1.2 4 PTFE
KL103-060 60 68.8 61.5 6.3 4 1.2 4 PTFE
KL103-063 63 71.8 64.5 6.3 4 1.2 4 PTFE
KL103-065 65 73.8 66.5 6.3 4 1.2 4 PTFE
KL103-070 70 82.2 72 8.1 6 2 4 PTFE
KL103-075 75 87.2 77 8.1 6 2 4 PTFE
KL103-080 80 92.2 82 8.1 6 2 4 PTFE
KL103-085 85 97.2 87 8.1 6 2 4 PTFE
KL103-090 90 102.2 92 8.1 6 2 4 PTFE
KL103-100 100 112.2 102 8.1 6 2 4 PTFE
KL103-105 105 117.2 107 8.1 6 2 4 PTFE
KL103-110 110 122.2 112 8.1 6 2 4 PTFE
KL103-115 115 127.2 117 8.1 6 2 4 PTFE
KL103-120 120 132.1 122 8.1 6 2 4 PTFE
KL103-125 125 137.2 127 8.1 6 2 6 PTFE
KL103-130 130 142.2 132 8.1 6 2 6 PTFE
KL103-135 135 147.2 137 8.1 6 2 6 PTFE
KL103-140 140 156 142 11.5 6 2 6 PTFE
KL103-150 150 166 152 11.5 6 2 6 PTFE
KL103-155 155 171 157 11.5 6 2 6 PTFE
KL103-160 160 176 162 11.5 6 2 6 PTFE
KL103-170 170 186 172 11.5 6 2 6 PTFE
KL103-175 175 191 177 11.5 6 2 6 PTFE
KL103-180 180 196 182 11.5 6 2 6 PTFE
KL103-190 190 206 192 11.5 6 2 6 PTFE
KL103-200 200 216 202 11.5 6 2 6 PTFE
KL103-210 210 226 212 11.5 6 2 6 PTFE
KL103-220 220 236 222 11.5 6 2 6 PTFE
KL103-230 230 246 232 11.5 6 2 8 PTFE
