Place of Origin:
CHINA
Brand Name:
KELONG
Certification:
ISO9001 / IRIS
Model Number:
KL101
Contact Us

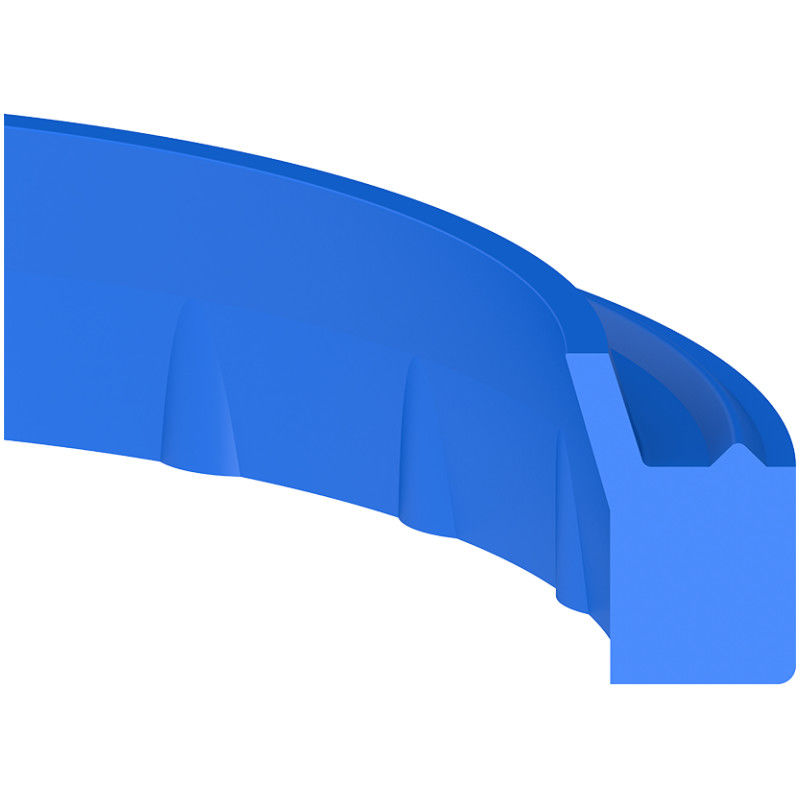

KL101 polyurethane wipers prevent the foreign particles pass into the hydraulic cylinders
They have a superior wiping effect on the rod thanks to improved lip design. Also second static lip on the external side face keeps the wiper tight in the housing and serves as an static seal.

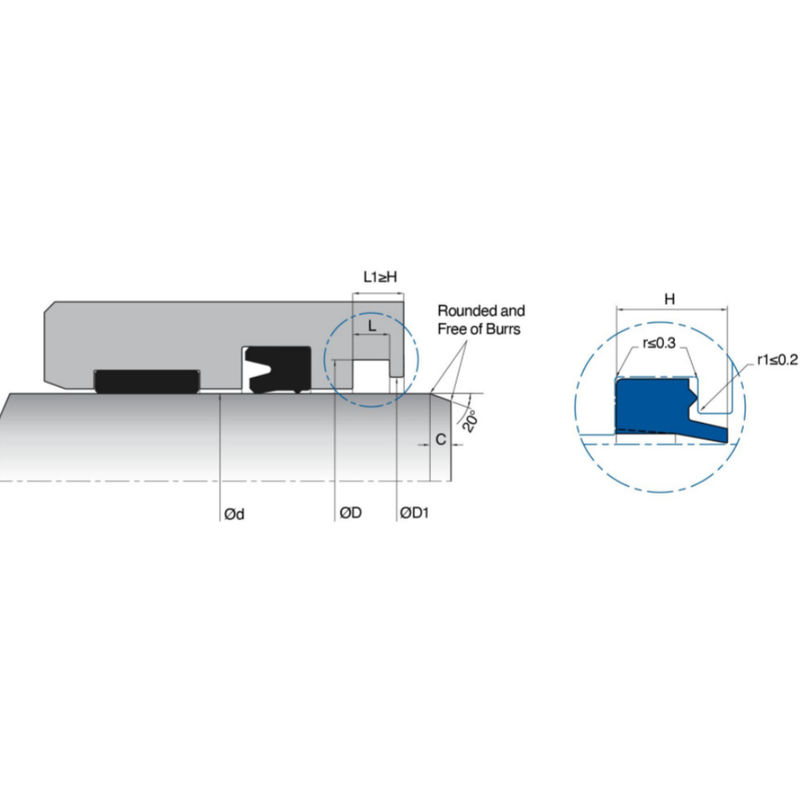

| d (f8) | D (H10) | D1 (H11) | L (+0.2/-0) | H | MATERIAL | |
| KL101-018 | 18 | 26.6 | 21 | 5.3 | 7 | PU |
| KL101-020 | 20 | 28.6 | 23 | 5.3 | 7 | PU |
| KL101-022 | 22 | 30.6 | 25 | 5.3 | 7 | PU |
| KL101-025 | 25 | 33.6 | 28 | 5.3 | 7 | PU |
| KL101-030 | 30 | 38.6 | 33.2 | 5.3 | 7 | PU |
| KL101-035 | 35 | 43.6 | 38 | 5.3 | 7 | PU |
| KL101-036 | 36 | 44.6 | 39 | 5.3 | 7 | PU |
| KL101-040 | 40 | 48.6 | 43 | 5.3 | 7 | PU |
| KL101-045 | 45 | 55.6 | 48.2 | 5.3 | 7 | PU |
| KL101-050 | 50 | 60.6 | 53.2 | 5.3 | 7 | PU |
| KL101-055 | 55 | 65.6 | 58.2 | 5.3 | 7 | PU |
| KL101-060 | 60 | 70.6 | 63 | 5.3 | 7 | PU |
| KL101-065 | 65 | 75.6 | 68.2 | 5.3 | 7 | PU |
| KL101-075 | 75 | 87.2 | 80.8 | 7.3 | 12 | PU |
| KL101-080 | 80 | 92.2 | 86 | 7.3 | 12 | PU |
| KL101-090 | 90 | 102.2 | 96 | 7.3 | 12 | PU |
| KL101-100 | 100 | 112.2 | 106 | 7.3 | 12 | PU |
