Place of Origin:
CHINA
Brand Name:
KELONG
Certification:
ISO9001 / IRIS
Model Number:
KL81
Contact Us

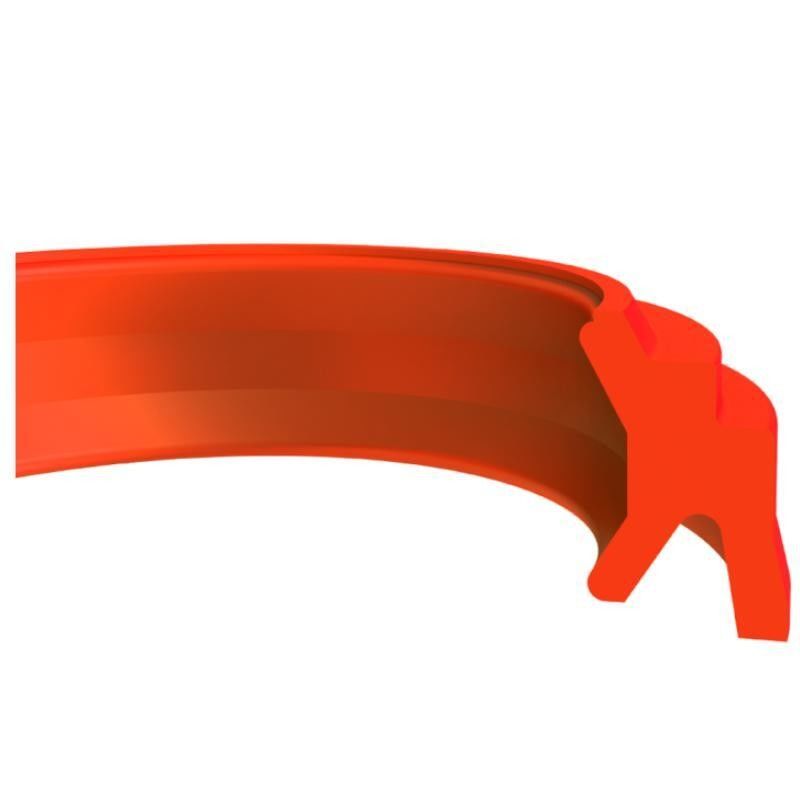

KL81 pneumatic dust throat seals are single-acting sealing elements that can perform both functions together, with a dust lip that prevents negative particles from the external environment from entering the cylinder and a nutring lip that provides sealing.

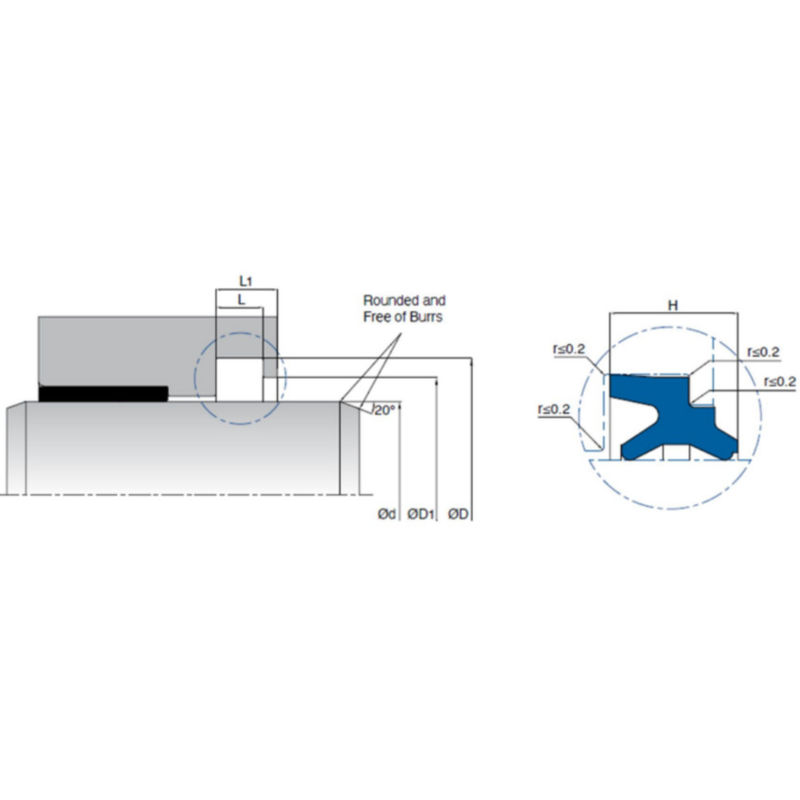

| d (e9) | D (H10) | D1 (H11) | L (+0.2/-0) | L1 | H | MATERIAL | |
| KL81-004 | 4 | 8.1 | 6.7 | 3 | 3.8 | 4 | PU |
| KL81-006 | 6 | 11.1 | 9.1 | 3.6 | 4.6 | 5 | PU |
| KL81-008 | 8 | 14.1 | 12.1 | 3.6 | 4.6 | 5 | PU |
| KL81-010 | 10 | 16.1 | 14.1 | 4.2 | 5.4 | 6 | PU |
| KL81-012 | 12 | 16.5 | 14.2 | 3 | 3.6 | 4 | PU |
| KL81-012/1 | 12 | 18.1 | 15.5 | 4.2 | 5.4 | 6 | PU |
| KL81-016 | 16 | 20.5 | 18.2 | 3 | 3.6 | 4 | PU |
| KL81-016/1 | 16 | 23 | 18.8 | 4.2 | 5.4 | 6 | PU |
| KL81-020 | 20 | 25 | 22.4 | 3.4 | 4 | 4.6 | PU |
| KL81-025 | 25 | 30 | 27.4 | 3.4 | 4 | 4.6 | PU |
| KL81-030 | 30 | 35.5 | 32.9 | 4 | 4.8 | 6 | PU |
