Name: KL79 Pneumatic Cushioning Seal Single Acting High Impact Resistance
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL79
Price: Negotiable USD
Availability: InStock

Home > products > Pneumatic Rod Seals >

KL79 Pneumatic Cushioning Seal Single Acting High Impact Resistance

KL79 Pneumatic Cushioning Seal

Pneumatic Cushioning Seal Single Acting

Place of Origin:

CHINA

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL79

Request A Quote

Product Details

Name:

Pneumatic Cushioning Seal Single Acting

Material:

PU / NBR

Pressure (max) Bar:

16 / 12

Temperature (max) °C:

-35/+100 / -30/+105

Sliding Speed (max)- M/s:

1.0

Application:

Pneumatic Cylinders

Payment & Shipping Terms

Minimum Order Quantity:

100

Packaging Details:

Customizable packaging

Delivery Time:

Payment Terms:

L/C, T/T

Supply Ability:

100,000 pcs /months

Advantages

• Easy installation

• Prevention of vacuum effect by the venting passages

• Stable cushioning feature by self centering

• Operating in heavy duty conditions

• High impact resistance

Area of Application

• Pneumatic Cylinders

• Recommended for use in cylinders according ISO 6432, 21287.

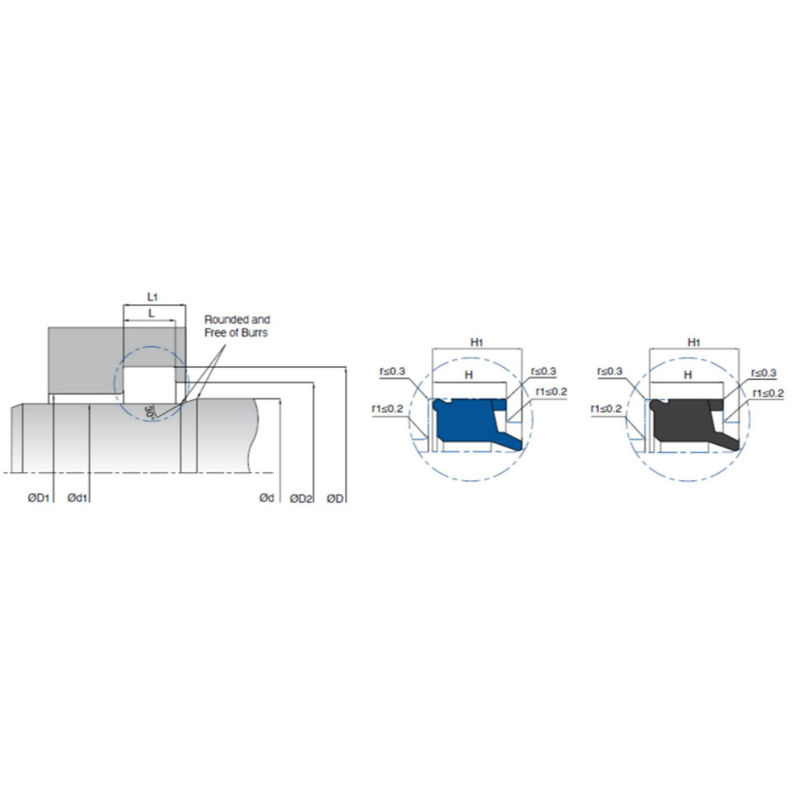

	d (h10)	D (H11)	D1 (H11)	D2 (H11)	d1 (f8)	H	H1	L (±0.1)	L1 (±0.2)	MATERIAL
K53-008	8	11.6	8.5	10	4	2.8	3.5	3.3	5.3	NBR
K53-009	9	14	9.5	11	5	4.1	5	4.8	6.8	NBR
K53-009.5	9.5	15	10	12	5.5	3.7	4.6	4.5	6.5	NBR
K53-012	12	18	13	15.5	8	4.1	5	4.8	6.8	NBR
K53-012 PU	12	18	13	15.5	8	4.1	5	4.8	6.8	PU
K53-012/1	12	20	13	17	8	6.2	7.8	7	9	NBR
K53-012/1 PU	12	20	13	17	8	6.2	7.8	7	9	PU
K53-014	14	22	15	19	10	6.2	7.8	7	9	NBR
K53-014 PU	14	22	15	19	10	6.2	7.8	7	9	PU
K53-016	16	24	17	21	12	6.2	7.8	7	9	NBR
K53-016 PU	16	24	17	21	12	6.2	7.8	7	9	PU
K53-016/1	16	22	17	19.5	12	4.7	5.5	5.2	7.2	NBR
K53-016/1 PU	16	22	17	19.5	12	4.7	5.5	5.2	7.2	PU
K53-018 PU	18	26	19	22	14	6.2	7.8	7	9	PU
K53-020	20	28	21	24	16	6.2	7.8	7	9	NBR
K53-020 PU	20	28	21	24	16	6.2	7.8	7	9	PU
K53-022	22	30	23	26	18	6.2	7.8	7	9	NBR
K53-022 PU	22	30	23	26	18	6.2	7.8	7	9	PU
K53-024	24	32	25	28	20	6.2	7.8	7	9	NBR
K53-024 PU	24	32	25	28	20	6.2	7.8	7	9	PU
K53-025	25	33	26	29	21	6.2	7.8	7	9	NBR
K53-025 PU	25	33	26	29	21	6.2	7.8	7	9	PU
K53-025/1 PU	25	35	26	30	21	6.2	7.8	7	9	PU
K53-028	28	36	29	32	24	6.2	7.8	7	9	NBR
K53-028 PU	28	36	29	32	24	6.2	7.8	7	9	PU
K53-030	30	40	31.5	35	26	6.2	7.8	7	9	NBR
K53-030 PU	30	40	31.5	35	26	6.2	7.8	7	9	PU
K53-032	32	40	33.5	37	28	6.2	7.8	7	9	NBR
K53-032 PU	32	40	33.5	37	28	6.2	7.8	7	9	PU
K53-032/1 PU	32	42	33	37	28	6.2	7.8	7	9	PU
K53-036	36	46	37.5	41	32	6.2	7.8	7	9	NBR
K53-036 PU	36	46	37.5	41	32	6.2	7.8	7	9	PU
K53-040	40	50	41.5	45	32	6.2	7.8	7	9	NBR
K53-040 PU	40	50	41.5	45	32	6.2	7.8	7	9	PU
K53-050 PU	50	67	53	58	46	11	11	12.5	14.5	PU
K53-050/1 PU	50	60	51.5	55	46	6.2	7.8	7	9	PU
K53-057	57	74	60	65	53	11	11	12.5	14.5	NBR
K53-057 PU	57	74	60	65	53	11	11	12.5	14.5	PU
K53-070 PU	70	87	73	78	66	11	11	12.5	14.5	PU
