KL71 Pneumatic Cylinder Piston Seals Types Double Acting For Valves

KL71 Pneumatic Cylinder Piston Seals Types Double Acting For Valves

KL71 Pneumatic Cylinder Piston Seals

Pneumatic Cylinder Piston Seals Types

Place of Origin:

CHINA

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL71

Contact Us

Request A Quote
KL71 Pneumatic Cylinder Piston Seals Types Double Acting For Valves
KL71 Pneumatic Cylinder Piston Seals Types Double Acting For Valves KL71 Pneumatic Cylinder Piston Seals Types Double Acting For Valves KL71 Pneumatic Cylinder Piston Seals Types Double Acting For Valves KL71 Pneumatic Cylinder Piston Seals Types Double Acting For Valves KL71 Pneumatic Cylinder Piston Seals Types Double Acting For Valves
Product Details
Name:
Pneumatic Cylinder Piston Seals Types
Material:
NBR
Sliding Speed (max)- M/s:
1.0
Pressure (max) Bar:
12
Temperature (max) °C:
-30/+105
Application:
Recommended For Use In Cylinders According ISO And CETOP
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description

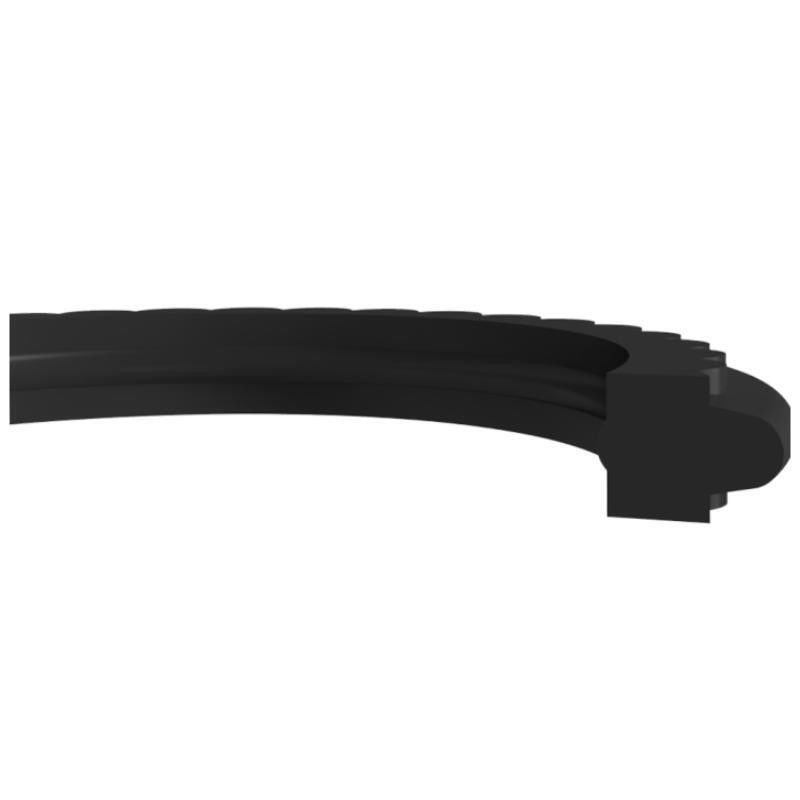

KL71 pneumatic piston seal is a double acting piston seal designed to be used in small grooves.

Advantages



• Easy installation



• Superior sealing effect


• Superior wiping effect


• Low dynamic friction


• Minimal space requirement


• Highly wear resistant


• Low friction

• Design that provided very good sealing

• Double acting

• Can be used in small housing dimensions

Area of Application

• Short stroke pneumatic cylinders

• Valves

• Recommended for use in cylinders according ISO and CETOP.

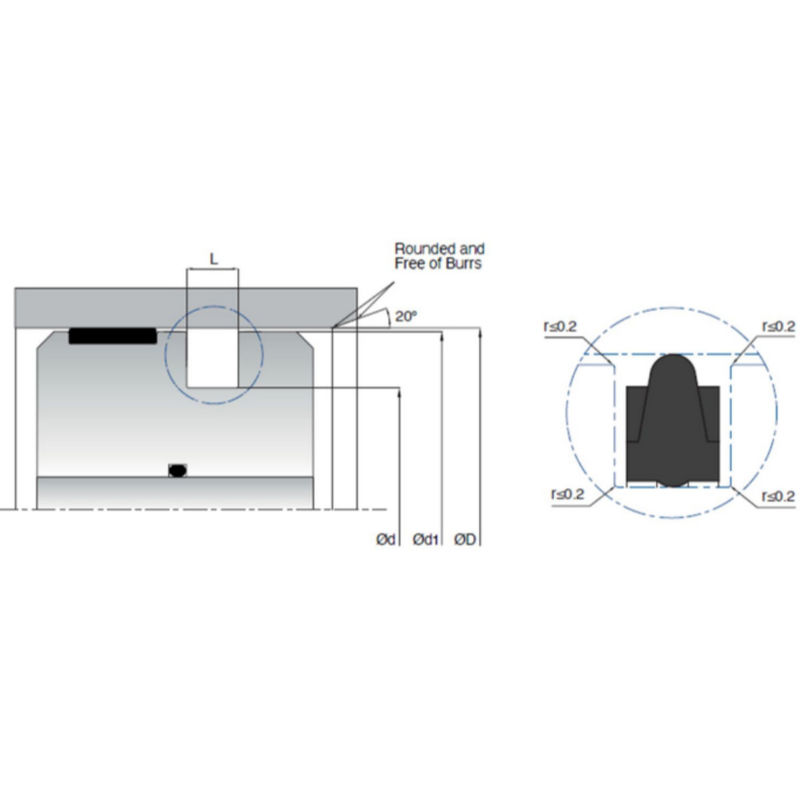

KL71 Pneumatic Cylinder Piston Seals Types Double Acting For Valves 0
  D (H11) d (h9) L (+0.2/-0) d1 (±0.1) MATERIAL
KL71-008 8 4 1.6 7.7 NBR
KL71-008/1 8 4.4 1.8 7.7 NBR
KL71-010 10 5.4 1.8 9.7 NBR
KL71-012 12 7.4 1.8 11.7 NBR
KL71-016 16 11.4 1.8 15.7 NBR
KL71-020 20 14 2.4 19.5 NBR
KL71-025 25 17 3.2 24.5 NBR
KL71-030 30 22 3.2 29.5 NBR
KL71-032 32 24 3.2 31.5 NBR
KL71-040 40 32 3.2 39.5 NBR
KL71-050 50 40 4 49.5 NBR
KL71-063 63 53 4 62.4 NBR
KL71-080 80 65 6 79.4 NBR
KL71-100 100 85 6 99.4 NBR
KL71-125 125 110 6 124.3 NBR
KL71-160 160 140 8 159.3 NBR
