KL69F Pneumatic Piston Seals Single Acting Uring Type Sealing Element

KL69F Pneumatic Piston Seals Single Acting Uring Type Sealing Element

KL69F Pneumatic Piston Seals

ISO9001 Pneumatic Piston Seals

Uring Type Sealing Element

Place of Origin:

CHINA

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL69F

Contact Us

Request A Quote
KL69F Pneumatic Piston Seals Single Acting Uring Type Sealing Element
KL69F Pneumatic Piston Seals Single Acting Uring Type Sealing Element KL69F Pneumatic Piston Seals Single Acting Uring Type Sealing Element KL69F Pneumatic Piston Seals Single Acting Uring Type Sealing Element KL69F Pneumatic Piston Seals Single Acting Uring Type Sealing Element KL69F Pneumatic Piston Seals Single Acting Uring Type Sealing Element
Product Details
Name:
Pneumatic Piston Seals
Material:
PU
Temperature (max) °C:
-30/+80
Sliding Speed (max)- M/s:
1.0
Pressure (max) Bar:
16
Application:
Recommended For Use In Cylinders According ISO 15552 And 6432 Standards And CETOP
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description

KL69 Pneumatic Piston Seal Is A Single Acting Uring Sealing Element Suitable For Use In Piston Applications

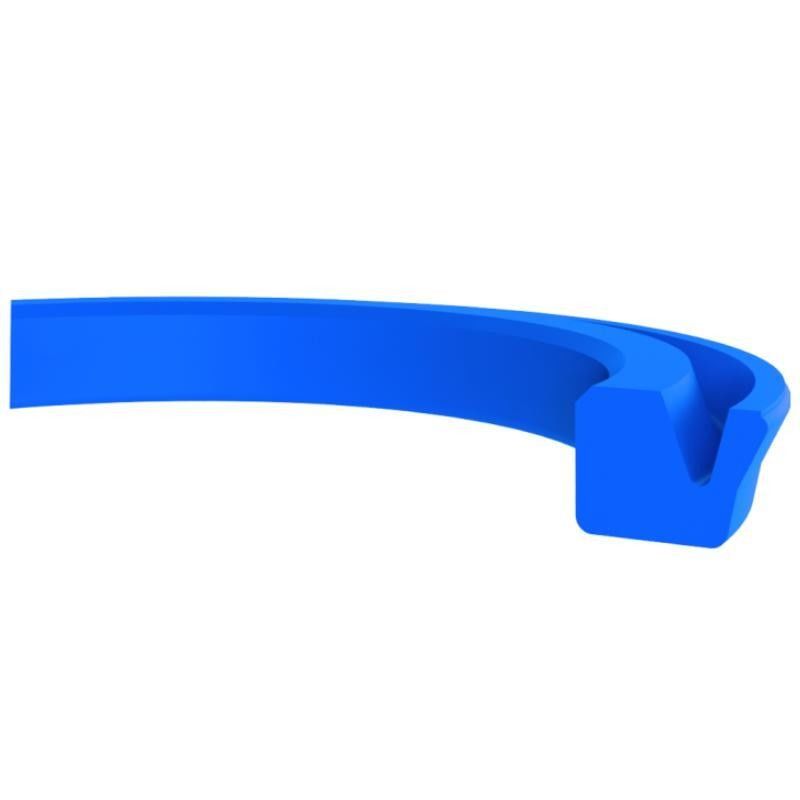

KL69F pneumatic piston seal is a single acting uring type sealing element suitable for use in piston applications with its outer sealing lip designed for low friction.

Advantages

• Low friction

• Operating in low pressures

• Can be used in small housing dimensions

• Long service life

• Easy installation

Area of Application

• Recommended for use in cylinders according ISO 15552 and 6432 standards and CETOP.
KL69F Pneumatic Piston Seals Single Acting Uring Type Sealing Element 0

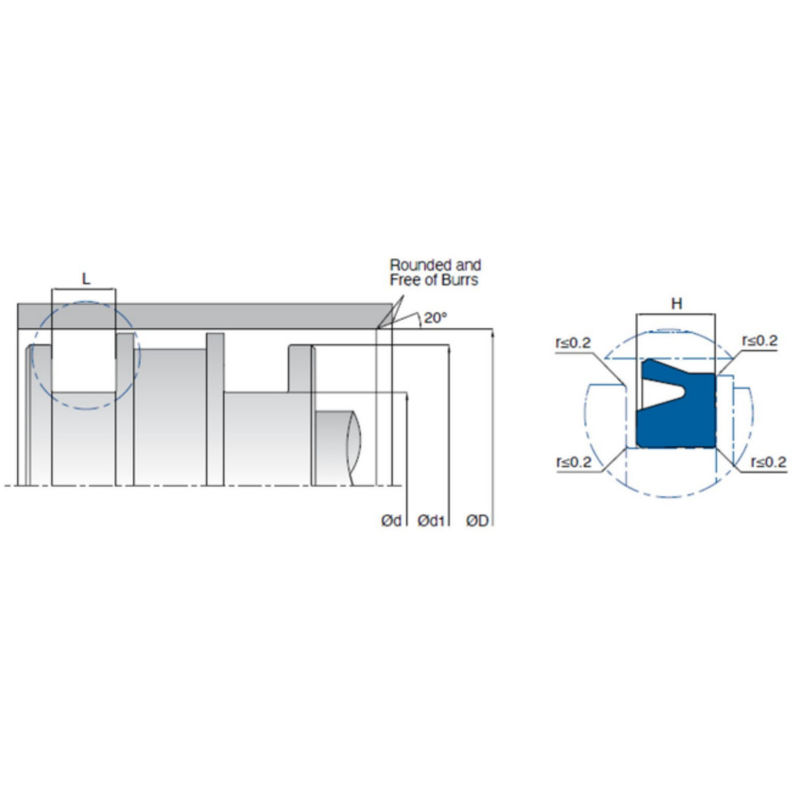

  D (H11) d (h9) L (+0.2/-0) d1 (+0.2/-0) H MATERIAL
KL69F-008/1 8 4.8 2.85 7.6 2.45 PU
KL69F-010 10 6 3 9.6 2.55 PU
KL69F-012 12 7 3 11.6 2.55 PU
KL69F-012/1 12 7 2.85 11.6 2.45 PU
KL69F-016 16 10 3 15.6 2.55 PU
KL69F-020 20 14 3 19.6 2.55 PU
KL69F-025 25 19 3.5 24.4 3.25 PU
KL69F-030 30 22 3.5 29.4 3.25 PU
KL69F-032 32 24 3.5 31.4 3.25 PU
KL69F-040 40 32 3.5 39.4 3.25 PU
KL69F-050 50 42 3.5 49.4 3.25 PU
KL69F-063 63 53 4.5 62.4 4.25 PU
KL69F-080 80 70 4.5 79.4 4.25 PU
KL69F-100 100 90 4.5 99.4 4.25 PU
KL69F-125 125 105 8.5 123.8 8.25 PU
KL69F-160 160 140 8.5 158.8 8.25 PU
Tags：

U Ring Piston Seal

PU Piston Seal

Low Friction Piston Seal
