Name: KLSB Hydraulic Guide Ring Custom For Rod / Piston Application
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KLSB
Price: Negotiable USD
Availability: InStock

Home > products > Hydraulic Guide Ring >

KLSB Hydraulic Guide Ring Custom For Rod / Piston Application

KLSB Hydraulic Guide Ring

Hydraulic Guide Ring Custom

ISO9001 Hydraulic Piston Rings

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KLSB

Request A Quote

Product Details

Name:

Hydraulic Piston Rings

Material:

POLYESTER FIBER, PHENOLIC RESIN

Temperature (max) °C:

-40/+120

Sliding Speed (max)- M/s:

1.0

Style:

Hydraulic Guiding Elements

Application:

Excavators / Heavy Duty Cylinders

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

KLSB Produced From Synthetic Fabric And Phenolic Resin To Be Used In Rod And Piston Applications In Hydraulic Systems

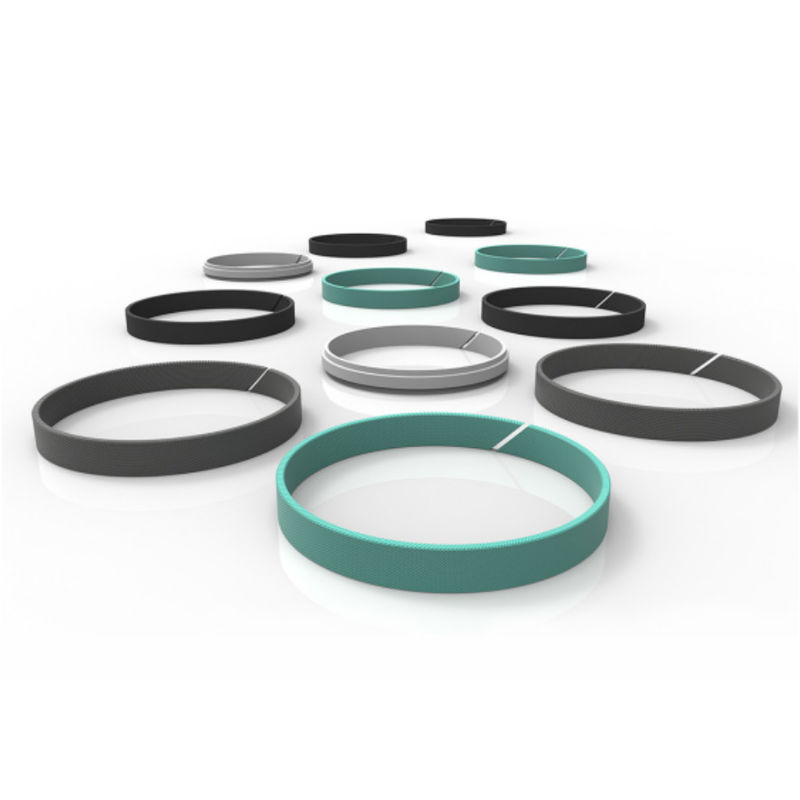

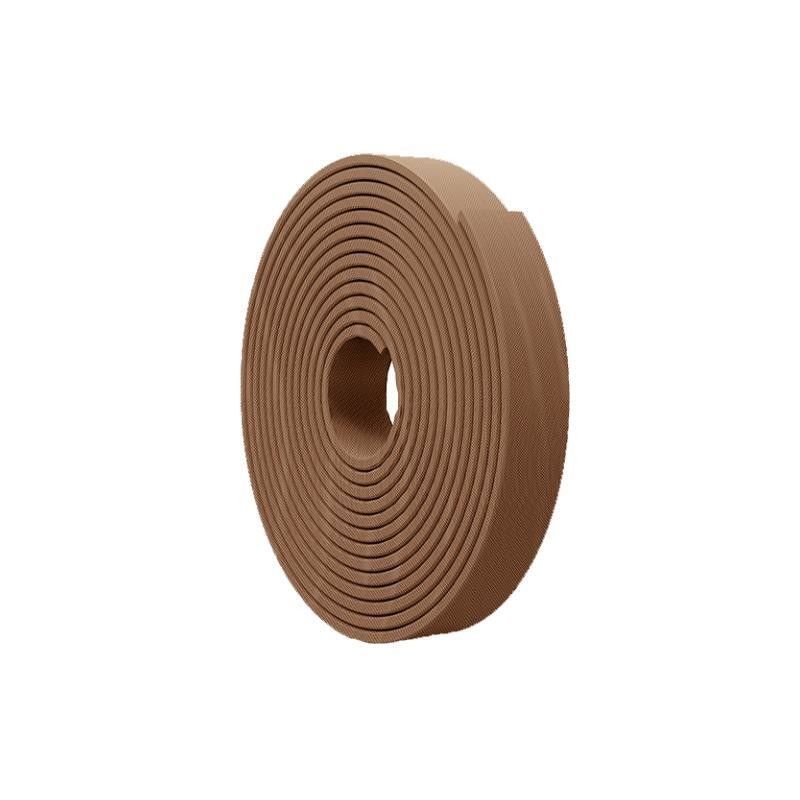

KLSB piston-rod guide rings are composite guiding elements, produced from syntetic fabric and phenolic resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems.

Advantages

• Can be used in heavy and medium duty applications

• The high form stability at operating temperature range

• Easy installation

• Wide range of standard products

Area of Application

• Mobile machinery

• Mining industry

• Excavators

• Presses

• Heavy duty cylinders

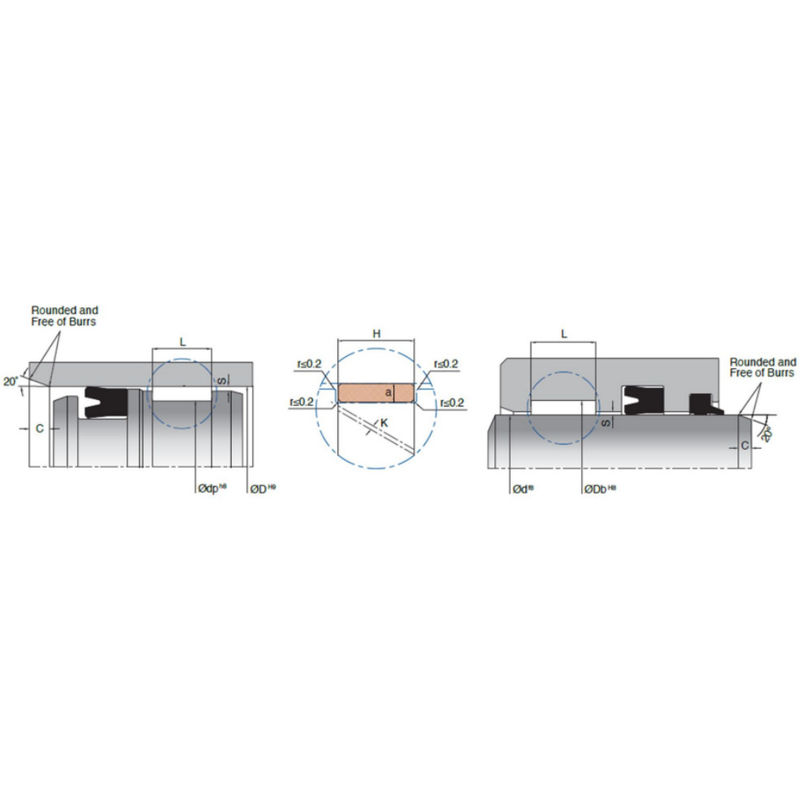

KLSB Hydraulic Guide Ring Custom For Rod / Piston Application 0

	a	L (+0.2/-0)	H	MATERIAL
KLSB-2X10	2	10	9.8	PHENOLIC RESIN
KLSB-2X15	2	15	14.8	PHENOLIC RESIN
KLSB-2X20	2	20	19.8	PHENOLIC RESIN
KLSB-2X25	2	25	24.8	PHENOLIC RESIN
KLSB-2.5X5.6	2.5	5.6	5.5	PHENOLIC RESIN
KLSB-2.5X9.7	2.5	9.7	9.5	PHENOLIC RESIN
KLSB-2.5X10	2.5	10	9.8	PHENOLIC RESIN
KLSB-2.5X15	2.5	15	14.8	PHENOLIC RESIN
KLSB-2.5X20	2.5	20	19.8	PHENOLIC RESIN
KLSB-2.5X25	2.5	25	24.8	PHENOLIC RESIN
KLSB-3X15	3	15	14.8	PHENOLIC RESIN
KLSB-3X20	3	20	19.8	PHENOLIC RESIN
KLSB-3X25	3	25	24.8	PHENOLIC RESIN
KLSB-4X15	4	15	14.8	PHENOLIC RESIN
KLSB-4X20	4	20	19.8	PHENOLIC RESIN
KLSB-4X25	4	25	24.8	PHENOLIC RESIN
KLSB-4X30	4	30	29.8	PHENOLIC RESIN
