Name: Low Swelling Hydraulic Guide Ring Composite Guiding Elements For Presses
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KLPB
Price: Negotiable USD
Availability: InStock

Home > products > Hydraulic Guide Ring >

Low Swelling Hydraulic Guide Ring Composite Guiding Elements For Presses

Low Swelling Hydraulic Guide Ring

Presses Hydraulic Guide Ring

Kelong Guiding Elements

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KLPB

Request A Quote

Low Swelling Hydraulic Guide Ring Composite Guiding Elements For Presses

Product Details

Name:

Low Swelling Hydraulic Guide Ring

Material:

SYNTHETIC FIBER, POLYESTER RESIN

Temperature (max) °C:

-40/+120

Sliding Speed (max)- M/s:

1.0

Style:

Hydraulic Guiding Elements

Application:

Heavy Duty Cylinders / Marine Hydraulics

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

KLPB Piston-Rod Guide Rings Are Composite Guiding Elements Which Provides High Load Carrying Capacity

KLPB piston-rod guide rings are composite guiding elements, produced from syntetic fabric and polyester resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems.

Advantages

• Low coefficient of friction

• High Load bearing capacity

• The high form stability at operating temperature range

• Low swelling

• Wide range of dimensions

Area of Application

• Mobile machinery

• Mining industry

• Excavators

• Marine hydraulics

• Presses

• Heavy duty cylinders

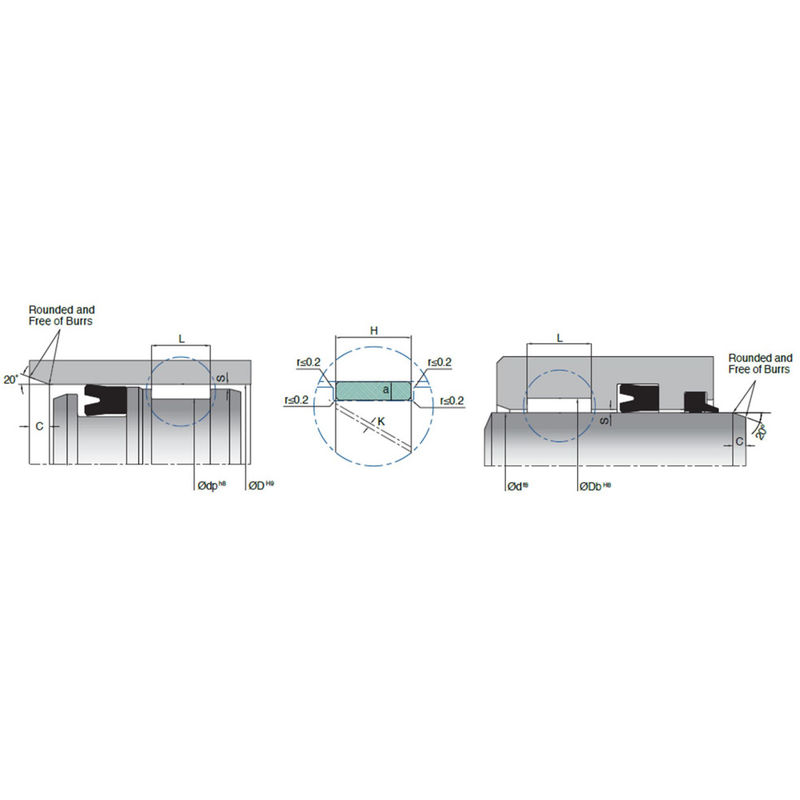

Low Swelling Hydraulic Guide Ring Composite Guiding Elements For Presses 0

	a	L (+0.2/-0)	H	MATERIAL
KLPB-1.5X4	1.5	4	3.8	POLYESTER RESIN
KLPB-2X10	2	10	9.8	POLYESTER RESIN
KLPB-2X15	2	15	14.8	POLYESTER RESIN
KLPB-2X20	2	20	19.8	POLYESTER RESIN
KLPB-2X25	2	25	24.5	POLYESTER RESIN
KLPB-2.5X5.6	2.5	5.6	5.4	POLYESTER RESIN
KLPB-2.5X6.3	2.5	6.3	6.1	POLYESTER RESIN
KLPB-2.5X9.7	2.5	9.7	9.5	POLYESTER RESIN
KLPB-2.5X10	2.5	10	9.8	POLYESTER RESIN
KLPB-2.5X15	2.5	15	14.8	POLYESTER RESIN
KLPB-2.5X20	2.5	20	19.8	POLYESTER RESIN
KLPB-2.5X25	2.5	25	24.5	POLYESTER RESIN
KLPB-2.5X30	2.5	30	29.5	POLYESTER RESIN
KLPB-3X9.7	3	9.7	9.5	POLYESTER RESIN
KLPB-3X15	3	15	14.8	POLYESTER RESIN
KLPB-3X20	3	20	19.8	POLYESTER RESIN
KLPB-3X25	3	25	24.5	POLYESTER RESIN
KLPB-3X30	3	30	29.5	POLYESTER RESIN
KLPB-4X9.7	4	9.7	9.5	POLYESTER RESIN
KLPB-4X10	4	10	9.8	POLYESTER RESIN
KLPB-4X15	4	15	14.8	POLYESTER RESIN
KLPB-4X20	4	20	19.8	POLYESTER RESIN
KLPB-4X25	4	25	24.5	POLYESTER RESIN
KLPB-4X30	4	30	29.5	POLYESTER RESIN
KLPB-4X40	4	40	39.5	POLYESTER RESIN
KLPB-4X50	4	50	49.5	POLYESTER RESIN
