Name: KLT Carbon Filled PTFE Guide Strip Hydraulic Guiding Elements
Brand: Kelong
SKU: KLT
Rating: 4.6 (124 reviews)

Home > products > Hydraulic Guide Ring >

KLT Carbon Filled PTFE Guide Strip Hydraulic Guiding Elements

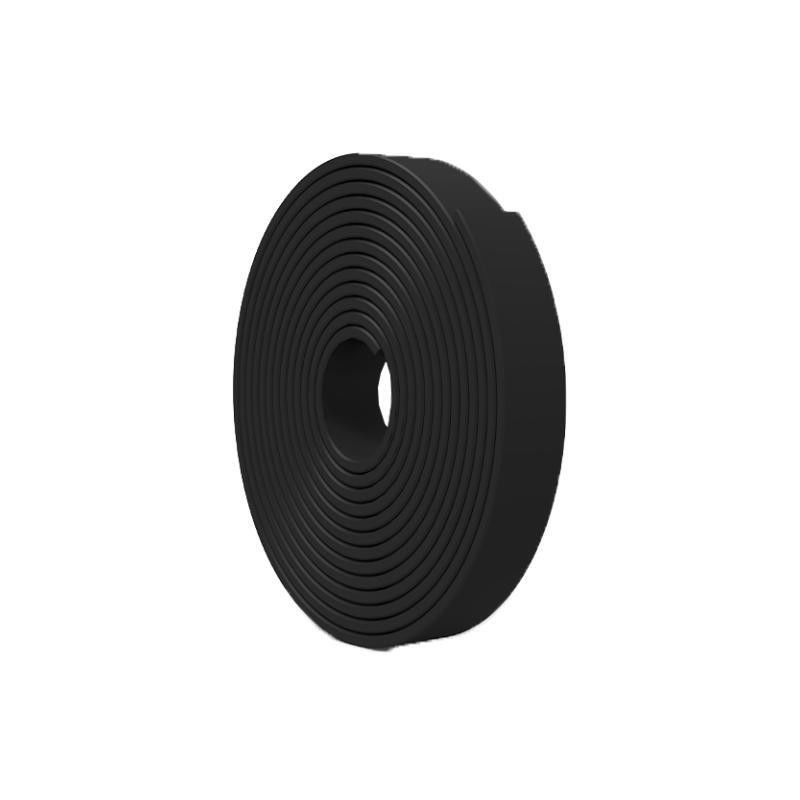

KLT PTFE Guide Strip

Carbon Filled PTFE Guide Strip

ISO9001 Hydraulic Guiding Elements

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KLT

Request A Quote

KLT Carbon Filled PTFE Guide Strip Hydraulic Guiding Elements

Product Details

Name:

PTFE Guide Strip

Material:

PTFE

Temperature (max) °C:

-200/+260

Sliding Speed (max)- M/s:

15.0

Style:

Hydraulic Guiding Elements

Application:

Chemical Industry / Pneumatic Cylinders

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

KLT Carbon Filled PTFE Guide Strips To Be Used In Light And Medium Duty Hydraulic And Pneumatic Systems

KLT carbon filled PTFE guide strips are guide elements designed to be used in light and medium duty hydraulic and pneumatic systems, for both rod and piston applications. Carbon-filler decreases friction in dry applications.

Advantages

• Dry applications

• Moderate load bearing

• Dimensional flexibility

• Stick-slip free

• Very low coefficient of friction

• Able to work on dry conditions

Area of Application

• Cranes

• Pneumatic Cylinders

• Agricultural machinery

• Standard industrial cylinders

• Automation applications

• Chemical industry

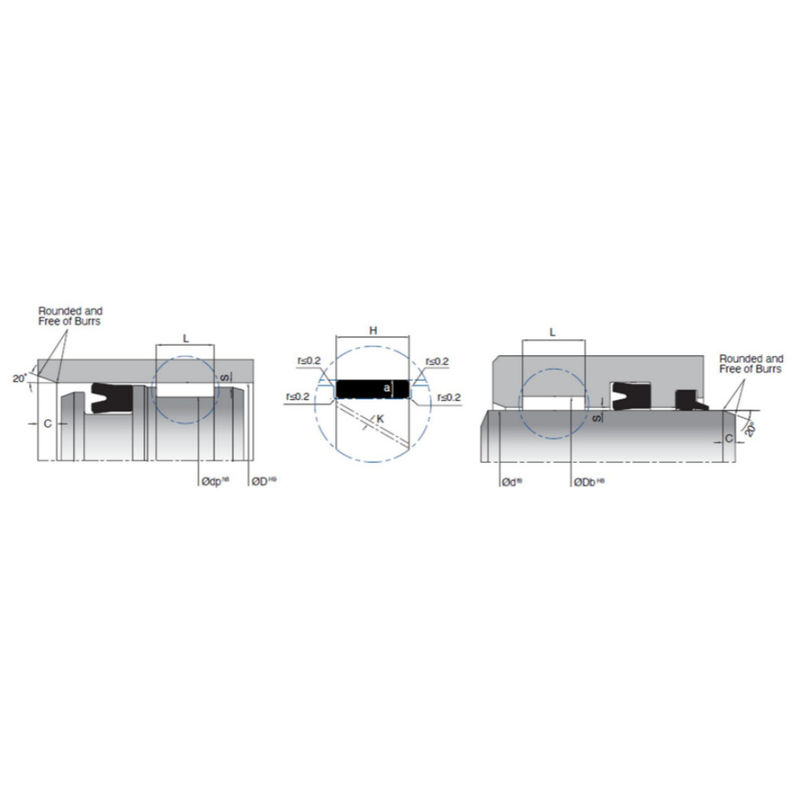

KLT Carbon Filled PTFE Guide Strip Hydraulic Guiding Elements 0

	a	L (+0.2/-0)	H	MATERIAL
KLT-1.5X5.6	1.5	5.6	5.4	PTFE
KLT-1.5X8	1.5	8	7.8	PTFE
KLT-1.5X9	1.5	9	8.8	PTFE
KLT-1.5X10	1.5	10	9.8	PTFE
KLT-1.5X12	1.5	12	11.8	PTFE
KLT-1.5X15	1.5	15	14.8	PTFE
KLT-1.5X20	1.5	20	19.5	PTFE
KLT-1.5X25	1.5	25	24.5	PTFE
KLT-2X5.6	2	5.6	5.4	PTFE
KLT-2X8	2	8	7.8	PTFE
KLT-2X9.7	2	9.7	9.5	PTFE
KLT-2X10	2	10	9.8	PTFE
KLT-2X18	2	18	17.8	PTFE
KLT-2X25	2	25	24.5	PTFE
KLT-2.5X5.6	2.5	5.6	5.4	PTFE
KLT-2.5X9.7	2.5	9.7	9.5	PTFE
KLT-2.5X12	2.5	12	11.8	PTFE
KLT-2.5X15	2.5	15	14.8	PTFE
KLT-2.5X20	2.5	20	19.5	PTFE
KLT-2.5X25	2.5	25	24.5	PTFE
KLT-2.9X9.7	2.9	9.7	9.5	PTFE
