KL65 Hydraulic Guide Ring Bronze Middle Layer POM Composite Bushings

KL65 Hydraulic Guide Ring

Hydraulic Guide Ring Bronze

POM Composite Bushings

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL65

Request A Quote

Product Details

Name:

Hydraulic Guide Ring

Material:

Carbon Steel POM

Temperature (max) °C:

-40/+110

Style:

Hydraulic Guiding Elements

Application:

Applications With High Radial Load

Sliding Speed (max)- M/s:

2.0 (Grease Lubrication) 2.0 (Continuous Lubrication)

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

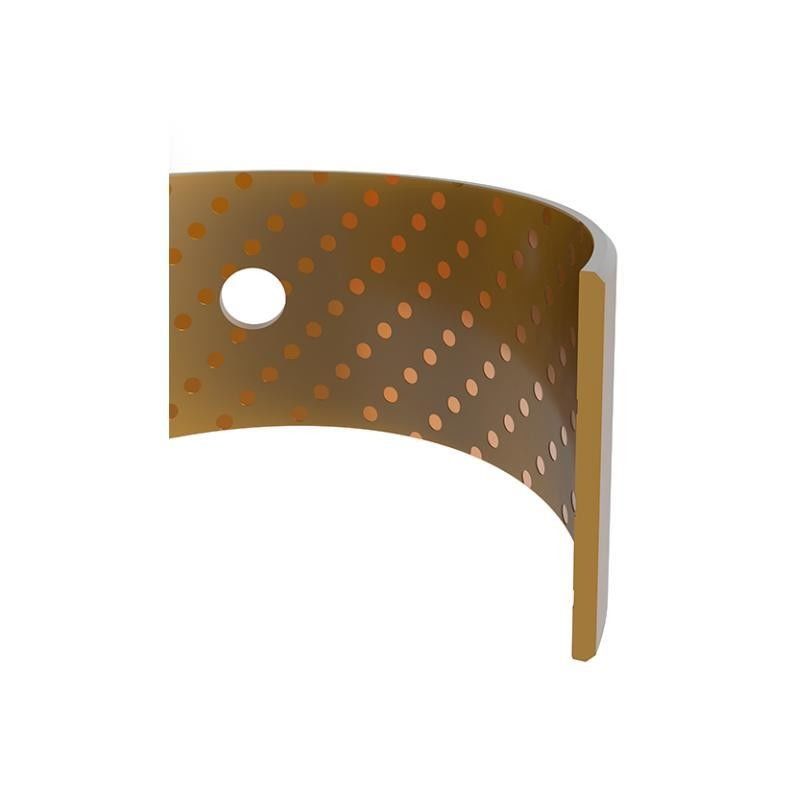

KL65 Is A Composite Bushing From High Quality Steel, Bronze Middle Layer And POM, With Self Lubrication Properties

KL65 is a composite bushing, produced from high quality steel, bronze middle layer and POM, with self lubrication properties. KL65 provides low friction, silent operation and high abrasion resistance in many hydraulic applications

Advantages

• Suitable for dry applications

• Abrasion Resistance

• Low friction

• Long service life

• Good thermal properties and dimensional stability

• Optimum oil film

• Superior load bearing capacity

Area of Application

• Hydraulic and Pneumatic Cylinders

• Applications with high radial load

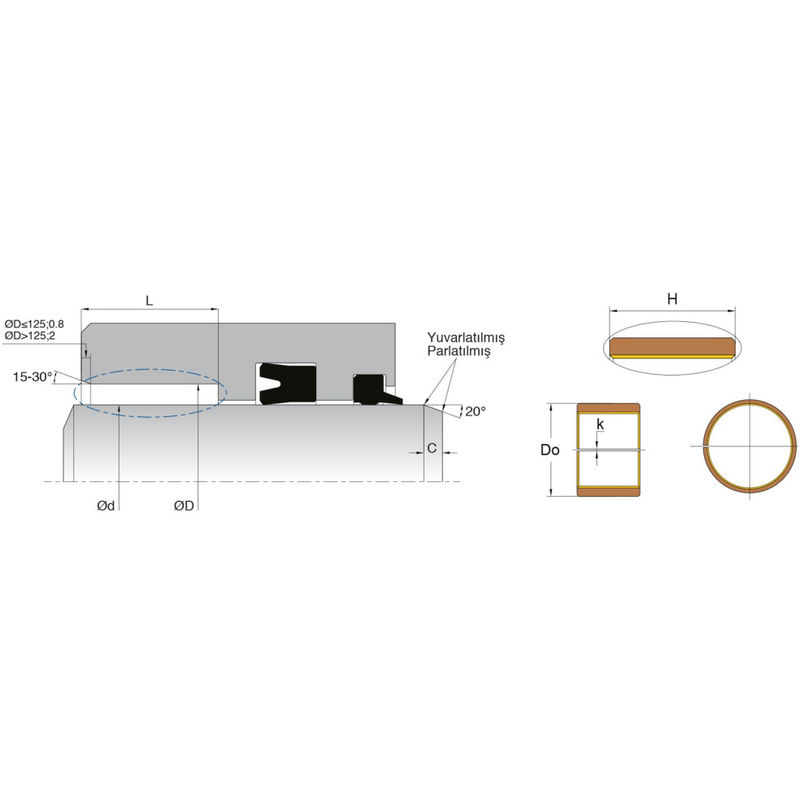

KL65 Hydraulic Guide Ring Bronze Middle Layer POM Composite Bushings 0

	d (f7)	D (H7)	L (+0.2/-0)	MATERIAL
KL65-k014	14	16	20	Steel - POM - Bushing
KL65-k028	28	32	30	Steel - POM - Bushing
KL65-k028/1	28	32	50	Steel - POM - Bushing
KL65-k030	30	34	25	Steel - POM - Bushing
KL65-k030/1	30	34	30	Steel - POM - Bushing
KL65-k030/2	30	34	50	Steel - POM - Bushing
KL65-k030/3	30	34	60	Steel - POM - Bushing
KL65-k032	32	36	20	Steel - POM - Bushing
KL65-k035	35	39	20	Steel - POM - Bushing
KL65-k035/1	35	39	30	Steel - POM - Bushing
KL65-k035/2	35	39	35	Steel - POM - Bushing
KL65-k040	40	44	40	Steel - POM - Bushing
KL65-k040/1	40	44	50	Steel - POM - Bushing
KL65-k040/2	40	45	20	Steel - POM - Bushing
KL65-k040/3	40	45	30	Steel - POM - Bushing
KL65-k045	45	50	40	Steel - POM - Bushing
KL65-k045/1	45	50	50	Steel - POM - Bushing
KL65-k050	50	55	30	Steel - POM - Bushing
KL65-k050/1	50	55	40	Steel - POM - Bushing
KL65-k050/2	50	55	45	Steel - POM - Bushing
KL65-k050/3	50	55	50	Steel - POM - Bushing
KL65-k050/4	50	55	60	Steel - POM - Bushing
KL65-k060	60	65	40	Steel - POM - Bushing
KL65-k060/1	60	65	50	Steel - POM - Bushing
KL65-k060/2	60	65	60	Steel - POM - Bushing
KL65-k070	70	75	40	Steel - POM - Bushing
KL65-k070/1	70	75	50	Steel - POM - Bushing
KL65-k070/2	70	75	58	Steel - POM - Bushing
KL65-k070/3	70	75	60	Steel - POM - Bushing
KL65-k070/4	70	75	90	Steel - POM - Bushing
KL65-k075	75	80	40	Steel - POM - Bushing
KL65-k075/1	75	80	60	Steel - POM - Bushing
KL65-k075/2	75	80	80	Steel - POM - Bushing
KL65-k075/3	75	80	90	Steel - POM - Bushing
KL65-k080	80	85	40	Steel - POM - Bushing
KL65-k080/1	80	85	50	Steel - POM - Bushing
KL65-k080/2	80	85	60	Steel - POM - Bushing
KL65-k085	85	90	60	Steel - POM - Bushing
KL65-k090	90	95	50	Steel - POM - Bushing
KL65-k090/1	90	95	60	Steel - POM - Bushing
KL65-k090/2	90	95	90	Steel - POM - Bushing
KL65-k095	95	100	45	Steel - POM - Bushing
KL65-k095/1	95	100	60	Steel - POM - Bushing
KL65-k100	100	105	50	Steel - POM - Bushing
KL65-k100/1	100	105	60	Steel - POM - Bushing
KL65-k100/2	100	105	90	Steel - POM - Bushing
KL65-k110	110	115	60	Steel - POM - Bushing
KL65-k110/1	110	115	80	Steel - POM - Bushing
KL65-k120	120	125	100	Steel - POM - Bushing
KL65-k120/1	120	125	60	Steel - POM - Bushing
KL65-k130	130	135	100	Steel - POM - Bushing
