Name: KL63 Carbon Steel PTFE Bronze Composite Bushings Low Friction Low Abrasion
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL63
Price: Negotiable USD
Availability: InStock

Home > products > Hydraulic Guide Ring >

KL63 Carbon Steel PTFE Bronze Composite Bushings Low Friction Low Abrasion

PTFE Composite Bushing Low Friction

PTFE Bronze Composite Bushings

PTFE Composite Bushing Low Abrasion

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL63

Request A Quote

Product Details

Name:

KL63 PTFE Composite Bushing

Material:

Carbon Steel PTFE Bronze

Temperature (max) °C:

-195/+280

Sliding Speed (max)- M/s:

2.0 (Dry Run) 5.0 (Working With Hydraulic Fluid)

Style:

Hydraulic Guiding Elements

Application:

Applications With High Radial Load

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

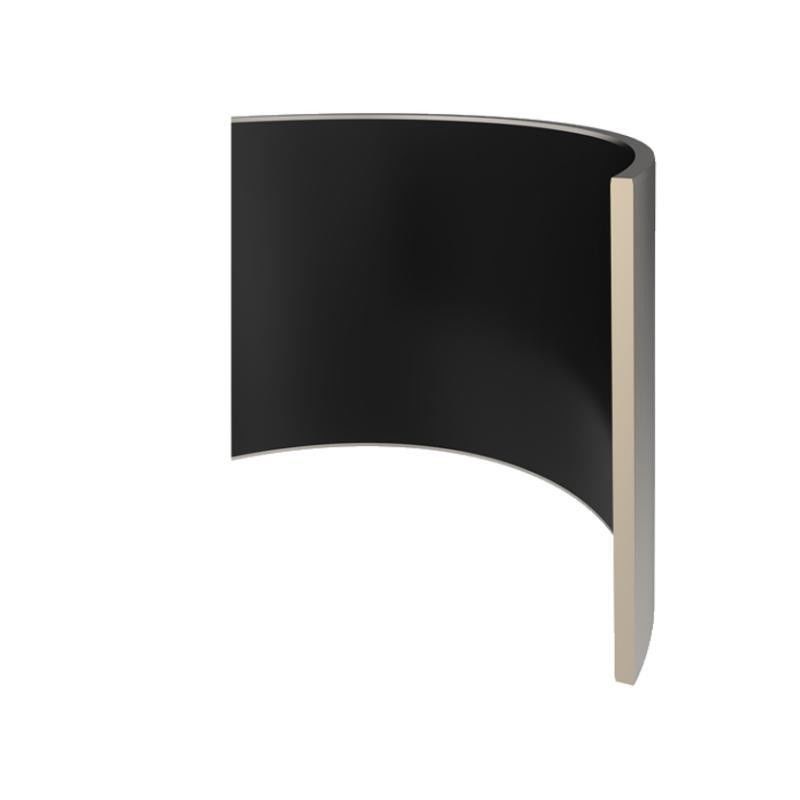

KL63 is a composite bushing consists of carbon steel, bronze, and PTFE. KL63 is a self-lubricating bushing which provides low friction and low abrasion.

Advantages

• Suitable for dry applications

• Abrasion Resistance

• Low friction

• Long service life

• Good thermal properties and dimensional stability

• Optimum oil film

• Superior load bearing capacity

Area of Application

• Hydraulic and Pneumatic Cylinders

• Applications with high radial load

KL63 Carbon Steel PTFE Bronze Composite Bushings Low Friction Low Abrasion 0

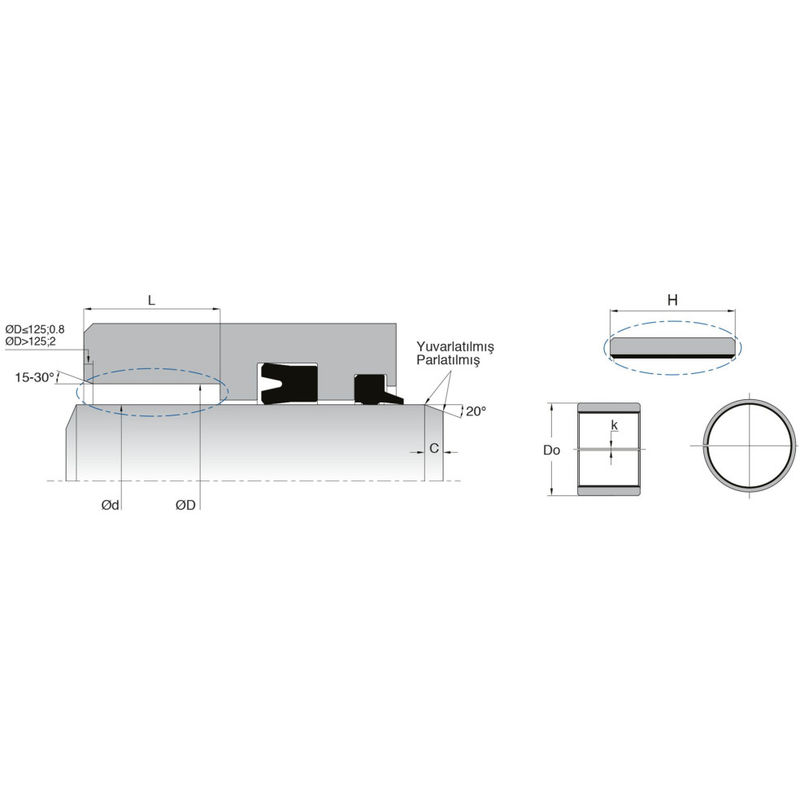

	d (f7)	D (H7)	L (+0.2/-0)	MATERIAL
KL63-006	6	8	10	Steel - - Bushing
KL63-008	8	10	10	Steel - - Bushing
KL63-008/2	8	10	8	Steel - - Bushing
KL63-010	10	12	15	Steel - - Bushing
KL63-012	12	14	15	Steel - - Bushing
KL63-012/1	12	14	20	Steel - - Bushing
KL63-012/2	12	14	10	Steel - - Bushing
KL63-016	16	18	15	Steel - - Bushing
KL63-016/1	16	18	12	Steel - - Bushing
KL63-017	17	19	20	Steel - - Bushing
KL63-017/1	17	19	25	Steel - - Bushing
KL63-020	20	23	15	Steel - - Bushing
KL63-020/1	20	23	20	Steel - - Bushing
KL63-020/2	20	23	30	Steel - - Bushing
KL63-020/4	20	23	25	Steel - - Bushing
KL63-020/5	20	22	15	Steel - - Bushing
KL63-022	22	25	26.5	Steel - - Bushing
KL63-025	25	28	30	Steel - - Bushing
KL63-025/1	25	28	20	Steel - - Bushing
KL63-025/2	25	28	25	Steel - - Bushing
KL63-028	28	32	30	Steel - - Bushing
KL63-028/1	28	32	25	Steel - - Bushing
KL63-030	30	34	30	Steel - - Bushing
KL63-030/1	30	34	20	Steel - - Bushing
KL63-030/2	30	34	15	Steel - - Bushing
KL63-032	32	36	40	Steel - - Bushing
KL63-032/1	32	36	30	Steel - - Bushing
KL63-035	35	40	60	Steel - - Bushing
KL63-036	36	40	30	Steel - - Bushing
KL63-038	38	42	38	Steel - - Bushing
KL63-040	40	44	20	Steel - - Bushing
KL63-040/1	40	44	25	Steel - - Bushing
KL63-040/2	40	44	30	Steel - - Bushing
KL63-040/3	40	45	30	Steel - - Bushing
KL63-040/4	40	44	40	Steel - - Bushing
KL63-040/5	40	45	20	Steel - - Bushing
KL63-045	45	50	30	Steel - - Bushing
KL63-045/1	45	50	60	Steel - - Bushing
KL63-045/2	45	50	50	Steel - - Bushing
KL63-050	50	55	30	Steel - - Bushing
KL63-050/1	50	55	20	Steel - - Bushing
KL63-050/2	50	55	40	Steel - - Bushing
KL63-050/3	50	55	50	Steel - - Bushing
KL63-055	55	60	60	Steel - - Bushing
KL63-055/1	55	60	30	Steel - - Bushing
KL63-055/2	55	60	40	Steel - - Bushing
KL63-060	60	65	20	Steel - - Bushing
KL63-060/1	60	65	30	Steel - - Bushing
KL63-060/2	60	65	40	Steel - - Bushing
KL63-060/3	60	65	50	Steel - - Bushing
KL63-060/4	60	65	60	Steel - - Bushing
KL63-065	65	70	50	Steel - - Bushing
KL63-065/1	65	70	30	Steel - - Bushing
KL63-065/2	65	70	60	Steel - - Bushing
KL63-065/3	65	70	40	Steel - - Bushing
KL63-070	70	75	30	Steel - - Bushing
KL63-070/1	70	75	40	Steel - - Bushing
KL63-070/2	70	75	50	Steel - - Bushing
KL63-070/3	70	75	80	Steel - - Bushing
KL63-070/4	70	75	35	Steel - - Bushing
KL63-070/5	70	75	15	Steel - - Bushing
KL63-075	75	80	30	Steel - - Bushing
KL63-075/1	75	80	40	Steel - - Bushing
KL63-075/2	75	80	35	Steel - - Bushing
KL63-075/3	75	80	60	Steel - - Bushing
KL63-080	80	85	30	Steel - - Bushing
KL63-080/1	80	85	40	Steel - - Bushing
KL63-080/2	80	85	35	Steel - - Bushing
KL63-080/3	80	85	60	Steel - - Bushing
KL63-085	85	90	30	Steel - - Bushing
KL63-085/1	85	90	40	Steel - - Bushing
KL63-085/2	85	90	35	Steel - - Bushing
KL63-085/3	85	90	60	Steel - - Bushing
KL63-090	90	95	30	Steel - - Bushing
KL63-090/1	90	95	40	Steel - - Bushing
KL63-090/2	90	95	20	Steel - - Bushing
KL63-090/3	90	95	35	Steel - - Bushing
KL63-090/4	90	95	50	Steel - - Bushing
KL63-090/5	90	95	60	Steel - - Bushing
KL63-095	95	100	30	Steel - - Bushing
KL63-095/1	95	100	40	Steel - - Bushing
KL63-095/2	95	100	60	Steel - - Bushing
KL63-095/3	95	100	50	Steel - - Bushing
KL63-100	100	105	30	Steel - - Bushing
KL63-100/1	100	105	35	Steel - - Bushing
KL63-100/2	100	105	50	Steel - - Bushing
KL63-100/3	100	105	60	Steel - - Bushing
KL63-100/4	100	105	40	Steel - - Bushing
KL63-100/5	100	105	20	Steel - - Bushing
KL63-105	105	110	60	Steel - - Bushing
KL63-105/1	105	110	50	Steel - - Bushing
KL63-105/2	105	110	35	Steel - - Bushing
KL63-105/3	105	110	40	Steel - - Bushing
KL63-110	110	115	50	Steel - - Bushing
KL63-110/1	110	115	55	Steel - - Bushing
KL63-110/2	110	115	35	Steel - - Bushing
KL63-110/3	110	115	40	Steel - - Bushing
KL63-110/4	110	115	30	Steel - - Bushing
KL63-110/5	110	115	60	Steel - - Bushing
KL63-115	115	120	35	Steel - - Bushing
KL63-115/1	115	120	60	Steel - - Bushing
KL63-115/2	115	120	50	Steel - - Bushing
KL63-115/4	115	120	45	Steel - - Bushing
KL63-120	120	125	35	Steel - - Bushing
KL63-120/1	120	125	45	Steel - - Bushing
KL63-120/2	120	125	20	Steel - - Bushing
KL63-120/3	120	125	40	Steel - - Bushing
KL63-120/4	120	125	50	Steel - - Bushing
KL63-120/5	120	125	60	Steel - - Bushing
KL63-125	125	130	50	Steel - - Bushing
KL63-130	130	135	50	Steel - - Bushing
KL63-130/1	130	135	60	Steel - - Bushing
KL63-130/2	130	135	40	Steel - - Bushing
KL63-130/3	130	135	100	Steel - - Bushing
KL63-135	135	140	100	Steel - - Bushing
KL63-140	140	145	40	Steel - - Bushing
KL63-140/1	140	145	60	Steel - - Bushing
KL63-140/2	140	145	50	Steel - - Bushing
KL63-140/3	140	145	55	Steel - - Bushing
KL63-145	145	150	60	Steel - - Bushing
KL63-150	150	155	40	Steel - - Bushing
KL63-150/1	150	155	50	Steel - - Bushing
KL63-150/2	150	155	60	Steel - - Bushing
KL63-160	160	165	40	Steel - - Bushing
KL63-160/1	160	165	80	Steel - - Bushing
KL63-160/2	160	165	50	Steel - - Bushing
KL63-160/3	160	165	60	Steel - - Bushing
KL63-180	180	185	60	Steel - - Bushing
KL63-210	210	215	60	Steel - - Bushing
KL63-210/1	210	215	80	Steel - - Bushing
