Name: KL61 Piston Rod Guide Ring Composite Guiding Elements
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL61
Availability: InStock

Home > products > Hydraulic Guide Ring >

KL61 Piston Rod Guide Ring Composite Guiding Elements

KL61 Rod Guide Ring

Piston Rod Guide Ring

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL61

Request A Quote

Product Details

Name:

Rod Guide Ring

Material:

Phenolics Aramid

Temperature (max) °C:

-40/+200

Sliding Speed (max)- M/s:

1.0

Style:

Hydraulic Guiding Elements

Application:

Iron And Steel Industry / Heavy Duty Cylinders

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

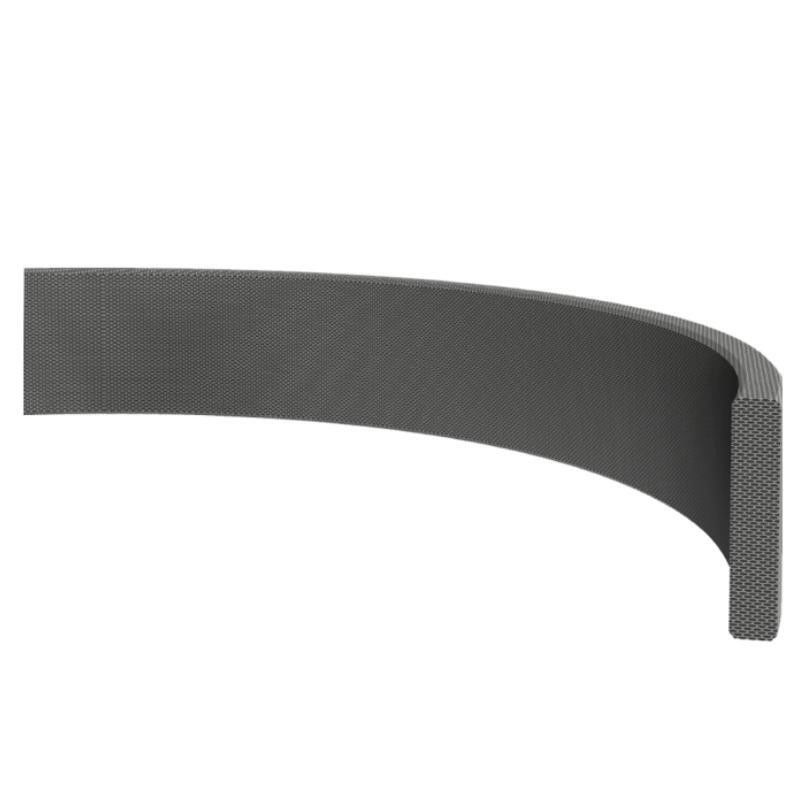

KL61 piston-rod guide rings are composite guiding elements, produced from aramid fabric and phenolic resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems. Compared to regular composite guide rings, KL61 has a higher temperature resistance due to Aramid fabric.

Advantages

• Operating at high temperature

• The high form stability at operating temperature range

• Easy installation

• Wide range of dimensions

• Can be used in heavy and medium duty applications

Area of Application

• Iron and steel industry

• Mobile machinery

• Heavy duty cylinders

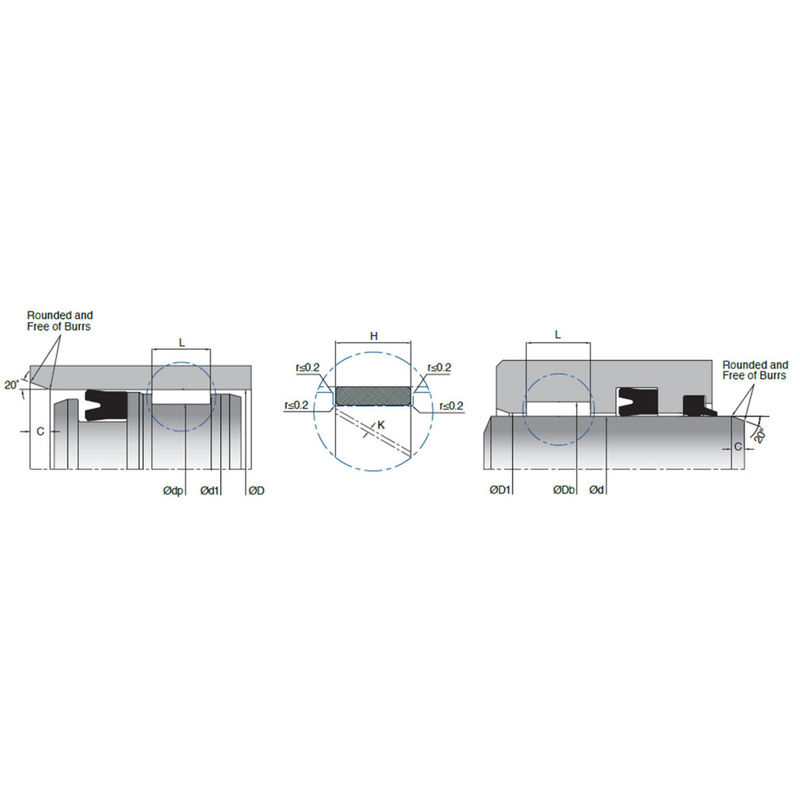

KL61 Piston Rod Guide Ring Composite Guiding Elements 0

	d(f8) dp(h8)	Db(H8) D(H9)	L (+0.2/-0)	H	d1 (h9)	D1 (H9)	MATERIAL
KL61-040	40	45	9.7	9.5	43.2	41.8	PHENOLICS ARAMID
KL61-050	50	55	9.7	9.5	53.2	51.8	PHENOLICS ARAMID
KL61-050/1	50	55	15	14.8	53.2	51.8	PHENOLICS ARAMID
KL61-055	55	60	15	14.8	58.2	56.8	PHENOLICS ARAMID
KL61-055/1	55	60	9.7	9.5	58.2	56.8	PHENOLICS ARAMID
KL61-058	58	63	9.7	9.5	61.2	59.8	PHENOLICS ARAMID
KL61-060	60	65	15	14.8	63.2	61.8	PHENOLICS ARAMID
KL61-060/1	60	65	9.7	9.5	63.2	61.8	PHENOLICS ARAMID
KL61-063	63	68	9.7	d	66.2	64.8	PHENOLICS ARAMID
KL61-063/1	63	68	15	14.8	66.2	64.8	PHENOLICS ARAMID
KL61-065	65	70	15	14.8	68.2	66.8	PHENOLICS ARAMID
KL61-065/1	65	70	9.7	9.5	68.2	66.8	PHENOLICS ARAMID
KL61-070	70	75	9.7	9.5	73.2	71.8	PHENOLICS ARAMID
KL61-070/1	70	75	15	14.8	73.2	71.8	PHENOLICS ARAMID
KL61-075	75	80	9.7	9.5	78.2	76.8	PHENOLICS ARAMID
KL61-075/1	75	80	15	14.8	78.2	76.8	PHENOLICS ARAMID
KL61-080	80	85	9.7	9.5	83.2	81.8	PHENOLICS ARAMID
KL61-080/1	80	85	15	14.8	83.2	81.8	PHENOLICS ARAMID
KL61-085	85	90	9.7	9.5	88.2	86.8	PHENOLICS ARAMID
KL61-085/1	85	90	15	14.8	88.2	86.8	PHENOLICS ARAMID
KL61-090	90	95	15	14.8	93.2	91.8	PHENOLICS ARAMID
KL61-090/1	90	95	9.7	9.5	93.2	91.8	PHENOLICS ARAMID
KL61-095	95	100	9.7	9.5	98.2	96.8	PHENOLICS ARAMID
KL61-095/1	95	100	15	14.8	98.2	96.8	PHENOLICS ARAMID
KL61-100	100	105	15	14.8	103.2	101.8	PHENOLICS ARAMID
KL61-100/1	100	105	9.7	9.5	103.2	101.8	PHENOLICS ARAMID
KL61-105	105	110	9.7	9.5	108.2	106.8	PHENOLICS ARAMID
KL61-105/1	105	110	15	14.8	108.2	106.8	PHENOLICS ARAMID
KL61-110	110	115	9.7	9.5	113.2	111.8	PHENOLICS ARAMID
KL61-110/1	110	115	15	14.8	113.2	111.8	PHENOLICS ARAMID
KL61-110/2	110	115	8.1	7.9	113.2	111.8	PHENOLICS ARAMID
KL61-115	115	120	9.7	9.5	118.2	116.8	PHENOLICS ARAMID
KL61-115/1	115	120	15	14.8	118.2	116.8	PHENOLICS ARAMID
KL61-115/2	115	120	8.1	7.9	118.2	116.8	PHENOLICS ARAMID
KL61-120	120	125	9.7	9.5	123.2	121.8	PHENOLICS ARAMID
KL61-120/1	120	125	15	14.8	123.2	121.8	PHENOLICS ARAMID
KL61-120/2	120	125	8.1	7.9	123.2	121.8	PHENOLICS ARAMID
KL61-125	125	130	9.7	9.5	128.2	126.8	PHENOLICS ARAMID
KL61-125/1	125	130	15	14.8	128.2	126.8	PHENOLICS ARAMID
KL61-125/3	125	130	14.2	14	128.2	126.8	PHENOLICS ARAMID
KL61-130	130	135	9.7	9.5	133.2	131.8	PHENOLICS ARAMID
KL61-130/1	130	135	15	14.8	133.2	131.8	PHENOLICS ARAMID
KL61-130/3	130	135	8.1	7.9	133.2	131.8	PHENOLICS ARAMID
KL61-135	135	140	9.7	9.5	138.2	136.8	PHENOLICS ARAMID
KL61-135/1	135	140	15	14.8	138.2	136.8	PHENOLICS ARAMID
KL61-135/2	135	140	8.1	7.9	138.2	136.8	PHENOLICS ARAMID
KL61-140	140	145	9.7	9.5	143.2	141.8	PHENOLICS ARAMID
KL61-140/1	140	145	15	14.8	143.2	141.8	PHENOLICS ARAMID
KL61-140/3	140	145	20	19.8	143.2	141.8	PHENOLICS ARAMID
KL61-145	145	150	9.7	9.5	148.2	146.8	PHENOLICS ARAMID
KL61-145/1	145	150	15	14.8	148.2	146.8	PHENOLICS ARAMID
KL61-150	150	155	15	14.8	153.2	151.8	PHENOLICS ARAMID
KL61-150/1	150	155	9.7	9.5	153.2	151.8	PHENOLICS ARAMID
KL61-150/2	150	155	12.5	12.3	153.2	151.8	PHENOLICS ARAMID
KL61-155	155	160	9.7	9.5	158.2	156.8	PHENOLICS ARAMID
KL61-155/1	155	160	15	14.8	158.2	156.8	PHENOLICS ARAMID
KL61-160	160	165	9.7	9.5	163.2	161.8	PHENOLICS ARAMID
KL61-160/1	160	165	15	14.8	163.2	161.8	PHENOLICS ARAMID
KL61-164	164	170	9.7	9.5	167.6	166.4	PHENOLICS ARAMID
KL61-165	165	170	9.7	9.5	168.2	166.8	PHENOLICS ARAMID
KL61-165/1	165	170	15	14.8	168.2	166.8	PHENOLICS ARAMID
KL61-170	170	175	9.7	9.5	173.2	171.8	PHENOLICS ARAMID
KL61-170/1	170	175	15	14.8	173.2	171.8	PHENOLICS ARAMID
KL61-174	174	180	15	14.8	177.6	176.4	PHENOLICS ARAMID
KL61-175	175	180	9.7	9.5	178.2	176.8	PHENOLICS ARAMID
KL61-175/1	175	180	15	14.8	178.2	176.8	PHENOLICS ARAMID
KL61-180	180	185	15	14.8	183.2	181.8	PHENOLICS ARAMID
KL61-180/1	180	185	9.7	9.5	183.2	181.8	PHENOLICS ARAMID
KL61-184	184	190	15	14.8	187.6	186.4	PHENOLICS ARAMID
KL61-185	185	190	9.7	9.5	188.2	186.8	PHENOLICS ARAMID
KL61-185/1	185	190	15	14.8	188.2	186.8	PHENOLICS ARAMID
KL61-190	190	195	9.7	9.5	193.2	191.8	PHENOLICS ARAMID
KL61-190/1	190	195	15	14.8	193.2	191.8	PHENOLICS ARAMID
KL61-194	194	200	20	19.8	197.6	196.4	PHENOLICS ARAMID
KL61-195	195	200	9.7	9.5	198.2	196.8	PHENOLICS ARAMID
KL61-195/1	195	200	15	14.8	198.2	196.8	PHENOLICS ARAMID
KL61-209	209	215	20	19.8	212.6	211.4	PHENOLICS ARAMID
KL61-210	210	215	25	24.5	213.2	211.8	PHENOLICS ARAMID
KL61-215	215	220	15	14.8	218.2	216.8	PHENOLICS ARAMID
KL61-219	219	225	20	19.8	222.6	221.4	PHENOLICS ARAMID
KL61-224	224	230	25	24.5	227.6	226.4	PHENOLICS ARAMID
KL61-229	229	235	20	19.8	232.6	231.4	PHENOLICS ARAMID
KL61-234	234	240	25	24.5	237.6	236.4	PHENOLICS ARAMID
KL61-235	235	240	25	24.5	238.2	236.8	PHENOLICS ARAMID
KL61-240	240	248	25	24.5	245	243	PHENOLICS ARAMID
KL61-244	244	250	25	24.5	247.6	246.4	PHENOLICS ARAMID
KL61-245/1	245	250	25	24.5	248.2	246.8	PHENOLICS ARAMID
KL61-245/2	245	250	15	14.8	248.2	246.8	PHENOLICS ARAMID
KL61-245/3	245	250	20	19.8	248.2	246.8	PHENOLICS ARAMID
KL61-250	250	255	40	39.5	253.2	251.8	PHENOLICS ARAMID
KL61-254	254	260	25	24.5	257.6	256.4	PHENOLICS ARAMID
KL61-254/1	254	260	30	29.5	257.6	256.4	PHENOLICS ARAMID
KL61-260	260	265	25	24.5	263.2	261.8	PHENOLICS ARAMID
KL61-279	279	285	25	24.5	282.6	281.4	PHENOLICS ARAMID
KL61-280	280	285	25	24.5	283.2	281.8	PHENOLICS ARAMID
KL61-294	294	300	35	34.5	297.6	296.4	PHENOLICS ARAMID
KL61-295	295	300	25	24.5	298.2	296.8	PHENOLICS ARAMID
KL61-315	315	320	25	24.5	318.2	316.8	PHENOLICS ARAMID
