Polyester Fiber / Phenolic Resin Hydraulic Guide Ring For Mobile Machinery

Polyester Fiber Hydraulic Guide Ring

Phenolic Resin Hydraulic Guide Ring

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL59

Request A Quote

Polyester Fiber / Phenolic Resin Hydraulic Guide Ring For Mobile Machinery

Product Details

Name:

KL59 Hydraulic Guide Ring

Material:

Polyester Fiber, Phenolic Resin

Temperature (max) °C:

-40/+120

Sliding Speed (max)- M/s:

1.0

Style:

Hydraulic Guiding Elements

Application:

Mining Industry / Heavy Duty Cylinders

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

KL59 Used In Rod And Piston Applications In Hydraulic Systems Which Provides High Load Carrying Capacity

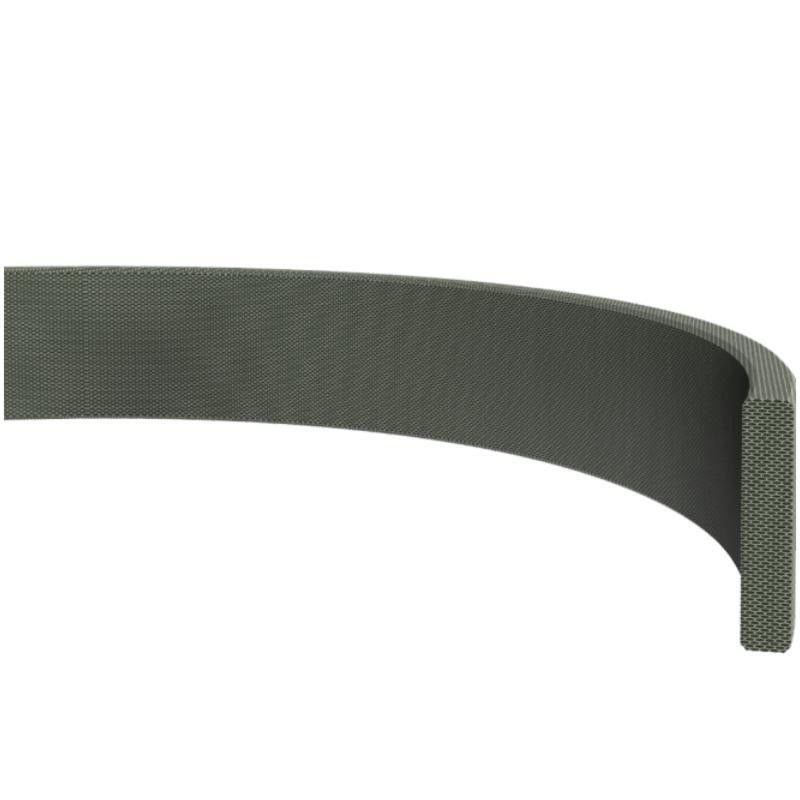

KL59 piston-rod guide rings are composite guiding elements, produced from polyester fabric and phenolic resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems.

Advantages

• Low coefficient of friction

• High Load bearing capacity

• The high form stability at operating temperature range

• Low swelling

• Wide range of dimensions

Area of Application

• Mobile machinery

• Mining industry

• Excavators

• Presses

• Heavy duty cylinders

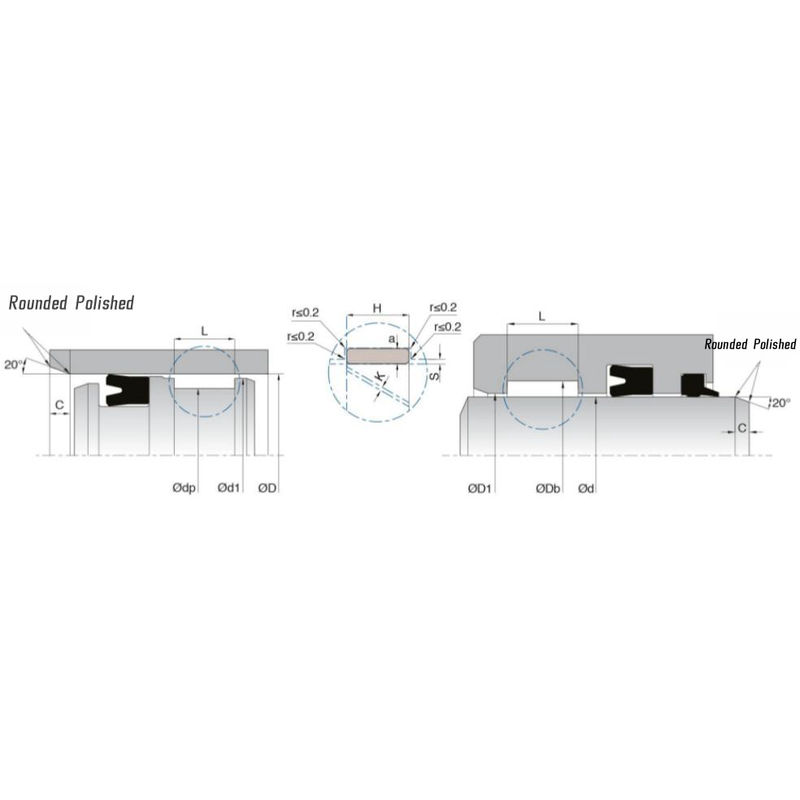

Polyester Fiber / Phenolic Resin Hydraulic Guide Ring For Mobile Machinery 0

	a	L (+0.2/-0)	H	Permissable Diameter Range	MATERIAL
KL59-2.5X15	2.5	15	14.8	Ø60-Ø80	PHENOLIC RESIN
KL59-2.5X15/1	2.5	15	14.8	Ø80-Ø100	PHENOLIC RESIN
KL59-2.5X15/2	2.5	15	14.8	Ø100-Ø150	PHENOLIC RESIN
KL59-2.5X20	2.5	20	19.8	Ø150-Ø200	PHENOLIC RESIN
KL59-2.5X25	2.5	25	24.8	Ø130-Ø150	PHENOLIC RESIN
KL59-2.5X25/1	2.5	25	24.8	Ø80-Ø100	PHENOLIC RESIN
KL59-2.5X25/2	2.5	25	24.8	Ø150-Ø200	PHENOLIC RESIN
KL59-2.5X9.7	2.5	9.7	9.5	Ø40-Ø60	PHENOLIC RESIN
KL59-2.5X9.7/1	2.5	9.7	9.5	Ø60-Ø80	PHENOLIC RESIN
KL59-2.5X9.7/2	2.5	9.7	9.5	Ø80-Ø100	PHENOLIC RESIN
KL59-2.5X9.7/3	2.5	9.7	9.5	Ø100-Ø125	PHENOLIC RESIN
