Name: KL58 PTFE Piston Guide Ring Low Coefficient Of Friction For Mining Industry
Brand: Kelong
SKU: KL58
Rating: 4.8 (180 reviews)

Home > products > Hydraulic Guide Ring >

KL58 PTFE Piston Guide Ring Low Coefficient Of Friction For Mining Industry

KL58 Piston Guide Ring

PTFE Piston Guide Ring

Kelong PTFE Guide Rings

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL58

Request A Quote

Product Details

Name:

Piston Guide Ring

Material:

PTFE Added Synthetic Fiber Phenolic Resin

Temperature (max) °C:

-40/+130

Sliding Speed (max)- M/s:

1.0

Style:

Hydraulic Guiding Elements

Application:

Mobile Machinery / Excavators

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

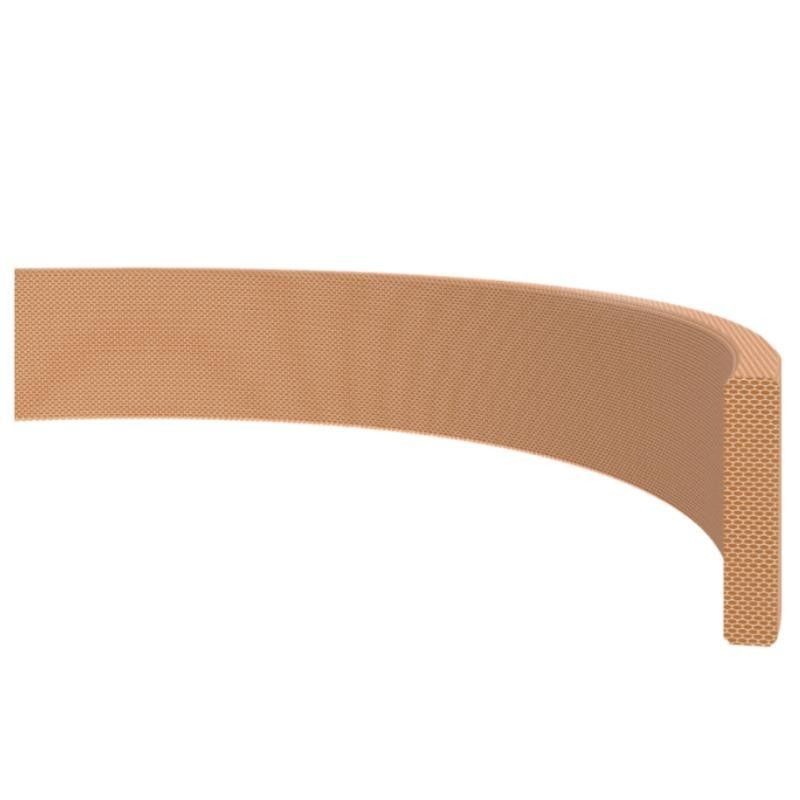

KL58 Piston-Rod Guide Rings Are Composite Guiding Elements, Produced From Synthetic Fabric And Phenolic Resin

KL58 piston-rod guide rings are composite guiding elements, produced from syntetic fabric and phenolic resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems.

Advantages

• Low coefficient of friction

• High Load bearing capacity

• The high form stability at operating temperature range

• Low swelling

• Wide range of dimensions

Area of Application

• Mobile machinery

• Mining industry

• Excavators

• Presses

• Heavy duty cylinders

KL58 PTFE Piston Guide Ring Low Coefficient Of Friction For Mining Industry 0

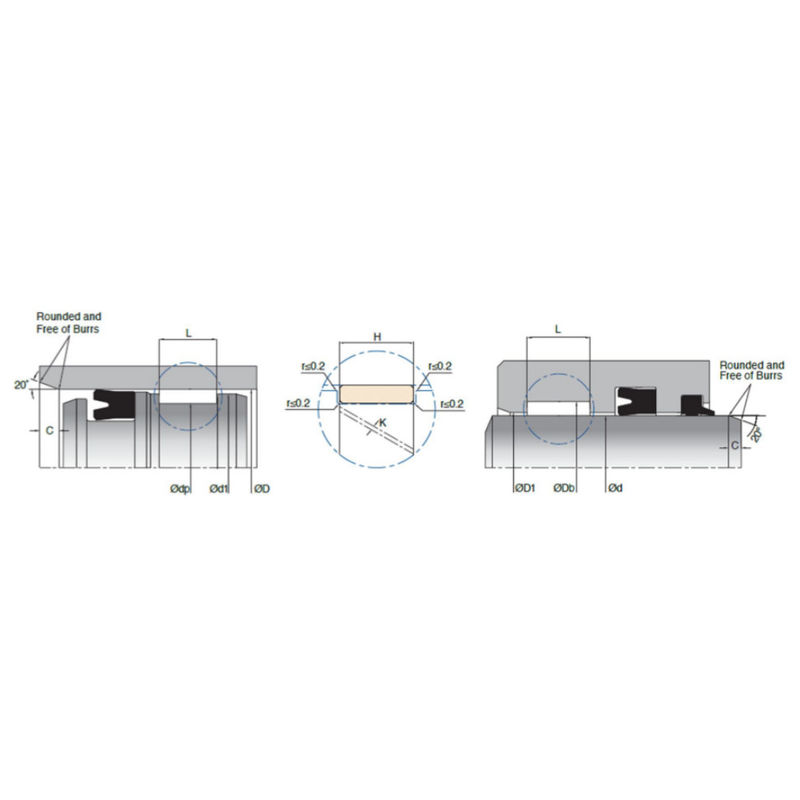

	d(f8) dp(h8)	Db(H8) D(H9)	L (+0.2/-0)	H	d1 (h9)	D1 (H9)	MATERIAL
KL58-025	25	30	9.7	9.5	28.2	26.8	FIBER PHENOLIC
KL58-030	30	35	9.7	9.5	33.2	31.8	FIBER PHENOLIC
KL58-035	35	40	15	14.8	38.2	36.8	FIBER PHENOLIC
KL58-040/1	40	45	9.7	9.5	43.2	41.8	FIBER PHENOLIC
KL58-040/2	40	45	15	14.8	43.2	41.8	FIBER PHENOLIC
KL58-045	45	50	9.7	9.5	48.2	46.8	FIBER PHENOLIC
KL58-045/1	45	50	15	14.8	48.2	46.8	FIBER PHENOLIC
KL58-050	50	55	9.7	9.5	53.2	51.8	FIBER PHENOLIC
KL58-050/1	50	55	15	14.8	53.2	51.8	FIBER PHENOLIC
KL58-050/2	50	54	10	9.8	53	51	FIBER PHENOLIC
KL58-055	55	60	15	14.8	58.2	56.8	FIBER PHENOLIC
KL58-055/1	55	60	9.7	9.5	58.2	56.8	FIBER PHENOLIC
KL58-058	58	63	9.7	9.5	61.2	59.8	FIBER PHENOLIC
KL58-060	60	65	15	14.8	63.2	61.8	FIBER PHENOLIC
KL58-060/1	60	65	9.7	9.5	63.2	61.8	FIBER PHENOLIC
KL58-060/2	60	65	20	19.8	63.2	61.8	FIBER PHENOLIC
KL58-063	63	68	15	14.8	66.2	64.8	FIBER PHENOLIC
KL58-065	65	70	15	14.8	68.2	66.8	FIBER PHENOLIC
KL58-065/1	65	70	9.7	9.5	68.2	66.8	FIBER PHENOLIC
KL58-070	70	75	9.7	9.5	73.2	71.8	FIBER PHENOLIC
KL58-070/1	70	75	15	14.8	73.2	71.8	FIBER PHENOLIC
KL58-074	74	80	6.5	6.3	77.6	76.4	FIBER PHENOLIC
KL58-075	75	80	9.7	9.5	78.2	76.8	FIBER PHENOLIC
KL58-075/1	75	80	15	14.8	78.2	76.8	FIBER PHENOLIC
KL58-080	80	85	9.7	9.5	83.2	81.8	FIBER PHENOLIC
KL58-080/1	80	85	15	14.8	83.2	81.8	FIBER PHENOLIC
KL58-080/2	80	85	20	19.8	83.2	81.8	FIBER PHENOLIC
KL58-084	84	90	6.5	6.3	87.6	86.4	FIBER PHENOLIC
KL58-085	85	90	9.7	9.5	88.2	86.8	FIBER PHENOLIC
KL58-085/1	85	90	15	14.8	88.2	86.8	FIBER PHENOLIC
KL58-090	90	95	15	14.8	93.2	91.8	FIBER PHENOLIC
KL58-090/1	90	95	9.7	9.5	93.2	91.8	FIBER PHENOLIC
KL58-090/2	90	95	5.6	5.4	93.2	91.8	FIBER PHENOLIC
KL58-094	94	100	6.5	6.3	97.6	96.4	FIBER PHENOLIC
KL58-095	95	100	9.7	9.5	98.2	96.8	FIBER PHENOLIC
KL58-095/1	95	100	15	14.8	98.2	96.8	FIBER PHENOLIC
KL58-100	100	105	15	14.8	103.2	101.8	FIBER PHENOLIC
KL58-100/1	100	105	9.7	9.5	103.2	101.8	FIBER PHENOLIC
KL58-100/2	100	105	20	19.8	103.2	101.8	FIBER PHENOLIC
KL58-100/3	100	105	25	24.8	103.2	101.8	FIBER PHENOLIC
KL58-105	105	110	9.7	9.5	108.2	106.8	FIBER PHENOLIC
KL58-105/1	105	110	15	14.8	108.2	106.8	FIBER PHENOLIC
KL58-105/3	105	110	20	19.8	108.2	106.8	FIBER PHENOLIC
KL58-110	110	115	9.7	9.5	113.2	111.8	FIBER PHENOLIC
KL58-110/1	110	115	15	14.8	113.2	111.8	FIBER PHENOLIC
KL58-115	115	120	9.7	9.5	118.2	116.8	FIBER PHENOLIC
KL58-115/1	115	120	15	14.8	118.2	116.8	FIBER PHENOLIC
KL58-115/2	115	120	25	24.8	118.2	116.8	FIBER PHENOLIC
KL58-120	120	125	9.7	9.5	123.2	121.8	FIBER PHENOLIC
KL58-120/1	120	125	15	14.8	123.2	121.8	FIBER PHENOLIC
KL58-120/2	120	125	20	19.8	123.2	121.8	FIBER PHENOLIC
KL58-125	125	130	9.7	9.5	128.2	126.8	FIBER PHENOLIC
KL58-125/1	125	130	15	14.8	128.2	126.8	FIBER PHENOLIC
KL58-130	130	135	9.7	9.5	133.2	131.8	FIBER PHENOLIC
KL58-130/1	130	135	15	14.8	133.2	131.8	FIBER PHENOLIC
KL58-135	135	140	9.7	9.5	138.2	136.8	FIBER PHENOLIC
KL58-135/1	135	140	15	14.8	138.2	136.8	FIBER PHENOLIC
KL58-140	140	145	9.7	9.5	143.2	141.8	FIBER PHENOLIC
KL58-140/1	140	145	15	14.8	143.2	141.8	FIBER PHENOLIC
KL58-140/2	140	148	25	24.8	145	143	FIBER PHENOLIC
KL58-142	142	147	15	14.8	145.2	143.8	FIBER PHENOLIC
KL58-145	145	150	9.7	9.5	148.2	146.8	FIBER PHENOLIC
KL58-145/1	145	150	15	14.8	148.2	146.8	FIBER PHENOLIC
KL58-145/2	145	150	25	24.8	148.2	146.8	FIBER PHENOLIC
KL58-150	150	155	15	14.8	153.2	151.8	FIBER PHENOLIC
KL58-150/1	150	155	9.7	9.5	153.2	151.8	FIBER PHENOLIC
KL58-155	155	160	9.7	9.5	158.2	156.8	FIBER PHENOLIC
KL58-155/1	155	160	15	14.8	158.2	156.8	FIBER PHENOLIC
KL58-155/2	155	163	25	24.8	160	158	FIBER PHENOLIC
KL58-155/3	155	160	20	19.8	158.2	156.8	FIBER PHENOLIC
KL58-160	160	165	20	19.8	163.2	161.8	FIBER PHENOLIC
KL58-165	165	170	9.7	9.5	168.2	166.8	FIBER PHENOLIC
KL58-175	175	180	9.7	9.5	178.2	176.8	FIBER PHENOLIC
KL58-175/1	175	180	15	14.8	178.2	176.8	FIBER PHENOLIC
KL58-180	180	185	15	14.8	183.2	181.8	FIBER PHENOLIC
KL58-180/1	180	188	25	24.8	185	183	FIBER PHENOLIC
KL58-185	185	190	9.7	9.5	188.2	186.8	FIBER PHENOLIC
KL58-185/1	185	190	15	14.8	188.2	186.8	FIBER PHENOLIC
KL58-192	192	200	25	24.8	197	195	FIBER PHENOLIC
KL58-195	195	200	9.7	9.5	198.2	196.8	FIBER PHENOLIC
KL58-195/1	195	200	15	14.8	198.2	196.8	FIBER PHENOLIC
KL58-200	200	205	15	14.8	203.2	201.8	FIBER PHENOLIC
KL58-200/1	200	208	25	24.8	205	203	FIBER PHENOLIC
KL58-210	210	218	25	24.8	215	213	FIBER PHENOLIC
KL58-212	212	220	25	24.8	217	215	FIBER PHENOLIC
KL58-215	215	220	15	14.8	218.2	216.8	FIBER PHENOLIC
KL58-225	225	230	15	14.8	228.2	226.8	FIBER PHENOLIC
KL58-240	240	245	15	14.8	243.2	241.8	FIBER PHENOLIC
KL58-240/1	240	248	25	24.8	245	243	FIBER PHENOLIC
KL58-242	242	250	25	24.8	247	245	FIBER PHENOLIC
KL58-260/1	260	265	25	24.8	263.2	261.8	FIBER PHENOLIC
KL58-265	265	270	15	14.8	268.2	266.8	FIBER PHENOLIC
KL58-275	275	280	9.7	9.5	278.2	276.8	FIBER PHENOLIC
KL58-290	290	298	25	24.8	295	293	FIBER PHENOLIC
KL58-292	292	300	25	24.8	297	295	FIBER PHENOLIC
KL58-295	295	300	15	14.8	298.2	296.8	FIBER PHENOLIC
KL58-342	342	350	25	24.8	347	345	FIBER PHENOLIC
KL58-392	392	400	25	24.8	397	395	FIBER PHENOLIC
