Name: Glass Fibre Reinforced Hydraulic Guide Ring Easy Installation
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL57
Price: Negotiable USD
Availability: InStock

Home > products > Hydraulic Guide Ring >

Glass Fibre Reinforced Hydraulic Guide Ring Easy Installation

Glass Fibre Hydraulic Guide Ring

Reinforced Hydraulic Guide Ring

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL57

Request A Quote

Glass Fibre Reinforced Hydraulic Guide Ring Easy Installation

Product Details

Temperature (max) °C:

-40/+110

Sliding Speed (max)- M/s:

1.0

Style:

Hydraulic Guiding Elements

Application:

Light And Medium Duty Cylinders

Material:

POM

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

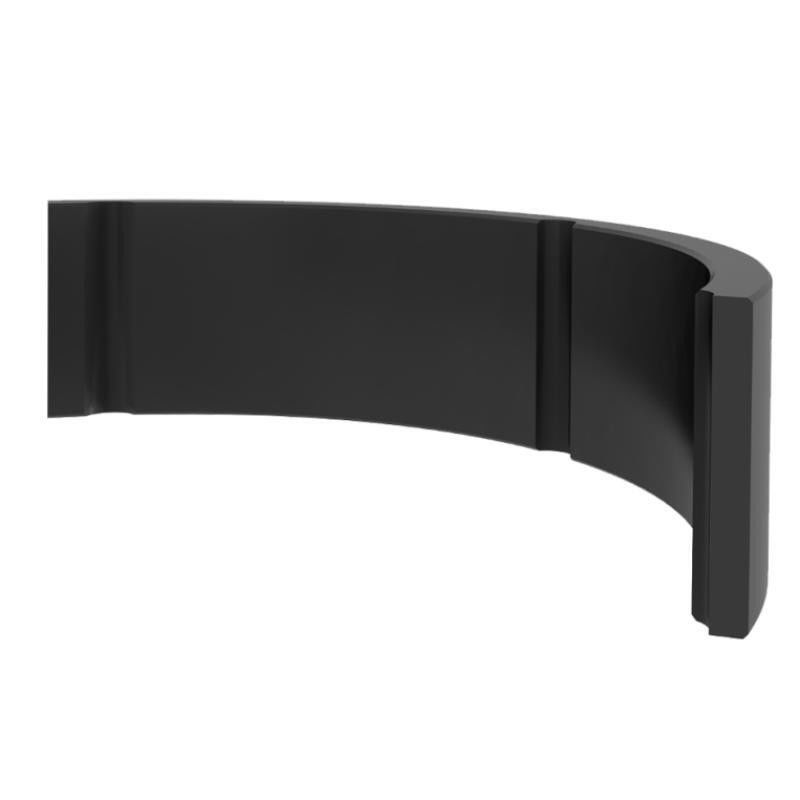

KL57 is a glass-fibre reinforced POM guide ring, designed for general purpose in hydraulic applications. Glass-fibre composition in the material increases the load bearing capacity of the guiding element.

BENEFITS:

• Extensive size range, either pre cut or coil lengths.

• Many sizes can be cut from one coil.

• Improves cylinder life.

Advantages

• Easy installation

• The high form stability at operating temperature range

• Wide dimension range

Area of Application

• Agricultural machinery

• Light and medium duty cylinders

• Mining

• Mobile hydraulics

• Off Highway Forestry

• Pneumatic cylinders for industrial application

Glass Fibre Reinforced Hydraulic Guide Ring Easy Installation 0

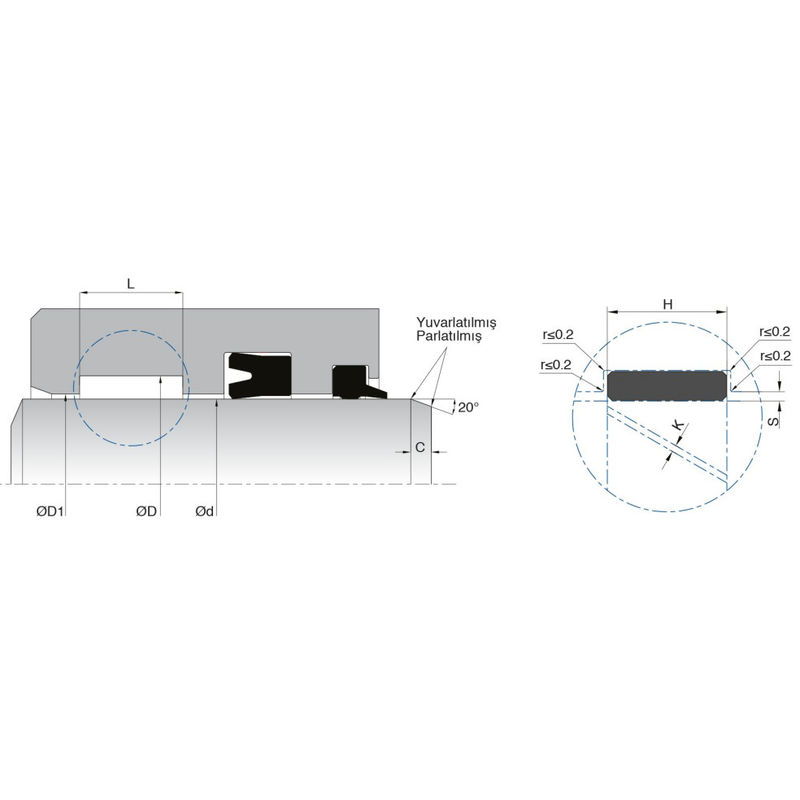

	d (f8)	D (H8)	D1 (H9)	L (+0.2/-0)	H	MATERIAL
KL57-020	20	30	20.6	13	12.8	POM
KL57-025	25	35	25.6	13	12.8	POM
KL57-030	30	40	30.6	13	12.8	POM
KL57-035	35	45	35.6	13	12.8	POM
KL57-040	40	50	40.6	16	15.8	POM
KL57-045	45	55	45.6	16	15.8	POM
KL57-045/1	45	60	45.6	16	15.8	POM
KL57-055	55	65	55.6	16	15.8	POM
KL57-065	65	75	65.6	16	15.8	POM
KL57-075	75	85	75.6	16	15.8	POM

Glass Fibre Reinforced Hydraulic Guide Ring Easy Installation

Glass Fibre Hydraulic Guide Ring

Reinforced Hydraulic Guide Ring

KL57 is a glass-fibre reinforced POM guide ring, designed for general purpose in hydraulic applications. Glass-fibre composition in the material increases the load bearing capacity of the guiding element.
