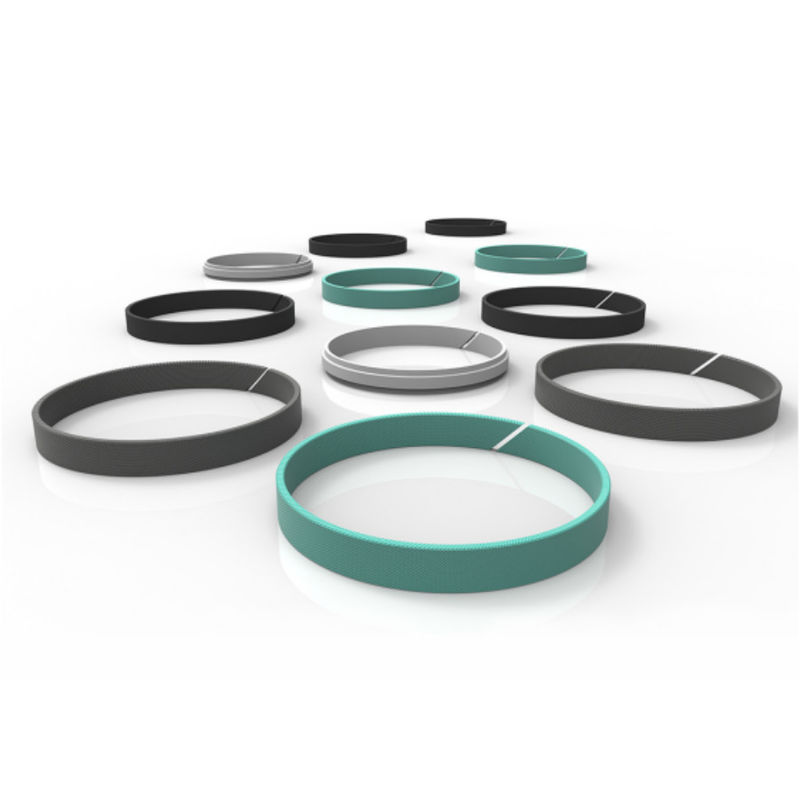

KL56 Hydraulic Cylinder Guide Ring Low Swelling Hydraulic Guiding Elements

KL56 Hydraulic Cylinder Guide Ring

Hydraulic Cylinder Guide Ring Low Swelling

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL56

Request A Quote

Product Details

Name:

Hydraulic Piston Rings

Material:

Synthetic Fiber, Polyester Resin

Temperature (max) °C:

-40/+120

Sliding Speed (max)- M/s:

1.0

Style:

Hydraulic Guiding Elements

Application:

Standard Industrial Cylinders / Presses

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

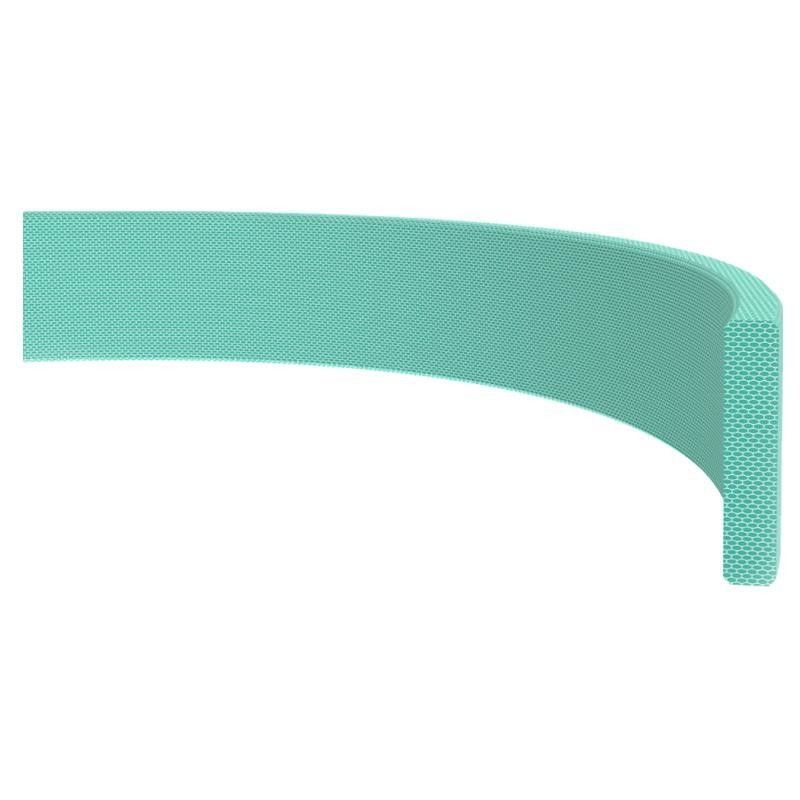

KL56 piston-rod guide rings are composite guiding elements, produced from syntetic fabric and polyester resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems.

Guide ring, also known as the support ring, is a kind of hydraulic cylinder or cylinder piston or piston rod, support piston or piston rod movement parts, it can prevent the piston or piston rod in the process of movement and direct contact and friction with the cylinder, play the role of protecting the cylinder and piston or piston rod from being damaged.

Advantages

• Low coefficient of friction

• High Load bearing capacity

• The high form stability at operating temperature range

• Low swelling

• Wide range of dimensions

Area of Application

• Mobile machinery

• Mining industry

• Excavators

• Marine hydraulics

• Presses

• Heavy duty cylinders

• Standard industrial cylinders

KL56 Hydraulic Cylinder Guide Ring Low Swelling Hydraulic Guiding Elements 0

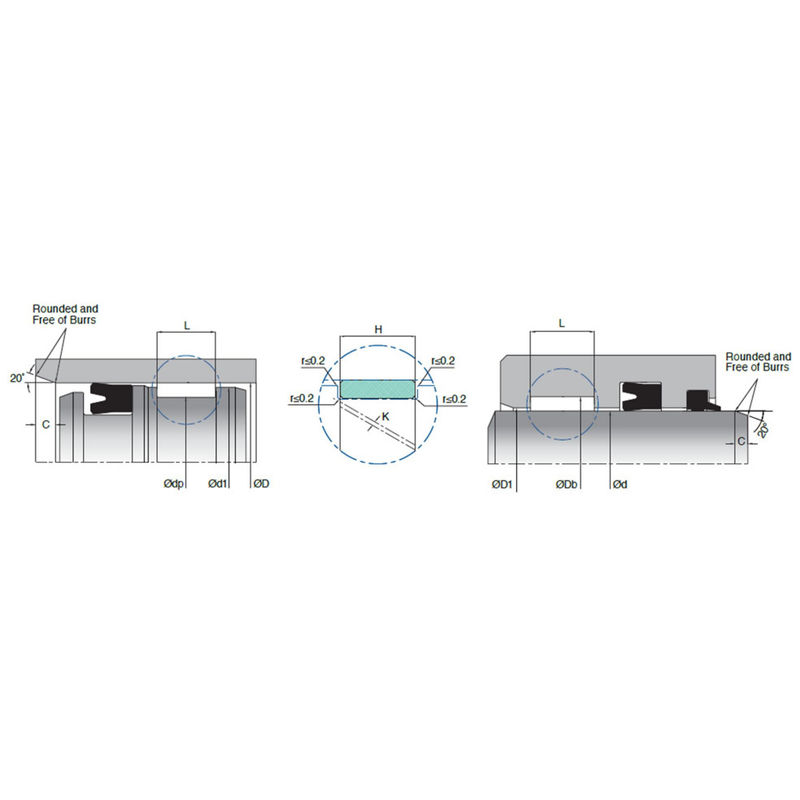

	d(f8) dp(h8)	Db(H8) D(H9)	L (+0.2/-0)	H	d1 (h9)	D1 (H9)	MATERIAL
K73-021	21	25	9.5	9.3	24	22	POLYESTER RESIN
K73-025/1	25	28	5.6	5.4	27	26	POLYESTER RESIN
K73-030	30	35	9.7	9.5	33.2	31.8	POLYESTER RESIN
K73-035	35	40	15	14.8	38.2	36.8	POLYESTER RESIN
K73-035/1	35	40	9.7	9.5	38.2	36.8	POLYESTER RESIN
K73-040/1	40	45	9.7	9.5	43.2	41.8	POLYESTER RESIN
K73-040/2	40	45	15	14.8	43.2	41.8	POLYESTER RESIN
K73-040/3	40	43	5.6	5.4	42	41	POLYESTER RESIN
K73-040/5	40	45	5.6	5.4	43.2	41.8	POLYESTER RESIN
K73-045	45	50	9.7	9.5	48.2	46.8	POLYESTER RESIN
K73-045/1	45	50	15	14.8	48.2	46.8	POLYESTER RESIN
K73-045/2	45	50	5.6	5.4	48.2	46.8	POLYESTER RESIN
K73-050	50	55	9.7	9.5	53.2	51.8	POLYESTER RESIN
K73-050/1	50	55	15	14.8	53.2	51.8	POLYESTER RESIN
K73-050/2	50	54	10	9.8	53	51	POLYESTER RESIN
K73-050/3	50	55	5.6	5.4	53.2	51.8	POLYESTER RESIN
K73-055	55	60	15	14.8	58.2	56.8	POLYESTER RESIN
K73-055/1	55	60	9.7	9.5	58.2	56.8	POLYESTER RESIN
K73-055/3	55	60	5.6	5.4	58.2	56.8	POLYESTER RESIN
K73-058	58	63	9.7	9.5	61.2	59.8	POLYESTER RESIN
K73-058/1	58	63	5.6	5.4	61.2	59.8	POLYESTER RESIN
K73-060	60	65	15	14.8	63.2	61.8	POLYESTER RESIN
K73-060/1	60	65	9.7	9.5	63.2	61.8	POLYESTER RESIN
K73-060/2	60	65	20	19.8	63.2	61.8	POLYESTER RESIN
K73-060/3	60	65	25	24.5	63.2	61.8	POLYESTER RESIN
K73-065	65	70	15	14.8	68.2	66.8	POLYESTER RESIN
K73-065/1	65	70	9.7	9.5	68.2	66.8	POLYESTER RESIN
K73-065/2	65	70	5.6	5.4	68.2	66.8	POLYESTER RESIN
K73-070	70	75	9.7	9.5	73.2	71.8	POLYESTER RESIN
K73-070/1	70	75	15	14.8	73.2	71.8	POLYESTER RESIN
K73-074	74	80	6.5	6.3	77.6	76.4	POLYESTER RESIN
K73-075	75	80	9.7	9.5	78.2	76.8	POLYESTER RESIN
K73-075/1	75	80	15	14.8	78.2	76.8	POLYESTER RESIN
K73-075/2	75	80	5.6	5.4	78.2	76.8	POLYESTER RESIN
K73-080	80	85	9.7	9.5	83.2	81.8	POLYESTER RESIN
K73-080/1	80	85	15	14.8	83.2	81.8	POLYESTER RESIN
K73-080/3	80	85	25	24.5	83.2	81.8	POLYESTER RESIN
K73-084	84	90	6.5	6.3	87.6	86.4	POLYESTER RESIN
K73-085	85	90	9.7	9.5	88.2	86.8	POLYESTER RESIN
K73-085/1	85	90	15	14.8	88.2	86.8	POLYESTER RESIN
K73-085/2	85	90	5.6	5.4	88.2	86.8	POLYESTER RESIN
K73-090	90	95	15	14.8	93.2	91.8	POLYESTER RESIN
K73-090/1	90	95	9.7	9.5	93.2	91.8	POLYESTER RESIN
K73-094	94	100	6.5	6.3	97.6	96.4	POLYESTER RESIN
K73-095	95	100	9.7	9.5	98.2	96.8	POLYESTER RESIN
K73-095/1	95	100	15	14.8	98.2	96.8	POLYESTER RESIN
K73-095/2	95	100	5.6	5.4	98.2	96.8	POLYESTER RESIN
K73-100	100	105	15	14.8	103.2	101.8	POLYESTER RESIN
K73-100/1	100	105	9.7	9.5	103.2	101.8	POLYESTER RESIN
K73-105	105	110	9.7	9.5	108.2	106.8	POLYESTER RESIN
K73-105/1	105	110	15	14.8	108.2	106.8	POLYESTER RESIN
K73-105/2	105	110	5.6	5.4	108.2	106.8	POLYESTER RESIN
K73-109	109	115	6.5	6.3	112.6	111.4	POLYESTER RESIN
K73-110	110	115	9.7	9.5	113.2	111.8	POLYESTER RESIN
K73-112/1	112	117	20	19.8	115.2	113.8	POLYESTER RESIN
K73-113	113	118	15	14.8	116.2	114.8	POLYESTER RESIN
K73-115	115	120	9.7	9.5	118.2	116.8	POLYESTER RESIN
K73-115/1	115	120	15	14.8	118.2	116.8	POLYESTER RESIN
K73-120	120	125	9.7	9.5	123.2	121.8	POLYESTER RESIN
K73-120/1	120	125	15	14.8	123.2	121.8	POLYESTER RESIN
K73-122	122	130	15	14.8	127	125	POLYESTER RESIN
K73-122/1	122	130	25	24.5	127	125	POLYESTER RESIN
K73-125	125	130	9.7	9.5	128.2	126.8	POLYESTER RESIN
K73-125/1	125	130	15	14.8	128.2	126.8	POLYESTER RESIN
K73-125/2	125	133	9.7	9.5	130	128	POLYESTER RESIN
K73-130	130	135	9.7	9.5	133.2	131.8	POLYESTER RESIN
K73-130/1	130	135	15	14.8	133.2	131.8	POLYESTER RESIN
K73-130/2	130	135	25	24.5	133.2	131.8	POLYESTER RESIN
K73-135	135	140	9.7	9.5	138.2	136.8	POLYESTER RESIN
K73-135/1	135	140	15	14.8	138.2	136.8	POLYESTER RESIN
K73-136	136	140	20	19.8	139	137	POLYESTER RESIN
K73-140	140	145	9.7	9.5	143.2	141.8	POLYESTER RESIN
K73-140/1	140	145	15	14.8	143.2	141.8	POLYESTER RESIN
K73-140/2	140	148	15	14.8	145	143	POLYESTER RESIN
K73-142	142	147	15	14.8	145.2	143.8	POLYESTER RESIN
K73-145	145	150	9.7	9.5	148.2	146.8	POLYESTER RESIN
K73-145/1	145	150	15	14.8	148.2	146.8	POLYESTER RESIN
K73-152/1	152	160	25	24.5	157	155	POLYESTER RESIN
K73-155	155	160	9.7	9.5	158.2	156.8	POLYESTER RESIN
K73-155/1	155	160	15	14.8	158.2	156.8	POLYESTER RESIN
K73-160	160	168	25	24.5	165	163	POLYESTER RESIN
K73-160/1	160	165	15	14.8	163.2	161.8	POLYESTER RESIN
K73-160/2	160	165	9.7	9.5	163.2	161.8	POLYESTER RESIN
K73-164	164	170	9.5	9.3	167.6	166.4	POLYESTER RESIN
K73-165	165	170	9.7	9.5	168.2	166.8	POLYESTER RESIN
K73-165/1	165	170	25	24.5	168.2	166.8	POLYESTER RESIN
K73-170	170	175	15	14.8	173.2	171.8	POLYESTER RESIN
K73-175	175	180	9.7	9.5	178.2	176.8	POLYESTER RESIN
K73-175/1	175	180	15	14.8	178.2	176.8	POLYESTER RESIN
K73-180	180	185	15	14.8	183.2	181.8	POLYESTER RESIN
K73-185	185	190	9.7	9.5	188.2	186.8	POLYESTER RESIN
K73-185/1	185	190	15	14.8	188.2	186.8	POLYESTER RESIN
K73-185/2	185	191	20	19.8	188.6	187.4	POLYESTER RESIN
K73-192	192	200	15	14.8	197	195	POLYESTER RESIN
K73-192/1	192	197	15	14.8	195.2	193.8	POLYESTER RESIN
K73-194	194	200	20	19.8	197.6	196.4	POLYESTER RESIN
K73-195	195	200	9.7	9.5	198.2	196.8	POLYESTER RESIN
K73-195/1	195	200	15	14.8	198.2	196.8	POLYESTER RESIN
K73-200	200	205	15	14.8	203.2	201.8	POLYESTER RESIN
K73-200/1	200	208	15	14.8	205	203	POLYESTER RESIN
K73-205	205	210	15	14.8	208.2	206.8	POLYESTER RESIN
