Name: POM Hydraulic Guide Ring Low Friction For Telescopic Cylinders
Brand: Kelong
SKU: KL55
Rating: 4.9 (139 reviews)

Home > products > Hydraulic Guide Ring >

POM Hydraulic Guide Ring Low Friction For Telescopic Cylinders

POM Hydraulic Guide Ring

Hydraulic Guide Ring Low Friction

Cologne Hydraulic Guiding Elements

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL55

Request A Quote

POM Hydraulic Guide Ring Low Friction For Telescopic Cylinders

Product Details

Name:

POM Hydraulic Guide Ring

Material:

POM

Sliding Speed (max)- M/s:

1.0

Style:

Hydraulic Guiding Elements

Application:

Telescopic Cylinders / Cranes

Temperature (max) °C:

-40/+100

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

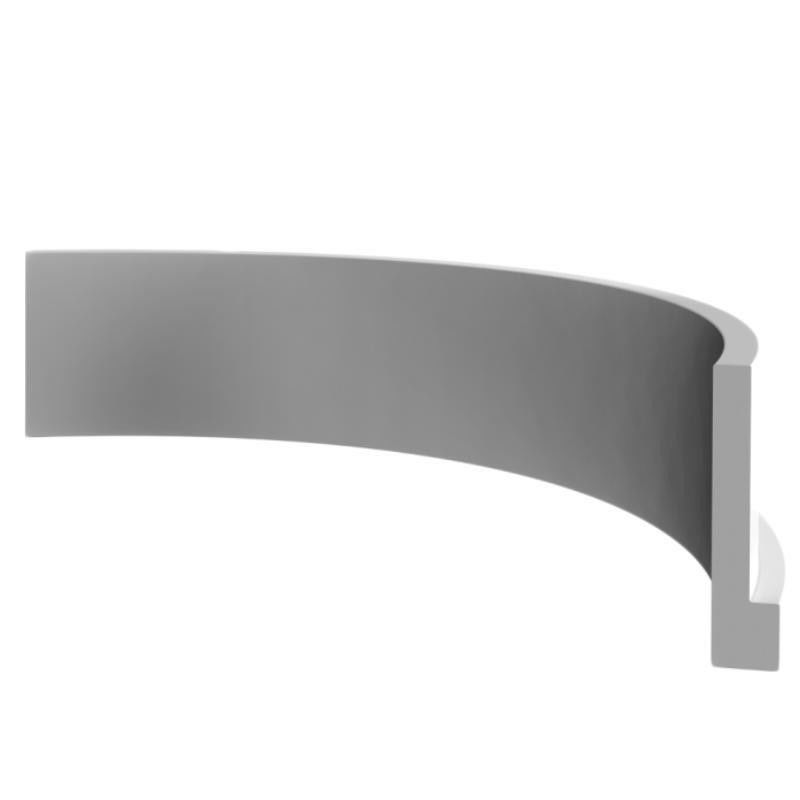

KL55 is a «L» formed POM guide ring widely preffered in telescopic cylinders. The dimensions and the quantities may change up to the cylinder strokes. Recommended to use with KL08, KL12 type rod urings.

KEY FEATURES:

• High compressive strength material.

• Internally lubricated.

• Offers high bearing load capacity over a broad range of temperatures.

• Manufactured to very tight tolerances.

• Compatible with wide range of fluids including water-based fluids and phosphate esters.

Advantages

• Flexible guide ring configuration

• Suitable for insufficient lubrication

• Easy installation

• Low coefficient of friction

• High dimensional stability

Area of Application

• Telescopic cylinders

• Mobile machinery

• Standard industrial cylinders

• Cranes

POM Hydraulic Guide Ring Low Friction For Telescopic Cylinders 0

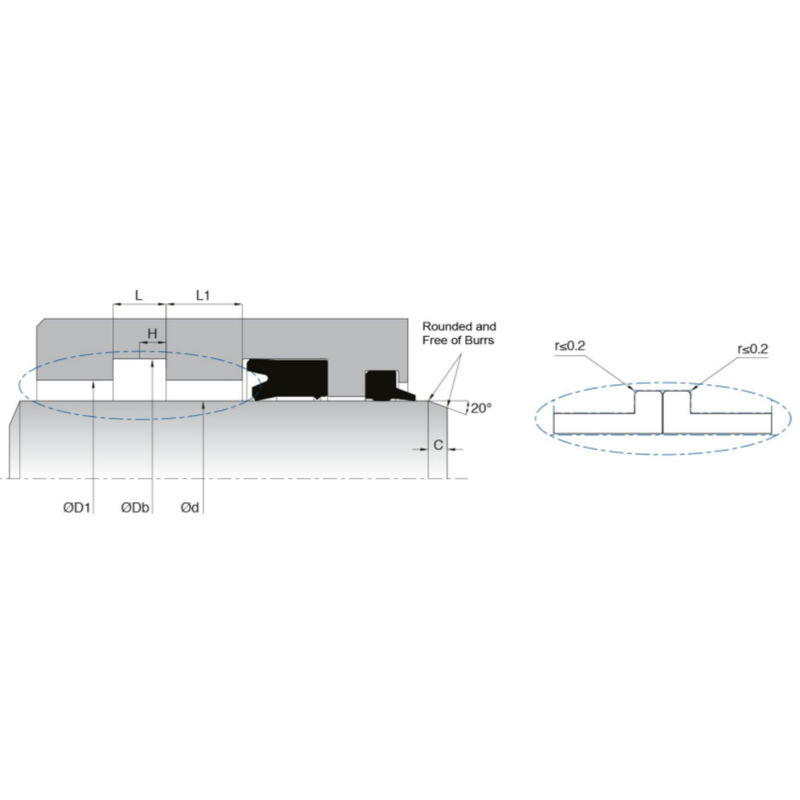

	d (f8)	Db (H11)	D1 (H8)	L (+0.25/-0)	L1	H	MATERIAL
KL55-045	45	53	50	8	12	4	POM
KL55-061	61	69	65	8	12	4	POM
KL55-075	75	85	80	10	20	5	POM
KL55-075/1	75	85	80	10	25	5	POM
KL55-075/2	75	85	81	10	25	5	POM
KL55-095	95	105	100	10	20	5	POM
KL55-095/1	95	105	100	10	25	5	POM
KL55-095/2	95	105	101	10	25	5	POM
KL55-115	115	125	120	10	20	5	POM
KL55-115/1	115	125	120	10	25	5	POM
KL55-115/2	115	125	121	10	25	5	POM
KL55-135	135	145	140	10	20	5	POM
KL55-135/1	135	145	140	10	25	5	POM
KL55-135/2	135	145	141	10	25	5	POM
KL55-160	160	170	165	10	20	5	POM
KL55-160/1	160	170	166	10	25	5	POM
KL55-185	185	195	191	10	25	5	POM
KL55-212	212	222	218	10	25	5	POM
KL55-215	215	225	221	10	25	5	POM

POM Hydraulic Guide Ring Low Friction For Telescopic Cylinders

POM Hydraulic Guide Ring

Hydraulic Guide Ring Low Friction

Cologne Hydraulic Guiding Elements

KL55 is a «L» formed POM guide ring widely preffered in telescopic cylinders. The dimensions and the quantities may change up to the cylinder strokes. Recommended to use with KL08, KL12 type rod urings.
