KL09 Heavy Duty Rod Seal Set / High Pressure Rod Seal Hydraulic

KL09 Heavy Duty Rod Seal Set / High Pressure Rod Seal Hydraulic

KL09 Heavy Duty Rod Seal

Heavy Duty Rod Seal Set

High Pressure Rod Seal Hydraulic

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL09

Contact Us

Request A Quote
KL09 Heavy Duty Rod Seal Set / High Pressure Rod Seal Hydraulic
KL09 Heavy Duty Rod Seal Set / High Pressure Rod Seal Hydraulic KL09 Heavy Duty Rod Seal Set / High Pressure Rod Seal Hydraulic KL09 Heavy Duty Rod Seal Set / High Pressure Rod Seal Hydraulic KL09 Heavy Duty Rod Seal Set / High Pressure Rod Seal Hydraulic KL09 Heavy Duty Rod Seal Set / High Pressure Rod Seal Hydraulic
Product Details
Style:
High Pressure Rod Seal Hydraulic
Temperature (max) °C:
-30/+100
Pressure (max) Bar:
700
Material:
NBR / FABRIC NBR / TPE / POM
Sliding Speed (max)- M/s:
0.5
Application:
Loading Platforms / Mining Industry
Payment & Shipping Terms
Packaging Details:
Opp bag
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description


KL09 Heavy Duty Hydraulic Rod Seal Set In High Extrusion Resistance At High Pressures And Excellent Sealing Performance

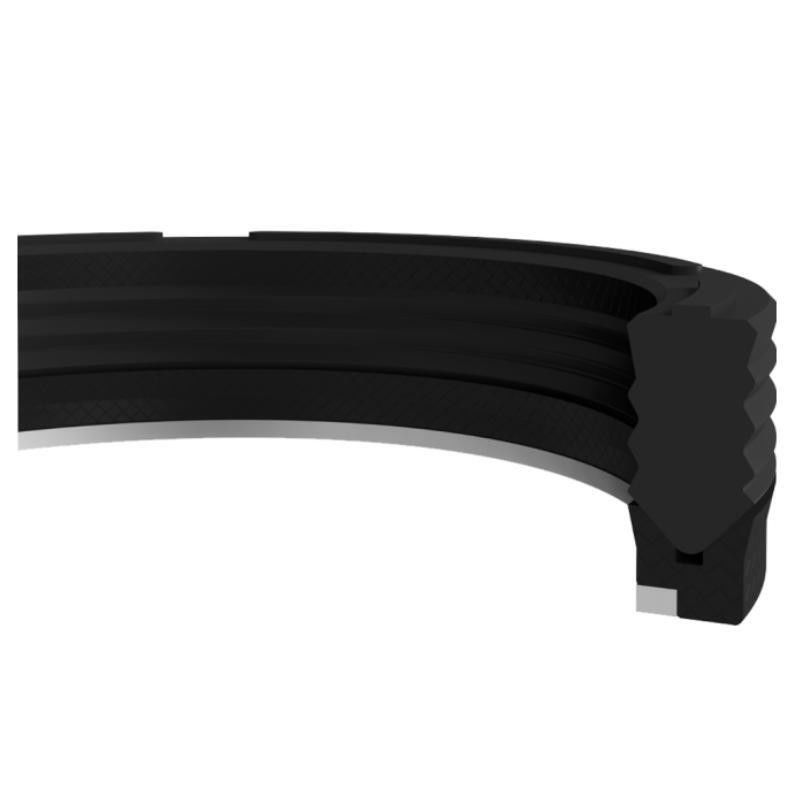

 KL09 heavy duty hydraulic rod seal set consists of one elastomer sealing ring, one elastomer or fabric elastomer extrusion ring and one thermoplastic backup ring. The back-up ring and exturision ring supply long term service life while the elastomer ring gives an ability of superior sealing at variable and high pressures.

Advantages

• Excellent sealing performance at variable pressures

• Effective sealing during vibration, sudden and shock loading

• High extrusion resistance at high pressures

Area of Application

• Construction machinery

• Loading platforms

• Cranes

• Heavy duty cylinders

• Mining industry

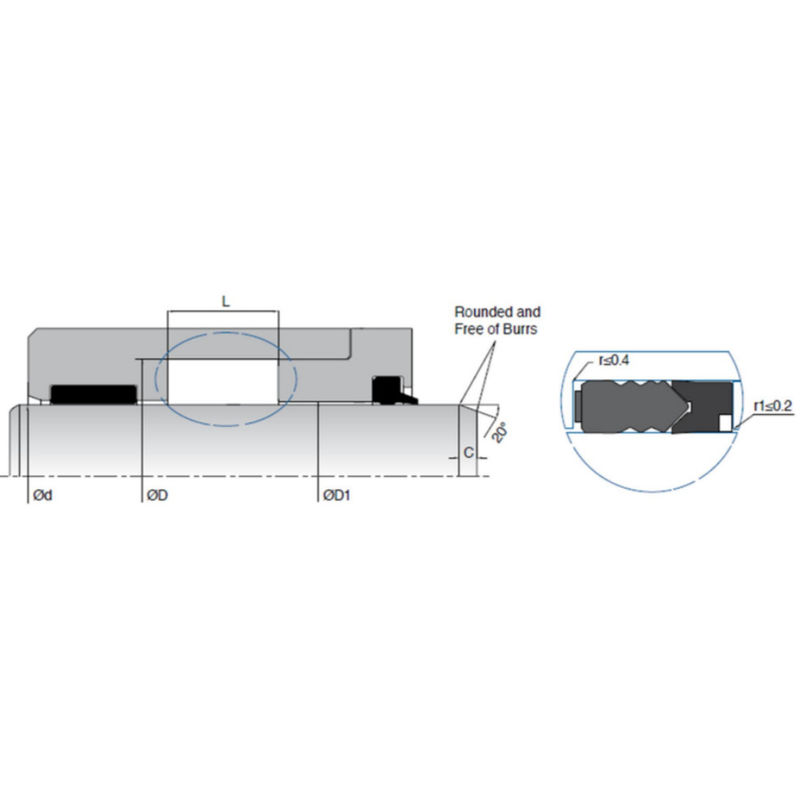

KL09 Heavy Duty Rod Seal Set / High Pressure Rod Seal Hydraulic 0
  d (f8) D (H10) L (+0.4/-0) D1 (+0.1/-0) C MATERIAL
KL09-030 30 43 20 30.4 5 NBR
KL09-032 32 47 22.5 32.4 5 NBR
KL09-035 35 47 22.5 35.4 5 NBR
KL09-040 40 55 22.5 40.4 5 NBR
KL09-045 45 60 22.5 45.4 5 NBR
KL09-050 50 65 22.5 50.4 5 NBR
KL09-050/1 50 65 24.5 50.4 5 NBR
KL09-055 55 70 22.5 55.4 5 NBR
KL09-060 60 75 22.5 60.4 5 NBR
KL09-063 63 83 37 63.4 5 NBR
KL09-070 70 85 22.5 70.4 5 NBR
KL09-070/1 70 90 30 70.4 5 NBR
KL09-080 80 100 30 80.4 5 NBR
KL09-080/1 80 95 22.5 80.4 5 NBR
KL09-085 85 95 22.5 85.4 5 NBR
KL09-090 90 110 30 90.4 5 NBR
KL09-100 100 120 30 100.4 7 NBR
KL09-110 110 130 32.5 110.4 7 NBR
KL09-115 115 130 30 115.7 7 NBR
KL09-115/1 115 125 22.5 115.7 7 NBR
KL09-120 120 140 30 120.7 7 NBR
KL09-125 125 145 29.6 125.7 7 NBR
KL09-140 140 155 22.5 140.7 7 NBR
KL09-140/1 140 160 30 140.7 7 NBR
KL09-140/2 140 160 28 140.7 7 NBR
KL09-160 160 180 28 160.7 7 NBR
KL09-180 180 205 35 180.7 7 NBR
KL09-200 200 225 35 200.7 7 NBR
KL09-220 220 240 22.5 220.7 10 NBR
KL09-220/1 220 245 35 220.7 10 NBR
KL09-260 260 280 30 260.7 10 NBR
KL09-260/1 260 285 35 260.7 10 NBR
