Name: Double Acting Piston Rod Seals Low friction Elastomer X Ring NBR
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL25
Availability: InStock

Home > products > Piston Rod Seals >

Double Acting Piston Rod Seals Low friction Elastomer X Ring NBR

Double Acting Piston Rod Seals

Elastomer X Ring NBR

Double Acting Rod Seals Low friction

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL25

Request A Quote

Double Acting Piston Rod Seals Low friction Elastomer X Ring NBR

Product Details

Style:

Double Acting Piston Rod Seals

Material:

NBR

Pressure (max) Bar:

Temperature (max) °C:

-30/+105

Sliding Speed (max)- M/s:

0.5

Application:

Light Duty Cylinders / Valves / Flanges

Payment & Shipping Terms

Packaging Details:

Opp bag

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

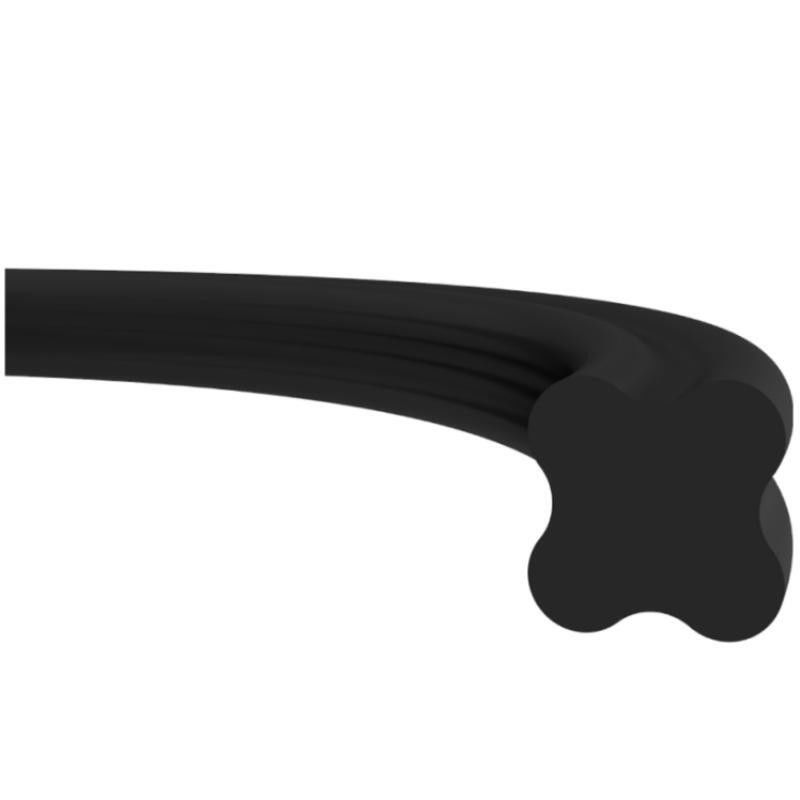

X-rings are double acting seals by elastomer materials, able to work as dynamic or static seal at many systems. It can be produced by FKM at the requirement of high temperature or chemical resistance.

Advantages

• Suitable for both static and dynamic applications

• Wide application area

• Low friction compared to o-rings

• No twisting in the housing

• Economical sealing solution for low pressure

Area of Application

• Hydraulic and pneumatic static applications

• Flanges

• Valves

• Light duty cylinders

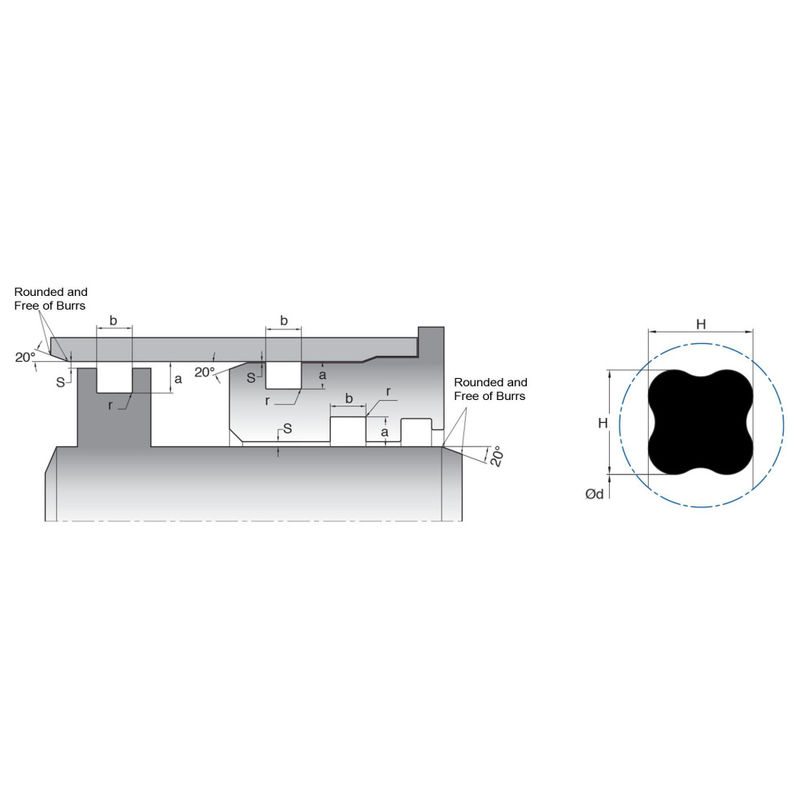

	d	H	(a)static	(a)dynamic	b (+0.2/-0)	r	s	MATERIAL
KL25-0044817	4.48	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0052817	5.28	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0060717	6.07	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0076617	7.66	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0082017	8.2	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0092517	9.25	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0107826	10.78	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0123726	12.37	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0124217	12.42	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0139526	13.95	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0140017	14	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0154735	15.47	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0155426	15.54	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0156017	15.6	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0171717	17.17	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0186435	18.64	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0187226	18.72	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0187717	18.77	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0202235	20.22	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0202926	20.29	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0203517	20.35	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0218926	21.89	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0219517	21.95	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0234035	23.4	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0235217	23.52	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0249935	24.99	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0251217	25.12	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0265835	26.58	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0267017	26.7	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0281735	28.17	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0297535	29.75	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0298717	29.87	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0329235	32.92	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0345235	34.52	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0346517	34.65	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0361035	36.1	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0374753	37.47	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-0376935	37.69	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0378217	37.82	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0406553	40.65	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-0408735	40.87	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0441717	44.17	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0473517	47.35	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0501653	50.16	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-0505217	50.52	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0533453	53.34	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-0537017	53.7	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0568717	56.87	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0597053	59.7	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-0600517	60.05	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0632217	63.22	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0662735	66.27	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0692253	69.22	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-0695717	69.57	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0711226	71.12	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0726235	72.62	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0727517	72.75	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0755753	75.57	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-0758726	75.87	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0759217	75.92	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0787453	78.74	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-0789735	78.97	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-0822226	82.22	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0822717	82.27	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0885726	88.57	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0886217	88.62	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-0914453	91.44	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-0949226	92.92	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-0949717	94.97	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-1009753	100.97	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-1012726	101.27	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-1013217	101.32	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-1076226	107.62	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-1076717	107.62	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-1104953	110.49	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-1136753	113.67	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-1139726	113.97	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-1140217	114.02	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-1200253	120.02	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-1200269	120.02	6.99	6.2	6.4	8	0.6	0.1	NBR
KL25-1202535	120.25	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-1203226	120.32	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-1203717	120.37	1.78	1.4	1.5	2	0.2	0.05	NBR
KL25-1234235	123.42	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-1263769	126.37	6.99	6.2	6.4	8	0.6	0.1	NBR
KL25-1266035	126.6	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-1266726	126.67	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-1329435	132.94	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-1359069	135.9	6.99	6.2	6.4	8	0.6	0.1	NBR
KL25-1393726	139.37	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-1454269	145.42	6.99	6.2	6.4	8	0.6	0.1	NBR
KL25-1457226	145.72	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-1581253	158.12	5.33	4.75	4.9	6	0.4	0.1	NBR
KL25-1581269	158.12	6.99	6.2	6.4	8	0.6	0.1	NBR
KL25-1583535	158.35	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-1584226	158.42	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-1710535	171.05	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-1711126	171.11	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-1774726	177.47	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-1901726	190.17	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-1962269	196.22	6.99	6.2	6.4	8	0.6	0.1	NBR
KL25-1965226	196.52	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-2028726	202.87	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-2152769	215.27	6.99	6.2	6.4	8	0.6	0.1	NBR
KL25-2155726	215.57	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-2219226	221.92	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-2345435	234.54	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-2346226	234.62	2.62	2.25	2.3	3	0.3	0.08	NBR
KL25-2663035	266.3	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-2789935	278.99	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-2917035	291.7	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-3298035	329.8	3.53	3.1	3.2	4	0.4	0.08	NBR
KL25-3552035	355.2	3.53	3.1	3.2	4	0.4	0.08	NBR
