Name: Wear Resistant Piston Rod Seals Single Acting Hydraulic Sealing Elements
Brand: Kelong
SKU: KL23
Rating: 4.5 (122 reviews)

Home > products > Piston Rod Seals >

Wear Resistant Piston Rod Seals Single Acting Hydraulic Sealing Elements

Wear Resistant Piston Rod Seals

Piston Rod Seals Single Acting

Single Acting Hydraulic Sealing Elements

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL23

Request A Quote

Wear Resistant Piston Rod Seals Single Acting Hydraulic Sealing Elements

Product Details

Style:

Piston Rod Seals Single Acting

Material:

NBR / PU

Pressure (max) Bar:

400

Temperature (max) °C:

-30/+100

Sliding Speed (max)- M/s:

0.5

Application:

Mining Industry / Scrap Metal Presses

Payment & Shipping Terms

Packaging Details:

Opp bag

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

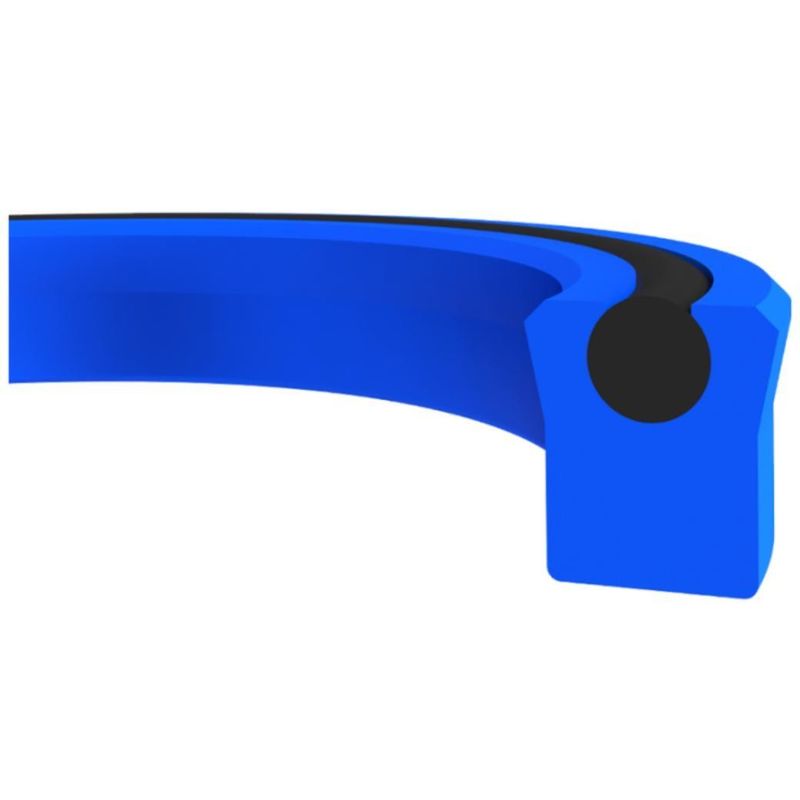

KL23 Single Acting Hydraulic Sealing Element Consisting Of A Specially Formed PU U-Ring And An Elastomer O-Ring

KL23 is a single acting hydraulic sealing element consisting of a specially formed polyurethane u-ring and an elastomer o-ring. It is designed to be used in systems where pressure changes and shock pressures occur, in operations with vibration, in applications with long-term locked applications.

Advantages

• Superior static and dynamic sealing effect

• Design providing good sealing performance at shock, low and variable pressures

• Safely operating with the elastomer o-ring in long duration locking systems

• High wear resistance

Area of Application

• Mining industry

• Iron and steel industry

• Scrap metal presses

• Mobile machinery

• Marine hydraulics

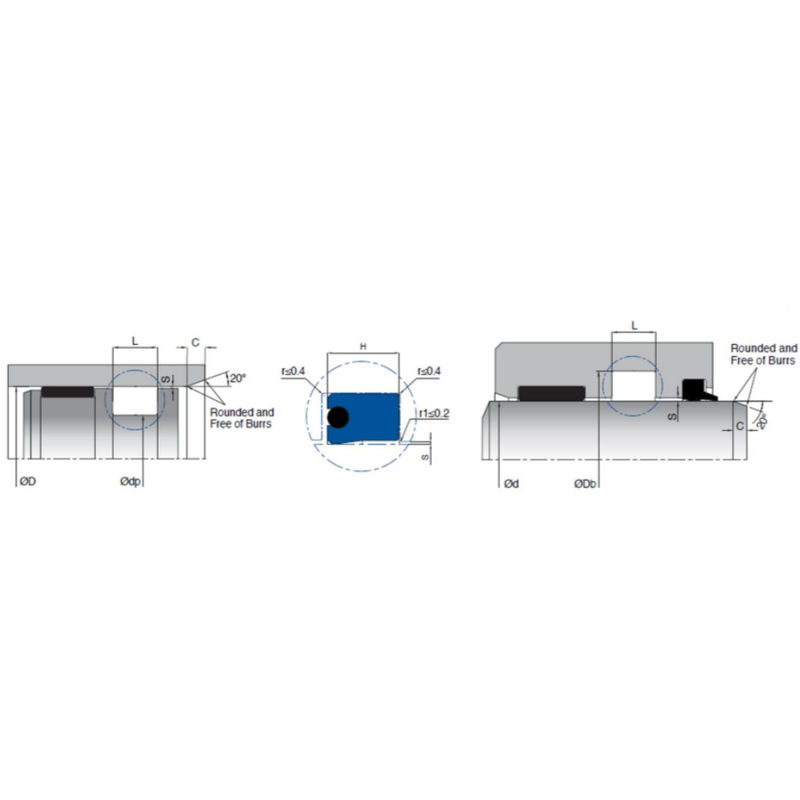

	d(f7) dp(h11)	Db(H10) D(H10)	L (+0.2/-0)	H	C	MATERIAL
KL23-019	19.05	25.4	7	6.35	3	PU
KL23-022	22.23	28.58	3.5	3.18	3	PU
KL23-025	25.4	31.75	7	6.35	3	PU
KL23-025/1	25.4	34.93	5.2	4.76	4	PU
KL23-025/2	25.4	34.93	8.7	7.94	4	PU
KL23-025/3	25.4	38.1	7	6.35	4.5	PU
KL23-025/4	25	32	8	7	4.5	PU
KL23-030	30	40	7	6	5	PU
KL23-031	31.75	38.1	7	6.35	3	PU
KL23-031/1	31.75	41.28	8.7	7.94	4	PU
KL23-035	35	45	7	6	5	PU
KL23-035/1	35	50	10	9	5	PU
KL23-038	38.1	47.63	8.7	7.94	4	PU
KL23-038/1	38.1	47.63	10.5	9.53	4	PU
KL23-038/2	38.1	50	10.5	9.53	4.5	PU
KL23-040	40	50	7	6	5	PU
KL23-040/1	40	50	10	9	5	PU
KL23-044	44.45	53.98	10.5	9.53	4	PU
KL23-044/1	44.45	63.5	18.2	16.48	5	PU
KL23-045	45	53	9	8	5	PU
KL23-045/1	45	55	7	6	5	PU
KL23-045/2	45	65	11	10	5	PU
KL23-045/3	45	60	12	11	5	PU
KL23-045/4	45	60	11	10	5	PU
KL23-045/5	45	55	11	10	5	PU
KL23-047	47.62	63.5	12.5	11.5	5	PU
KL23-047/1	47.62	57.15	10.5	9.5	5	PU
KL23-050	50.8	60.33	10.5	9.53	4	PU
KL23-050/1	50.8	63.5	10.5	9.53	4.5	PU
KL23-050/2	50	58	9	8	5	PU
KL23-050/3	50	60	7	6	5	PU
KL23-050/4	50	63	10	9	5	PU
KL23-053	53	63	8.3	7.3	5	PU
KL23-055	55	65	7	6	5	PU
KL23-057	57.15	69.85	7	6.35	4.5	PU
KL23-060	60	68	9	8	5	PU
KL23-060/1	60	70	7	6	5	PU
KL23-060/2	60	75	10	9	5	PU
KL23-060/3	60	70	10	9	5	PU
KL23-063	63.5	76.2	10.5	9.53	4.5	PU
KL23-069	69.85	82.55	10.5	9.52	5	PU
KL23-076	76.2	88.9	10.5	9.53	4.5	PU
KL23-076/2	76.2	92.08	13.7	12.7	5	PU
KL23-088	88.9	101.6	10.5	9.53	4.5	PU
KL23-090	90	103	11	10	5	PU
KL23-092	92.08	101.6	10.5	9.53	4	PU
KL23-105	105	120	10	9	7	PU
KL23-106	106	120	9.5	8.5	7	PU
KL23-107	107.95	127	17.5	15.88	7	PU
KL23-109	109	125	11.5	10.5	7	PU
KL23-139	139.7	165.1	20.5	19.5	7	PU
