KL50 Double Acting Piston Seal PTFE / NBR Hydraulic Piston Packing Seal

KL50 Double Acting Piston Seal PTFE / NBR Hydraulic Piston Packing Seal

KL50 Double Acting Piston Seal

PTFE Piston Seals Hydraulic

Hydraulic Piston Packing Seal

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL50

Contact Us

Request A Quote
KL50 Double Acting Piston Seal PTFE / NBR Hydraulic Piston Packing Seal
KL50 Double Acting Piston Seal PTFE / NBR Hydraulic Piston Packing Seal KL50 Double Acting Piston Seal PTFE / NBR Hydraulic Piston Packing Seal KL50 Double Acting Piston Seal PTFE / NBR Hydraulic Piston Packing Seal KL50 Double Acting Piston Seal PTFE / NBR Hydraulic Piston Packing Seal KL50 Double Acting Piston Seal PTFE / NBR Hydraulic Piston Packing Seal
Product Details
Style:
Hydraulic Piston Packing Seal
Material:
PTFE / NBR
Pressure (max) Bar:
400
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
2.0
Application:
Loading Platforms / Presses
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description

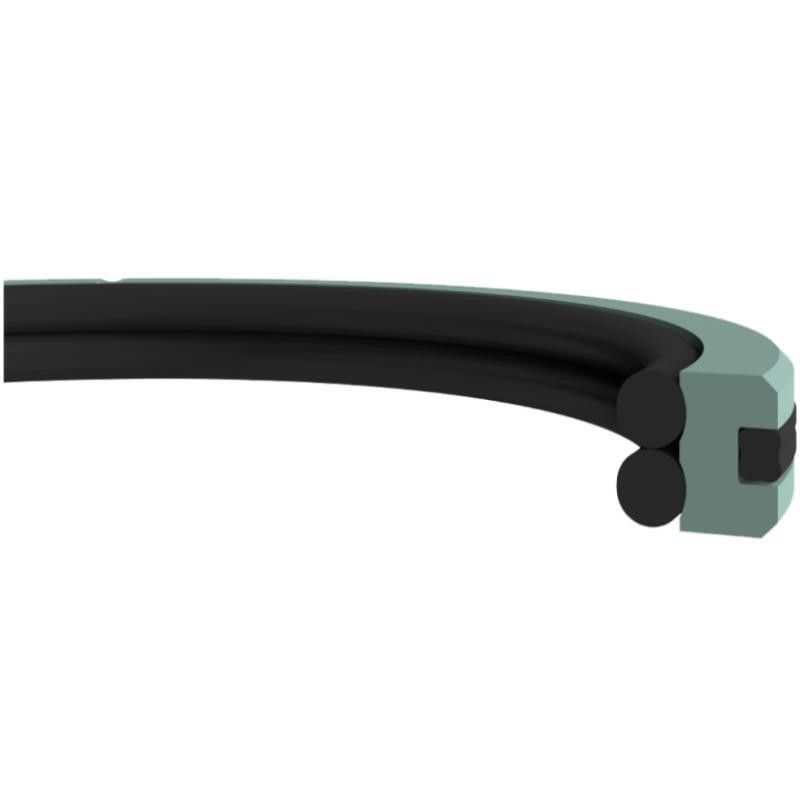

KL50 double acting piston seal consists of one PTFE profile ring, one elastomer X-ring and two O-ring energizers. K757 is the superior version of K753 and differentiates with the double o-ring design which increases sealing performance by optimizing the preload. Similar to KL48, KL50 is an ideal piston seal for systems which has two different media in the system seperated by the piston seal such as fluid and gas.

Advantages

• Able to work at variable media types, liquid-liquid or liquid-gas systems

• Low friction

• Low gas permeability

• High resistance to variety of chemicals and high temperature with use of different elastomers

• Design providing good sealing performance at variable pressures

• Stick-slip free

• Long service life

• Resistance against high frequencies

Area of Application

• Piston accumulators

• Hydro-pneumatic cylinders

• Presses

• Loading platforms
KL50 Double Acting Piston Seal PTFE / NBR Hydraulic Piston Packing Seal 0

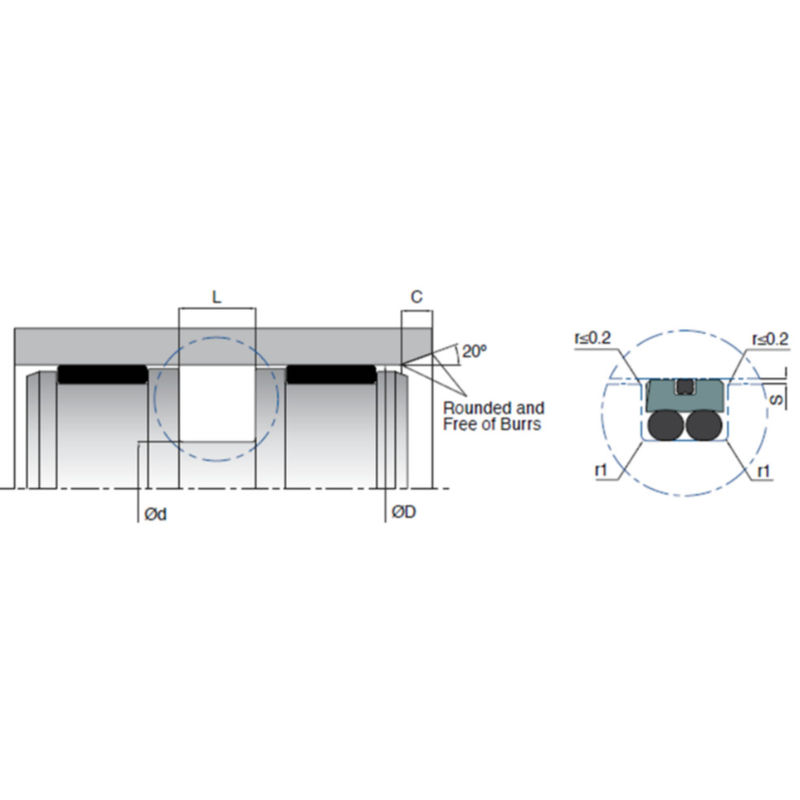

  D (H9) d (h9) L (+0.2/-0) r1 C O-Ring X-Ring MATERIAL
KL50-040 40 30 6.3 0.6 3 28.25x2.62 34.65x1.78 PTFE
KL50-045 45 35 6.3 0.6 3 34.59x2.62 41.00x1.78 PTFE
KL50-050 50 40 6.3 0.6 3 39.34x2.62 44.17x1.78 PTFE
KL50-055 55 45 6.3 0.6 3 44.12x2.62 50.52x1.78 PTFE
KL50-060 60 50 6.3 0.6 3 48.90x2.62 56.87x1.78 PTFE
KL50-063 63 53 6.3 0.6 3 52.07x2.62 56.87x1.78 PTFE
KL50-070 70 60 6.3 0.6 3 58.42x2.62 63.22x1.78 PTFE
KL50-080 80 67 8.3 1 6 63.09x3.53 72.69x2.62 PTFE
KL50-085 85 72 8.3 1 6 69.85x3.53 75.87x2.62 PTFE
KL50-090 90 77 8.3 1 6 75.80x3.53 82.22x2.62 PTFE
KL50-100 100 87 8.3 1 6 85.32x3.53 94.92x2.62 PTFE
KL50-105 105 92 8.3 1 6 91.67x3.53 94.92x2.62 PTFE
KL50-110 110 97 8.3 1 6 94.84x3.53 101.27x2.62 PTFE
KL50-125 125 112 8.3 1 6 110.72x3.53 120.32x2.62 PTFE
KL50-130 130 117 8.3 1 6 113.90x3.53 126.67x2.62 PTFE
KL50-150 150 132 12.3 1.3 8 130.20x5.33 145.65x3.53 PTFE
KL50-160 160 142 12.3 1.3 8 139.07x5.33 145.65x3.53 PTFE
KL50-180 180 162 12.3 1.3 8 158.12x5.33 164.70x3.53 PTFE
KL50-210 210 192 12.3 1.3 8 189.87x5.33 200.00x3.53 PTFE
KL50-220 220 202 12.3 1.3 8 202.57x5.33 209.15x3.53 PTFE
KL50-250 250 232 12.3 1.3 8 227.97x5.33 234.54x3.53 PTFE
KL50-280 280 262 12.3 1.3 8 253.57x5.33 266.30x3.53 PTFE
KL50-300 300 282 12.3 1.3 8 278.77x5.33 278.99x3.53 PTFE
KL50-320 320 302 12.3 1.3 8 291.47x5.33 304.39x3.53 PTFE
KL50-450 450 432 12.3 1.3 8 425.00x5.33 430.66x3.53 PTFE
