KL49 Hydraulic Piston Seal Types PTFE / NBR High Pressure Piston Seals

KL49 Hydraulic Piston Seal Types PTFE / NBR High Pressure Piston Seals

KL49 Hydraulic Piston Seal Types

PTFE High Pressure Piston Seals

NBR High Pressure Piston Seals

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL49

Contact Us

Request A Quote
KL49 Hydraulic Piston Seal Types PTFE / NBR High Pressure Piston Seals
KL49 Hydraulic Piston Seal Types PTFE / NBR High Pressure Piston Seals KL49 Hydraulic Piston Seal Types PTFE / NBR High Pressure Piston Seals KL49 Hydraulic Piston Seal Types PTFE / NBR High Pressure Piston Seals KL49 Hydraulic Piston Seal Types PTFE / NBR High Pressure Piston Seals KL49 Hydraulic Piston Seal Types PTFE / NBR High Pressure Piston Seals
Product Details
Material:
PTFE / NBR
Pressure (max) Bar:
400
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
15.0
Style:
Hydraulic Piston Seals
Application:
Iron And Steel Industry
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description

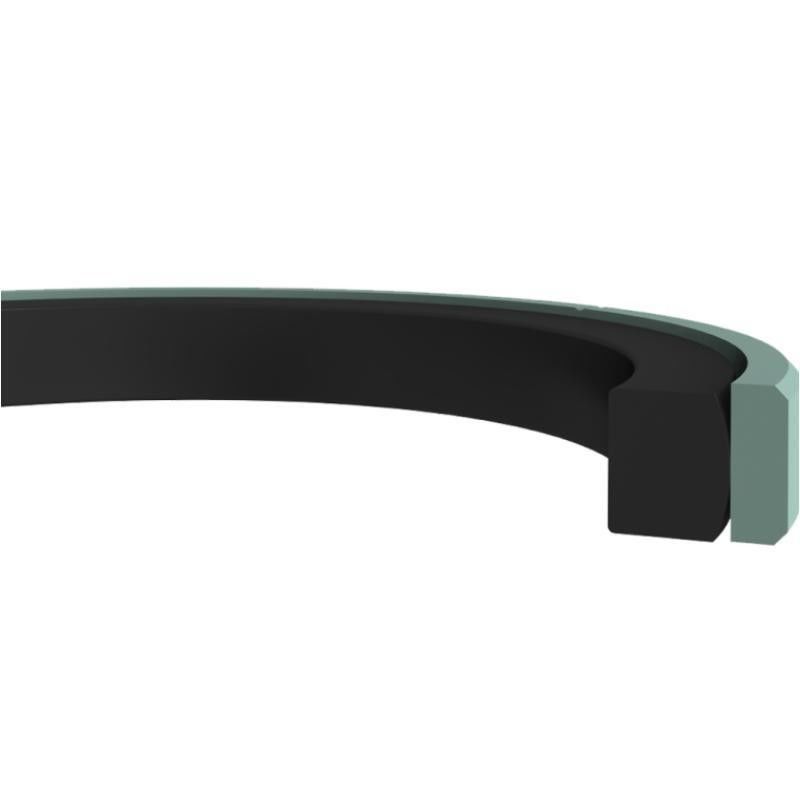

KL49 is double acting piston seal consists of PTFE sealing ring and a profile ring as an energizer. Specially designed for heavy duty applications, KL49 rod seal offers high extrusion resistance and superior sealing performance.

Advantages

• Low friction and stick-slip free

• High pressure resistance

• No twisting in the housing

• Suitable design for heavy duty cylinders with large diameters

• Good dynamic and static sealing

• Long service life

• High extrusion resistance

Area of Application

• Iron and steel industry

• Hydraulic press cylinders

• Large diameter cylinders

• Injection moulding machines

• Marine hydraulics

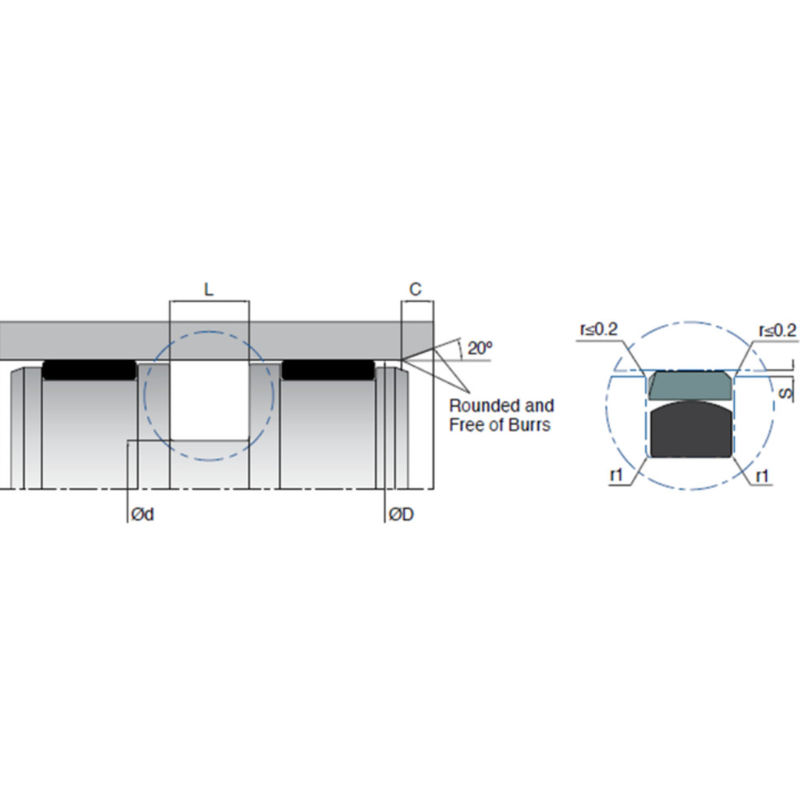

KL49 Hydraulic Piston Seal Types PTFE / NBR High Pressure Piston Seals 0
  D (H8) d (h8) L (+0.2/-0) r1 C MATERIAL
KL49 200-175 200 175 12.5 0.4 10 PTFE
KL49 220-195 220 195 12.5 0.4 10 PTFE
KL49 225-200 225 200 12.5 0.4 10 PTFE
KL49 240-215 240 215 12.5 0.4 10 PTFE
KL49 250-220 250 220 15 0.8 12 PTFE
KL49 260-230 260 230 15 0.8 12 PTFE
KL49 320-290 320 290 15 0.8 12 PTFE
KL49 325-295 325 295 15 0.8 12 PTFE
KL49 327.5-297.5 327.5 297.5 15 0.8 12 PTFE
KL49 340-310 340 310 15 0.8 12 PTFE
KL49 355-325 355 325 15 0.8 12 PTFE
KL49 360-330 360 330 15 0.8 12 PTFE
KL49 430-400 430 400 15 0.8 12 PTFE
KL49 490-460 490 460 15 0.8 12 PTFE
KL49 540-505 540 505 17.5 1.2 12 PTFE
KL49 590-555 590 555 17.5 1.2 12 PTFE
