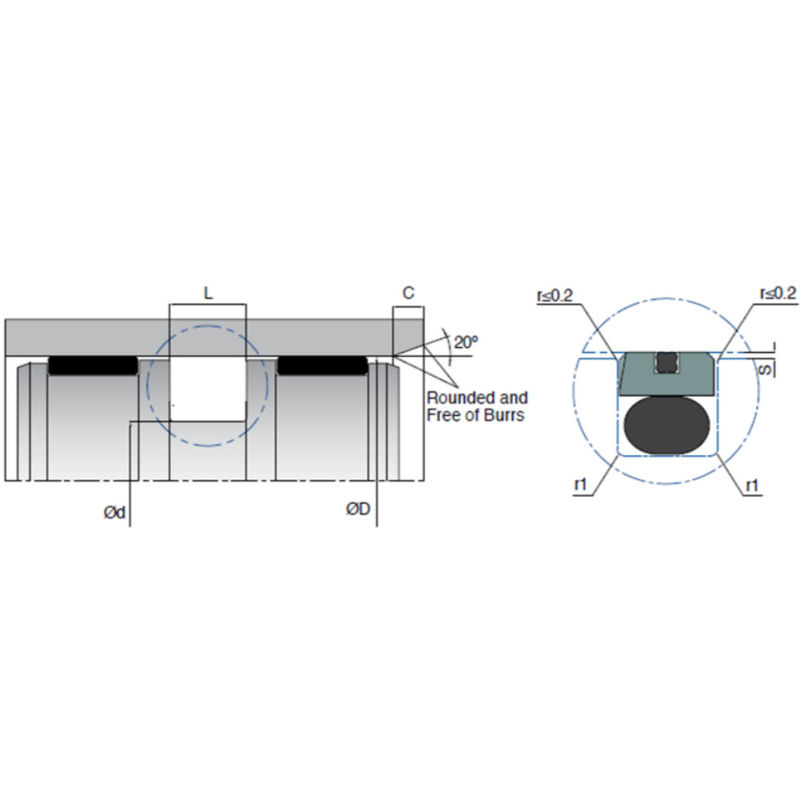

	D (H9)	d (h9)	L (+0.2/-0)	r1	C	O-Ring	X-Ring	MATERIAL
KL48-016	16	5	4.2	1	6	4.34x3.53	12.42x1.78	PTFE
KL48-022	22	11	4.2	1	6	10.69x3.53	17.17x1.78	PTFE
KL48-025	25	14	4.2	1	6	13.87x3.53	20.35x1.78	PTFE
KL48-028	28	17	4.2	1	6	15.47x3.53	23.52x1.78	PTFE
KL48-030	30	19	4.2	1	6	18.64x3.53	25.12x1.78	PTFE
KL48-032	32	21	4.2	1	6	20.22x3.53	26.70x1.78	PTFE
KL48-035	35	24	4.2	1	6	23.40x3.53	29.87x1.78	PTFE
KL48-040	40	29	4.2	1.3	6	28.17x3.53	34.65x1.78	PTFE
KL48-042	42	31	4.2	1.3	6	29.75x3.53	37.82x1.78	PTFE
KL48-045	45	34	4.2	1.3	6	32.92x3.53	37.82x1.78	PTFE
KL48-050	50	39	4.2	1.3	6	37.69x3.53	44.17x1.78	PTFE
KL48-050/1	50	34.5	6.3	1.3	8	32.69x5.33	44.17x1.78	PTFE
KL48-052	52	41	4.2	1.3	6	40.87x3.53	47.35x1.78	PTFE
KL48-055	55	44	4.2	1.3	6	44.04x3.53	50.52x1.78	PTFE
KL48-060	60	49	4.2	1.3	6	47.22x3.53	53.70x1.78	PTFE
KL48-063	63	52	4.2	1.3	6	50.39x3.53	56.87x1.78	PTFE
KL48-063/1	63	47.5	6.3	1.3	8	47.00x5.33	56.87x1.78	PTFE
KL48-065	65	54	4.2	1.3	6	53.57x3.53	60.05x1.78	PTFE
KL48-070	70	59	4.2	1.3	6	56.74x3.53	63.22x1.78	PTFE
KL48-070/1	70	54.5	6.3	1.3	8	53.34x5.33	63.22x1.78	PTFE
KL48-075	75	64	4.2	1.3	6	63.09x3.53	69.57x1.78	PTFE
KL48-080	80	64.5	6.3	1.8	8	62.87x5.33	72.75x1.78	PTFE
KL48-080/1	80	59	8.1	1.8	10.5	58.00x6.99	71.12x2.62	PTFE
KL48-085	85	69.5	6.3	1.8	8	69.22x5.33	75.92x1.78	PTFE
KL48-090	90	74.5	6.3	1.8	8	72.40x5.33	82.27x1.78	PTFE
KL48-095	95	79.5	6.3	1.8	8	78.74x5.33	88.62x1.78	PTFE
KL48-100	100	84.5	6.3	1.8	8	81.92x5.33	88.62x1.78	PTFE
KL48-100/1	100	79	8.1	1.8	10.5	77.00x6.99	88.57x2.62	PTFE
KL48-105	105	89.5	6.3	1.8	8	88.27x5.33	94.97x1.78	PTFE
KL48-110	110	94.5	6.3	1.8	8	91.44x5.33	101.32x1.78	PTFE
KL48-115	115	99.5	6.3	1.8	8	97.80x5.33	107.67x1.78	PTFE
KL48-120	120	104.5	6.3	1.8	8	100.97x5.33	114.02x1.78	PTFE
KL48-125	125	109.5	6.3	1.8	8	107.32x5.33	114.02x1.78	PTFE
KL48-130	130	114.5	6.3	1.8	8	113.67x5.33	120.37x1.78	PTFE
KL48-130/1	130	109	8.1	1.8	10.5	104.14x6.99	120.32x2.62	PTFE
KL48-135	135	114	8.1	1.8	10.5	113.67x6.99	126.67x2.62	PTFE
KL48-140	140	119	8.1	1.8	10.5	116.84x6.99	126.67x2.62	PTFE
KL48-150	150	129	8.1	1.8	10.5	126.37x6.99	139.37x2.62	PTFE
KL48-160	160	139	8.1	1.8	10.5	135.90x6.99	145.72x2.62	PTFE
KL48-170	170	149	8.1	1.8	10.5	148.60x6.99	158.42x2.62	PTFE
KL48-180	180	159	8.1	1.8	10.5	158.12x6.99	171.11x2.62	PTFE
KL48-190	190	169	8.1	1.8	10.5	168.30x6.99	177.47x2.62	PTFE
KL48-200	200	179	8.1	1.8	10.5	177.17x6.99	190.17x2.62	PTFE
KL48-210	210	189	8.1	1.8	10.5	187.30x6.99	202.87x2.62	PTFE
KL48-220	220	199	8.1	1.8	10.5	196.22x6.99	202.87x2.62	PTFE
KL48-240	240	219	8.1	1.8	10.5	215.27x6.99	234.62x2.62	PTFE
KL48-250	250	229	8.1	1.8	10.5	227.97x6.99	234.62x2.62	PTFE
KL48-250/1	250	225.5	8.1	1.8	12	221.62x6.99	234.62x2.62	PTFE
KL48-300	300	272	9.5	2.5	13	269.50x8.4	278.99x3.53	PTFE
KL48-310	310	282	9.5	2.5	13	279.00x8.4	291.70x3.53	PTFE
KL48-350	350	322	9.5	2.5	13	319.50x8.4	329.80x3.53	PTFE

PTFE / NBR Pneumatic Cylinder Piston Seal Manufacturer High Wear Resistance

NBR Pneumatic Cylinder Piston Seal

Pneumatic Cylinder Piston Seal Manufacturer

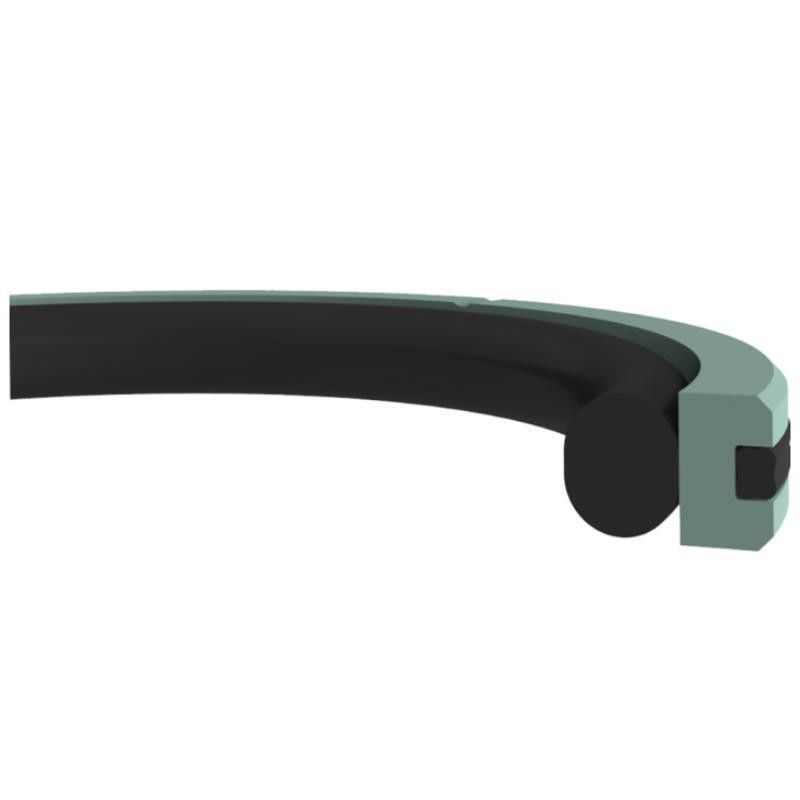

KL48 double acting piston seal consists of one PTFE profile ring, one elastomer X-ring and an O-ring as energizer. KL48 is an ideal piston seal for systems which has two different media in the system seperated by the piston seal such as fluid and gas.
