Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
KL47
Contact Us

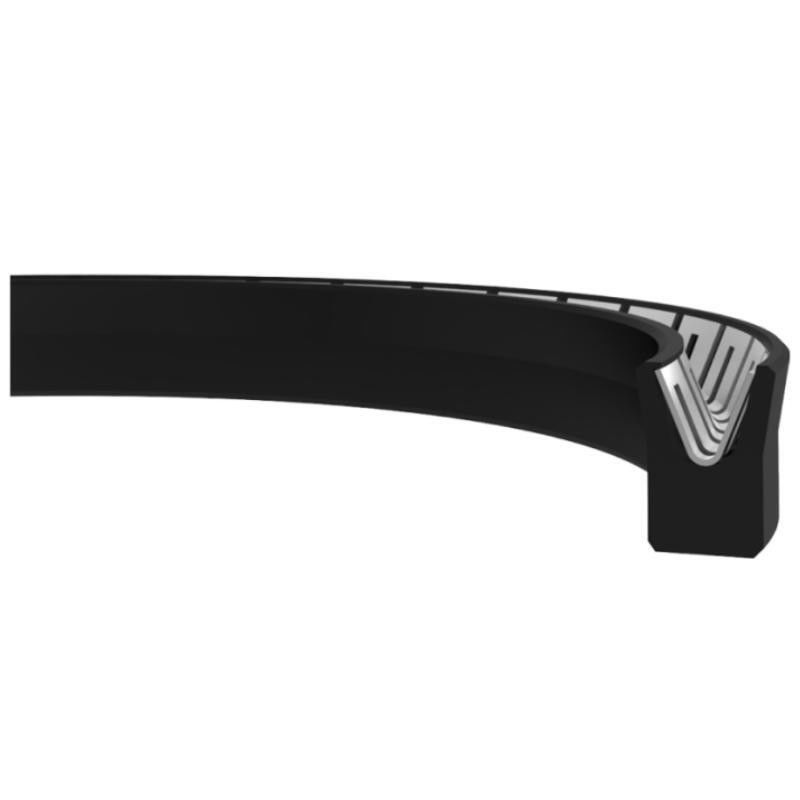

The distinctive and exclusive hinge-like action of each KL47 ring permits immediate reaction even to minor pressure changes. Each individual lip of KL47 independently reacts to pressure and automatically effect a seal. The multiple lip configurations automatically distribute pressure and an effective seal along the shaft.
The seal is a combination of a Base seal, center V-Ring & pressure ring. The center ring is the main seal being flexible enough to retain high & low pressure, whereas the base seal support the center ring from getting extruded against high pressures. The pressure ring helps in retaining the center ring profile& distributing pressure equally.
Features:
Advantages
• Valves
• Pumps
• Filling cylinders
• Dry running systems
• Dosing machines
• Food industry
• Chemical industry
• Pneumatic cylinders
• Hydraulic cylinde

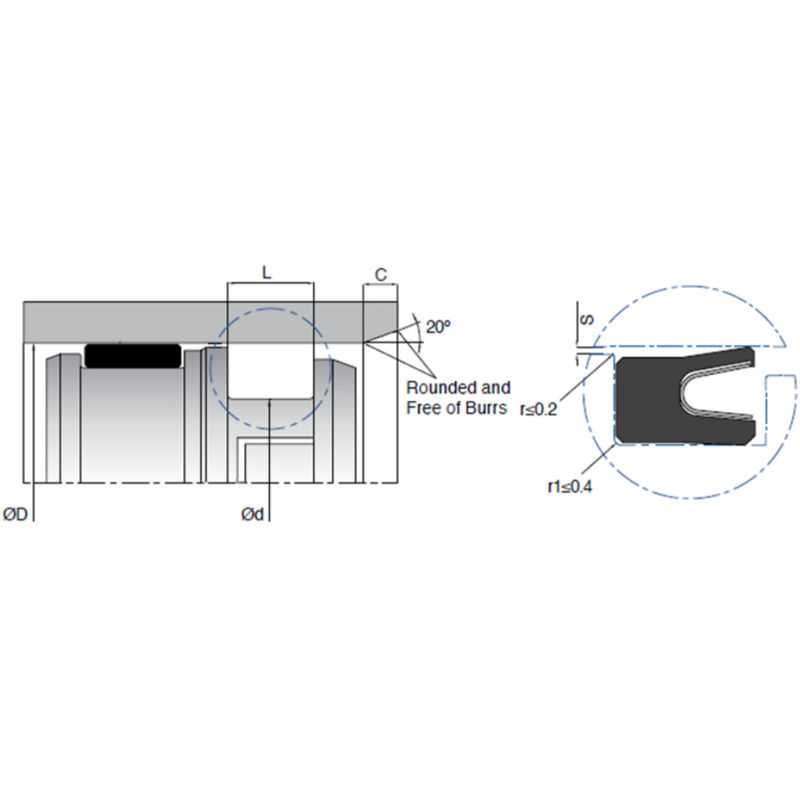

| D (H9) | d (h9) | L (+0.2/-0) | C | MATERIAL | |
| KL47-006 | 6 | 3.1 | 2.4 | 2 | PTFE |
| KL47-010 | 10 | 7.1 | 2.4 | 2 | PTFE |
| KL47-014 | 14 | 9.5 | 3.6 | 2.5 | PTFE |
| KL47-020 | 20 | 15.5 | 3.6 | 2.5 | PTFE |
| KL47-025 | 25 | 18.8 | 4.8 | 3.5 | PTFE |
| KL47-030 | 30 | 23.8 | 4.8 | 3.5 | PTFE |
| KL47-032 | 32 | 25.8 | 4.8 | 3.5 | PTFE |
| KL47-040 | 40 | 33.8 | 4.8 | 3.5 | PTFE |
| KL47-045 | 45 | 38.8 | 4.8 | 3.5 | PTFE |
| KL47-050 | 50 | 40.6 | 7.1 | 5 | PTFE |
| KL47-060 | 60 | 50.6 | 7.1 | 5 | PTFE |
| KL47-063 | 63 | 53.6 | 7.1 | 5 | PTFE |
| KL47-065 | 65 | 55.6 | 7.1 | 5 | PTFE |
| KL47-070 | 70 | 60.6 | 7.1 | 5 | PTFE |
| KL47-075 | 75 | 65.6 | 7.1 | 5 | PTFE |
| KL47-080 | 80 | 70.6 | 7.1 | 5 | PTFE |
| KL47-085 | 85 | 75.6 | 7.1 | 5 | PTFE |
| KL47-090 | 90 | 80.6 | 7.1 | 5 | PTFE |
| KL47-095 | 95 | 85.6 | 7.1 | 5 | PTFE |
| KL47-100 | 100 | 90.6 | 7.1 | 5 | PTFE |
| KL47-110 | 110 | 100.6 | 7.1 | 5 | PTFE |
| KL47-115 | 115 | 105.6 | 7.1 | 5 | PTFE |
| KL47-120 | 120 | 110.6 | 7.1 | 5 | PTFE |
| KL47-125 | 125 | 112.8 | 9.5 | 6.5 | PTFE |
| KL47-130 | 130 | 117.8 | 9.5 | 6.5 | PTFE |
| KL47-140 | 140 | 127.8 | 9.5 | 6.5 | PTFE |
| KL47-150 | 150 | 137.8 | 9.5 | 6.5 | PTFE |
| KL47-160 | 160 | 147.8 | 9.5 | 6.5 | PTFE |
| KL47-170 | 170 | 157.8 | 9.5 | 6.5 | PTFE |
| KL47-200 | 200 | 187.8 | 9.5 | 6.5 | PTFE |
