Double Acting Compact Piston Seal For Mobile Machinery / Construction Machinery

Double Acting Compact Piston Seal For Mobile Machinery / Construction Machinery

Double Acting Compact Piston Seal

Mobile machinery Compact Piston Seal

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL46X

Contact Us

Request A Quote
Double Acting Compact Piston Seal For Mobile Machinery / Construction Machinery
Double Acting Compact Piston Seal For Mobile Machinery / Construction Machinery Double Acting Compact Piston Seal For Mobile Machinery / Construction Machinery Double Acting Compact Piston Seal For Mobile Machinery / Construction Machinery Double Acting Compact Piston Seal For Mobile Machinery / Construction Machinery Double Acting Compact Piston Seal For Mobile Machinery / Construction Machinery
Product Details
Style:
Compact Piston Seal
Material:
NBR / TPE / PA
Pressure (max) Bar:
400
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
0.5
Application:
Construction Machinery / Agricultural Machinery
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description

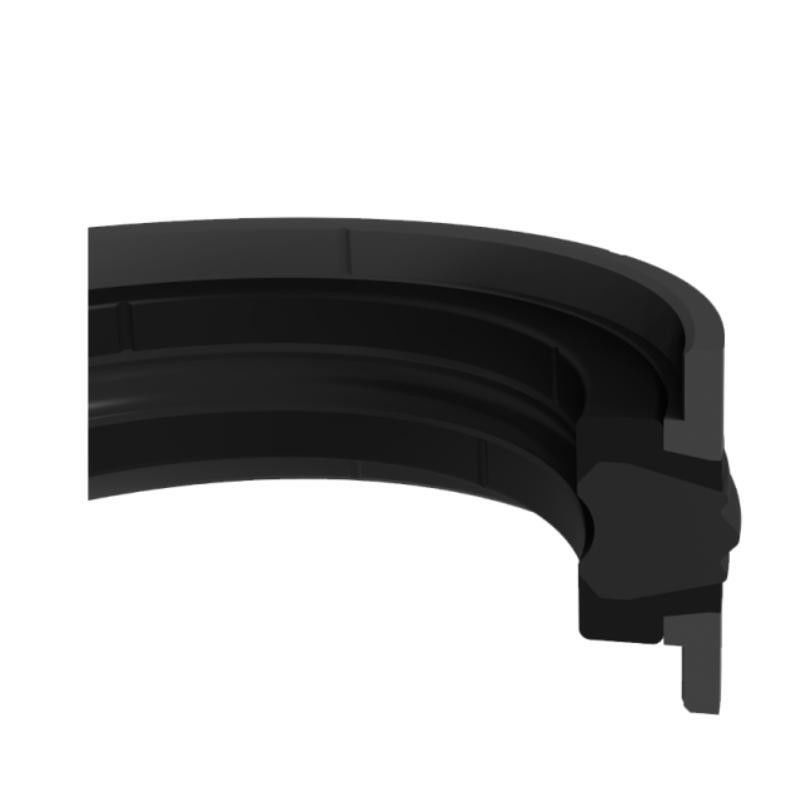

KL46X Is A High-Performance Double Acting Compact Piston Seal For Higher Load Bearing Performance At Higher Temperatures

KL46X is a high-performance double acting compact piston seal that consists of one NBR profile ring, thermoplastic elastomer support rings, and glass-reinforced PA guide rings. Among similar double-acting piston seals, KL46X comes forward with its TPE support rings with special geometry which enhances the extrusion resistance at variable pressures of mobile hydraulic applications and glass-reinforced PA guide rings that provides higher load bearing performance at higher temperatures.

Advantages

• Ultimate extrusion resistance due to special TPE back-up rings

• Better high temperature resistance due to PA guide rings

• Advanced performance at long stroke cylinders

Area of Application

• Agricultural machinery

• Construction machinery

• Mobile machinery

• Loading platforms

• Forklifts
Double Acting Compact Piston Seal For Mobile Machinery / Construction Machinery 0
  D (H8) d (h9) L (+0.2/-0) ds (h8) d1 (±0.1) L1 (+0.2/-0) C MATERIAL
KL46 025-016 25 16 13.5 22 24 2.1 4 NBR
KL46 030-021 30 21 13.5 27 29 2.1 4 NBR
KL46 032-022 32 22 16.4 28.5 30.5 6.35 4 NBR
KL46 032-024 32 24 15.5 28 31 3.1 4 NBR
KL46 035-025 35 25 16.4 31.4 33.5 6.35 4 NBR
KL46 X 040-024 40 24 18.4 35.4 38.5 6.35 5 NBR
KL46 X 040-030 40 30 16.4 35.4 38.5 6.35 4 NBR
KL46 040-030/1 40 30 12.5 37 39 4 4 NBR
KL46 040-032 40 32 15.5 36 39.4 3.2 4 NBR
KL46 040-032/1 40 32 10 37 39 4 4 NBR
KL46 045-029 45 29 18.4 40.4 43.5 6.35 5 NBR
KL46 045-035 45 35 16.4 40.4 43.5 6.35 4 NBR
KL46 X 050-034 50 34 20.5 46 49 3.1 5 NBR
KL46 X 050-034/1 50 34 18.4 45.41 48.66 6.35 5 NBR
KL46 050-038 50 38 20.5 46 49.4 4.2 4 NBR
KL46 X 055-039 55 39 20.5 51 54 3.1 5 NBR
KL46 055-039/1 55 39 18.4 50.37 53.65 6.35 5 NBR
KL46 055-045 55 45 12.5 52 54 4 4 NBR
KL46 X 060-044 60 44 20.5 56 59 3.1 5 NBR
KL46 X 060-044/1 60 44 18.4 55.39 58.65 6.35 5 NBR
KL46 060-048 60 48 20.5 56 59.4 4.2 4 NBR
KL46 063-047 63 47 20.5 59 62 3.1 5 NBR
KL46 X 063-047/1 63 47 18.4 58.39 61.63 6.35 5 NBR
KL46 063-047/2 63 47 19.4 58.4 61.5 6.35 5 NBR
KL46 063-051 63 51 20.5 59 62.4 4.2 4 NBR
KL46 063-053 63 53 12.5 60 62 4 4 NBR
KL46 065-049 65 49 20.5 61 64 3.1 5 NBR
KL46 X 065-050 65 50 18.4 60.41 63.64 6.35 5 NBR
KL46 X 070-050 70 50 22.4 64.18 68.34 6.35 6 NBR
KL46 070-054 70 54 20.5 66 69 3.1 5 NBR
KL46 070-058 70 58 20.5 66 69.4 4.2 5 NBR
KL46 X 075-055 75 55 22.4 69.2 73.3 6.35 6 NBR
KL46 075-059 75 59 20.5 71 74 3.1 5 NBR
KL46 X 080-060 80 60 22.4 74.15 78.3 6.35 6 NBR
KL46 080-060/2 80 60 25 75 78 6.35 6 NBR
KL46 080-062 80 62 22.5 76 79 3.6 5 NBR
KL46 080-066 80 66 22.4 76 79.4 5.2 5 NBR
KL46 085-065 85 65 22.4 79.15 83.3 6.35 6 NBR
KL46 X 090-070 90 70 22.4 84.15 88.3 6.35 6 NBR
KL46 090-072/1 90 72 22.5 86 89 3.6 6 NBR
KL46 090-075 90 75 20 86 88.5 5 5 NBR
KL46 090-076 90 76 22.4 86 89.4 5.2 5 NBR
KL46 X 095-075 95 75 22.4 89.15 93.31 6.35 6 NBR
KL46 095-081 95 81 22.4 91 94.4 5.2 5 NBR
KL46 X 100-075 100 75 22.4 93.13 98 6.35 6 NBR
KL46 100-086 100 86 22.4 96 99.4 5.2 5 NBR
KL46 105-080 105 80 22.4 98.1 103 6.5 6 NBR
KL46 105-080/1 105 80 22.4 98.1 103 6.35 6 NBR
KL46 X 110-085 110 85 22.4 103.1 108 6.35 6 NBR
KL46 110-085/1 110 85 25.4 103.1 108 6.35 6 NBR
KL46 110-092 110 92 22.4 106 109 3.6 5 NBR
KL46 110-096 110 96 22.4 106 109.4 5.2 5 NBR
KL46 X 115-090 115 90 22.4 108.1 113.02 6.35 6 NBR
KL46 115-101 115 101 22.4 111 114.4 5.2 5 NBR
KL46 X 120-095 120 95 22.4 113.1 118 6.35 6 NBR
KL46 120-106 120 106 22.4 116 119.4 5.2 5 NBR
KL46 X 125-100 125 100 25.4 118.1 123 6.35 6 NBR
KL46 125-108 125 108 26.5 121 124.4 7.2 6 NBR
KL46 130-105 130 105 25.4 123.1 128 6.35 6 NBR
KL46 130-105/1 130 105 25.4 123.1 128 9.52 6 NBR
KL46 X 130-105/2 130 105 25.4 122.6 127.5 9.52 6 NBR
KL46 135-110 135 110 25.4 127.6 132.5 9.52 6 NBR
KL46 135-110/1 135 110 25.4 128.1 133 6.35 6 NBR
KL46 140-115 140 115 25.4 132.6 137.5 6.35 6 NBR
KL46 X 140-115/2 140 115 25.4 133 138 6.35 6 NBR
KL46 140-115/1 140 115 25.4 132.6 137.5 9.52 6 NBR
KL46 X 140-118 140 118 26.5 136 139 5.1 6 NBR
KL46 140-123 140 123 26.5 136 139.4 7.2 6 NBR
KL46 150-125 150 125 25.4 142.6 147.5 9.5 6 NBR
KL46 X 150-128 150 128 26.5 146 149 5.1 6 NBR
KL46 150-133 150 133 26.5 146 149.4 7.2 5 NBR
KL46 155-130/1 155 130 25.4 147.6 152.5 9.52 6 NBR
KL46 X 160-130 160 130 25.4 153 157.5 6.35 7 NBR
KL46 160-130/1 160 130 25.4 152.6 157.5 9.52 7 NBR
KL46 160-135 160 135 25.4 152.6 157.5 9.52 6 NBR
KL46 160-143 160 143 26.5 156 159.4 7.2 5 NBR
KL46 165-140 165 140 25.4 157.6 162.5 9.52 6 NBR
KL46 X 165-143 165 143 26.5 161 163.5 5.25 4 NBR
KL46 170-145 170 145 25.4 161.72 167.1 12.7 6 NBR
KL46 170-148 170 148 26.5 166 169 5.1 6 NBR
KL46 180-150 180 150 35.4 172.95 177.87 6.35 7 NBR
KL46 X 180-155 180 155 25.4 171.72 177.1 12.7 6 NBR
KL46 X 180-158 180 158 26.5 176 179 5.1 6 NBR
KL46 180-163 180 163 26.5 176 179.4 7.2 5 NBR
KL46 X 190-165 190 165 25.4 181.72 187.05 12.7 6 NBR
KL46 200-170 200 170 35.4 193 198 6.35 7 NBR
KL46 X 200-175 200 175 31.5 196 199 6.6 6 NBR
KL46 200-175/1 200 175 25.4 191.62 197 12.7 6 NBR
KL46 200-180 200 180 31.5 196 199.4 9.2 6 NBR
KL46 X 210-185 210 185 25.4 201.62 207 12.7 6 NBR
KL46 X 220-195 220 195 25.4 211.62 217 12.7 6 NBR
KL46 220-200 220 200 31.5 216 219.4 9.2 6 NBR
KL46 X 230-205 230 205 25.4 221.62 227 12.7 6 NBR
KL46 240-215 240 215 25.4 231.62 237 12.7 6 NBR
KL46 X 250-225 250 225 25.4 241.62 247 12.7 6 NBR
KL46 250-230 250 230 31.5 246 249.4 9.2 6 NBR
KL46 260-235 260 235 35.4 252.9 257 12.7 6 NBR
KL46 300-275 300 275 31.5 296 299 6.6 6 NBR
