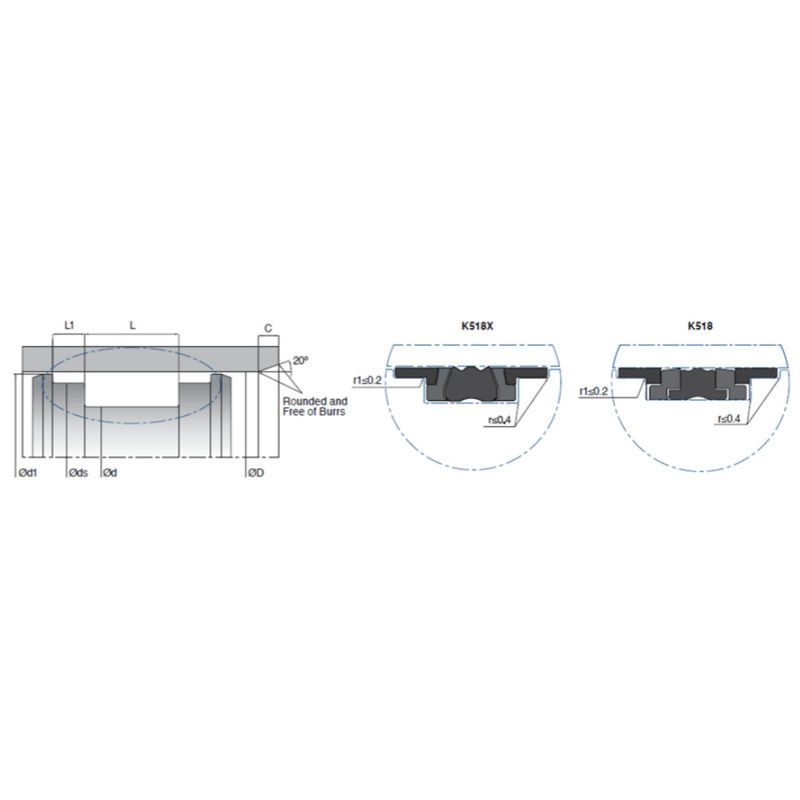

	D (H8)	d (h9)	L (+0.2/-0)	ds (h8)	d1 (±0.1)	L1 (+0.2/-0)	C	MATERIAL
KL46 025-016	25	16	13.5	22	24	2.1	4	NBR
KL46 030-021	30	21	13.5	27	29	2.1	4	NBR
KL46 032-022	32	22	16.4	28.5	30.5	6.35	4	NBR
KL46 032-024	32	24	15.5	28	31	3.1	4	NBR
KL46 035-025	35	25	16.4	31.4	33.5	6.35	4	NBR
KL46 X 040-024	40	24	18.4	35.4	38.5	6.35	5	NBR
KL46 X 040-030	40	30	16.4	35.4	38.5	6.35	4	NBR
KL46 040-030/1	40	30	12.5	37	39	4	4	NBR
KL46 040-032	40	32	15.5	36	39.4	3.2	4	NBR
KL46 040-032/1	40	32	10	37	39	4	4	NBR
KL46 045-029	45	29	18.4	40.4	43.5	6.35	5	NBR
KL46 045-035	45	35	16.4	40.4	43.5	6.35	4	NBR
KL46 X 050-034	50	34	20.5	46	49	3.1	5	NBR
KL46 X 050-034/1	50	34	18.4	45.41	48.66	6.35	5	NBR
KL46 050-038	50	38	20.5	46	49.4	4.2	4	NBR
KL46 X 055-039	55	39	20.5	51	54	3.1	5	NBR
KL46 055-039/1	55	39	18.4	50.37	53.65	6.35	5	NBR
KL46 055-045	55	45	12.5	52	54	4	4	NBR
KL46 X 060-044	60	44	20.5	56	59	3.1	5	NBR
KL46 X 060-044/1	60	44	18.4	55.39	58.65	6.35	5	NBR
KL46 060-048	60	48	20.5	56	59.4	4.2	4	NBR
KL46 063-047	63	47	20.5	59	62	3.1	5	NBR
KL46 X 063-047/1	63	47	18.4	58.39	61.63	6.35	5	NBR
KL46 063-047/2	63	47	19.4	58.4	61.5	6.35	5	NBR
KL46 063-051	63	51	20.5	59	62.4	4.2	4	NBR
KL46 063-053	63	53	12.5	60	62	4	4	NBR
KL46 065-049	65	49	20.5	61	64	3.1	5	NBR
KL46 X 065-050	65	50	18.4	60.41	63.64	6.35	5	NBR
KL46 X 070-050	70	50	22.4	64.18	68.34	6.35	6	NBR
KL46 070-054	70	54	20.5	66	69	3.1	5	NBR
KL46 070-058	70	58	20.5	66	69.4	4.2	5	NBR
KL46 X 075-055	75	55	22.4	69.2	73.3	6.35	6	NBR
KL46 075-059	75	59	20.5	71	74	3.1	5	NBR
KL46 X 080-060	80	60	22.4	74.15	78.3	6.35	6	NBR
KL46 080-060/2	80	60	25	75	78	6.35	6	NBR
KL46 080-062	80	62	22.5	76	79	3.6	5	NBR
KL46 080-066	80	66	22.4	76	79.4	5.2	5	NBR
KL46 085-065	85	65	22.4	79.15	83.3	6.35	6	NBR
KL46 X 090-070	90	70	22.4	84.15	88.3	6.35	6	NBR
KL46 090-072/1	90	72	22.5	86	89	3.6	6	NBR
KL46 090-075	90	75	20	86	88.5	5	5	NBR
KL46 090-076	90	76	22.4	86	89.4	5.2	5	NBR
KL46 X 095-075	95	75	22.4	89.15	93.31	6.35	6	NBR
KL46 095-081	95	81	22.4	91	94.4	5.2	5	NBR
KL46 X 100-075	100	75	22.4	93.13	98	6.35	6	NBR
KL46 100-086	100	86	22.4	96	99.4	5.2	5	NBR
KL46 105-080	105	80	22.4	98.1	103	6.5	6	NBR
KL46 105-080/1	105	80	22.4	98.1	103	6.35	6	NBR
KL46 X 110-085	110	85	22.4	103.1	108	6.35	6	NBR
KL46 110-085/1	110	85	25.4	103.1	108	6.35	6	NBR
KL46 110-092	110	92	22.4	106	109	3.6	5	NBR
KL46 110-096	110	96	22.4	106	109.4	5.2	5	NBR
KL46 X 115-090	115	90	22.4	108.1	113.02	6.35	6	NBR
KL46 115-101	115	101	22.4	111	114.4	5.2	5	NBR
KL46 X 120-095	120	95	22.4	113.1	118	6.35	6	NBR
KL46 120-106	120	106	22.4	116	119.4	5.2	5	NBR
KL46 X 125-100	125	100	25.4	118.1	123	6.35	6	NBR
KL46 125-108	125	108	26.5	121	124.4	7.2	6	NBR
KL46 130-105	130	105	25.4	123.1	128	6.35	6	NBR
KL46 130-105/1	130	105	25.4	123.1	128	9.52	6	NBR
KL46 X 130-105/2	130	105	25.4	122.6	127.5	9.52	6	NBR
KL46 135-110	135	110	25.4	127.6	132.5	9.52	6	NBR
KL46 135-110/1	135	110	25.4	128.1	133	6.35	6	NBR
KL46 140-115	140	115	25.4	132.6	137.5	6.35	6	NBR
KL46 X 140-115/2	140	115	25.4	133	138	6.35	6	NBR
KL46 140-115/1	140	115	25.4	132.6	137.5	9.52	6	NBR
KL46 X 140-118	140	118	26.5	136	139	5.1	6	NBR
KL46 140-123	140	123	26.5	136	139.4	7.2	6	NBR
KL46 150-125	150	125	25.4	142.6	147.5	9.5	6	NBR
KL46 X 150-128	150	128	26.5	146	149	5.1	6	NBR
KL46 150-133	150	133	26.5	146	149.4	7.2	5	NBR
KL46 155-130/1	155	130	25.4	147.6	152.5	9.52	6	NBR
KL46 X 160-130	160	130	25.4	153	157.5	6.35	7	NBR
KL46 160-130/1	160	130	25.4	152.6	157.5	9.52	7	NBR
KL46 160-135	160	135	25.4	152.6	157.5	9.52	6	NBR
KL46 160-143	160	143	26.5	156	159.4	7.2	5	NBR
KL46 165-140	165	140	25.4	157.6	162.5	9.52	6	NBR
KL46 X 165-143	165	143	26.5	161	163.5	5.25	4	NBR
KL46 170-145	170	145	25.4	161.72	167.1	12.7	6	NBR
KL46 170-148	170	148	26.5	166	169	5.1	6	NBR
KL46 180-150	180	150	35.4	172.95	177.87	6.35	7	NBR
KL46 X 180-155	180	155	25.4	171.72	177.1	12.7	6	NBR
KL46 X 180-158	180	158	26.5	176	179	5.1	6	NBR
KL46 180-163	180	163	26.5	176	179.4	7.2	5	NBR
KL46 X 190-165	190	165	25.4	181.72	187.05	12.7	6	NBR
KL46 200-170	200	170	35.4	193	198	6.35	7	NBR
KL46 X 200-175	200	175	31.5	196	199	6.6	6	NBR
KL46 200-175/1	200	175	25.4	191.62	197	12.7	6	NBR
KL46 200-180	200	180	31.5	196	199.4	9.2	6	NBR
KL46 X 210-185	210	185	25.4	201.62	207	12.7	6	NBR
KL46 X 220-195	220	195	25.4	211.62	217	12.7	6	NBR
KL46 220-200	220	200	31.5	216	219.4	9.2	6	NBR
KL46 X 230-205	230	205	25.4	221.62	227	12.7	6	NBR
KL46 240-215	240	215	25.4	231.62	237	12.7	6	NBR
KL46 X 250-225	250	225	25.4	241.62	247	12.7	6	NBR
KL46 250-230	250	230	31.5	246	249.4	9.2	6	NBR
KL46 260-235	260	235	35.4	252.9	257	12.7	6	NBR
KL46 300-275	300	275	31.5	296	299	6.6	6	NBR

Forklift Hydraulic Piston Seals Low Friction With NBR Profile Ring

Forklift Hydraulic Piston Seals

Hydraulic Piston Seals Low Friction

ISO9001 Piston Hydraulic Seals

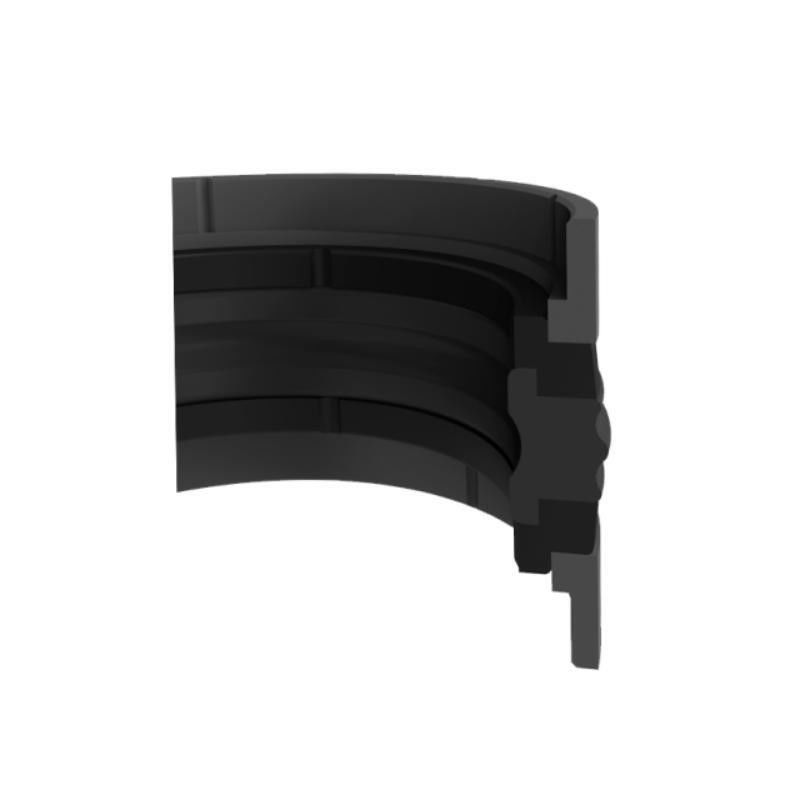

Compact Piston Seal Include NBR Profile Ring, Thermoplastic Elastomer Support Rings And Glass-Reinforced POM Guide Rings

KL46 is a piston seal consists of one NBR profile ring, thermoplastic elastomer support rings, and glass-reinforced POM guide rings. K518 is widely preffered in mobile machinery due to glass-reinforced POM guide rings which provides better load bearing propoerties in longer stroke cylinders.

Advantages

Area of Application

Compact Piston Seal

Double Acting Piston Seals

Piston Packing Seal
