Safe Operation Hydraulic Piston Seals Ring KL45 Three Pieces Compact Set

Safe Operation Hydraulic Piston Seals Ring KL45 Three Pieces Compact Set

Safe Operation Hydraulic Piston Seals

Hydraulic Piston Seals ISO9001

Hydraulic Piston Ring Seal

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL45

Contact Us

Request A Quote
Safe Operation Hydraulic Piston Seals Ring KL45 Three Pieces Compact Set
Safe Operation Hydraulic Piston Seals Ring KL45 Three Pieces Compact Set Safe Operation Hydraulic Piston Seals Ring KL45 Three Pieces Compact Set Safe Operation Hydraulic Piston Seals Ring KL45 Three Pieces Compact Set Safe Operation Hydraulic Piston Seals Ring KL45 Three Pieces Compact Set Safe Operation Hydraulic Piston Seals Ring KL45 Three Pieces Compact Set
Product Details
Style:
Hydraulic Piston Seals
Material:
NBR / FABRIC NBR / POM
Pressure (max) Bar:
500
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
0.5
Application:
Iron And Steel Industry / Marine Hydraulics
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description

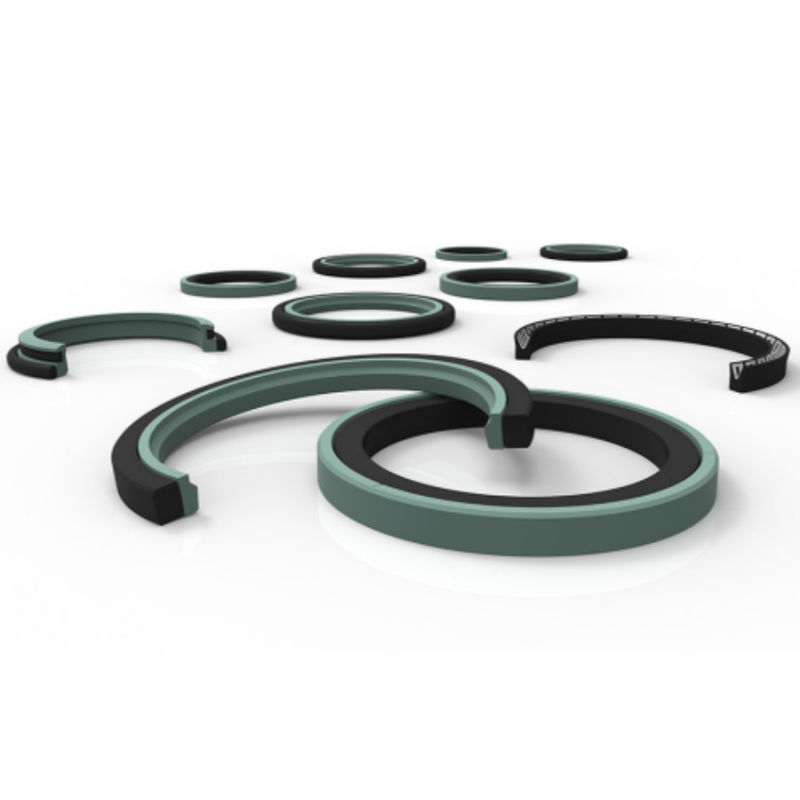

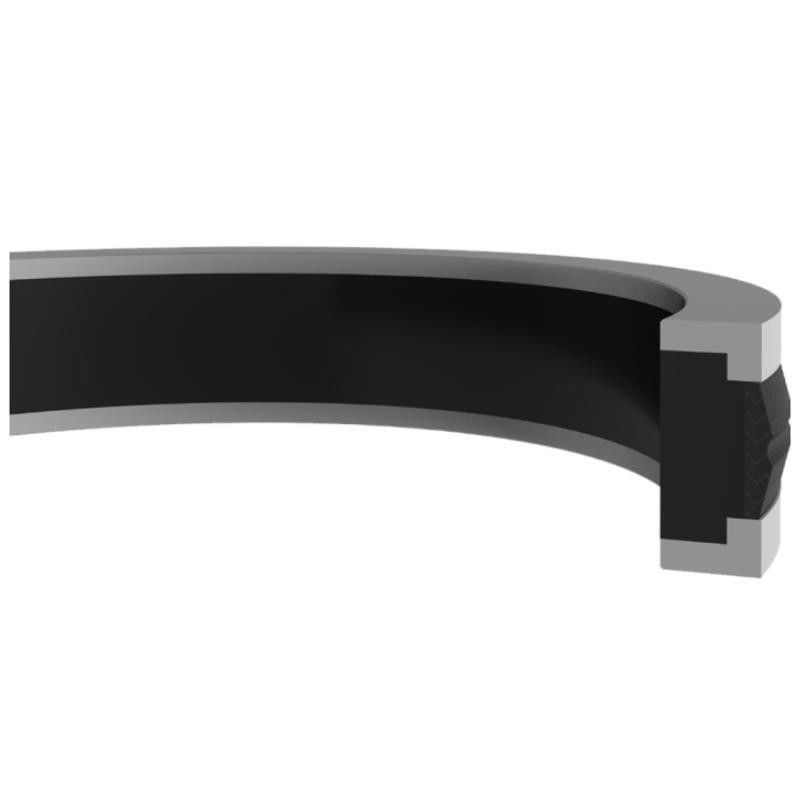

KL45 is a three pieces compact set consisting of one fabric impregnated sealing ring and two thermoplastic guide rings. The face seal has superior abrasion resistance and performs well at rough surfaces. Special designed guide POM guide and support rings, provides a higher extrusion resistance to the seal and makes KL45, the high pressure version of KL44.

Advantages

• High performance at water-based fluids
• High Abrasion Resistance
• Advanced dynamic and static sealing
• Safe operation under high pressures
• Long service life

Area of Application

• Mining industry
• Iron and steel industry
• Marine hydraulics
Safe Operation Hydraulic Piston Seals Ring KL45 Three Pieces Compact Set 0
  D (H8) d (h9) L (+0.2/-0) C MATERIAL
KL45 080-066 80 66 16.5 5 FABRIC NBR
KL45 100-086 100 86 16.5 5 FABRIC NBR
KL45 110-095 110 95 15.5 5 FABRIC NBR
KL45 120-105 120 105 15.5 5 FABRIC NBR
KL45 125-110 125 110 15.7 5 FABRIC NBR
KL45 130-113 130 113 20.5 6 FABRIC NBR
KL45 140-125 140 125 15.9 5 FABRIC NBR
KL45 150-135 150 135 15.5 5 FABRIC NBR
KL45 160-143 160 143 20 6 FABRIC NBR
KL45 170-150 170 150 15.5 6 FABRIC NBR
KL45 180-163 180 163 20 6 FABRIC NBR
KL45 185-165 185 165 15.5 6 FABRIC NBR
KL45 200-180 200 180 15.5 6 FABRIC NBR
KL45 210-190 210 190 15.5 6 FABRIC NBR
KL45 225-205 225 205 24.5 6 FABRIC NBR
KL45 240-220 240 220 25 6 FABRIC NBR
KL45 250-230 250 230 25.5 6 FABRIC NBR
KL45 320-300 320 300 25.5 6 FABRIC NBR
