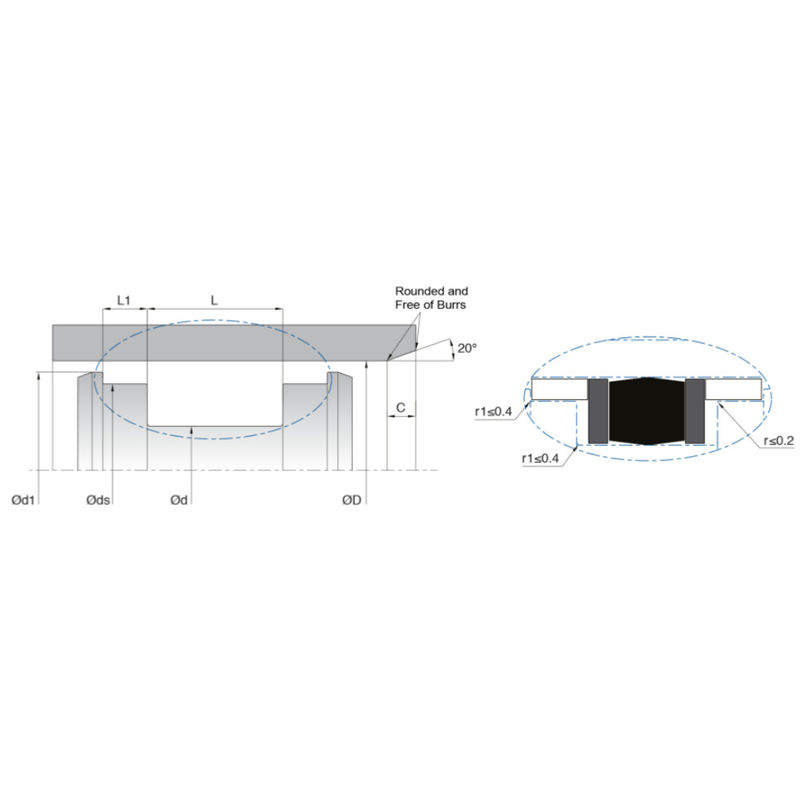

	D (H8)	d (h9)	L (+0.2/-0)	ds (h8)	d1 (±0.1)	L1 (+0.2/-0)	C	MATERIAL
KL43 028.57-019.05	28.57	19.05	11.1	23.8	27.05	6.35	2.5	NBR
KL43 031.75-022.22	31.75	22.22	11.1	26.97	30.22	6.35	2.5	NBR
KL43 034.92-025.4	34.92	25.4	11.1	30.15	33.4	6.35	2.5	NBR
KL43 038.1-028.57	38.1	28.57	11.1	33.55	36.57	6.35	2.5	NBR
KL43 038.1-028.57/1	38.1	28.57	11.1	33.32	36.57	9.52	2.5	NBR
KL43 041.27-031.75	41.27	31.75	11.1	36.47	39.75	9.52	2.5	NBR
KL43 044.45-034.92	44.45	34.92	11.1	39.65	42.92	9.52	2.5	NBR
KL43 047.62-038.1	47.62	38.1	11.1	42.82	46.1	9.52	2.5	NBR
KL43 050.8-038.1	50.8	38.1	14.52	46.25	49.28	6.35	3.5	NBR
KL43 050.8-038.1/1	50.8	38.1	14.52	46	49.28	9.52	3.5	NBR
KL43 057.15-044.45	57.15	44.45	14.52	52.35	55.63	9.52	3.5	NBR
KL43 063.5-050.8	63.5	50.8	14.52	58.95	61.98	6.35	3.5	NBR
KL43 063.5-050.8/1	63.5	50.8	14.52	58.7	61.98	9.52	3.5	NBR
KL43 069.85-057.15	69.75	57.15	14.52	65	68.33	9.52	3.5	NBR
KL43 076.1-063.5	76.2	63.5	14.52	70.46	74.68	6.35	3.5	NBR
KL43 076.1-063.5/1	76.2	63.5	14.52	71.35	74.68	9.52	3.5	NBR
KL43 082.55-069.85	82.55	69.85	14.52	77.7	81.03	9.52	3.5	NBR
KL43 088.9-076.2	88.9	76.2	14.52	83.16	87.38	6.35	3.5	NBR
KL43 088.9-076.2/1	88.9	76.2	14.52	84.05	87.38	9.52	3.5	NBR
KL43 095.25-082.55	95.25	82.55	14.52	88.67	93.22	12.7	3.5	NBR
KL43 101.6-082.55	101.6	82.55	19.43	95.83	99.57	6.35	5	NBR
KL43 101.6-082.55/1	101.6	82.55	19.43	95.07	99.57	12.7	5	NBR
KL43 107.95-088.9	107.95	88.9	19.43	101.42	105.92	12.7	5	NBR
KL43 114.3-095.25	114.3	95.25	19.43	107.72	112.27	12.7	5	NBR
KL43 120.65-101.6	120.65	101.6	19.43	114.07	118.68	12.7	5	NBR
KL43 127-107.95	127	107.95	19.43	120.42	124.97	12.7	5	NBR
KL43 139.7-120.65	139.7	120.65	19.43	133.12	137.67	12.7	5	NBR
KL43 152.4-133.35	152.4	133.35	19.43	145.82	150.37	12.7	5	NBR
KL43 177.8-158.75	177.8	158.75	19.43	171.22	175.77	12.7	5	NBR
KL43 203.2-184.15	203.2	184.15	19.43	196.62	201.17	12.7	5	NBR

KL43 Compact Hydraulic Piston Seals 5 Piece For Standard Industrial Cylinders

KL43 Hydraulic Piston Seals

Compact Hydraulic Piston Seals

KL43 Hydraulic Cylinder Piston Seal Types

KL43 Good Sealing Performance Compact Set Is A 5 Pieces Piston Seal For Standard Industrial Cylinders

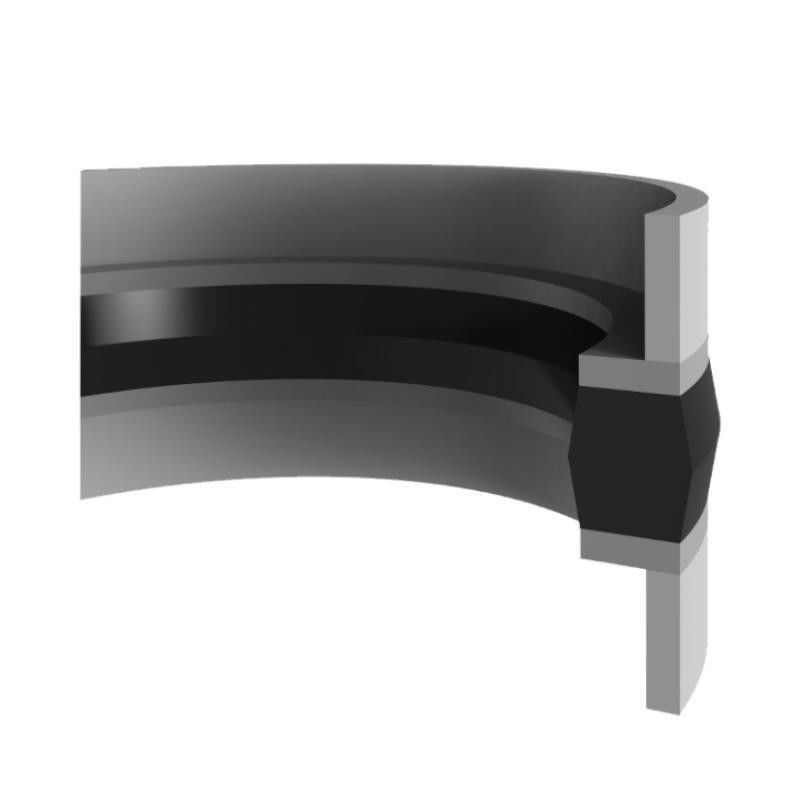

KL43 compact set is a 5 pieces piston seal consisting of elastomer sealing ring, two thermoplastic elastomer backup ring and twoPOM guide rings.

Advantages

Area of Application

Compact Piston Seal

Double Acting Piston Seals

Piston Packing Seal
