KL42 Hydraulic Piston Seals 3 Piece Compact Elastomeric Sealing Ring

KL42 Hydraulic Piston Seals 3 Piece Compact Elastomeric Sealing Ring

KL42 Hydraulic Piston Seals

Hydraulic Piston Seals 3 Piece

Compact Elastomeric Sealing Ring

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL42

Contact Us

Request A Quote
KL42 Hydraulic Piston Seals 3 Piece Compact Elastomeric Sealing Ring
KL42 Hydraulic Piston Seals 3 Piece Compact Elastomeric Sealing Ring KL42 Hydraulic Piston Seals 3 Piece Compact Elastomeric Sealing Ring KL42 Hydraulic Piston Seals 3 Piece Compact Elastomeric Sealing Ring KL42 Hydraulic Piston Seals 3 Piece Compact Elastomeric Sealing Ring KL42 Hydraulic Piston Seals 3 Piece Compact Elastomeric Sealing Ring
Product Details
Style:
Hydraulic Piston Seals 3 Piece
Material:
NBR / FABRIC NBR / POM
Pressure (max) Bar:
500
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
0.5
Application:
Iron And Steel Industry
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description

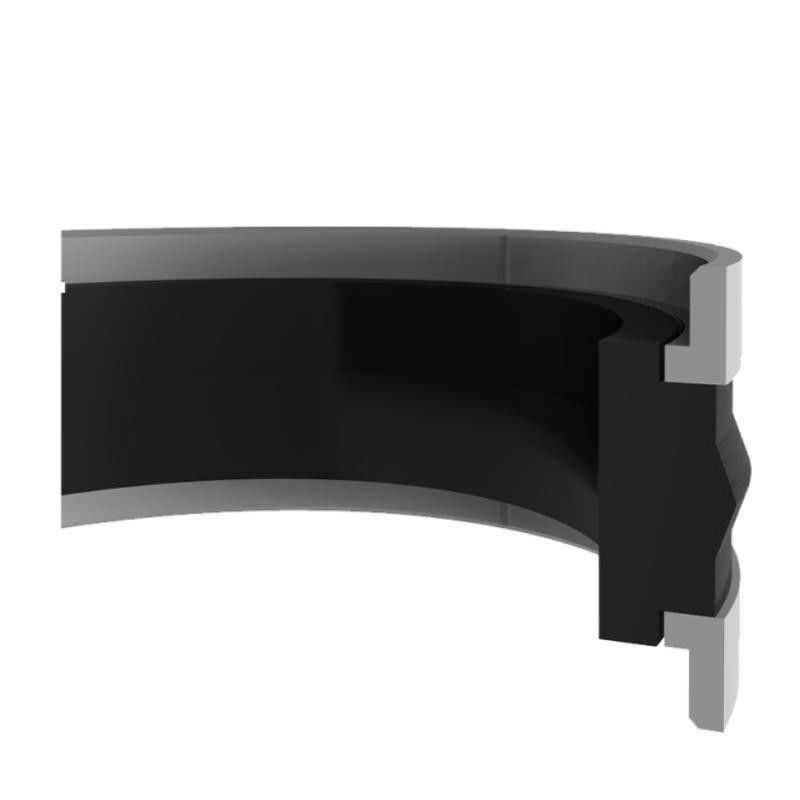

KL42 Is a 3 piece compact piston seal which consists of a fabric impregnated elastomer sealing ring and 2 POM guide rings. The sealing ring has superior abrasion resistance and low leakage performance in rough surfaces.

Advantages

• Superior abrasion resistance
• Suitable for water-based fluids
• Low dynamic and static leakage
• Long service life

Area of Application

• Mining industry
• Iron and steel industry
• Marine hydraulics
KL42 Hydraulic Piston Seals 3 Piece Compact Elastomeric Sealing Ring 0

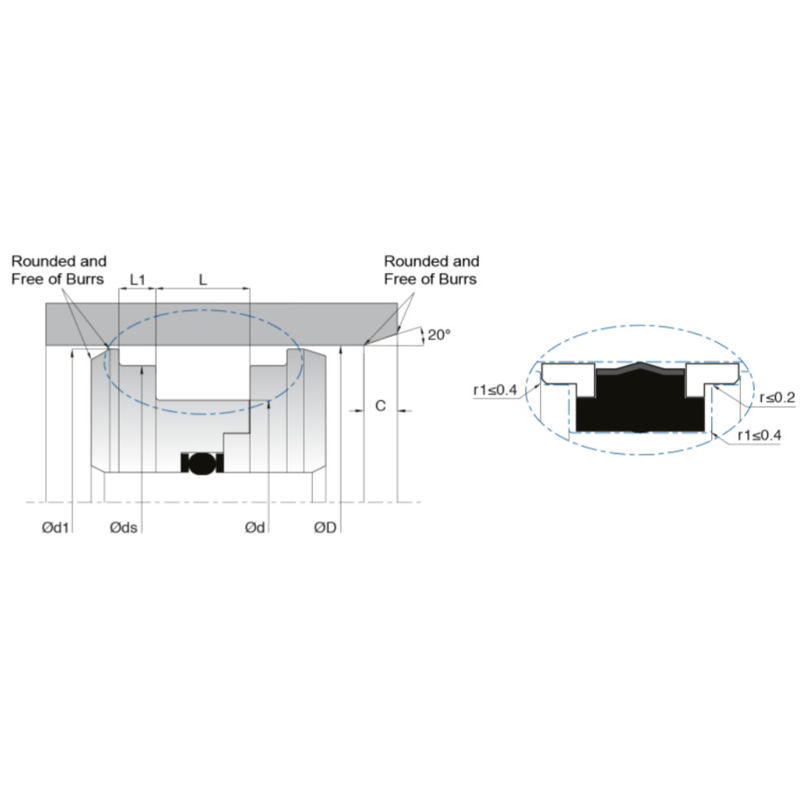

  D (H8) d (h9) L (+0.2/-0) ds (h8) d1 (±0.1) L1 (+0.2/-0) C MATERIAL
KL42-050-034 50 34 18.4 45.48 49 3.1 5 FABRIC NBR
KL42-060-044 60 44 18.4 55.48 59 3.1 5 FABRIC NBR
KL42-070-050 70 50 22.4 64.28 68.34 6.35 6 FABRIC NBR
KL42-080-060 80 60 22.4 74.28 78.3 6.35 6 FABRIC NBR
KL42-090-070 90 70 22.4 84.22 88.3 6.35 6 FABRIC NBR
KL42-100-080 100 80 25.4 94.22 98 6.35 6 FABRIC NBR
KL42-125-100 125 100 25.4 118.18 123 6.35 6 FABRIC NBR
KL42-140-115 140 115 25.4 133.08 137.5 6.35 6 FABRIC NBR
KL42-150-125 150 125 25.4 143.08 147.5 9.5 6 FABRIC NBR
