Two Piece Hydraulic Piston Seals Double Acting Easy Installation

Two Piece Hydraulic Piston Seals Double Acting Easy Installation

Two Piece Hydraulic Piston Seals

Hydraulic Piston Seals Double Acting

Double Acting Piston Seals Hydraulic

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL40

Contact Us

Request A Quote
Two Piece Hydraulic Piston Seals Double Acting Easy Installation
Two Piece Hydraulic Piston Seals Double Acting Easy Installation Two Piece Hydraulic Piston Seals Double Acting Easy Installation Two Piece Hydraulic Piston Seals Double Acting Easy Installation Two Piece Hydraulic Piston Seals Double Acting Easy Installation Two Piece Hydraulic Piston Seals Double Acting Easy Installation
Product Details
Style:
Double Acting Piston Seals Hydraulic
Material:
PU / NBR
Pressure (max) Bar:
400
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
0.5
Application:
Construction Machinery
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description

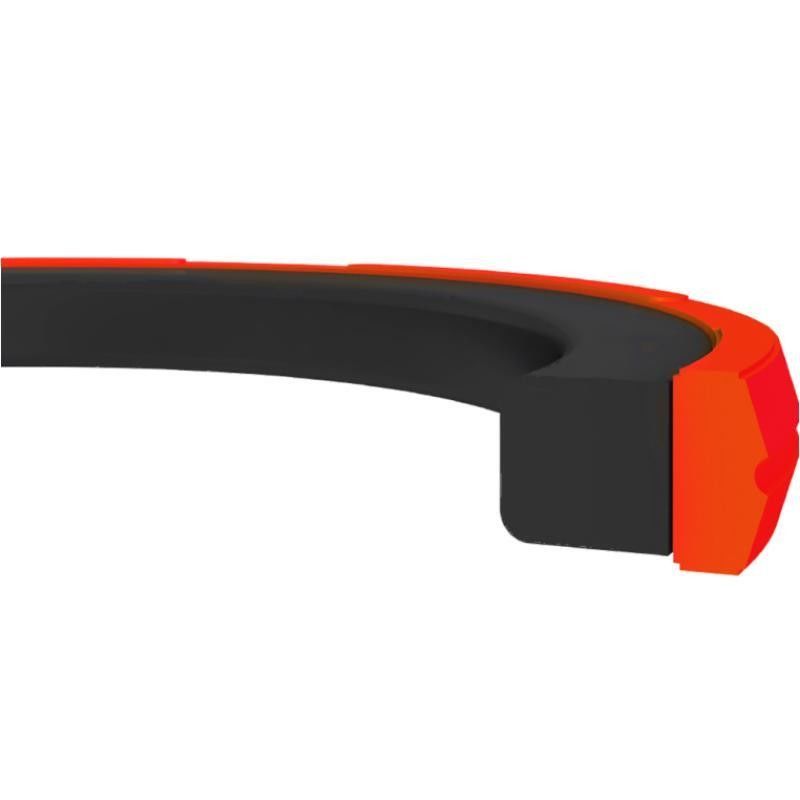

KL40 Is A Two Piece Double Acting Sealing Set Consists Of A Hard PU Seal Ring And An NBR Elastomer Ring As Energizer

KL40 is a two piece double acting sealing set which consists of a hard polyurethane seal ring and an NBR elastomer ring as energizer. It has good sealing ability at heavy duty applications thanks to the PU sealing ring having high resistance against wear, pressure and extrusion as well as NBR energizer ring.

Advantages

• High static and dynamic sealing effect
• Simple and small groove design suitable with ISO 7425-1
• Operating without vibration even with low speeds
• No twisting in the house due to profile ring energizer
• Easy installation

Area of Application

• Construction machinery
• Injection moulding machines
• Mobile machinery
• Forklifts
• Agricultural machinery
• Standard industrial cylinders

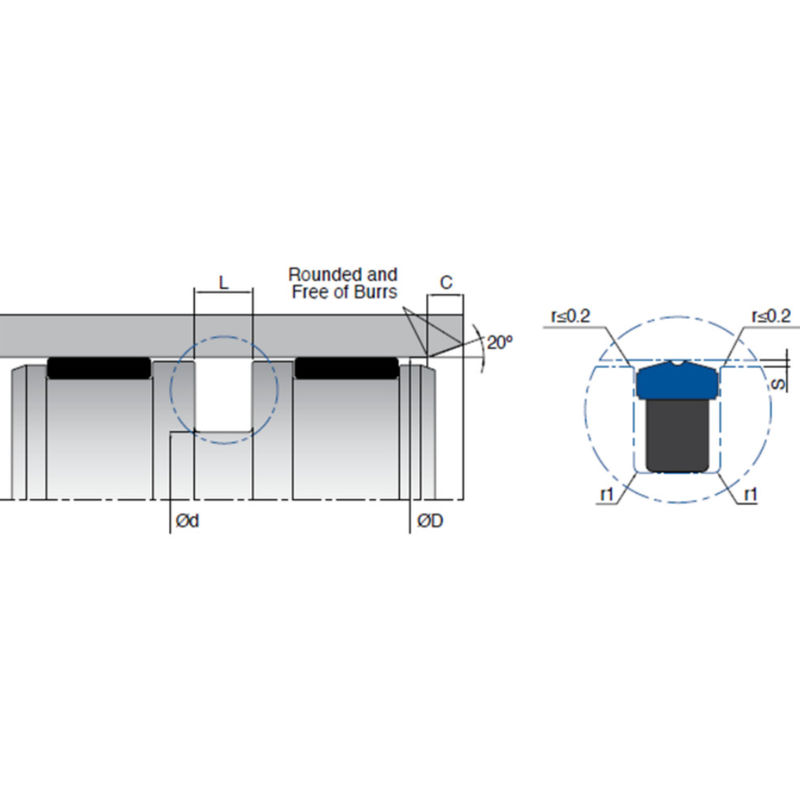

Two Piece Hydraulic Piston Seals Double Acting Easy Installation 0



  D (H9) d (h9) L (+0.2/-0) r1 C MATERIAL
KL40 025-017.5 25 17.5 3.2 0.5 2 PU
KL40 028-020.5 28 20.5 3.2 0.5 2 PU
KL40 032-021 32 21 4.2 0.5 2.5 PU
KL40 032-024.5 32 24.5 3.2 0.5 2 PU
KL40 035-024 35 24 4.2 0.5 2.5 PU
KL40 040-029 40 29 4.2 0.5 2.5 PU
KL40 045-034 45 34 4.2 0.5 2.5 PU
KL40 050-039 50 39 4.2 0.5 2.5 PU
KL40 055-039.5 55 39.5 6.3 0.5 3 PU
KL40 055-044 55 44 4.2 0.5 2.5 PU
KL40 060-044.5 60 44.5 6.3 0.5 3 PU
KL40 060-049 60 49 4.2 0.5 2.5 PU
KL40 063-047.5 63 47.5 6.3 0.5 3 PU
KL40 063-052 63 52 4.2 0.5 2.5 PU
KL40 065-049.5 65 49.5 6.3 0.9 4 PU
KL40 065-054 65 54 4.2 0.9 2.5 PU
KL40 070-054.5 70 54.5 6.3 0.9 4 PU
KL40 070-059 70 59 4.2 0.9 2.5 PU
KL40 075-059.5 75 59.5 6.3 0.9 4 PU
KL40 075-064 75 64 4.2 0.9 2.5 PU
KL40 080-064.5 80 64.5 6.3 0.9 4 PU
KL40 085-069.5 85 69.5 6.3 0.9 4 PU
KL40 090-069 90 69 10.5 0.9 7 PU
KL40 090-074.5 90 74.5 6.3 0.9 4 PU
KL40 095-079.5 95 79.5 6.3 0.9 4 PU
KL40 100-079 100 79 8.1 0.9 5 PU
KL40 100-084.5 100 84.5 6.3 0.9 4 PU
KL40 105-089.5 105 89.5 6.3 0.9 4 PU
KL40 110-089 110 89 8.1 0.9 5 PU
KL40 110-094.5 110 94.5 6.3 0.9 4 PU
KL40 115-094 115 94 8.1 0.9 5 PU
KL40 120-099 120 99 8.1 0.9 5 PU
KL40 120-099/1 120 99 10.5 0.9 7 PU
KL40 125-104 125 104 8.1 0.9 5 PU
KL40 125-104/1 125 104 10.5 0.9 7 PU
KL40 130-109 130 109 8.1 0.9 5 PU
KL40 140-119 140 119 8.1 0.9 5 PU
KL40 150-129 150 129 8.1 0.9 5 PU
KL40 150-129/1 150 129 10.5 0.9 7 PU
KL40 160-139 160 139 8.1 0.9 5 PU
KL40 180-159 180 159 8.1 0.9 5 PU
KL40 200-179 200 179 8.1 0.9 5 PU
