NBR / FABRIC NBR / POM Hydraulic Piston Seals For Mining Industry

NBR / FABRIC NBR / POM Hydraulic Piston Seals For Mining Industry

FABRIC NBR Hydraulic Piston Seals

POM Hydraulic Piston Seals

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL37

Contact Us

Request A Quote
NBR / FABRIC NBR / POM Hydraulic Piston Seals For Mining Industry
NBR / FABRIC NBR / POM Hydraulic Piston Seals For Mining Industry NBR / FABRIC NBR / POM Hydraulic Piston Seals For Mining Industry NBR / FABRIC NBR / POM Hydraulic Piston Seals For Mining Industry NBR / FABRIC NBR / POM Hydraulic Piston Seals For Mining Industry NBR / FABRIC NBR / POM Hydraulic Piston Seals For Mining Industry
Product Details
Style:
Hydraulic Piston Seals
Material:
NBR / FABRIC NBR / POM
Temperature (max) °C:
-30/+105
Sliding Speed (max)- M/s:
0.5
Pressure (max) Bar:
500
Application:
Mining Industry
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description

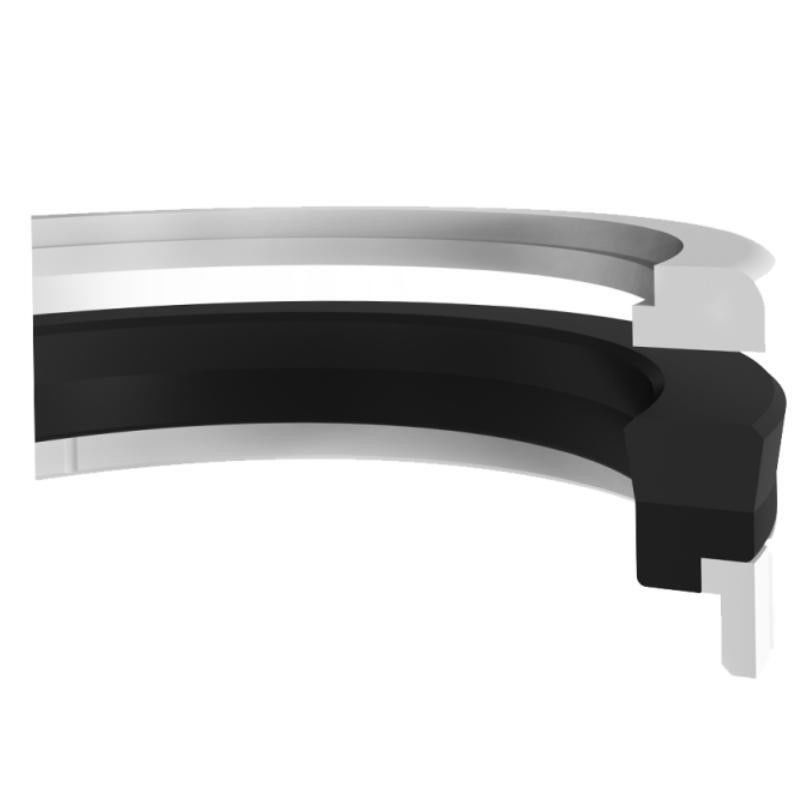

KL37 Piston Seals Consists Of A Fabric Sealing Ring, L-Form Back-Up/Guide Ring And A Thermoplastic Retainer.



KL37 Piston Seals consists of a fabric sealing ring, L-form back-up/guide ring and a thermoplastic retainer.

Advantages

• Operating in heavy duty conditions
• Easy Installation
• High extrusion and abrasion resistance
• Performs under variable pressure levels

Area of Application

• Mobile machinery
• Mining industry
• Standard industrial cylinders
• Presses
NBR / FABRIC NBR / POM Hydraulic Piston Seals For Mining Industry 0

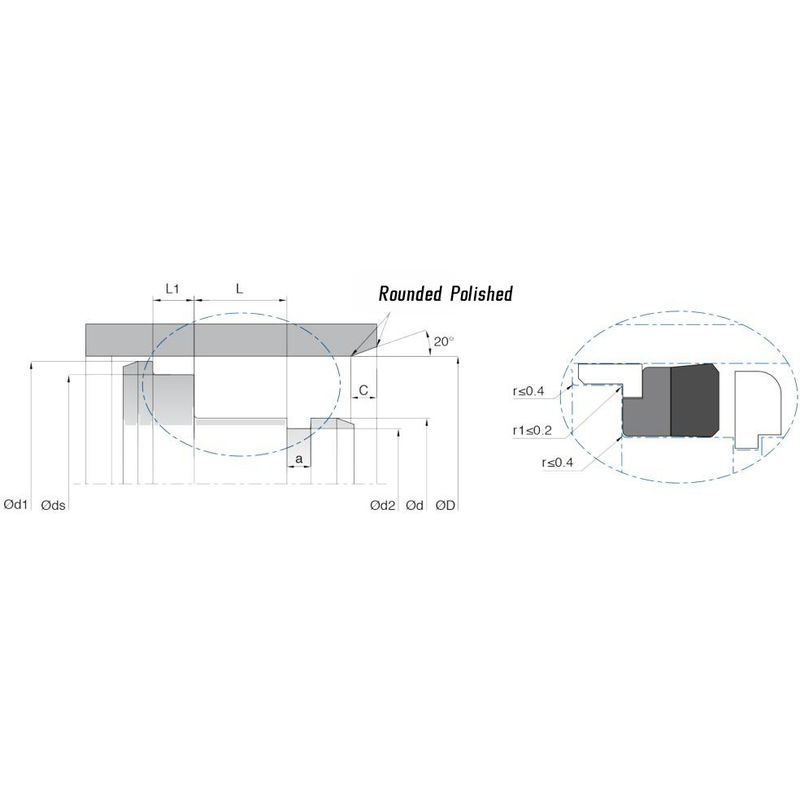

  D (H11) d (h9) L (+0.2/-0) L1 (+0.2/-0) a (+0.1/-0) ds (h8) d2 (+0/-0.2) d1 (± 0.1) C MATERIAL
KL37-032 32 20 10 6.35 3.1 28.5 15.8 29.8 5 NBR
KL37-035 35 22 10 6.35 3.1 31.4 17.8 32.8 5 NBR
KL37-038 38 25 10 6.35 3.1 34.45 20.8 35.8 5 NBR
KL37-040 40 26 9.4 6.35 3.1 35.4 21.6 37.8 5 NBR
KL37-045 45 30 9.5 6.35 3.1 40.4 25.8 42.8 5 NBR
KL37-045/1 45 35 8.5 6.35 3.1 42 30.8 42.8 5 NBR
KL37-050 50 30 14.5 6.35 3.35 44.3 25.8 47.5 5 NBR
KL37-055 55 40 11 6.35 3.1 50.4 35.8 52.8 5 NBR
KL37-060 60 40 14.5 6.35 3.35 54.16 36.1 57.5 5 NBR
KL37-063 63 45 11 6.35 3.1 58.4 40.84 60.5 5 NBR
KL37-063/1 63.5 47.62 9.52 6.35 3.1 58.9 41.34 61.3 5 NBR
KL37-065 65 45 14 6.35 3.35 59.3 40.6 62.5 5 NBR
KL37-065/1 65 50 10.5 6.35 3.1 60.4 45.6 62.8 5 NBR
KL37-070 70 50 14.5 6.35 3.35 64.2 45.84 67.5 5 NBR
KL37-075 75 55 14.5 6.35 3.35 69.2 50.6 72.5 5 NBR
KL37-080 80 60 14.5 6.35 3.35 74.3 55.8 77.5 5 NBR
KL37-085 85 70 12 6.35 3.1 80.3 65.5 82.8 5 NBR
KL37-090 90 70 14.5 6.35 3.35 84.15 66.1 87.5 5 NBR
KL37-095 95 75 14.5 6.35 3.2 89.15 71 92.5 5 NBR
KL37-100 100 80 14.5 6.35 3.35 94.15 75.84 97.5 7 NBR
KL37-104 104.5 85 13 6.35 3.35 98.9 81.1 102 7 NBR
KL37-105 105 85 14 6.35 3.35 99.42 80.6 102.5 7 NBR
KL37-110 110 90 13 6.35 3.1 104.15 85.9 107.5 7 NBR
KL37-115 115 95 14.5 6.35 3.35 109.9 90.5 112.5 7 NBR
KL37-120 120 100 12.5 6.35 3.35 114.1 95.6 117.5 7 NBR
KL37-125 125 105 12.5 6.35 3.35 119.15 101 122.5 7 NBR
KL37-130 130 110 12 6.35 3.35 123.24 105.6 127.5 7 NBR
KL37-150 150 125 14 6.35 3.35 143 120.6 147.3 7 NBR
KL37-160 160 140 14 6.35 3.2 154.3 136 157.5 7 NBR
KL37-200 200 180 14 6.35 3.1 194 175.6 197.5 7 NBR
