Compact Double Acting Seal Sets Low Friction With Superior Static / Dynamic Sealing

Compact Double Acting Seal Sets Low Friction With Superior Static / Dynamic Sealing

Compact Double Acting Seal

Double Acting Seal Sets

Double Acting Seal Low Friction

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL30

Contact Us

Request A Quote
Compact Double Acting Seal Sets Low Friction With Superior Static / Dynamic Sealing
Compact Double Acting Seal Sets Low Friction With Superior Static / Dynamic Sealing Compact Double Acting Seal Sets Low Friction With Superior Static / Dynamic Sealing Compact Double Acting Seal Sets Low Friction With Superior Static / Dynamic Sealing Compact Double Acting Seal Sets Low Friction With Superior Static / Dynamic Sealing Compact Double Acting Seal Sets Low Friction With Superior Static / Dynamic Sealing
Product Details
Style:
Double Acting Seal
Material:
NBR / TPE / POM
Pressure (max) Bar:
400
Temperature (max) °C:
-30/+100
Sliding Speed (max)- M/s:
0.5
Application:
Loading Platforms / Construction Machinery
Payment & Shipping Terms
Packaging Details:
Opp bags
Delivery Time:
7-15 work days
Payment Terms:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description

Multi-Scenario Applications Double Acting Compact Seal Sets With Low Friction And Superior Static And Dynamic Sealing Fu

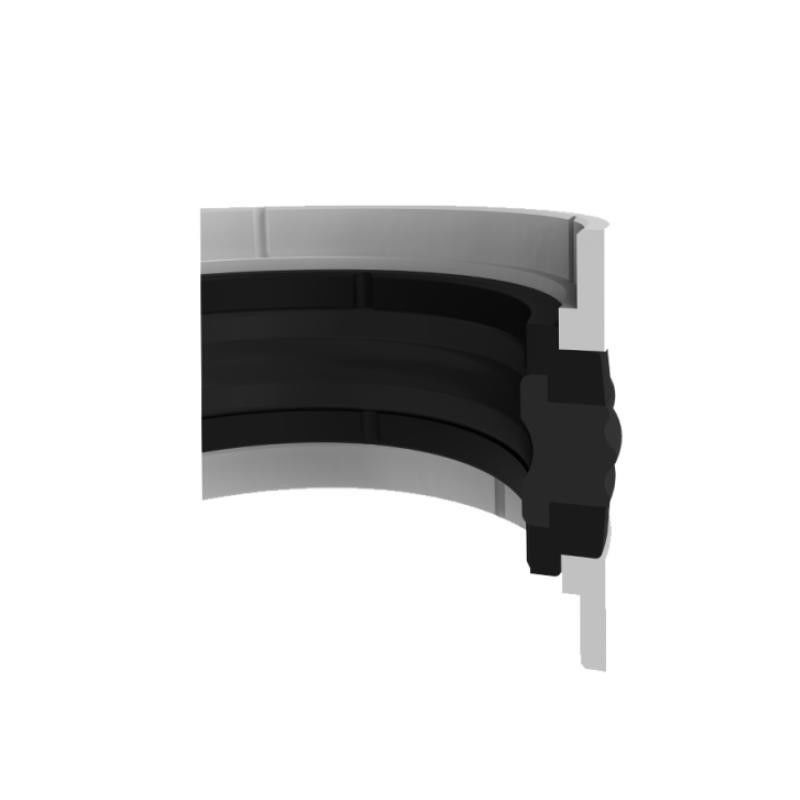

 KL30 is a five piece double acting compact seal which consists of elastomeric sealing element, thermoplastic elastomer backup rings and thermoplastic guide rings. It is suitable with many hydraulic cylinders thanks to the design with low friction and superior static and dynamic sealing functionality.

Advantages

• Superior sealing performance and low friction with its special design
• No additional guide ring requirement at low and medium duty applications thanks to compact design
• Economical sealing solution
• Simple groove design at one-piece piston
• Long service life
• Easy installation thanks to cut guide and backup rings

Area of Application

• Agricultural machinery
• Construction machinery
• Mobile machinery
• Loading platforms
• Forklifts • Industrial cylinders
Compact Double Acting Seal Sets Low Friction With Superior Static / Dynamic Sealing 0

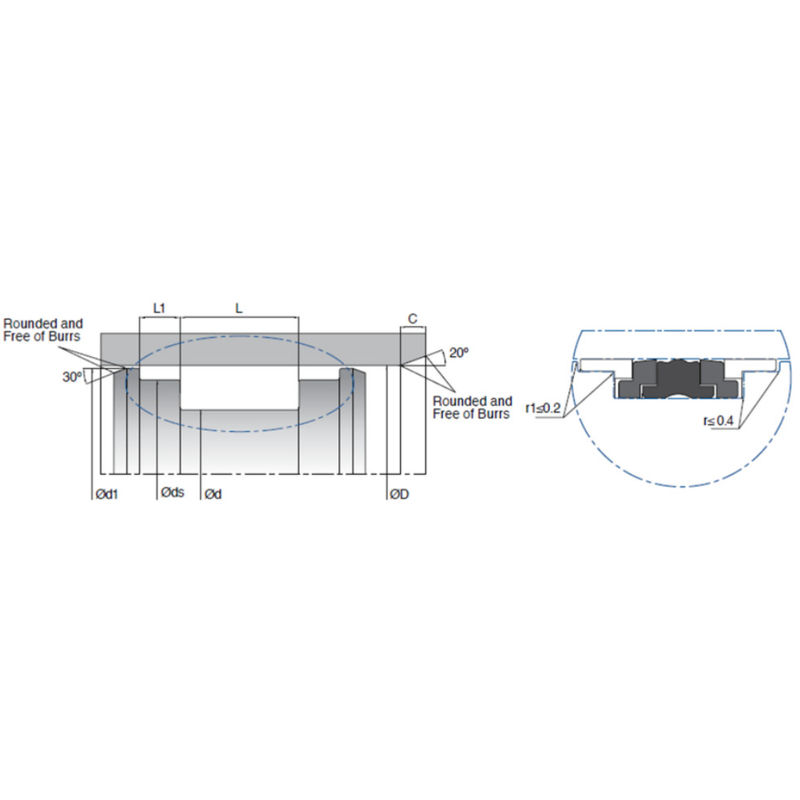

  D (H8) d (h9) L (+0.2/-0) ds (h8) d1 (±0.1) L1 (+0.2/-0) C MATERIAL
KL30 020-011 20 11 13.5 17 19 2.1 4 NBR
KL30 022-013 22 13 13.5 19 21 2.1 4 NBR
KL30 025-015 25 15 16.4 21.45 23.5 6.35 4 NBR
KL30 025-015/1 25 15 12 21 23 4 4 NBR
KL30 025-015/2 25 15 12.5 22 24 4 4 NBR
KL30 025-016 25 16 13.5 22 24 2.1 4 NBR
KL30 025-017/1 25 17 13.5 21 24.4 3.2 4 NBR
KL30 025-017/2 25 17 10 22 24 4 4 NBR
KL30 028-019 28 19 13.5 25 27 2.1 4 NBR
KL30 030-017 30 17 15.4 26.5 28.5 6.35 4 NBR
KL30 030-021 30 21 13.5 27 29 2.1 4 NBR
KL30 030-022 30 22 13.5 26 29.4 3.2 4 NBR
KL30 032-019 32 19 15.4 28.5 30.7 6.35 4 NBR
KL30 032-022 32 22 16.4 28.5 30.5 6.35 4 NBR
KL30 032-022/1 32 22 15.5 28 31 2.6 4 NBR
KL30 032-022/2 32 22 12.5 29 31 4 4 NBR
KL30 032-024 32 24 15.5 28 31 3.1 4 NBR
KL30 032-024/1 32 24 10 29 31 4 4 NBR
KL30 035-025 35 25 16.4 31.4 33.5 6.35 4 NBR
KL30 035-027 35 27 15.5 31 34.4 3.2 4 NBR
KL30 040-024 40 24 18.4 35.4 38.5 6.35 5 NBR
KL30 040-026 40 26 15.5 36 39 2.6 4.5 NBR
KL30 040-030 40 30 16.4 35.4 38.5 6.35 4 NBR
KL30 040-030/1 40 30 12.5 37 39 4 4 NBR
KL30 040-030/2 40 30 12.4 36 39 4 4 NBR
KL30 040-032 40 32 15.5 36 39.4 3.2 4 NBR
KL30 040-032/1 40 32 10 37 39 4 4 NBR
KL30 042-028 42 28 15.5 38 41 2.6 4.5 NBR
KL30 045-029 45 29 18.4 40.4 43.5 6.35 5 NBR
KL30 045-031 45 31 15.5 41 44 2.6 4.5 NBR
KL30 045-035 45 35 16.4 40.4 43.5 6.35 4 NBR
KL30 045-037 45 37 15.5 41 44.4 3.2 4 NBR
KL30 050-034 50 34 20.5 46 49 3.1 5 NBR
KL30 050-034/1 50 34 18.4 45.41 48.66 6.35 5 NBR
KL30 050-035 50 35 20 46 48.5 5 5 NBR
KL30 050-038 50 38 20.5 46 49.4 4.2 4 NBR
KL30 050-040 50 40 12.5 47 49 4 4 NBR
KL30 055-039 55 39 20.5 51 54 3.1 5 NBR
KL30 055-039/1 55 39 18.4 50.37 53.65 6.35 5 NBR
KL30 055-045 55 45 12.5 52 54 4 4 NBR
KL30 056-040 56 40 20.5 52 55 3.1 5 NBR
KL30 060-044 60 44 20.5 56 59 3.1 5 NBR
KL30 060-044/1 60 44 18.4 55.39 58.65 6.35 5 NBR
KL30 060-048 60 48 20.5 56 58.98 4.2 4 NBR
KL30 063-047 63 47 20.5 59 62 3.1 5 NBR
KL30 063-047/1 63 47 18.4 58.39 61.63 6.35 55 NBR
KL30 063-047/2 63 47 19.4 58.47 61.5 6.35 5 NBR
KL30 063-048 63 48 20 59 61.5 5 5 NBR
KL30 063-051 63 51 20.5 59 62.4 4.2 4 NBR
KL30 063-053 63 53 12.5 60 62 4 4 NBR
KL30 065-049 65 49 20.5 61 64 3.1 5 NBR
KL30 065-050 65 50 18.4 60.41 63.64 6.35 5 NBR
KL30 067-051 67 51 18.4 62.4 65.6 6.35 5 NBR
KL30 070-050 70 50 22.4 64.18 68.34 6.35 6 NBR
KL30 070-054 70 54 20.5 66 69 3.1 5 NBR
KL30 070-055 70 55 20 66 68.5 5 5 NBR
KL30 070-058 70 58 20.5 66 69.4 4.2 4 NBR
KL30 075-055 75 55 22.4 69.2 73.3 6.35 6 NBR
KL30 075-059 75 59 20.5 71 74 3.1 5 NBR
KL30 080-060 80 60 22.4 74.15 78.3 6.35 6 NBR
KL30 080-060/1 80 60 35 72.62 77.54 9.52 6 NBR
KL30 080-060/2 80 60 25 75 78 6.35 6 NBR
KL30 080-062 80 62 22.5 76 79 3.6 5 NBR
KL30 080-065 80 65 20 76 78.5 5 5 NBR
KL30 080-066 80 66 22.4 76 79.4 5.2 4.5 NBR
KL30 085-065 85 65 22.4 79.15 83.3 6.35 6 NBR
KL30 085-065/1 85 65 21.4 79.15 83.3 6.35 6 NBR
KL30 085-075 85 75 20 81 83.35 4 4 NBR
KL30 090-070 90 70 22.4 84.15 88.3 6.35 6 NBR
KL30 090-072 90 72 22.5 86 89 3.2 5 NBR
KL30 090-072/1 90 72 22.5 86 89 3.6 5 NBR
KL30 090-075 90 75 20 86 88.5 5 5 NBR
KL30 090-076 90 76 22.4 86 89.4 5.2 4.5 NBR
KL30 095-075 95 75 22.4 89.15 93.31 6.5 6 NBR
KL30 095-081 95 81 22.4 91 94.4 5.2 4.5 NBR
KL30 100-075 100 75 22.4 93.13 98 6.35 6 NBR
KL30 100-080 100 80 25.4 95 98 6.35 6 NBR
KL30 100-080/1 100 80 35 92.61 97.51 9.52 6 NBR
KL30 100-080/2 100 80 25 95 98 6.35 6 NBR
KL30 100-082 100 82 22.5 96 99 3.6 5 NBR
KL30 100-085 100 85 20 96 98.5 5 5 NBR
KL30 100-086 100 86 22.4 96 99.4 5.2 4.5 NBR
KL30 105-080 105 80 22.4 98.1 103 6.5 6 NBR
KL30 105-080/1 105 80 22.4 98.1 103 6.35 6 NBR
KL30 110-085 110 85 22.4 103.1 108 6.35 6 NBR
KL30 110-085/1 110 85 25.4 103.1 108 6.35 6 NBR
KL30 110-090 110 90 35 102.6 107.51 9.52 6 NBR
KL30 110-090/1 110 90 25.3 104.1 108.3 6.4 6 NBR
KL30 110-092 110 92 22.5 106 109 3.6 5 NBR
KL30 110-095 110 95 20 105 108 5 5 NBR
KL30 110-096 110 96 22.4 106 109.4 5.2 4.5 NBR
KL30 115-090 115 90 22.4 108.1 113.02 6.35 6 NBR
KL30 115-097 115 97 22.4 111 114 4.2 5 NBR
KL30 115-097/1 115 97 22.5 111 114 3.6 5 NBR
KL30 115-101 115 101 22.4 111 114.4 5.2 4.5 NBR
KL30 120-095 120 95 22.4 113.1 118 6.35 6 NBR
KL30 120-100 120 100 35 112.8 117.5 9.5 6 NBR
KL30 120-106 120 106 22.4 116 119.4 5.2 4.5 NBR
KL30 125-100 125 100 25.4 118.1 123 6.35 6 NBR



Multi-Scenario Applications Double Acting Compact Seal Sets With Low Friction And Superior Static And Dynamic Sealing FuMulti-Scenario Applications Double Acting Compact Seal Sets With Low Friction And Superior Static And Dynamic Sealing Fu
