Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
KL29X
Contact Us

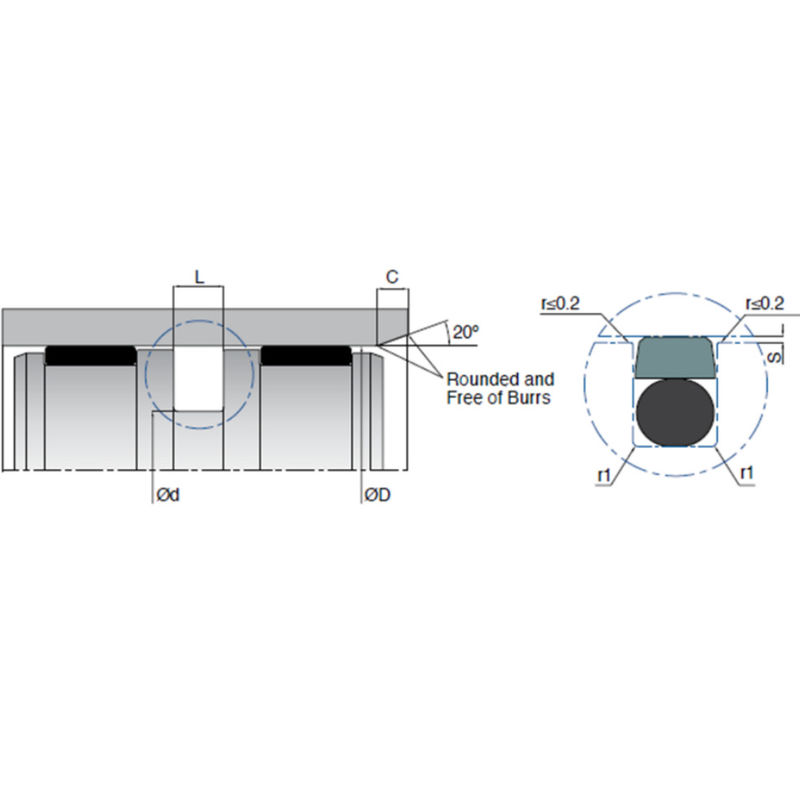

| D (H8) | d (h9) | L (+0.2/-0) | r1 | C | O-Ring | MATERIAL | |
| KL29X 025-017.5 | 25 | 17.5 | 3.2 | 0.6 | 4.5 | 17.13x2.62 | PTFE |
| KL29X 028-020.5 | 28 | 20.5 | 3.2 | 0.6 | 4.5 | 20.29x2.62 | PTFE |
| KL29X 030-022.5 | 30 | 22.5 | 3.2 | 0.6 | 4.5 | 22.22x2.62 | PTFE |
| KL29X 032-024.5 | 32 | 24.5 | 3.2 | 0.6 | 4.5 | 23.81x2.62 | PTFE |
| KL29X 034-026.5 | 34 | 26.5 | 3.2 | 0.6 | 4.5 | 25.07x2.62 | PTFE |
| KL29X 035-027.5 | 35 | 27.5 | 3.2 | 0.6 | 4.5 | 26.64x2.62 | PTFE |
| KL29X 040-029 | 40 | 29 | 4.2 | 1 | 6 | 28.17x3.53 | PTFE |
| KL29X 045-034 | 45 | 34 | 4.2 | 1 | 6 | 32.92x3.53 | PTFE |
| KL29X 048-037 | 48 | 37 | 4.2 | 1 | 6 | 36.10x3.53 | PTFE |
| KL29X 050-039 | 50 | 39 | 4.2 | 1 | 6 | 37.69x3.53 | PTFE |
| KL29X 055-044 | 55 | 44 | 4.2 | 1 | 6 | 42.86x3.53 | PTFE |
| KL29X 060-049 | 60 | 49 | 4.2 | 1 | 6 | 47.63x3.53 | PTFE |
| KL29X 063-052 | 63 | 52 | 4.2 | 1 | 6 | 50.80x3.53 | PTFE |
| KL29X 065-054 | 65 | 54 | 4.2 | 1 | 6 | 53.57x3.53 | PTFE |
| KL29X 070-054.5 | 70 | 54.5 | 6.3 | 1.3 | 8 | 53.34x5.33 | PTFE |
| KL29X 070-059 | 70 | 59 | 4.2 | 1 | 6 | 58.74x3.53 | PTFE |
| KL29X 075-064 | 75 | 64 | 4.2 | 1 | 6 | 63.09x3.53 | PTFE |
| KL29X 080-064.5 | 80 | 64.5 | 6.3 | 1.3 | 8 | 62.87x5.33 | PTFE |
| KL29X 085-069.5 | 85 | 69.5 | 6.3 | 1.3 | 8 | 69.22x5.33 | PTFE |
| KL29X 090-074.5 | 90 | 74.5 | 6.3 | 1.3 | 8 | 72.40x5.33 | PTFE |
| KL29X 095-079.5 | 95 | 79.5 | 6.3 | 1.3 | 8 | 78.74x5.33 | PTFE |
| KL29X 100-084.5 | 100 | 84.5 | 6.3 | 1.3 | 8 | 81.92x5.33 | PTFE |
| KL29X 105-089.5 | 105 | 89.5 | 6.3 | 1.3 | 8 | 88.27x5.33 | PTFE |
| KL29X 110-094.5 | 110 | 94.5 | 6.3 | 1.3 | 8 | 91.44x5.33 | PTFE |
| KL29X 115-099.5 | 115 | 99.5 | 6.3 | 1.3 | 8 | 97.80x5.33 | PTFE |
| KL29X 120-104.5 | 120 | 104.5 | 6.3 | 1.3 | 8 | 104.14x5.33 | PTFE |
| KL29X 125-109.5 | 125 | 109.5 | 6.3 | 1.3 | 8 | 107.32x5.33 | PTFE |
| KL29X 127-111.50 | 127 | 111.5 | 6.3 | 1.3 | 8 | 109.54x5.33 | PTFE |
| KL29X 130-114.5 | 130 | 114.5 | 6.3 | 1.3 | 8 | 113.67x5.33 | PTFE |
| KL29X 140-124.5 | 140 | 124.5 | 6.3 | 1.3 | 8 | 123.80x5.33 | PTFE |
| KL29X 150-129 | 150 | 129 | 8.1 | 1.8 | 10.5 | 126.37x6.99 | PTFE |
| KL29X 155-134 | 155 | 134 | 8.1 | 1.8 | 10.5 | 132.72x6.99 | PTFE |
| KL29X 160-139 | 160 | 139 | 8.1 | 1.8 | 10.5 | 135.90x6.99 | PTFE |
| KL29X 165-144 | 165 | 144 | 8.1 | 1.8 | 10.5 | 142.24x6.99 | PTFE |
| KL29X 170-149 | 170 | 149 | 8.1 | 1.8 | 10.5 | 148.60X6.99 | PTFE |
| KL29X 175-154 | 175 | 154 | 8.1 | 1.8 | 10.5 | 151.77x6.99 | PTFE |
| KL29X 180-159 | 180 | 159 | 8.1 | 1.8 | 10.5 | 155.60x6.99 | PTFE |
| KL29X 185-164 | 185 | 164 | 8.1 | 1.8 | 10.5 | 161.90x6.99 | PTFE |
| KL29X 190-169 | 190 | 169 | 8.1 | 1.8 | 10.5 | 168.30x6.99 | PTFE |
| KL29X 195-174 | 195 | 174 | 8.1 | 1.8 | 10.5 | 170.82x6.99 | PTFE |
| KL29X 200-179 | 200 | 179 | 8.1 | 1.8 | 10.5 | 177.17x6.99 | PTFE |
| KL29X 205-184 | 205 | 184 | 8.1 | 1.8 | 10.5 | 183.52X6.99 | PTFE |
| KL29X 210-189 | 210 | 189 | 8.1 | 1.8 | 10.5 | 187.3X6.99 | PTFE |
| KL29X 215-194 | 215 | 194 | 8.1 | 1.8 | 10.5 | 189.87x6.99 | PTFE |
| KL29X 220-199 | 220 | 199 | 8.1 | 1.8 | 10.5 | 196.22x6.99 | PTFE |
| KL29X 225-204 | 225 | 204 | 8.1 | 1.8 | 10.5 | 199.80x6.99 | PTFE |
| KL29X 230-209 | 230 | 209 | 8.1 | 1.8 | 10.5 | 202.57x6.99 | PTFE |
| KL29X 240-219 | 240 | 219 | 8.1 | 1.8 | 10.5 | 215.27X6.99 | PTFE |
| KL29X 245-224 | 245 | 224 | 8.1 | 1.8 | 10.5 | 221.62X6.99 | PTFE |
| KL29X 250-229 | 250 | 229 | 8.1 | 1.8 | 10.5 | 227.97x6.99 | PTFE |
| KL29X 255-234 | 255 | 234 | 8.1 | 1.8 | 10.5 | 227.97X6.99 | PTFE |
| KL29X 260-239 | 260 | 239 | 8.1 | 1.8 | 10.5 | 234.32x6.99 | PTFE |
| KL29X 265-244 | 265 | 244 | 8.1 | 1.8 | 10.5 | 240.67x6.99 | PTFE |
| KL29X 270-249 | 270 | 249 | 8.1 | 1.8 | 10.5 | 247.00x6.99 | PTFE |
| KL29X 275-254 | 275 | 254 | 8.1 | 1.8 | 10.5 | 253.57x6.99 | PTFE |
| KL29X 280-259 | 280 | 259 | 8.1 | 1.8 | 10.5 | 253.57x6.99 | PTFE |
| KL29X 290-269 | 290 | 269 | 8.1 | 1.8 | 10.5 | 266.07x6.99 | PTFE |
| KL29X 300-279 | 300 | 279 | 8.1 | 1.8 | 10.5 | 272.40x6.99 | PTFE |
| KL29X 305-284 | 305 | 284 | 8.1 | 1.8 | 10.5 | 278.77x6.99 | PTFE |
| KL29X 310-289 | 310 | 289 | 8.1 | 1.8 | 10.5 | 285.1x6.99 | PTFE |
| KL29X 315-294 | 315 | 294 | 8.1 | 1.8 | 10.5 | 291.47x6.99 | PTFE |
| KL29X 320-299 | 320 | 299 | 8.1 | 1.8 | 10.5 | 291.47x6.99 | PTFE |
| KL29X 325-304 | 325 | 304 | 8.1 | 1.8 | 10.5 | 297.88x6.99 | PTFE |
| KL29X 330-305.5 | 330 | 305.5 | 8.1 | 1.8 | 12 | 304.17x6.99 | PTFE |
| KL29X 340-315.5 | 340 | 315.5 | 8.1 | 1.8 | 12 | 310.50x6.99 | PTFE |
| KL29X 350-325.5 | 350 | 325.5 | 8.1 | 1.8 | 12 | 323.20x6.99 | PTFE |
| KL29X 360-335.5 | 360 | 335.5 | 8.1 | 1.8 | 12 | 329.57x6.99 | PTFE |
| KL29X 365-340.5 | 365 | 340.5 | 8.1 | 1.8 | 12 | 335.90x6.99 | PTFE |
| KL29X 370-345.5 | 370 | 345.5 | 8.1 | 1.8 | 12 | 342.27x6.99 | PTFE |
| KL29X 375-350.5 | 375 | 350.5 | 8.1 | 1.8 | 12 | 342.27X6.99 | PTFE |
| KL29X 380-355.5 | 380 | 355.5 | 8.1 | 1.8 | 12 | 354.90x6.99 | PTFE |
| KL29X 390-365.5 | 390 | 365.5 | 8.1 | 1.8 | 12 | 354.90x6.99 | PTFE |
| KL29X 400-375.5 | 400 | 375.5 | 8.1 | 1.8 | 12 | 367.67x6.99 | PTFE |
| KL29X 420-395.5 | 420 | 395.5 | 8.1 | 1.8 | 12 | 393.07x6.99 | PTFE |
