Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
KS1716
Contact Us

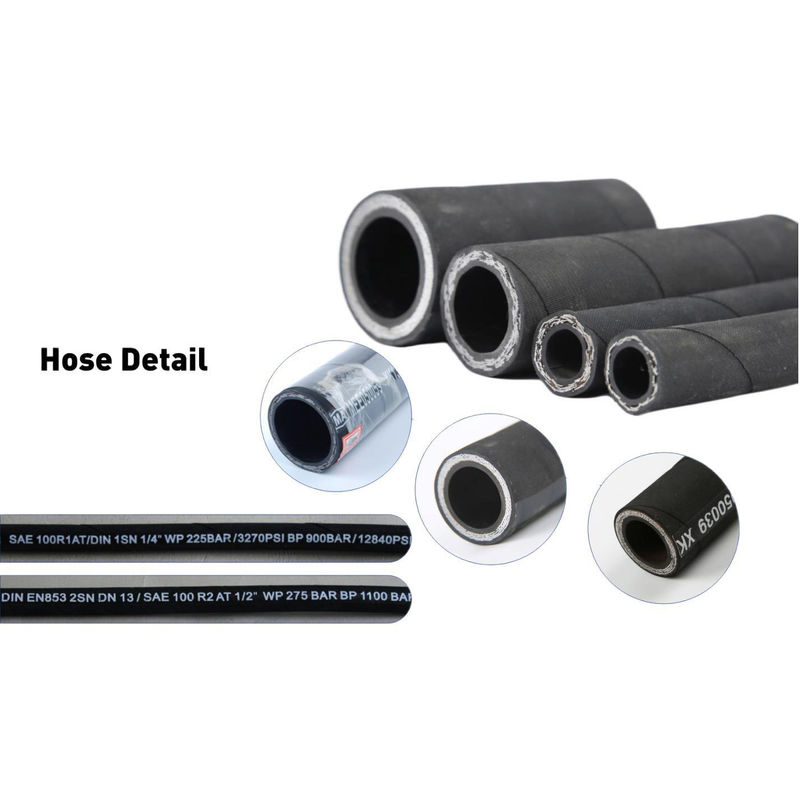

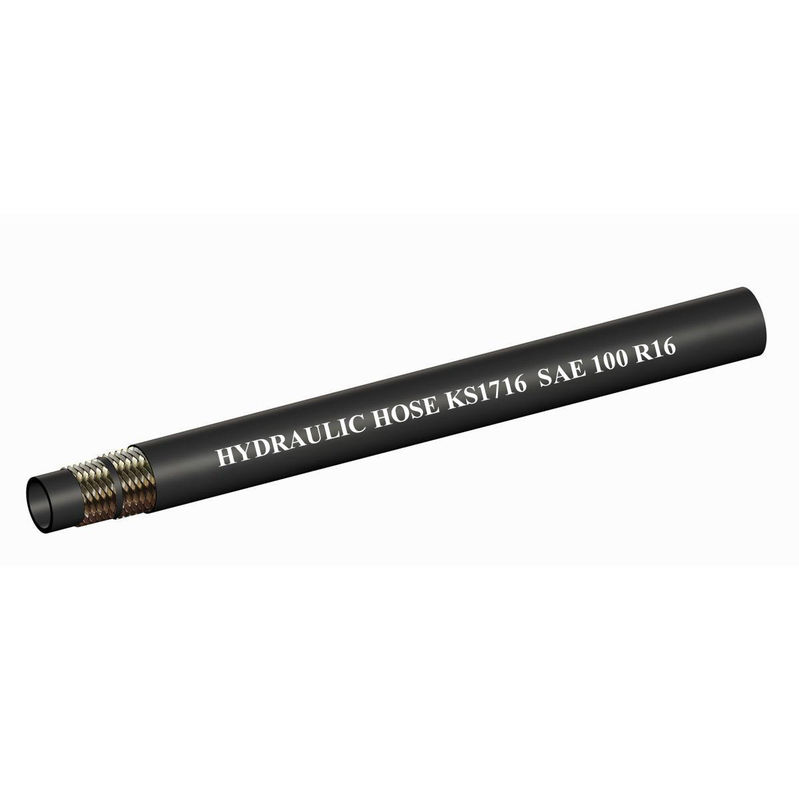

Small High Pressure 1 And 2 Ply Steel Wire Reinforced Rubber Hydraulic Hose Construction Acc. To SAE 100 R16
TUBE:
Oil-resistant synthetic rubber inner layer + high tensile steel braided layer + weather-resistant synthetic rubber layer
Reinforcement:
One or Two braids of high tensile steel wire
Cover:Abrasion and ozone resistant synthetic rubber
Note:Various covers available
Temperature range:-40°C to 121°C / -40°F to +249.8°F

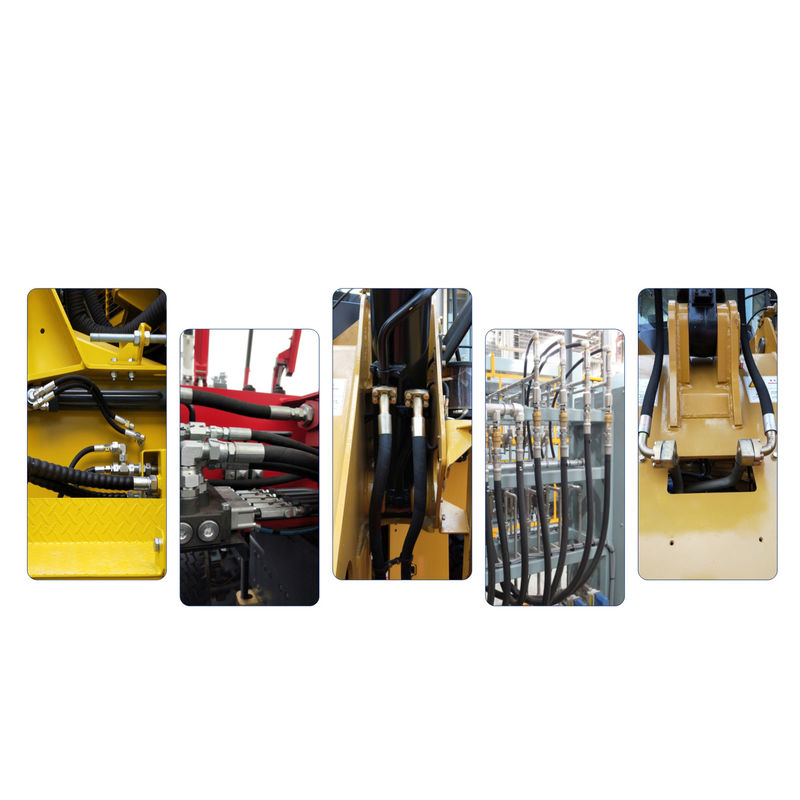

Applications:Suitable for petroleum-based hydraulic oil.
|
TYPE |
Dash size |
I.D |
W.D |
O.D |
M.D |
Working pressure |
Proof pressure |
Min Burst pressure |
Min Bend radius |
W.T |
||||||||
|
W.P |
P. P |
B.P |
Min B.R |
|||||||||||||||
|
mm |
1/16 |
Inch |
Min |
Max |
Max |
Max |
Min |
Max |
Mpa |
Psi |
Mpa |
Psi |
Mpa |
Psi |
Inch |
mm |
Kg/m |
|
|
KS1716-04 |
6.3 |
-4 |
1/4 |
6.2 |
7.0 |
12.3 |
14.5 |
0.8 |
1.5 |
35 |
5075 |
70 |
10150 |
140 |
20300 |
1.97 |
50 |
0.3 |
|
KS1716-05 |
8 |
-5 |
5/16 |
7.7 |
8.5 |
13.3 |
15.7 |
0.8 |
1.5 |
29.7 |
4305 |
59.5 |
8625 |
119 |
17255 |
2.17 |
55 |
0.34 |
|
KS1716-06 |
10 |
-6 |
3/8 |
9.3 |
10.1 |
15.9 |
18.8 |
0.8 |
1.5 |
28 |
4060 |
56 |
8120 |
112 |
16240 |
2.56 |
65 |
0.42 |
|
KS1716-08 |
12.5 |
-8 |
1/2 |
12.3 |
13.5 |
19.0 |
22.0 |
0.8 |
1.5 |
24.5 |
3550 |
49 |
7105 |
98 |
14210 |
3.54 |
90 |
0.54 |
|
KS1716-10 |
16 |
-10 |
5/8 |
15.5 |
16.7 |
22.5 |
25.4 |
0.8 |
1.5 |
19.2 |
2780 |
38.5 |
5580 |
77 |
11165 |
3.94 |
100 |
0.68 |
|
KS1716-12 |
19 |
-12 |
3/4 |
18.6 |
19.8 |
26.3 |
29.0 |
0.8 |
1.5 |
15.7 |
2275 |
31.5 |
4565 |
63 |
9135 |
4.72 |
120 |
0.8 |
|
KS1716-16 |
25 |
-16 |
1 |
25.0 |
26.4 |
34.0 |
36.6 |
0.8 |
1.5 |
14 |
2030 |
28 |
4060 |
56 |
8120 |
5.91 |
150 |
1.15 |
|
KS1716-20 |
31.5 |
-20 |
1-1/4 |
31.4 |
33.0 |
41.9 |
44.3 |
0.8 |
2.0 |
11.3 |
1635 |
22.7 |
3290 |
45.5 |
6595 |
8.27 |
210 |
1.83 |
