Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
KS1702
Contact Us

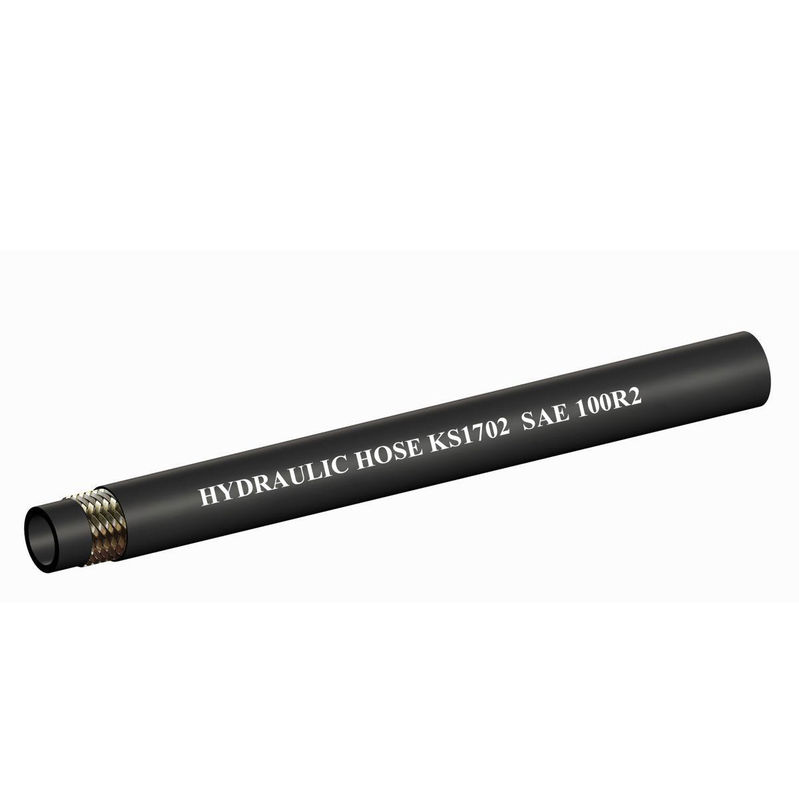

Wire Braid Hydraulic Hose Meets SAE 100R2 And EN 853 2SN
1.Structure
core:PA/PU
reinforcement:fiber braid/steel wire braid/steel winding
cover:usually use PU,PA

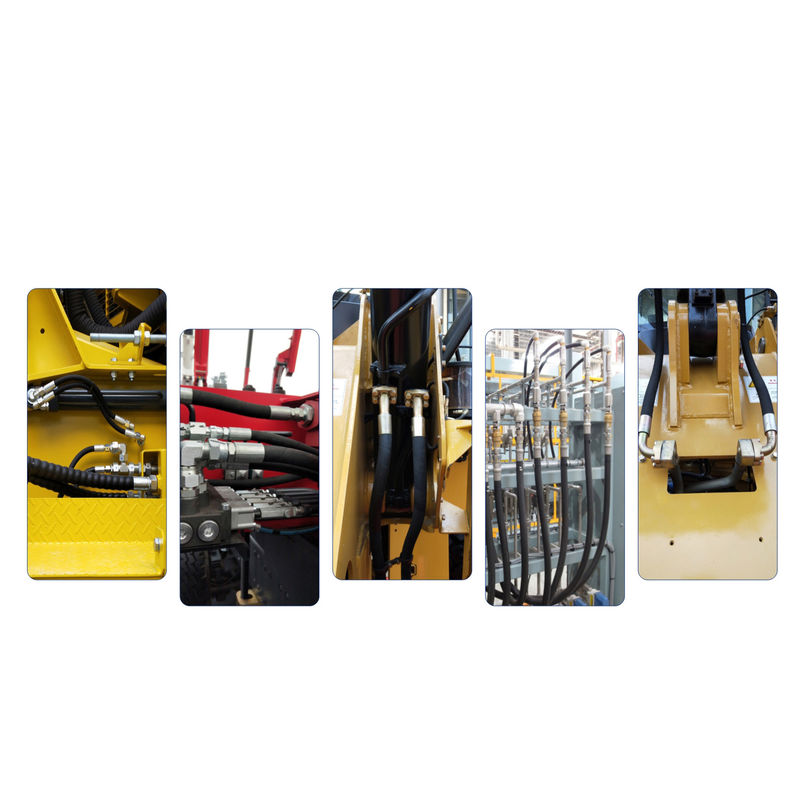

2.Main use
hydraulic tools,ultra high pressure water cleaning,transport of liquid(water,oil,gas),
high pressure painting,test system.
3.Characteristic
oil resistance,high pressure resistance,resistance to acid and alkali,wear resistance,
smooth linning,high chemical resisitance,long life and so on.

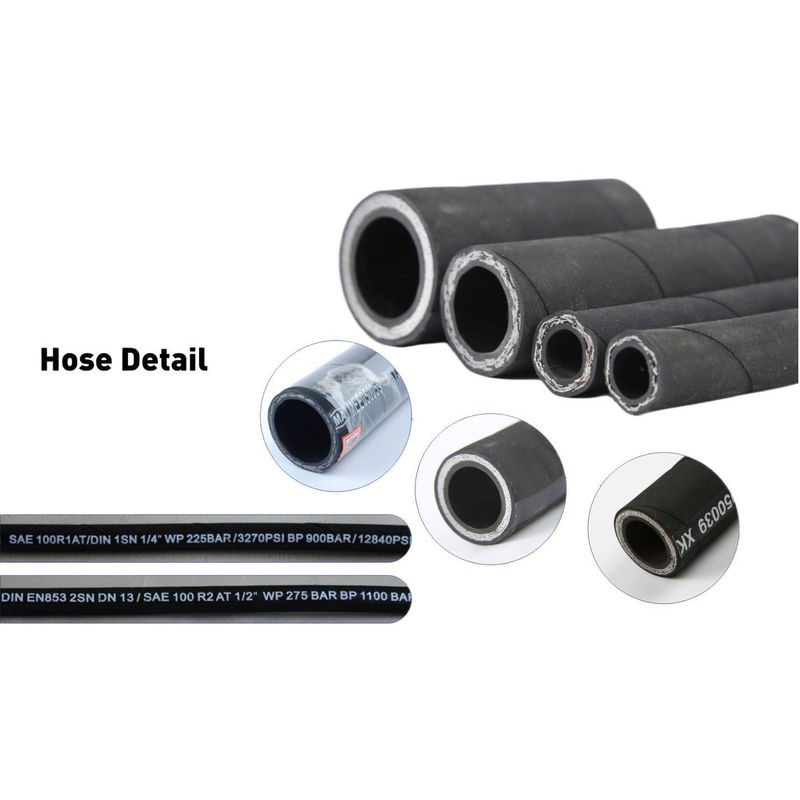

TUBE:Oil-resistant synthetic rubber inner layer + steel wire braid + oil-resistant and weather-resistant synthetic rubber outer layer
Reinforcement:Two braids of high tensile steel wire
Cover:Abrasion and ozone resistant synthetic rubber
Note:Various covers available
Temperature range:-40°C to 100°C / -40°F to +212°F (max 120°C / 248°F intermittent)
Applications:Suitable for petroleum-based hydraulic oil.
|
TYPE |
Dash size |
I.D |
W.D |
OD |
Working pressure |
Proof pressure |
Min Burst pressure |
Min Bend radius |
W.T |
||||||||||
|
A TYPE |
At TYPE |
W.P |
P. P |
B.P |
Min B.R |
||||||||||||||
|
mm |
1/16 |
Inch |
Min |
Max |
Min |
Max |
Min |
Max |
Max |
Mpa |
Psi |
Mpa |
Psi |
Mpa |
Psi |
Inch |
mm |
Kg/m |
|
|
KS1702-03 |
5 |
-3 |
3/16 |
4.6 |
5.4 |
10.6 |
11.7 |
15.1 |
16.7 |
14.1 |
35 |
5075 |
70 |
10150 |
140 |
20300 |
3.54 |
90 |
0.32 |
|
KS1702-04 |
6.3 |
-4 |
1/4 |
6.2 |
7.0 |
12.1 |
13.3 |
16.7 |
18.3 |
15.7 |
35 |
5075 |
70 |
10150 |
140 |
20300 |
3.94 |
100 |
0.36 |
|
KS1702-05 |
8 |
-5 |
5/16 |
7.7 |
8.5 |
13.7 |
14.9 |
183 |
19.8 |
17.3 |
29.7 |
4310 |
59.5 |
8630 |
119 |
17255 |
4.53 |
115 |
0.45 |
|
KS1702-06 |
10 |
-6 |
3/8 |
9.3 |
10.1 |
16.1 |
17.3 |
20.6 |
22.2 |
19.7 |
28 |
4060 |
56 |
8120 |
112 |
16240 |
4.92 |
130 |
0.54 |
|
KS1702-08 |
12.5 |
-8 |
1/2 |
12.3 |
13.5 |
19.0 |
20.6 |
23.8 |
25.4 |
23.1 |
24.5 |
3550 |
49 |
7110 |
98 |
14210 |
7.09 |
180 |
0.68 |
|
KS1702-10 |
16 |
-10 |
5/8 |
15.5 |
16.7 |
22.2 |
23.8 |
27 |
28.6 |
26.3 |
19.2 |
2780 |
38.5 |
5580 |
77 |
11165 |
8.07 |
200 |
0.80 |
|
KS1702-12 |
19 |
-12 |
3/4 |
18.6 |
19.8 |
26.2 |
27.8 |
31 |
32.5 |
30.2 |
15.7 |
2280 |
31.5 |
4570 |
63 |
9135 |
9.45 |
240 |
0.94 |
|
KS1702-16 |
25 |
-16 |
1 |
25.0 |
26.4 |
34.1 |
35.7 |
38.5 |
40.9 |
38.9 |
14 |
2030 |
28 |
4060 |
56 |
8120 |
11.81 |
300 |
1.35 |
|
KS1702-20 |
31.5 |
-20 |
1-1/4 |
31.4 |
33.0 |
43.2 |
45.6 |
49.2 |
52.4 |
49.6 |
11.3 |
1640 |
22.7 |
3290 |
45.5 |
6600 |
16.54 |
420 |
2.15 |
|
KS1702-24 |
38 |
-24 |
1-1/2 |
37.7 |
39.3 |
49.6 |
52.0 |
55.6 |
58.7 |
56 |
8.7 |
1260 |
17.5 |
2540 |
35 |
5075 |
19.69 |
500 |
2.65 |
|
KS1702-32 |
51 |
-32 |
2 |
50.4 |
52.0 |
62.3 |
64.7 |
68.3 |
71.4 |
68.6 |
7.8 |
1130 |
15.7 |
2280 |
31.5 |
4570 |
24.8 |
630 |
3.42 |
|
KS1702-40 |
63 |
-40 |
2-1/2 |
63.1 |
65.1 |
74.6 |
77.8 |
80.9 |
84.1 |
81.8 |
7 |
1015 |
14 |
2030 |
28 |
4060 |
29.92 |
760 |
4.20 |
