Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
KE5611
Contact Us

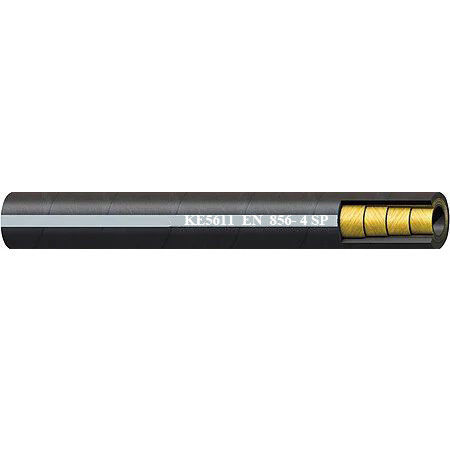

KE5611 Multispiral Hydraulic Hose Acc. To SAE100 R9
TUBE:
Oil-resistant synthetic rubber inner layer + steel wire winding + oil-resistant and weather-resistant synthetic rubber outer layer
Reinforcement:Four spiral layers of high tensile steel wire
Cover:Abrasion and ozone resistant synthetic rubber
Note:Various covers available
Temperature range:-40°C to 100°C / -40°F to +212°F (max 120°C / 248°F intermittent)

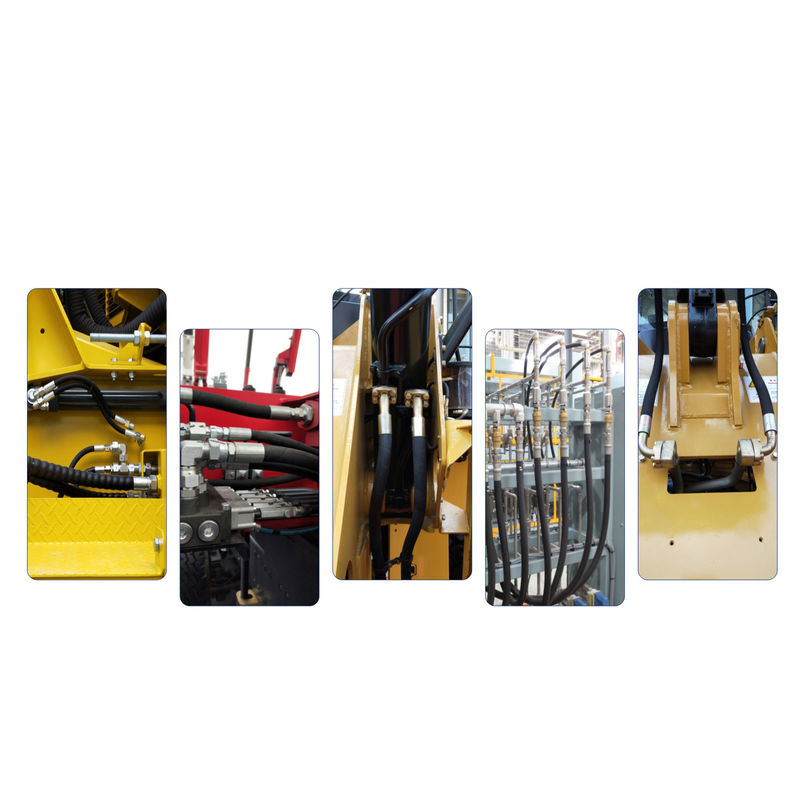

Applications:Suitable for petroleum-based hydraulic oil.
|
TYPE |
Dash size |
I.D |
W.D |
OD |
Working pressure |
Proof pressure |
Min Burst pressure |
Min Bend radius |
W.T |
||||||||||
|
1ST TYPE |
1SN TYPE |
W.P |
P. P |
B.P |
Min B.R |
||||||||||||||
|
mm |
1/16 |
Inch |
Min |
Max |
Min |
Max |
Min |
Max |
Max |
Mpa |
Psi |
Mpa |
Psi |
Mpa |
Psi |
Inch |
mm |
Kg/m |
|
|
KE5611-04 |
6.3 |
-4 |
1/4 |
6.2 |
7.0 |
14.1 |
15.3 |
17.1 |
18.7 |
|
45 |
6525 |
90 |
13050 |
180 |
26100 |
5.91 |
150 |
0.64 |
|
KE5611-06 |
10 |
-6 |
3/8 |
9.3 |
10.1 |
16.9 |
18.1 |
20.6 |
22.2 |
|
44.5 |
6450 |
89 |
12905 |
178 |
25810 |
7.09 |
180 |
0.75 |
|
KE5611-08 |
12.5 |
-8 |
1/2 |
12.3 |
13.5 |
19.4 |
21.0 |
23.8 |
25.4 |
|
41.5 |
6020 |
83 |
12035 |
166 |
24070 |
9.06 |
230 |
0.89 |
|
KE5611-10 |
16 |
-10 |
5/8 |
15.5 |
16.7 |
23.0 |
24.6 |
27.4 |
29 |
|
35 |
5075 |
70 |
10150 |
140 |
20300 |
9.84 |
250 |
1.10 |
|
KE5611-12 |
19 |
-12 |
3/4 |
18.6 |
19.8 |
27.4 |
29.0 |
31.4 |
33 |
|
35 |
5075 |
70 |
10150 |
140 |
20300 |
11.81 |
300 |
1.50 |
|
KE5611-16 |
25 |
-16 |
1 |
25.0 |
26.4 |
34.5 |
36.1 |
38.5 |
40.9 |
|
28 |
4060 |
56 |
8120 |
112 |
16240 |
13.39 |
340 |
2.00 |
|
KE5611-20 |
31.5 |
-20 |
1-1/4 |
31.4 |
33.0 |
45.0 |
47.0 |
49.2 |
52.4 |
|
21 |
3045 |
42 |
6090 |
84 |
12180 |
18.11 |
460 |
3.00 |
|
KE5611-24 |
38 |
-24 |
1-1/2 |
37.7 |
39.3 |
51.4 |
53.4 |
55.6 |
58.8 |
|
18.5 |
2680 |
37 |
5365 |
74 |
10730 |
22.05 |
560 |
3.40 |
|
KE5611-32 |
51 |
-32 |
2 |
50.4 |
52.0 |
643.0 |
66.3 |
68.2 |
71.4 |
|
16.5 |
2390 |
33 |
4785 |
66 |
9570 |
25.98 |
660 |
4.35 |
