Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
KS1701
Contact Us

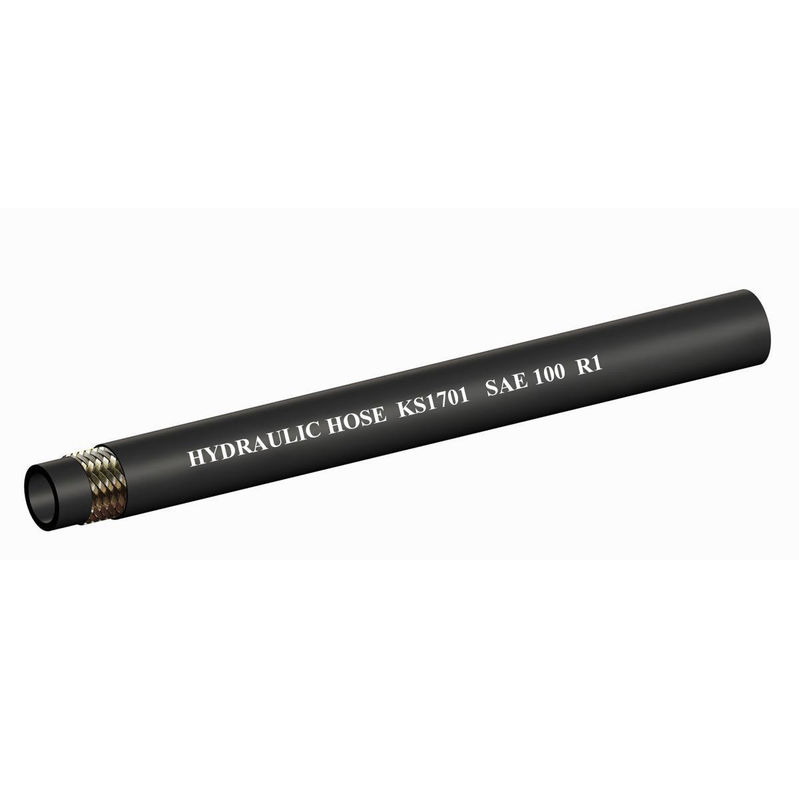

Wire Braid Hydraulic Hose Meets SAE 100 R1

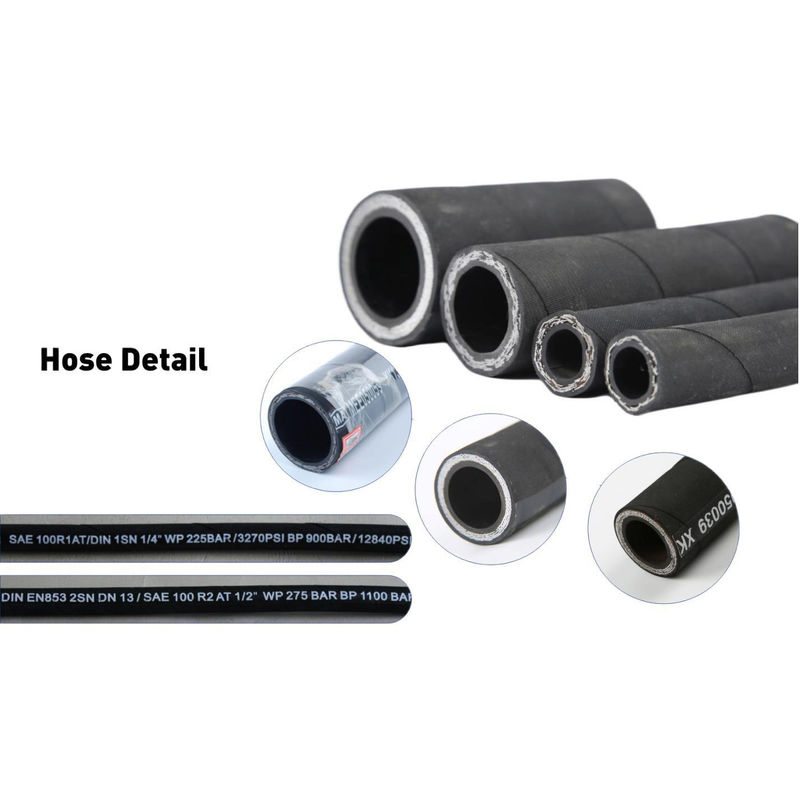

TUBE:
Oil-resistant synthetic rubber inner layer + steel wire braid + oil-resistant and weather-resistant synthetic rubber outer layer
Reinforcement:One braids of high tensile steel wire
Cover:Abrasion and ozone resistant synthetic rubber
Note: Various covers available
Temperature range: -40°C to 100°C / -40°F to +212°F (max 120°C / 248°F intermittent)

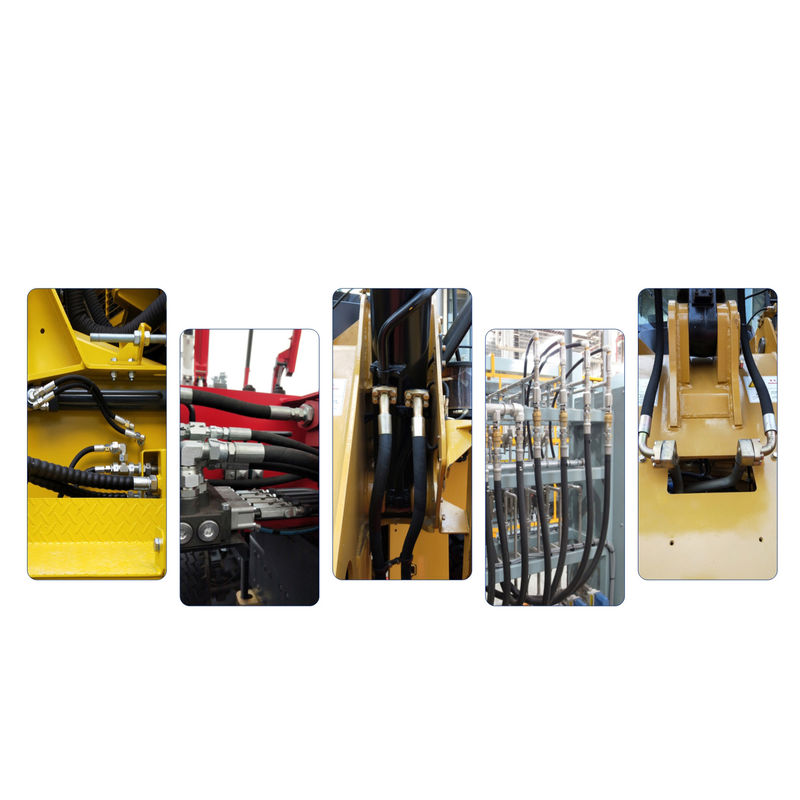

Applications:Suitable for petroleum-based hydraulic oil.
|

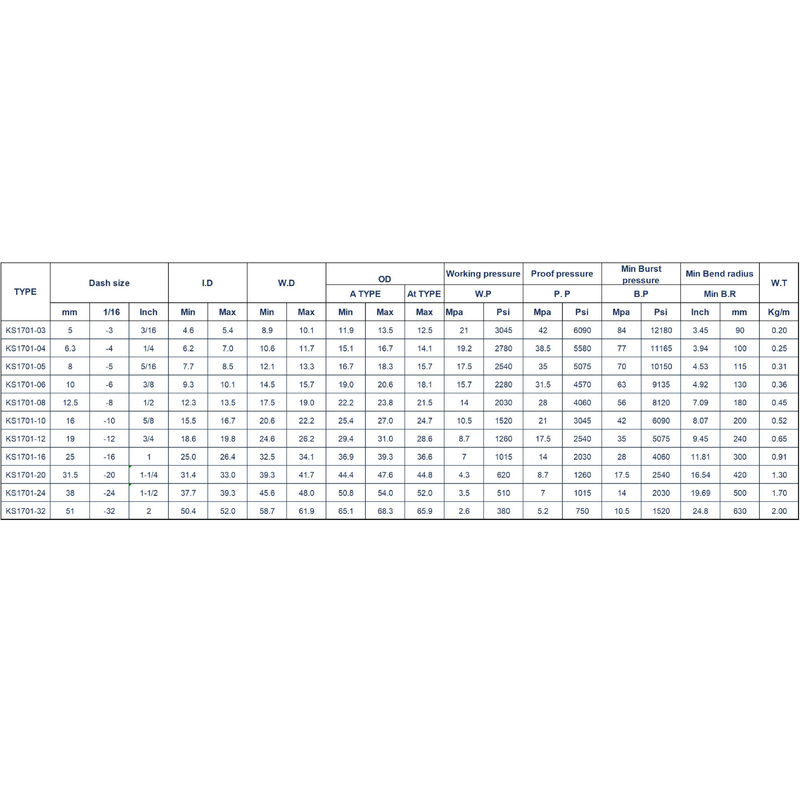

TYPE |
Dash size |
I.D |
W.D |
OD |
Working pressure |
Proof pressure |
Min Burst pressure |
Min Bend radius |
W.T |
||||||||||
|
A TYPE |
At TYPE |
W.P |
P. P |
B.P |
Min B.R |
||||||||||||||
|
mm |
1/16 |
Inch |
Min |
Max |
Min |
Max |
Min |
Max |
Max |
Mpa |
Psi |
Mpa |
Psi |
Mpa |
Psi |
Inch |
mm |
Kg/m |
|
|
KS1701-03 |
5 |
-3 |
3/16 |
4.6 |
5.4 |
8.9 |
10.1 |
11.9 |
13.5 |
12.5 |
21 |
3045 |
42 |
6090 |
84 |
12180 |
3.45 |
90 |
0.20 |
|
KS1701-04 |
6.3 |
-4 |
1/4 |
6.2 |
7.0 |
10.6 |
11.7 |
15.1 |
16.7 |
14.1 |
19.2 |
2780 |
38.5 |
5580 |
77 |
11165 |
3.94 |
100 |
0.25 |
|
KS1701-05 |
8 |
-5 |
5/16 |
7.7 |
8.5 |
12.1 |
13.3 |
16.7 |
18.3 |
15.7 |
17.5 |
2540 |
35 |
5075 |
70 |
10150 |
4.53 |
115 |
0.31 |
|
KS1701-06 |
10 |
-6 |
3/8 |
9.3 |
10.1 |
14.5 |
15.7 |
19.0 |
20.6 |
18.1 |
15.7 |
2280 |
31.5 |
4570 |
63 |
9135 |
4.92 |
130 |
0.36 |
|
KS1701-08 |
12.5 |
-8 |
1/2 |
12.3 |
13.5 |
17.5 |
19.0 |
22.2 |
23.8 |
21.5 |
14 |
2030 |
28 |
4060 |
56 |
8120 |
7.09 |
180 |
0.45 |
|
KS1701-10 |
16 |
-10 |
5/8 |
15.5 |
16.7 |
20.6 |
22.2 |
25.4 |
27.0 |
24.7 |
10.5 |
1520 |
21 |
3045 |
42 |
6090 |
8.07 |
200 |
0.52 |
|
KS1701-12 |
19 |
-12 |
3/4 |
18.6 |
19.8 |
24.6 |
26.2 |
29.4 |
31.0 |
28.6 |
8.7 |
1260 |
17.5 |
2540 |
35 |
5075 |
9.45 |
240 |
0.65 |
|
KS1701-16 |
25 |
-16 |
1 |
25.0 |
26.4 |
32.5 |
34.1 |
36.9 |
39.3 |
36.6 |
7 |
1015 |
14 |
2030 |
28 |
4060 |
11.81 |
300 |
0.91 |
|
KS1701-20 |
31.5 |
-20 |
1-1/4 |
31.4 |
33.0 |
39.3 |
41.7 |
44.4 |
47.6 |
44.8 |
4.3 |
620 |
8.7 |
1260 |
17.5 |
2540 |
16.54 |
420 |
1.30 |
|
KS1701-24 |
38 |
-24 |
1-1/2 |
37.7 |
39.3 |
45.6 |
48.0 |
50.8 |
54.0 |
52.0 |
3.5 |
510 |
7 |
1015 |
14 |
2030 |
19.69 |
500 |
1.70 |
|
KS1701-32 |
51 |
-32 |
2 |
50.4 |
52.0 |
58.7 |
61.9 |
65.1 |
68.3 |
65.9 |
2.6 |
380 |
5.2 |
750 |
10.5 |
1520 |
24.8 |
630 |
2.00 |
