Name: NBR Pneumatic Piston Seal Double Acting High Friction Resistant
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL66
Availability: InStock

Home > products > Pneumatic Piston Seals >

NBR Pneumatic Piston Seal Double Acting High Friction Resistant

NBR Pneumatic Piston Seal

Pneumatic Piston Seal Double Acting

Double Acting Piston Seal Pneumatic

Place of Origin:

China

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL66

Request A Quote

NBR Pneumatic Piston Seal Double Acting High Friction Resistant

Product Details

Style:

Double Acting Piston Seal Pneumatic

Material:

NBR

Pressure (max) Bar:

Temperature (max) °C:

-30/+105

Sliding Speed (max)- M/s:

Application:

Pneumatic Cylinders

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

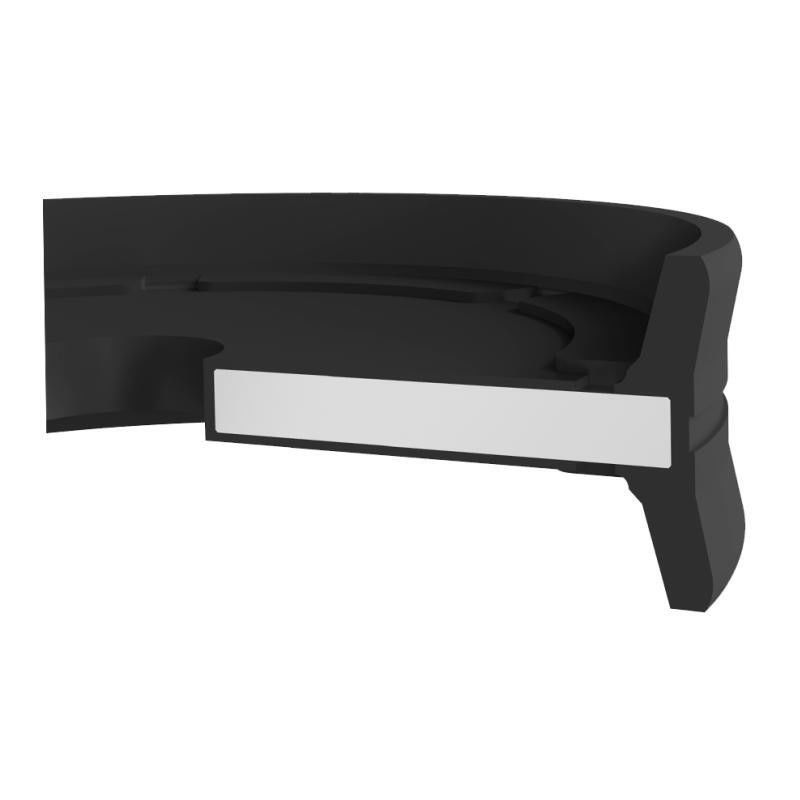

KL66 pneumatic piston seal is a double acting piston seal formed by vulcanizing the metal part and the elastomer material together with special methods.

Advantages

• Complete piston head
• Wide range of dimensions
• High friction resistance
• Easy installation
• Long service life
• Economical sealing solution

Area of Application

• Pneumatic Cylinders

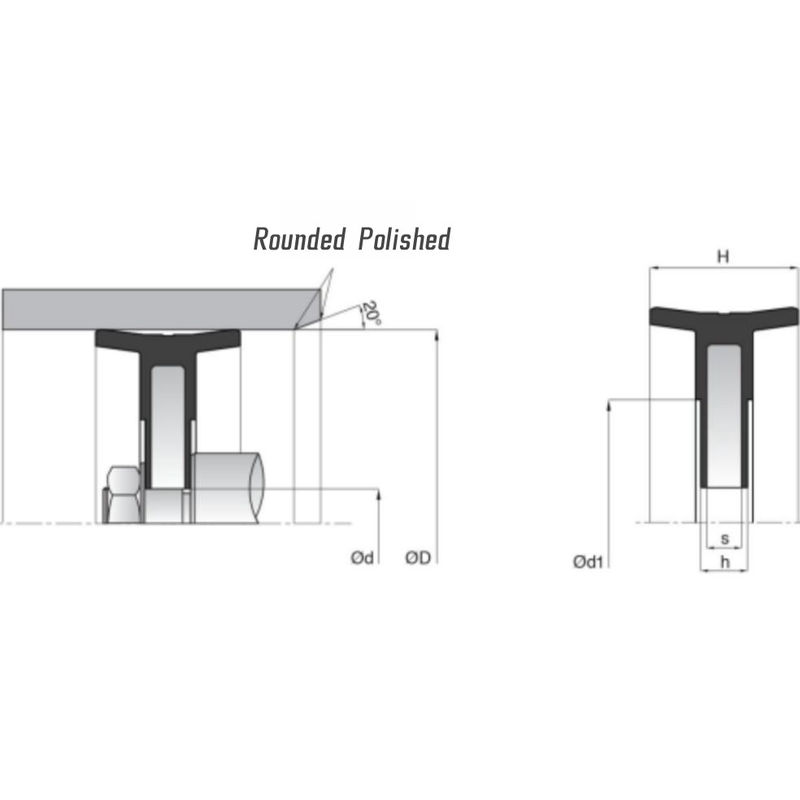

NBR Pneumatic Piston Seal Double Acting High Friction Resistant 0

	D (H11)	d (h9)	H	d1	s	h	MATERIAL
KL66-020	20	5.2	8	12.2	1	1.4	NBR
KL66-025	25	8	12	14.5	3	4	NBR
KL66-025/2	25.4	6.35	12.7	9.4	2.5	3.5	NBR
KL66-026	26	8	12	15.5	3	4	NBR
KL66-028	28.58	6.35	12.7	12.58	2.5	3.5	NBR
KL66-031	31.75	6.35	14.29	15.75	2.5	3.5	NBR
KL66-032	32	8	15	16	3	4	NBR
KL66-035	35	8	15	19	3	4	NBR
KL66-036	36	8	15	20	3	4	NBR
KL66-040	40	10	18	23	4	5	NBR
KL66-044	44.45	6.35	14.28	23.46	2.5	3.5	NBR
KL66-050	50	10	18	29	4	5	NBR
KL66-050/2	50	16	20.5	25	4	5	NBR
KL66-050/7	50.8	9.53	15.88	15.75	3	4	NBR
KL66-057	57.15	9.53	15.88	34.65	3	4	NBR
KL66-060	60	12	22	36.8	4	5	NBR
KL66-060/1	60.33	9.53	15.88	37.83	3	4	NBR
KL66-062	62	15	22	39	5	6	NBR
KL66-063	63	12	22	40.5	5	6	NBR
KL66-063/4	63.5	9.53	15.88	41	3	4	NBR
KL66-069	69.85	9.53	19.05	47.35	4	5.5	NBR
KL66-070	70	12	22	47	5	6	NBR
KL66-073	73.03	9.53	19.05	48.03	4	5.5	NBR
KL66-075	75	15	22	52	5	6	NBR
KL66-075/1	75	12	22.5	52	5	6	NBR
KL66-076	76.2	12.7	19.05	51.2	4	5	NBR
KL66-080	80	16	25	55	5	6.5	NBR
KL66-080/3	80	12	25	55	5	6.5	NBR
KL66-080/4	80	16	22.5	55.2	5	6.5	NBR
KL66-080/5	80	20	22.5	55.2	5	6.5	NBR
KL66-082	82.55	12.7	19.05	57.55	4	5	NBR
KL66-088	88.9	12.7	22.23	63.9	5	6	NBR
KL66-090	90	16	25	65	5	6.5	NBR
KL66-100	100	16	25	75	5	6.5	NBR
KL66-100/1	100	20	25	75	5	6.5	NBR
KL66-100/4	100	12	25	75	5	6.5	NBR
KL66-100/6	100	20	26	75	5	6.5	NBR
KL66-102	102	16	25	77	5	6.5	NBR
KL66-107	107.95	12.7	22.23	82.96	5	6	NBR
KL66-110	110	18	25	85	6	7.5	NBR
KL66-114	114.3	19.05	22.23	79.3	5	6	NBR
KL66-125	125	20	30	90	8	10	NBR
KL66-125/1	125	20	26	90	6	7.5	NBR
KL66-127	127	19.05	25.4	92	6	7.5	NBR
KL66-130	130	20	29	95	8	10	NBR
KL66-140	140	20	30	95	10	12	NBR
KL66-150	150	20	30	105	10	12	NBR
KL66-152	152.4	19.05	25.4	107.4	6	7.5	NBR
KL66-160	160	27	31	115	10	12	NBR
KL66-160/3	160	20	30	130	10	10.7	NBR
KL66-165	165.1	19.05	25.4	120.1	6	7.5	NBR
KL66-180	180	27	31	135	10	12	NBR
KL66-190	190	20	30	160.4	10	12	NBR
KL66-190/1	190	12	35	140	10	13	NBR
KL66-200	200	27	35	150	12	15	NBR
KL66-200/2	200	20	35	150	12	15	NBR
KL66-200/5	200	30	35	150	8	10.6	NBR
KL66-202	202.2	31.75	38.1	150.5	10	11	NBR
KL66-250	250	30	35	200	12	16.5	NBR
KL66-253	253	44.45	41.27	180	12	15	NBR
KL66-260	260	16	35	210	12	15.5	NBR
KL66-320	320	36	40	278.5	15	18.6	NBR
KL66-400	400	40	50	320	20	23	NBR
