Name: KL54 POM Guide Ring For Light Duty Hydraulic Applications
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL54
Price: Negotiable USD
Availability: InStock

Home > products > Hydraulic Guide Ring >

KL54 POM Guide Ring For Light Duty Hydraulic Applications

KL54 POM Guide Ring

Hydraulic POM Guide Ring

Place of Origin:

China

Brand Name:

Cologne

Certification:

ISO9001 / IRIS

Model Number:

KL54

Request A Quote

Product Details

Style:

Hydraulic Guiding Elements

Material:

POM

Temperature (max) °C:

-40/+100

Sliding Speed (max)- M/s:

1.0

Application:

Agricultural Machinery / Cranes / Light And Medium Duty Cylinders / Standard Industrial Cylinders

Advantages:

Easy Installation

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

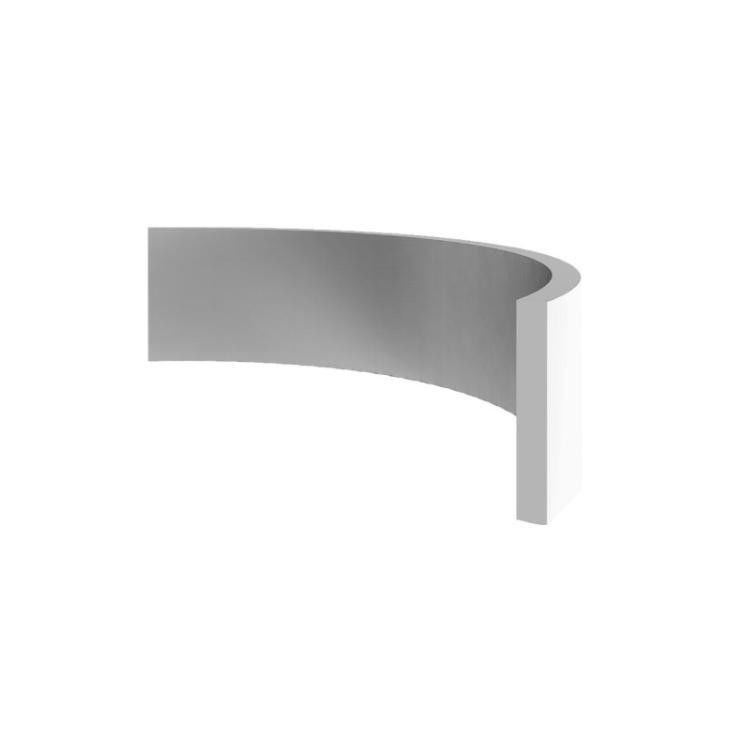

KL54 is a POM guide ring for light duty hydraulic applications.

Advantages

• Low coefficient of friction
• Easy installation
• Wide range of dimensions
• Economical sealing solution

Area of Application

• Agricultural machinery
• Cranes
• Light and medium duty cylinders
• Standard industrial cylinders

KL54 POM Guide Ring For Light Duty Hydraulic Applications 0

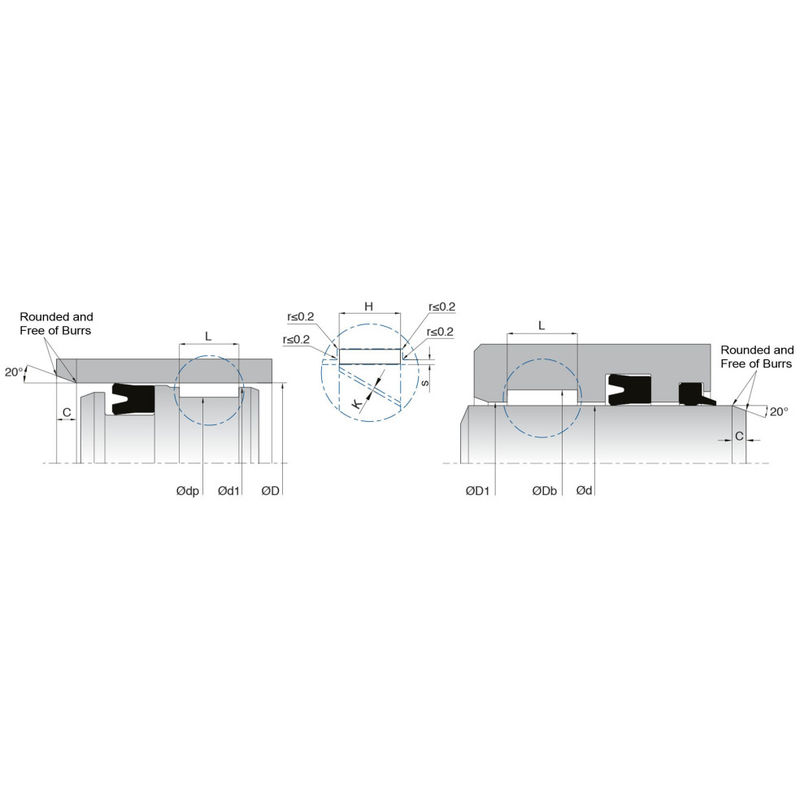

	d(f8) dp(h8)	Db(H8) D(H9)	L (+0.2/-0)	H	d1 (h9)	D1 (H9)	MATERIAL
KL54-022	22	26	10.4	10	25.6	22.4	POM
KL54-022/1	22	26	5.4	5	25.6	22.4	POM
KL54-025	25	29	6.4	6	28.6	25.4	POM
KL54-025/1	25	29	10.4	10	28.6	25.4	POM
KL54-025/2	25	30	5.7	5.3	29.5	25.5	POM
KL54-028	28	32	6.4	6	31.6	28.4	POM
KL54-028/1	28	32	10.4	10	31.6	28.4	POM
KL54-030	30	35	15.4	15	34.5	30.5	POM
KL54-030/1	30	35	5.7	5.3	34.5	30.5	POM
KL54-030/2	30	36	9.9	9.5	35.4	30.6	POM
KL54-035	35	40	15.4	15	39.5	35.5	POM
KL54-036	36	40	6.4	6	39.6	36.4	POM
KL54-036/1	36	40	15.4	15	39.6	36.4	POM
KL54-036/2	36	40	10.4	10	39.6	36.4	POM
KL54-040	40	45	15.4	15	44.5	40.5	POM
KL54-040/1	40	45	8.4	8	44.5	40.5	POM
KL54-040/2	40	45	20.4	20	44.5	40.5	POM
KL54-045	45	50	15.4	15	49.5	45.5	POM
KL54-045/1	45	51	8.4	8	50.4	45.6	POM
KL54-045/2	45	51	20.4	20	50.4	45.6	POM
KL54-046	46	50	10.4	10	49.6	46.4	POM
KL54-050/1	50	56	8.4	8	55.4	50.6	POM
KL54-050/2	50	56	20.4	20	55.4	50.6	POM
KL54-050/3	50	56	12.9	12.5	55.4	50.6	POM
KL54-055/1	55	61	8.4	8	60.4	55.6	POM
KL54-055/2	55	61	20.4	20	60.4	55.6	POM
KL54-056	56	62	8.4	8	61.4	56.6	POM
KL54-056/1	56	62	20.4	20	61.4	56.6	POM
KL54-060	60	65	15.4	15	64.5	60.5	POM
KL54-060/1	60	66	8.4	8	65.4	60.6	POM
KL54-060/2	60	66	20.4	20	65.4	60.6	POM
KL54-065	65	70	15.4	15	69.5	65.5	POM
KL54-080	80	85	15.4	15	84.5	80.5	POM
