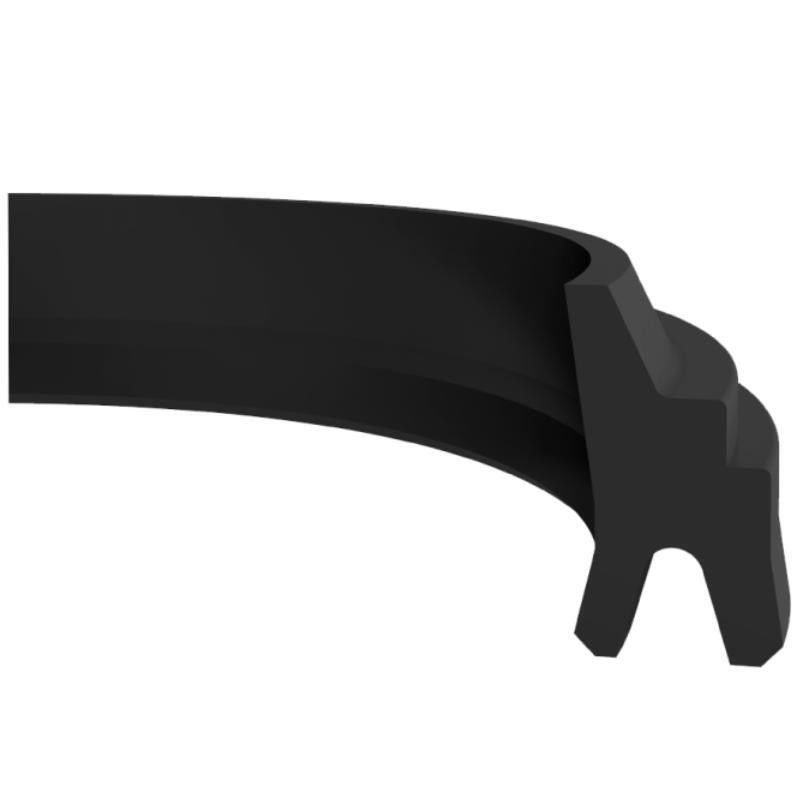

Name: Black NBR Hydraulic Cylinder Wiper Seal Elastomer Material
Brand: KELONG
SKU: KL-91
Rating: 4.6 (155 reviews)

Home > products > Double Lip Wiper Seal >

Black NBR Hydraulic Cylinder Wiper Seal Elastomer Material

Black Hydraulic Cylinder Wiper Seal

NBR Hydraulic Cylinder Wiper Seal

Place of Origin:

CHINA

Brand Name:

KELONG

Model Number:

KL-91

Request A Quote

Black NBR Hydraulic Cylinder Wiper Seal Elastomer Material

Product Details

Name:

Hydraulic Cylinder Wiper Seal

Material:

NBR

Temperature (max) °C:

-30/+105

Sliding Speed (max)- M/s:

1.0

Advantages:

Thin Oil Film / Easy Installation

Payment & Shipping Terms

Minimum Order Quantity:

100

Packaging Details:

Customizable packaging

Delivery Time:

Payment Terms:

L/C, T/T

Supply Ability:

100,000 pcs /months

Advantages

• Special design providing excellent protection against contamination
• Good wiping performance on the rod with double wiper design
• No twisting in the housing
• Thin oil film
• Easy installation

Area of Application

• Presses
• Injection moulding machines
• Standard industrial cylinders

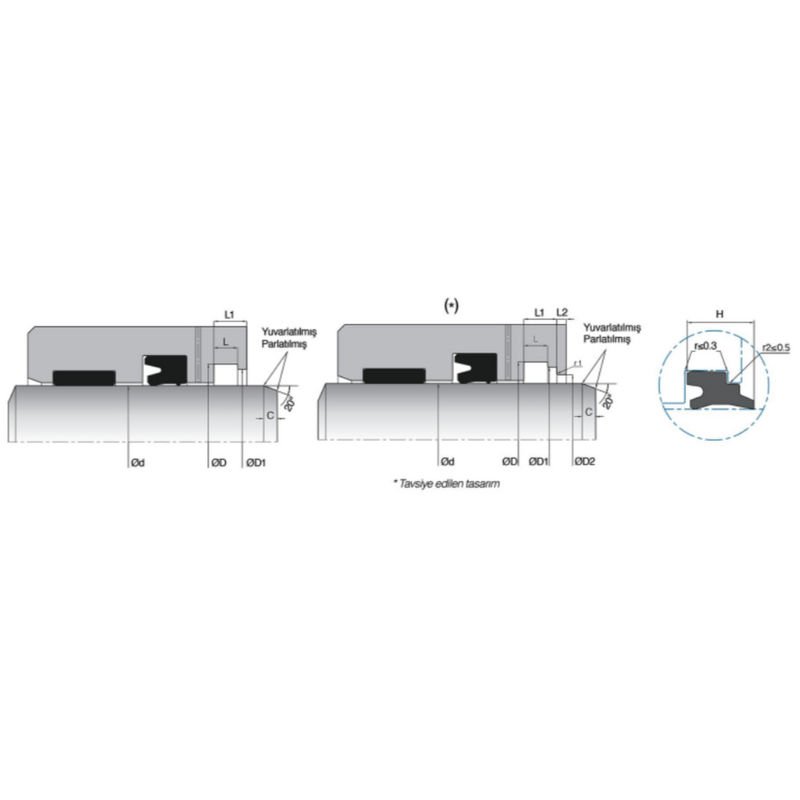

	d (f8)	D (H10)	D1 (H9)	D2 (H10)	L (+0.2/-0)	L1 (+0.2/-0)	L2 ≥2	H	r1	MATERIAL
KL91-010	10	18	16	13.5	4	6	2	8	0.5	NBR
KL91-010/1	10	16.2	14.2	12.8	4.2	4.9	2	6	0.5	NBR
KL91-012	12	20	18	15.5	4	6	2	8	0.5	NBR
KL91-014	14	22	20	17.5	4	6	2	8	0.5	NBR
KL91-015	15	23	21	18.5	4	6	2	8	0.5	NBR
KL91-016	16	24	22	19.5	4	6	2	8	0.5	NBR
KL91-016/1	16	24	22	19.5	4	6	2	7	0.5	NBR
KL91-016/2	16	23	21.6	18.8	3.2	4.2	2	6	0.5	NBR
KL91-018	18	26	24	21.5	4	6	2	8	0.5	NBR
KL91-020	20	28	26	23.5	4	6	2	8	0.5	NBR
KL91-022	22	30	28	25.5	4	6	2	8	0.5	NBR
KL91-024	24	32	30	27.5	4	6	2	8	0.5	NBR
KL91-025	25	33	31	28.5	4	6	2	8	0.5	NBR
KL91-026	26	34	32	29.5	4	6	2	8	0.5	NBR
KL91-028	28	36	34	31.5	4	6	2	8	0.5	NBR
KL91-030	30	38	36	33.5	4	6	2	8	0.5	NBR
KL91-032	32	40	38	35.5	4	6	2	8	0.5	NBR
KL91-035	35	43	41	38.5	4	6	2	8	0.5	NBR
KL91-036	36	44	42	39.5	4	6	2	8	0.5	NBR
KL91-037	37	45	43	40.5	4	6	2	8	0.5	NBR
KL91-038	38	46	44	41.5	4	6	2	8	0.5	NBR
KL91-040	40	48	46	43.5	4	6	2	8	0.5	NBR
KL91-040/1	40	48	46	42	3	4	2	5	0.5	NBR
KL91-042	42	50	48	45.5	4	6	2	8	0.5	NBR
KL91-045	45	53	51	48.5	4	6	2	8	0.5	NBR
KL91-046	46	54	52	49.5	4	6	2	8	0.5	NBR
KL91-048	48	56	54	51.5	4	6	2	8	0.5	NBR
KL91-050	50	58	56	53.5	4	6	2	8	0.5	NBR
KL91-052	52	60	58	55.5	4	6	2	8	0.5	NBR
KL91-055	55	63	61	58.5	4	6	2	8	0.5	NBR
KL91-056	56	64	62	59.5	4	6	2	8	0.5	NBR
KL91-060	60	68	66	63.5	4	6	2	8	0.5	NBR
KL91-063	63	71	69	66.5	4	6	2	8	0.5	NBR
KL91-065	65	73	71	68.5	4	6	2	8	0.5	NBR
KL91-068	68	76	74	71.5	4	6	2	8	0.5	NBR
KL91-070	70	78	76	73.5	4	6	2	8	0.5	NBR
KL91-075	75	83	81	78.5	4	6	2	8	0.5	NBR
KL91-080	80	88	86	83.5	4	6	2	8	0.5	NBR
KL91-085	85	93	91	88.5	4	6	2	8	0.5	NBR
KL91-090	90	98	96	93.5	4	6	2	8	0.5	NBR
KL91-095	95	103	101	98.5	4	6	2	8	0.5	NBR
KL91-100	100	108	106	103.5	4	6	2	8	0.5	NBR
KL91-105	105	117	114	110	5.5	8.2	3	11	1	NBR
KL91-110	110	122	119	115	5.5	8.2	3	11	1	NBR
KL91-113	113	125	122	118	5.5	8.2	3	11	1	NBR
KL91-115	115	127	124	120	5.5	8.2	3	11	1	NBR
KL91-120	120	132	129	125	5.5	8.2	3	11	1	NBR
KL91-125	125	137	134	130	5.5	8.2	3	11	1	NBR
KL91-130	130	142	139	135	5.5	8.2	3	11	1	NBR
KL91-135	135	147	144	140	5.5	8.2	3	11	1	NBR
KL91-139.5	139.5	151.5	148.5	144.5	5.5	8.2	3	11	1	NBR
KL91-140	140	152	149	145	5.5	8.2	3	11	1	NBR
KL91-142	142	154	151	147	5.5	8.2	3	11	1	NBR
KL91-145	145	157	154	150	5.5	8.2	3	11	1	NBR
KL91-150	150	162	159	155	5.5	8.2	3	11	1	NBR
KL91-155	155	167	164	160	5.5	8.2	3	11	1	NBR
KL91-158.5	158.5	170.5	167.5	163.5	5.5	8.2	3	11	1	NBR
KL91-160	160	172	169	165	5.5	8.2	3	11	1	NBR
KL91-165	165	177	174	170	5.5	8.2	3	11	1	NBR
KL91-170	170	182	179	175	5.5	8.2	3	11	1	NBR
KL91-172	172	184	181	177	5.5	8.2	3	11	1	NBR
KL91-175	175	187	184	180	5.5	8.2	3	11	1	NBR
KL91-180	180	192	189	185	5.5	8.2	3	11	1	NBR
KL91-185	185	197	194	190	5.5	8.2	3	11	1	NBR
KL91-187.5	187.5	199.5	197.5	193.5	5.5	8.2	3	11	1	NBR
KL91-190	190	202	199	195	5.5	8.2	3	11	1	NBR
KL91-192	192	204	201	197	5.5	8.2	3	11	1	NBR
KL91-195	195	207	204	200	5.5	8.2	3	11	1	NBR
KL91-200	200	212	209	205	5.5	8.2	3	11	1	NBR
KL91-205	205	220	216	212	6.4	9.5	3	13	1	NBR
KL91-206.5	206.5	221.5	217.5	213.5	6.4	9.5	3	13	1	NBR
KL91-210	210	225	221	217	6.4	9.5	3	13	1	NBR
KL91-215	215	230	227	222	6.4	9.5	3	13	1	NBR
KL91-220	220	235	231	227	6.4	9.5	3	13	1	NBR
KL91-225	225	240	236	232	6.4	9.5	3	13	1	NBR
KL91-230	230	245	241	237	6.4	9.5	3	13	1	NBR
KL91-231	231	246	242	238	6.4	9.5	3	13	1	NBR
KL91-235	235	250	247	242	6.4	9.5	3	13	1	NBR
KL91-240	240	255	251	247	6.4	9.5	3	13	1	NBR
KL91-245	245	260	257	252	6.4	9.5	3	13	1	NBR
KL91-250	250	265	261	257	6.4	9.5	3	13	1	NBR
KL91-255	255	270	266	262	6.4	9.5	3	13	1	NBR
KL91-258	258	273	270	265	6.4	9.5	3	13	1	NBR
KL91-260	260	275	271	267	6.4	9.5	3	13	1	NBR
KL91-265	265	280	277	272	6.4	9.5	3	13	1	NBR
KL91-270	270	285	282	277	6.4	9.5	3	13	1	NBR
KL91-275	275	290	286	282	6.4	9.5	3	13	1	NBR
KL91-280	280	295	291	287	6.4	9.5	3	13	1	NBR
KL91-285	285	300	297	292	6.4	9.5	3	13	1	NBR
KL91-290	290	305	301	297	6.4	9.5	3	13	1	NBR
KL91-295	295	310	306	302	6.4	9.5	3	13	1	NBR
KL91-300	300	315	311	307	6.4	9.5	3	13	1	NBR
KL91-310	310	325	321	317	6.4	9.5	3	13	1	NBR
KL91-320	320	335	331	327	6.4	9.5	3	13	1	NBR
KL91-325	325	340	337	332	6.4	9.5	3	13	1	NBR
KL91-330	330	345	342	337	6.4	9.5	3	13	1	NBR
KL91-340	340	355	352	347	6.4	9.5	3	13	1	NBR
KL91-345	345	360	357	352	6.4	9.5	3	13	1	NBR
KL91-350	350	365	361	357	6.4	9.5	3	13	1	NBR
KL91-355	355	370	367	362	6.4	9.5	3	13	1	NBR
KL91-360	360	375	371	367	6.4	9.5	3	13	1	NBR
KL91-370	370	385	381	377	6.4	9.5	3	13	1	NBR
KL91-400	400	415	412	407	6.4	9.5	3	13	1	NBR
KL91-410	410	425	422	417	6.4	9.5	3	13	1	NBR
KL91-420	420	435	432	427	6.4	9.5	3	13	1	NBR
KL91-450	450	465	462	457	6.4	9.5	3	13	1	NBR
KL91-460	460	475	472	467	6.4	9.5	3	13	1	NBR
KL91-500	500	515	512	507	6.4	9.5	3	13	1	NBR
