Name: Glass Fiber Reinforced Guide Ring POM Hydraulic Guiding Elements
Brand: Kelong
SKU: KL53
Rating: 4.9 (119 reviews)

Home > products > Hydraulic Guide Ring >

Glass Fiber Reinforced Guide Ring POM Hydraulic Guiding Elements

Fiber Reinforced Guide Rings

POM Hydraulic Guiding Elements

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL53

Request A Quote

Glass Fiber Reinforced Guide Ring POM Hydraulic Guiding Elements

Product Details

Style:

Hydraulic Guiding Elements

Material:

POM

Temperature (max) °C:

-40/+110

Sliding Speed (max)- M/s:

1.0

Application:

Agricultural Machinery / Industrial Cylinders / Mobile Machinery / Light And Medium Duty Cylinders

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

Glass Fiber Reinforced Guide Rings POM Material For Hydraulic Applications

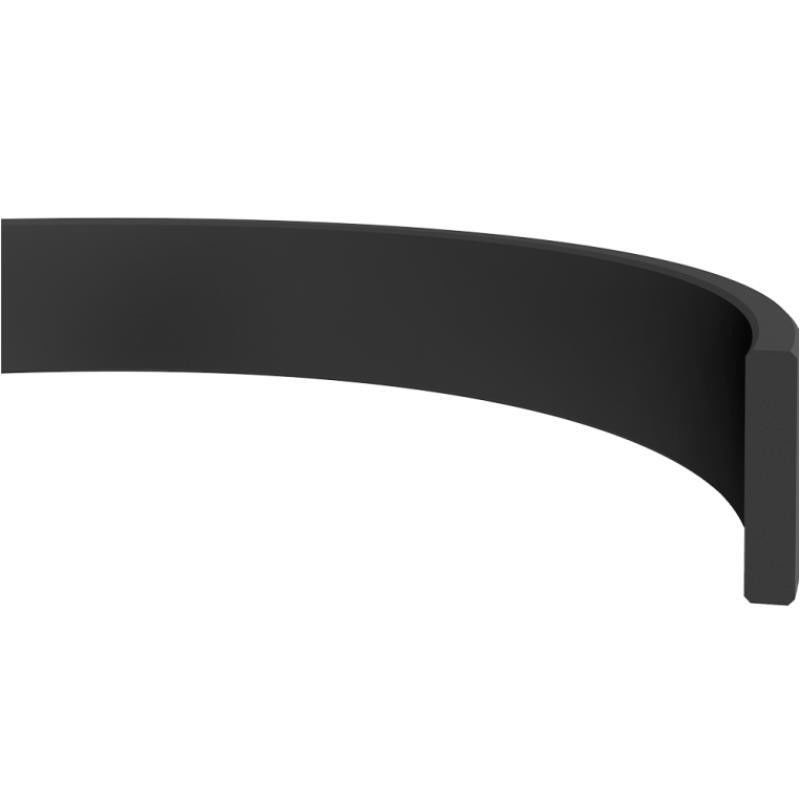

KL53 is a glass-fibre reinforced POM guide ring, designed for general purpose in hydraulic applications. Glass-fibre composition in the material increases the load bearing capacity of the guiding element.

Hydraulic Guide Ring Bearing strip has the ability to support side loads and eliminate ‘stick slip’ between moving parts. The accurately dimensioned rectangular cross section is produced from a special combination of PTFE and Bronze materials.

It has excellent heat resistance and strength to resist creep, making it suitable for bearings with reciprocating, oscillating or rotary movement, whether lubricated or not. Our standard range of cross section sizes areproportioned to be wrapped around a wide range of rod or piston diameters.

Advantages

• Easy installation
• The high form stability at operating temperature range
• Wide dimension range

Area of Application

• Agricultural machinery
• Mobile machinery
• Industrial cylinders
• Light and medium duty cylinders

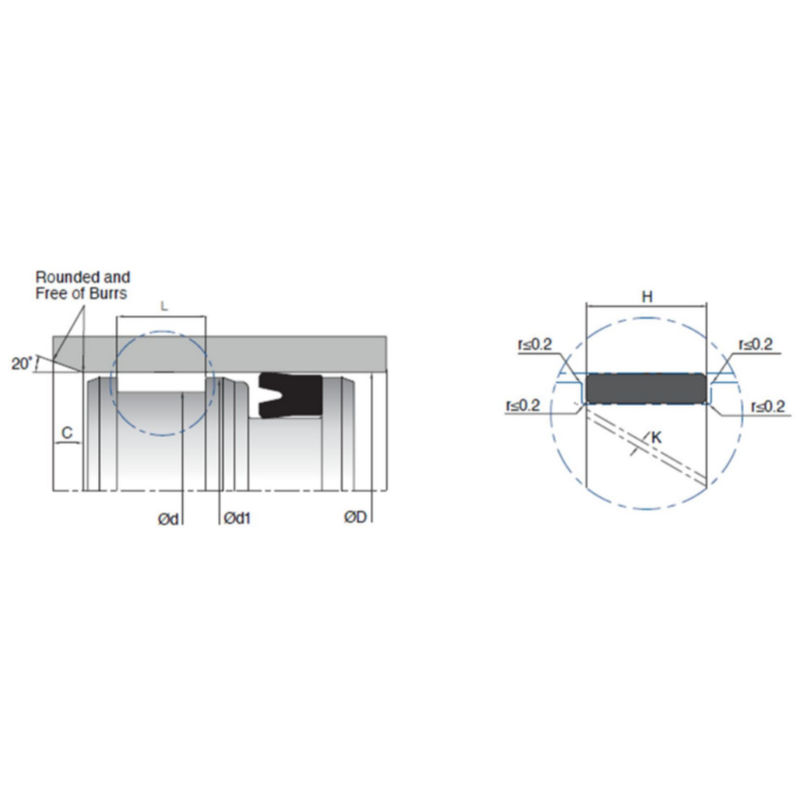

Glass Fiber Reinforced Guide Ring POM Hydraulic Guiding Elements 0

	D (H8)	d (h8)	d1 (h9)	L (+0.2/-0)	H	MATERIAL
KL53-020	20	16	19.6	9.6	9.4	POM
KL53-020/1	20	17	19.6	3.2	3	POM
KL53-022	22	18	21.6	9.6	9.4	POM
KL53-025	25	21	24.6	9.7	9.5	POM
KL53-025/1	25	21	24.6	8.2	8	POM
KL53-025/2	25	22	24.6	4.2	4	POM
KL53-025/3	25	21.9	24.6	4	3.8	POM
KL53-025/4	25	22	24.6	5.8	5.6	POM
KL53-030	30	26	29.6	9.7	9.5	POM
KL53-030/1	30	25	29.5	5.6	5.4	POM
KL53-030/2	30	27	29.6	10	9.8	POM
KL53-030/3	30	27	29.6	5	4.8	POM
KL53-030/4	30	25	29.5	15.2	15	POM
KL53-032	32	28	31.6	9.7	9.5	POM
KL53-032/1	32	26	31.4	9.9	9.7	POM
KL53-032/2	32	28.9	31.6	4	3.8	POM
KL53-032/3	32	27	31.5	5.6	5.4	POM
KL53-033	33	28	32.5	5.7	5.5	POM
KL53-033/1	33	28	32.5	9.7	9.5	POM
KL53-034	34	28	33.4	9.7	9.5	POM
KL53-035	35	30	34.5	15.2	15	POM
KL53-035/1	35	31	34.6	9.7	9.5	POM
KL53-035/2	35	29	34.4	9.7	9.5	POM
KL53-035/3	35	29	34.4	10	9.8	POM
KL53-035/4	35.1	32	34.7	4	3.8	POM
KL53-035/5	35	30	34.5	9.7	9.5	POM
KL53-035/6	35	30	34.5	5.6	5.4	POM
KL53-035/7	35	30	34.5	8.2	8	POM
KL53-036	36	33	35.6	4	3.8	POM
KL53-037	37	32	36.5	5.7	5.5	POM
KL53-040	40	35	39.5	15.2	15	POM
KL53-040/1	40	36	39.6	9.7	9.5	POM
KL53-040/2	40	34	39.4	9.9	9.7	POM
KL53-040/3	40	35	39.5	5.6	5.4	POM
KL53-040/4	40	35	39.5	6.3	6.1	POM
KL53-040/5	40	35	39.5	9.7	9.5	POM
KL53-040/6	40	34	39.4	9.7	9.5	POM
KL53-040/7	40	36	39.6	6.4	6.2	POM
KL53-041	41	36	40.5	9.7	9.5	POM
KL53-041/1	41	38	40.6	21	20.8	POM
KL53-041/2	41	35	40.4	20	19.8	POM
KL53-041/3	41	36	40.5	5.6	5.4	POM
KL53-045	45	40	44.5	15.2	15	POM
KL53-045/1	45	41	44.6	9.7	9.5	POM
KL53-045/2	45	40	44.5	9.7	9.5	POM
KL53-045/3	45	41	44.6	10.2	10	POM
KL53-045/4	45	39	44.4	10	9.8	POM
KL53-045/5	45	40	44.5	20.2	20	POM
KL53-045/6	45	40	44.5	10	9.8	POM
KL53-045/7	45	40	44.5	5.6	5.4	POM
KL53-045/8	45	40	44.5	9.8	9.6	POM
KL53-045/9	45	40	44.5	9.9	9.7	POM
KL53-046	46	41	45.5	5.6	5.4	POM
KL53-046/1	46	40	45.4	13	12.8	POM
KL53-049	49	45	48.6	20	19.8	POM
KL53-050	50	45	49.5	15.2	15	POM
KL53-050/1	50	44	49.4	9.7	9.5	POM
KL53-050/2	50	45	49.5	9.7	9.5	POM
KL53-050/3	50	45	49.5	5.6	5.4	POM
KL53-050/4	50	46	49.6	15.2	15	POM
KL53-050/5	50	43.5	49.4	5.8	5.6	POM
KL53-050.8	50.8	44.45	50.2	19.25	19.05	POM
KL53-050.8/1	50.8	44.45	50.2	6.55	6.35	POM
KL53-053	53	47	52.4	13	12.8	POM
KL53-055	55	50	54.5	15.2	15	POM
KL53-055/1	55	49	54.4	12.7	12.5	POM
KL53-055/2	55	50	54.5	8.2	8	POM
KL53-055/3	55	50	54.5	20.2	20	POM
KL53-055/4	55	50	54.5	9.7	9.5	POM
KL53-055/5	55	49	54.4	9.5	9.3	POM
KL53-055/6	55	49	54.4	9.9	9.7	POM
KL53-055/7	55	51	54.6	10	9.8	POM
KL53-055/8	55	50	54.5	5.6	5.4	POM
KL53-055/9	55	50	54.5	9.9	9.7	POM
KL53-057.15	57.15	50.8	56.55	19.25	19.05	POM
KL53-060	60	55	59.5	15.2	15	POM
KL53-060/1	60	54	59.4	12.7	12.5	POM
KL53-060/2	60	54	59.4	9.5	9.3	POM
KL53-060/3	60	55	59.5	9.7	9.5	POM
KL53-060/4	60	56	59.6	9.8	9.6	POM
KL53-060/5	60	56	59.6	10.2	10	POM
KL53-060/6	60	54	59.4	5.6	5.4	POM
KL53-060/7	60	55	59.5	5.8	5.6	POM
KL53-060/8	60	55	59.5	9.9	9.7	POM
KL53-060/9	60	56	59.6	8.1	7.9	POM
KL53-060/10	60	55	59.5	7.2	7	POM
KL53-060/11	60	55	59.5	13.2	13	POM
KL53-060/12	60	55	59.5	20.2	20	POM
KL53-062	62	56	61.4	20.2	20	POM
KL53-062/1	62	56	61.4	9.7	9.5	POM
KL53-063	63	57	62.4	12.7	12.5	POM
KL53-063/1	63	58	62.5	10	9.8	POM
KL53-063/2	63	58	62.5	9.7	9.5	POM
KL53-063/3	63	59	62.6	9.7	9.5	POM
KL53-063/4	63	57	62.4	10	9.8	POM
KL53-063/5	63	58	62.5	5.6	5.4	POM
KL53-063/6	63	58	62.5	6.3	6.1	POM
KL53-063/7	63	57	62.4	9.7	9.5	POM
KL53-064	64	60	63.6	19.5	19.3	POM
KL53-064/1	64	60	63.6	10.2	10	POM
KL53-065	65	60	64.5	15.2	15	POM
KL53-065/1	65	59	64.4	12.7	12.5	POM
KL53-065/2	65	60	64.5	9.7	9.5	POM
KL53-065/3	65	62	64.6	20	19.8	POM
KL53-065/4	65	60	64.5	5.5	5.3	POM
KL53-065/5	65	60	64.5	8.2	8	POM
KL53-065/7	65	60	64.5	9.9	9.7	POM
KL53-065/8	65	60	64.5	5.7	5.5	POM
KL53-065/9	65	60	64.5	9.5	9.3	POM
KL53-066	66	60	65.4	9.7	9.5	POM
KL53-068	68	63	67.5	9.7	9.5	POM
KL53-069	69	63	68.4	30.2	30	POM
KL53-070	70	65	69.5	15.2	15	POM
KL53-070/1	70	64	69.4	12.7	12.5	POM
KL53-070/2	70	65	69.5	9.7	9.5	POM
KL53-070/3	70	66	69.6	10	9.8	POM
KL53-070/4	70	65	69.5	5.6	5.4	POM
KL53-070/5	70	65	69.5	7	6.8	POM
KL53-070/7	70	64	69.4	10.2	10	POM
KL53-070/8	70	65	69.5	7.2	7	POM
KL53-070/9	70	65	69.5	9.9	9.7	POM
KL53-072	72	67	71.5	5.6	5.4	POM
KL53-075	75	70	74.5	15.2	15	POM
KL53-075/1	75	69	74.4	12.7	12.5	POM
KL53-075/2	75	70	74.5	9.7	9.5	POM
KL53-075/3	75	70	74.5	5.6	5.4	POM
KL53-075/4	75	70	74.5	30.2	30	POM
KL53-075/5	75	70	74.5	9.9	9.7	POM
KL53-075/6	75	70	74.5	20.2	20	POM
KL53-076.20	76.2	69.85	75.6	19.25	19.05	POM
KL53-080	80	75	79.5	15.2	15	POM
KL53-080/1	80	74	79.4	12.7	12.5	POM
KL53-080/2	80	75	79.5	8.2	8	POM
KL53-080/3	80	75	79.5	9.7	9.5	POM
KL53-080/4	80	76	79.6	15.2	15	POM
KL53-080/5	80	72	79.4	6.2	6	POM
KL53-080/6	80	75	79.5	5.6	5.4	POM
KL53-080/7	80	74	79.4	12.2	12	POM
KL53-080/8	80	75	79.5	9.9	9.7	POM
KL53-080/9	80	75	79.5	25.2	25	POM
KL53-080/10	80	74	79.4	9.9	9.7	POM
KL53-080/11	80	75	79.5	15	14.8	POM
KL53-080/13	80	75	79.5	20	19.8	POM
KL53-080/15	80	76	79.6	9.7	9.5	POM
KL53-083	83	75	82.4	9.7	9.5	POM
KL53-085	85	80	84.5	15.2	15	POM
KL53-085/1	85	79	84.4	12.7	12.5	POM
KL53-085/2	85	80	84.5	9.7	9.5	POM
KL53-085/3	85	80	84.5	20	19.8	POM
KL53-085/4	85	80	84.5	5.6	5.4	POM
KL53-085/5	85	80	84.5	9.9	9.7	POM
KL53-085/6	85	77	84.4	19.9	19.7	POM
KL53-086	86	80	85.4	30.2	30	POM
KL53-090	90	85	89.5	15.2	15	POM
KL53-090/1	90	84	89.4	12.7	12.5	POM
KL53-090/2	90	85	89.5	5.7	5.5	POM
KL53-090/3	90	85	89.5	9.9	9.7	POM
KL53-090/4	90	85	89.5	9.7	9.5	POM
KL53-090/5	90	84	89.4	25	24.8	POM
KL53-090/6	90	85	89.5	15	14.8	POM
KL53-090/7	90	84	89.4	15.2	15	POM
KL53-090/8	90	84	89.4	19.7	19.5	POM
KL53-094	94	90	93.6	15.2	15	POM
KL53-095	95	90	94.5	15.2	15	POM
KL53-095/1	95	89	94.4	12.7	12.5	POM
KL53-095/2	95	90	94.5	9.7	9.5	POM
KL53-095/3	95	90	94.5	9.9	9.7	POM
KL53-095/4	95	90	94.5	9.5	9.3	POM
KL53-096/2	96	90	95.4	30.2	30	POM
KL53-096/3	95	90	94.5	12.8	12.6	POM
KL53-100	100	95	99.5	15.2	15	POM
KL53-100/1	100	94	99.4	12.7	12.5	POM
KL53-100/2	100	95	99.5	5.6	5.4	POM
KL53-100/3	100	96	99.6	10.2	10	POM
KL53-100/4	100	94	99.4	13	12.8	POM
KL53-100/5	100	95	99.5	9.7	9.5	POM
KL53-100/6	100	95	99.5	10.2	10	POM
KL53-100/7	100	95	99.5	15	14.8	POM
KL53-100/9	100	94	99.4	15	14.8	POM
KL53-100/10	100	95	99.5	9.5	9.3	POM
KL53-100/11	100	94	99.4	25	24.8	POM
KL53-100/12	100	94	99.4	15.2	15	POM
KL53-103	103	95	102.4	9.7	9.5	POM
KL53-104	104	100	103.6	15.2	15	POM
KL53-105	105	100	104.5	15.2	15	POM
KL53-105/1	105	101	104.6	15.2	15	POM
KL53-105/2	105	100	104.5	9.9	9.7	POM
KL53-105/3	105	100	104.5	15	14.8	POM
KL53-105/4	105	100	104.5	9.5	9.3	POM
KL53-105/5	105	99	104.4	15	14.8	POM
KL53-110	110	104	109.4	12.7	12.5	POM
KL53-110/1	110	105	109.5	9.7	9.5	POM
KL53-110/2	110	106	109.6	14.9	14.7	POM
KL53-110/3	110	104	109.4	10.2	10	POM
KL53-110/6	110	105	109.5	15	14.8	POM
KL53-110/8	110	105	109.5	9.9	9.7	POM
KL53-110/9	110	104	109.4	15	14.8	POM
KL53-110/10	110	105	109.5	9.5	9.3	POM
KL53-110/11	110	104	109.4	15.2	15	POM
KL53-110/12	110	104	109.4	24.7	24.5	POM
KL53-115	115	109	114.4	12.7	12.5	POM
KL53-115/1	115	110	114.5	9.7	9.5	POM
KL53-115/2	115	105	114.4	17	16.8	POM
KL53-115/4	115	110	114.5	20.2	20	POM
KL53-115/5	115	110	114.5	9.5	9.3	POM
KL53-115/6	115	110	114.5	15	14.8	POM
KL53-115/7	115	109	114.4	19.2	19	POM
KL53-120	120	114	119.4	12.7	12.5	POM
KL53-120/1	120	115	119.5	15.2	15	POM
KL53-120/2	120	115	119.5	9.7	9.5	POM
KL53-120/3	120	115	119.5	15	14.8	POM
KL53-120/4	120	114	119.4	15	14.8	POM
KL53-120/5	120	115	119.5	9.5	9.3	POM
KL53-125	125	120	124.5	15.2	15	POM
KL53-125/1	125	119	124.4	12.7	12.5	POM
KL53-125/2	125	120	124.5	9.7	9.5	POM
KL53-125/4	125	119	124.4	15.2	15	POM
KL53-125/6	125	120	124.5	9.9	9.7	POM
KL53-125/7	125	119	124.4	15	14.8	POM
KL53-125/8	125	121	124.6	10	9.8	POM
KL53-125/9	125	120	124.5	9.5	9.3	POM
KL53-125/10	125	119	124.4	20.2	20	POM
KL53-130	130	124	129.4	12.7	12.5	POM
KL53-130/1	130	125	129.5	15.2	15	POM
KL53-130/2	130	125	129.5	7.2	7	POM
KL53-130/3	130	125	129.5	15	14.8	POM
KL53-130/5	130	123	129.4	15	14.8	POM
KL53-130/4	130	125	129.5	9.9	9.7	POM
KL53-135	135	130	134.5	15.2	15	POM
KL53-135/1	135	129	134.4	12.8	12.6	POM
KL53-135/2	135	130	134.5	12.5	12.3	POM
KL53-135/3	135	128	134.4	25	24.8	POM
KL53-135/4	135	129	134.4	19.2	19	POM
KL53-139	139.7	133.35	139.1	9.72	9.52	POM
KL53-140	140	134	139.4	12.7	12.5	POM
KL53-140/1	140	135	139.5	9.7	9.5	POM
KL53-140/2	140	135	139.5	15.2	15	POM
KL53-140/3	140	133	139.4	15.2	15	POM
KL53-140/4	140	133	139.4	20	19.8	POM
KL53-140/5	140	133	139.4	14.9	14.7	POM
KL53-140/6	140	135	139.5	9.5	9.3	POM
KL53-140/7	140	134	139.4	20.2	20	POM
KL53-140/8	140	135	139.5	15	14.8	POM
KL53-145	145	140	144.5	15.2	15	POM
KL53-145/1	145	140	144.5	9.9	9.7	POM
KL53-145/2	145	140	144.5	25	24.8	POM
KL53-150	150	144	149.4	12.7	12.5	POM
KL53-150/1	150	144	149.4	19.2	19	POM
KL53-150/2	150	145	149.5	9.7	9.5	POM
KL53-150/3	150	146	149.6	10.2	10	POM
KL53-150/4	150	143	149.4	20	19.8	POM
KL53-150/5	150	145	149.5	9.5	9.3	POM
KL53-150/6	150	145	149.5	15.2	15	POM
KL53-154	154	150	153.6	15.2	15	POM
KL53-156	156	150	155.4	19.2	19	POM
KL53-160	160	155	159.5	15.2	15	POM
KL53-160/1	160	154	159.4	19.2	19	POM
KL53-160/2	160	155	159.5	9.7	9.5	POM
KL53-160/4	160	152	159.4	15.2	15	POM
KL53-160/5	160	153	159.4	19.7	19.5	POM
KL53-165	165	160	164.5	15.2	15	POM
KL53-165/1	165	159	164.4	29.7	29.5	POM
KL53-166	166	160	165.4	12.7	12.5	POM
KL53-170	170	165	169.5	15.2	15	POM
KL53-170/1	170	162	169.4	19.7	19.5	POM
KL53-175	175	170	174.5	15.2	15	POM
KL53-180	180	174	179.4	19.2	19	POM
KL53-180/1	180	175	179.5	9.7	9.5	POM
KL53-180/2	180	172	179.4	15	14.8	POM
KL53-185	185	180	184.5	15.2	15	POM
KL53-190	190	185	189.5	15.2	15	POM
KL53-190/1	190	182	189.4	24.7	24.5	POM
KL53-195	195	190	194.5	15.2	15	POM
KL53-200	200	194	199.4	19.2	19	POM
KL53-200/1	200	195	199.5	15.2	15	POM
KL53-200/2	200	192	199.4	15	14.8	POM
KL53-210	210	205	209.5	9.9	9.7	POM
KL53-220	220	214	219.4	19.2	19	POM
KL53-225	225	219	224.4	19.2	19	POM
KL53-225/1	225	220	224.5	25	24.8	POM
KL53-226	226	220	225.4	19.2	19	POM
KL53-250	250	244	249.4	19.2	19	POM

Tags：
